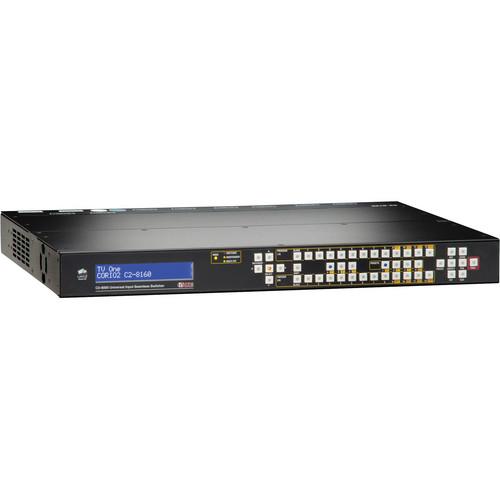

User Manual for TV One C2-8000 Universal Input Seamless Switcher Click to enlarge the picture
Contents of the user manual for the TV One C2-8000 Universal Input Seamless
- Product category: Routers & Switchers TV One
- Brand: TV One
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TV One Routers & Switchers
|
User manual for the TV One C2-8000 Universal Input Seamless contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TV One product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TV One user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TV One product will considerably shorten its lifespan!
|
Product description The TV One C2-8000 Universal Input Seamless Switcher is designed to switch 10x DVI-U sources across 2x DVI-U ports with audio. Using CORIO2 technology, it supports bi-directional 2-channel conversion between a variety of analog and digital video formats. The system features 10x DVI-U (HDMI/CV/YC/RGB/YPbPr) inputs and 2x DVI-U outputs. You can select high-resolution DVI output as any PC or HDTV resolution.
The AutoSet feature automatically positions and resizes the computer image to adjust to the native resolution of the connected display, making set-up hassle-free. The Genlock input, which is SD and HD compatible, provides a wide subcarrier lock range with subcarrier phase adjust and ensures precise synchronization of the incoming signals. Using motion compensation technology and 3:2 pull-down, the switcher ensures optimum use of bandwidth for efficient transfer of video signals. Diagonal interpolation, along with noise reduction ensures high quality de-interlacing of PAL, NTSC, and 1080i signals. Digital flicker elimination circuitry along with a high sampling rate provides clear and crisp digital images. Chroma and Luma keying enables one input to be keyed over another, allowing you to fade the keyed image in or out. In addition, Mix Mode allows you to apply wipe, push, and cut transitions.
Using Variable Image Shrink and Zoom, you can resize the image to perform a detailed analysis of the incoming signal or get an overview of the image. A non-volatile memory is used to store the settings, which can be retained even if the power is turned off. User-defined presets allow you to customize the switcher's settings for various applications.
The switcher supports embedding and de-embedding of audio for SDI and DVI formats and closed-caption for CV and SDI video formats. The switcher comes with Windows Control Panel Software and the control interface is compatible with most third-party control systems. - Provides high-quality seamless video switching
- 10x DVI-U inputs and 2x DVI-U outputs (HDMI/CV/YC/RGB/YPbPr) + Audio Interface
- Offers up-down/cross conversion of signals
- High-resolution DVI-U outputs can be selected as any PC or HDTV resolution
- Analogue - PC to 2048 x 2048 and HDTV up to 1080p/60
- DVI - PC to 1920 x 1200 and HDTV to 1080p/60
- Supports NTSC, PAL, PAL-M, PAL-N, and SECAM standards
- HDMI-compatible input and output with HDCP
- AutoSet feature automatically resizes and positions the image to fit the video screen
- Genlock Inputs prevents momentary loss of signal when locking on to some other signal
- Motion compensation improves compression efficiency
- Digital flicker elimination circuitry along with a high sampling rate provides clear and crisp digital images
- 3:2 pull-down and diagonal interpolation
- Noise reduction for PAL, NTSC, and 1080i inputs
- Automatic incoming resolution detection identifies the incoming resolution of the signal
- Provides variable image zoom up to 10x and shrink up to 10%
- Supports 4:4:4 full bandwidth sampling, which enhances the image quality
- Supports chroma and luma keying with user-defined logo insertion
- Fade, wipe, push, and cut transitions
- Audio can be embedded or de-embedded for SDI and DVI
- Closed-caption can be de-embedded / embedded for CV and SDI
- Offers audio routing from the (HDMI compatible) DVI/SDI input to DVI/SDI output
- Enables storage of still images
- Borders with variable sizes and colors
- Controlled via IP and RS-232/422/485 interfaces
- Front panel LCD screen allows you to make changes to the current settings
- Optional features include audio module (AES break-out and adjustable delay), tally module, redundant power supplies and rear rack-mount supports
- Includes a power inlet and an optional redundant internal PSU
In the Box TV One C2-8000 Universal Input Seamless Switcher Operations Manual Front Rack Ears Power Cable (US, UK, Euro or AU) 5-Year Warranty on Parts and Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the TV One C2-8000 Universal Input Seamless Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTV One C2-8160 Specs | | | Television Standards | NTSC, PAL, PAL-M/N, SECAM | | Composite Video | 10x DVI-U | | YC(S-Video) | 10x DVI-U | | YUV /YPbPr | 10x DVI-U | | | | Digital DVI | 10x DVI-U (HDMI and HDCP compatible) | | Analog | 10x DVI-U | | Analog Format Support | RGBHV, RGBS, RGsB, YPbPr | | Analog Sync | TTL Level, 10K ohm, Pos or Neg | | RGB Level Range | 0.5 - 2.0 Vp-p | | Scan Rate Detection | Automatic | | Analog Signals | PC to 2048 x 2048, HD to 1080p/60 | | DVI Signals | PC to 1920 x 1200, HD to 1080p/60 | | Maximum Horizontal Scan Rate | 150 KHz | | Computer Compatibility | PC, Macintosh, Workstations | | | | Television Standards | NTSC, PAL, PAL-M/N, SECAM | | Composite Video | 2x DVI-U | | YC(S-Video) | 2x DVI-U | | YUV /YPbPr | 2x DVI-U | | | | DVI Signals | 2x DVI-U (HDMI & HDCP compatible) | | Analog | 2x DVI-U | | Analog Format Support | RGBHV, RGBS, RGsB, YPbPr | | RGB Level Range | 0.7 Vp-p | | DVI Signals | PC to 1920 x 1200, HD to 1080p/60 | | Analog Signals | PC to 2048 x 2048, HD to 1080p/60 | | Vertical Refresh Rate | Up to 250 Hz | | Size and Position | Automatic via AutoSet or Manual | | Image Size | User-Definable | | Image Freeze | One Video Frame | | Settings Memory | Non-Volatile | | Zoom Range | Variable to 10X Zoom | | Shrink Range | Variable to 10% | | Image Mirroring | Horizontal and/or Vertical | | Conversion Technology Proprietary | CORIO2 | | Frame-rate Conversion | Temporal | | Color | RGB 24-bit 4:4:4YPbPr 20-bit 4:2:2 | | Max. Sampling Rate | 162 MHz | | Firmware Memory | Flash, Upgradeable via RS-232Pixel-level Motion Adaptive | | De-interlacing | Diagonal Interpolation, Noise Reduction | | Video Comb Filter Film | Adaptive 3:2 Pull-down | | Video Adjustments | CV/YC: Contrast, Brightness, Saturation, Hue (NTSC).Analog RGB/YPbPr levels | | | | De-embed / embed | SDI & HDMI-I/O via DVI | | Delay | via optional module | | | | De-embed / embed | SDI (608 & 608 in 708) | | | | Subcarrier Lock Range | +/- 200 Hz for NTSC Operation(+/- 250 Hz for PAL Operation) | | Subcarrier Phase | +/- 180° Adjustment | | | | 720p (1280x720) | 23.98, 24, 25, 29.97, 30, 50,59.94, 60 Hz | | 1035i (1920x1035) | 59.94, 60 Hz | | 1080i (1920x1080) | 50, 59.94, 60 Hz | | 1080p (1920x1080) | 23.98, 24, 25, 29.97, 30 Hz50, 59.94, 60 Hz | | | | Local Control | via Front Panel Buttons & LCD | | RS-232/422/485 | via D9 Female Connector | | IP Interface | RJ45 Connector | | | | Main unit | FCC, CE, RoHS, (UL PSU) | | | | Operating Temperature | +32° to +122°F (0° to + 50°C) | | Operating Humidity | 10% to 85%, Non-condensing | | Storage Temperature | +14° to +158°F (-10° to +70°C) | | Storage Humidity | 10% to 85%, Non-condensing | | MTBF | Approx. 35,000 hours | | | | External Power Supply | 110 V to 240 V auto-detecting | | Redundancy | Optional redundant internal PSU | | | | Overall Dimensions (H x W x D) | 1.73 x 17.0 x 13.1" (44 x 431 x 334 mm) | | Weight (Net) | 11 lb (5 Kg)(with redundant PSU option) | | | | Package Weight | 15.5 lb | | Box Dimensions (LxWxH) | 19.0 x 18.75 x 7.0" |
