Product description The TV One CORIOview C2-6104A 4-window DVI-I Processor is a multi-window video processor that allows display of up to 4 substantially sized windows on a single DVI-I output. Four, high performance CORIO2 Scaling Engines power the 4 windows respectively, providing complete PIP flexibility. CORIO2 is a proprietary technology integrated into chipsets to allow for freedom from constraints imposed by third-party chipsets. Conditions of obsolescence can be eliminated as firmware can be upgraded from the support website. Five DVI-U inputs, sustained by the exclusive CORIO2 technology, offer similar features as DVI-I inputs, with the additional capability of accepting composite video signals. The fifth input is reserved only for reference, background usage or cascading of multiple units. Four internal still image stores are incorporated into the CORIOview C2-6104A Processor, each allowing the display of one of ten user loadable images in place of an input. DVI-D resolution of 1920x1200@60Hz and 1080p, along with a DVI-A analog resolution of 2048x2048@60Hz is possible at any refresh rate. A wide range of analog inputs such as RGBHV/RGBS/RGsB/YPbPr/CV are supported by the CORIOview C2-6104A 4-window DVI-I Processor, providing a high measure of flexibility. Ten user defined presets, accessible and directly controllable from the front panel, allow easy customization of settings for a variety of applications. YUV, YPbPr and CV source input compatibility is possible due to high performance de-interlacing and motion-adaptive noise reduction. Variable zoom/shrink feature allows the graphic image to be enlarged up to 10X or to be shrunk to 10% to fit multiple images together. - Custom 4-window processor allows display of 4 substantially sized windows on a single DVI-I output
- 4 high quality CORIO2 scaling engines power the 4 image windows respectively, providing complete PIP flexibility
- CORIO2 - proprietary technology integrated into chipsets to allow for freedom from constraints imposed by third-party chipsets
- Conditions of obsolescence can be eliminated as firmware can be upgraded from the support website
- 5 DVI-U inputs offer similar features as DVI-I inputs, with the additional capability of accepting composite video signals
- 5th input reserved for reference, background usage or cascading of multiple units
- 4 internal still image stores allow the display of one of ten user loadable images in place of an input
- DVI-D resolution of 1920x1200@60Hz and 1080p
- DVI-A analog resolution of 2048x2048@60Hz
- Supports wide range of analog inputs such as RGBHV/RGBS/RGsB/YPbPr/CV
- Ten user defined presets, accessible and directly controllable from the front panel, allow easy customization of settings for a variety of applications
- YUV, YPbPr and CV source input compatibility possible due to high performance de-interlacing and motion-adaptive noise reduction
In the Box TV One CORIOview 4-window DVI-I Processor 6' (2m) AC Power Cord VGA to DVI Adapter (ZDH-2040) BNC to DVI Adapter (ZDC-2050) Operations Manual Rackmount Kit (2 ears and 4 screws) Control Software (downloadable from website) 1 Year Parts & Labor Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TV One CORIOview 4-window DVI-I Processor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

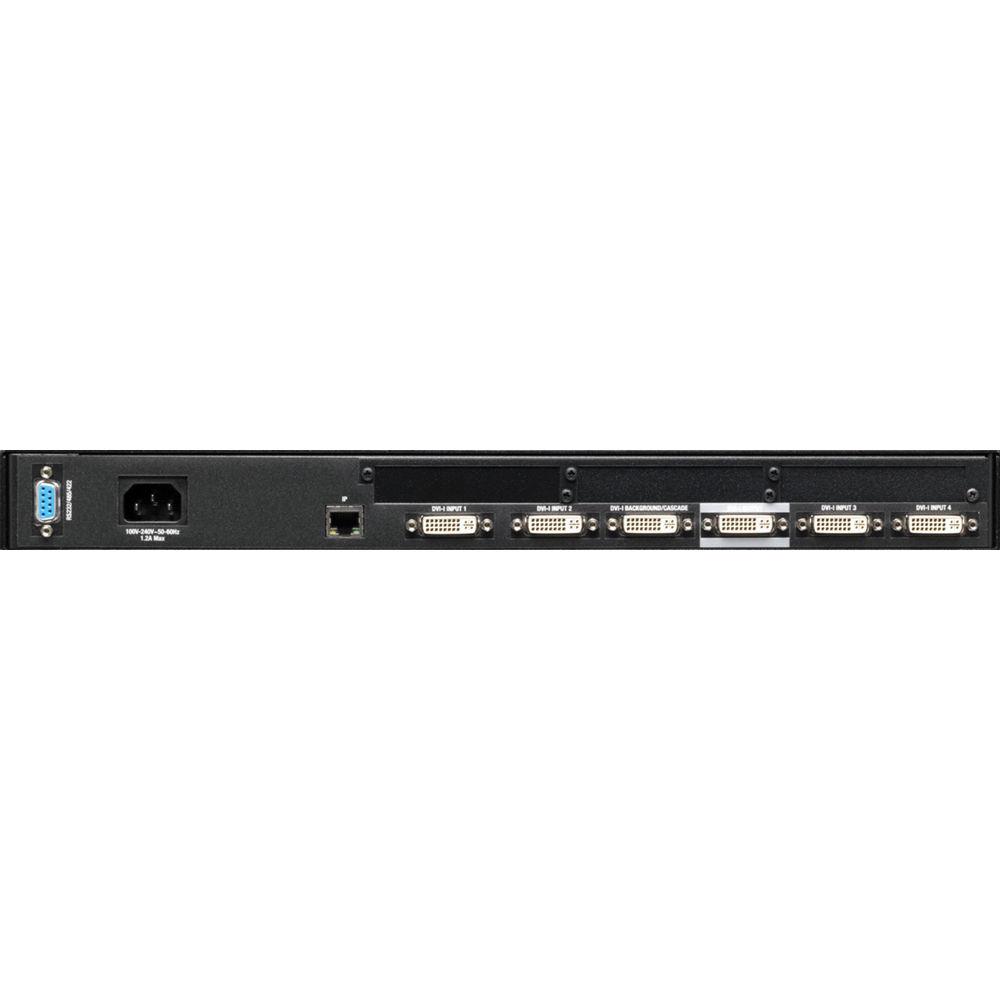

Technical parametersTV One C2-6104A Specs | Inputs | Signal Type: 5x DVI-Uvia DVI-I Connector
Digital DVI-D Format:
- Max HD Resolution: 1080p@60Hz
- Max PC Resolution: 1920x1200@60Hz
Analog DVI-A Format:
- Television Standards: NTSC, PAL, PAL-M, PAL-N, SECAM
- Max HDTV Resolution: 1080p@60Hz
- Max PC Resolution: 2048x2048
- Max Horiz Scan Rate: 150KHz
- Signal Format: RGBHV, RGBS, RGsB, YPbPr, CV
- Sync: TTL Level, 10KOhm, Pos or Neg
- Termination: 75Ohm
- R-G-B Level Range: 0.5-2.0 Vp-p
- Scan Rate Detection: Automatic | | Output | Signal Type: 1x DVI-I via DVI-I Connector
Digital DVI-D Format:
- Max HD Resolution: 1080p@60Hz
- Max PC Resolution: 1920x1200@60Hz
Analog DVI-A Format:
- Max HDTV Resolution: 1080p@60Hz
- Max PC Resolution: 2048x2048
- Vertical Refresh Rate: Any to 250Hz
- Signal Format: RGBHV, RGBS, RGsB, YPbPr
- R-G-B Level: 0.7 Vp-p | | General | Size and Position: Automatic via AutoSet or Manual
Image Size: User-Definable Presets
Image Freeze: One Video Frame
Settings: Memory Non-Volatile
Zoom Range: Variable to 10X Zoom Shrink Range: Variable to 10%
Image Mirroring: Horizontal and/or Vertical
Horizontal Filtering: Full Digital
YPbPr de-interlacing: Motion adaptive + noise reduction
Film Mode (525i/1080i): 3:2 Pull Down Detection
Conversion Technology: Proprietary - CORIO2
Frame Rate Conversion: Frame add/drop
Color Resolution: 24-bit (16.8 Million Colors)
Sampling Rate: 162MHz
Digital Sampling: 24-bit, 4:4:4 format
Firmware Memory: Flash, Upgradeable via RS-232

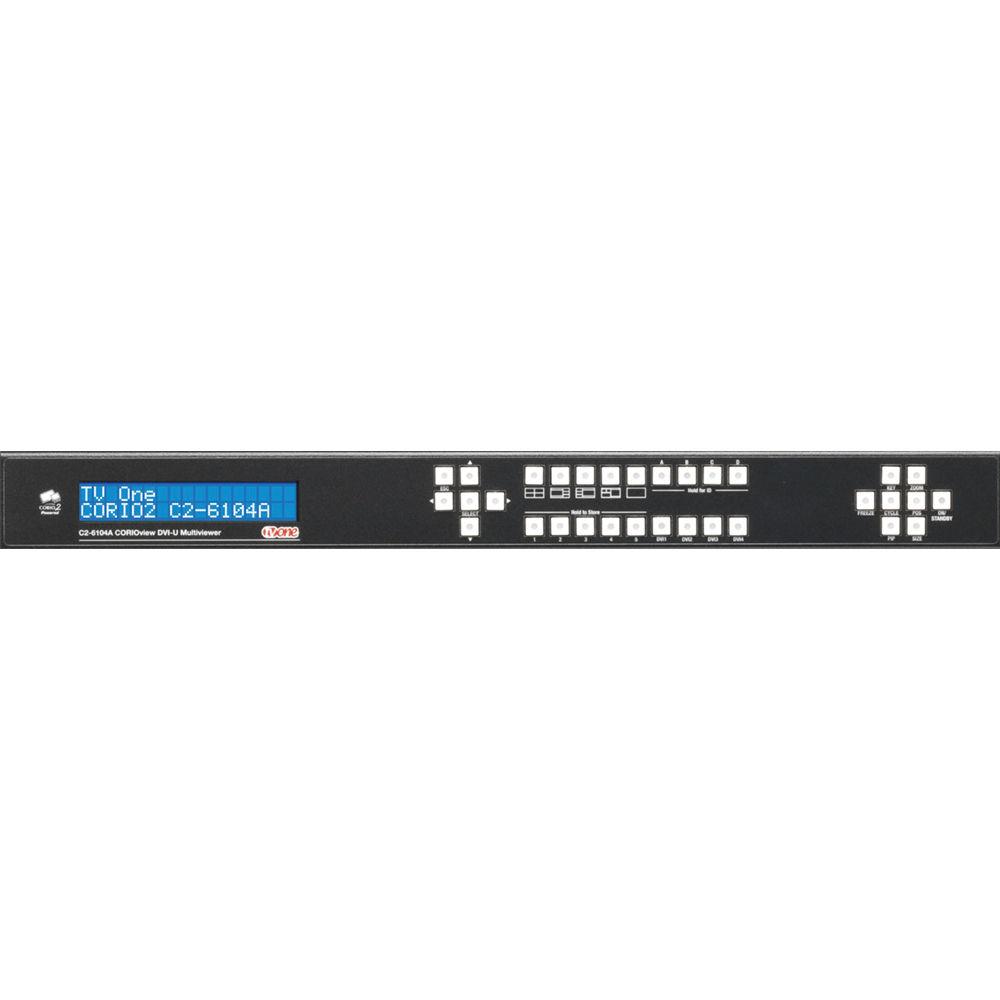

Analog Video Adjust: R-G-B Levels Contrast, Phase | | Control | Local: via Front Panel Buttons & LCD
RS-232/RS-485/RS-422: via D9 Female Connector
Ethernet (TCP/IP): RJ45 | | Compliance | Main Units: FCC, CE, RoHS
Power Supply: UL, CUL, CE, PSE, GS, RoHS | | Dimensions (HxWxD) | Desktop Case: 1.75 x 17 x 7.9" (44 x 420 x 200mm)
With Rack Ears: 1.75 x 19 x 7.9" (44 x 482 x 200mm) | | Environmental | Operating Temperature: 32 ~ 122°F (0 ~ 50°C)
Operating Humidity: 10 ~ 85%, Non-condensing
Storage Temperature: 14 ~ 158°F (-10 ~ 70°C)
Storage Humidity: 10 ~ 85%, Non-condensing | | Power Requirements | Internal Power Supply: 100-240VAC, 50-60Hz, 50W | | | | Package Weight | 10.65 lb | | Box Dimensions (LxWxH) | 22.9 x 18.4 x 4.9" |
