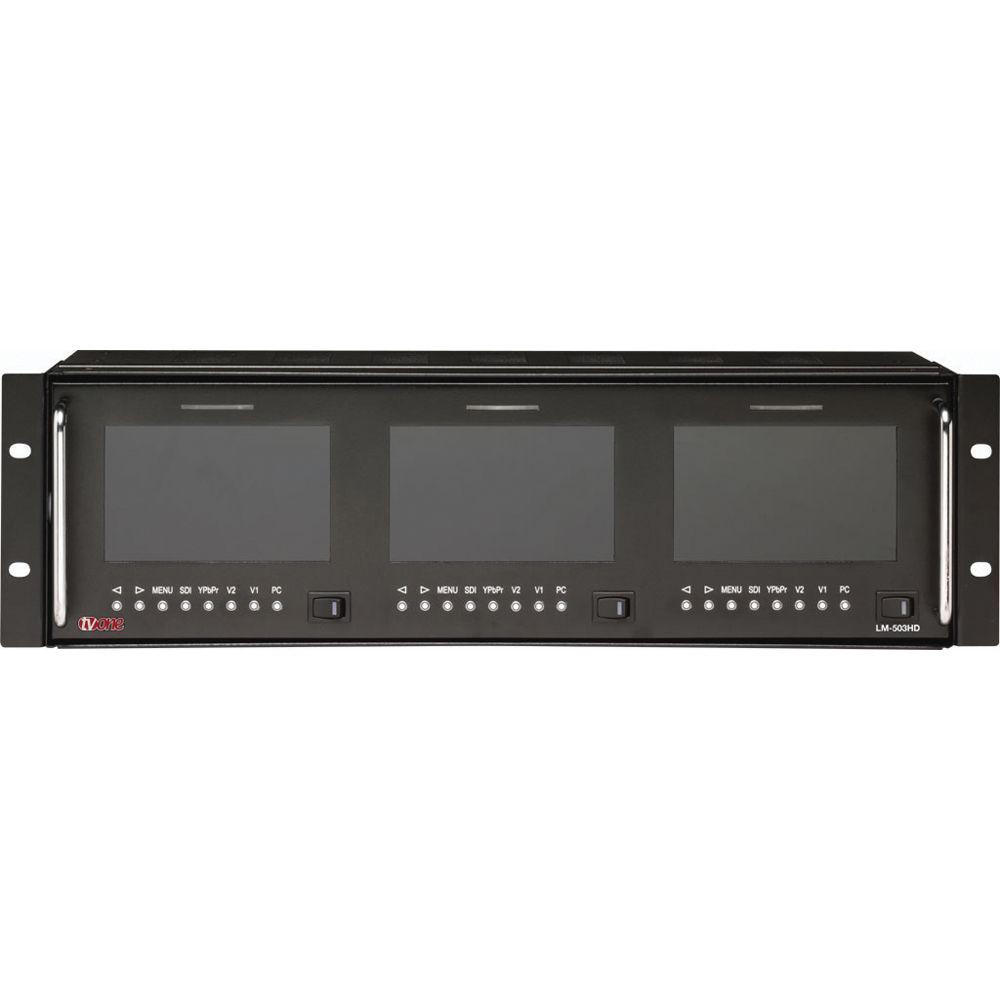

Product description The TV One HDTV Triple Color Monitor with Audio (5”) features three 5” (12.7 cm) color LCD monitors designed for the broadcast and professional industries. In addition to a contrast ratio of 600:1, and a brightness rating of 300 cd/m2, the monitor produces high-quality images with 16.7 million colors at a resolution up to 1024 x 768 for SD and 1080p for HD video. Viewing angles of 170 x 170° (H x V) ensure that you can view images clearly from any corner of the room or when the display is mounted at a height. Additionally, the tiltable rackmount housing offers enhanced viewing option to suit the viewer’s eye level.
With a response time of 25 milliseconds, the LCD display produces clear images with less blurring effect. The HDTV Triple Color Monitor supports SD/HD-SDI, analog RGBHV, YPbPr Component Video, CV and YC inputs, and automatically detects the NTSC and PAL television supported standards. With the help of a DB9connector you can externally activate the Front panel Tally LED’s. Using the OSD menu enables you to adjust various monitor setting such as contrast, brightness, sharpness, and color level (R-G-B).
Built-in audio function allows you to easily access multimedia applications. Equipped rack mount kit can be tilted up or down for better viewing. - Triple 5" (12.7 cm) color LCD monitor designed for the broadcast and professional industries
- Brightness rating - 300 cd/m2
- Produces high-quality images with 16.7 million colors at a resolution up to 1024 x 768 for SD and 1080p for HD video
- Viewing angles of 170 x 170° (H x V) ensure that you can view images from extreme angles
- Tiltable rackmount housing offers enhanced viewing option to suit the viewer's eye level
- 25 milliseconds of response time for images with less blurring effect

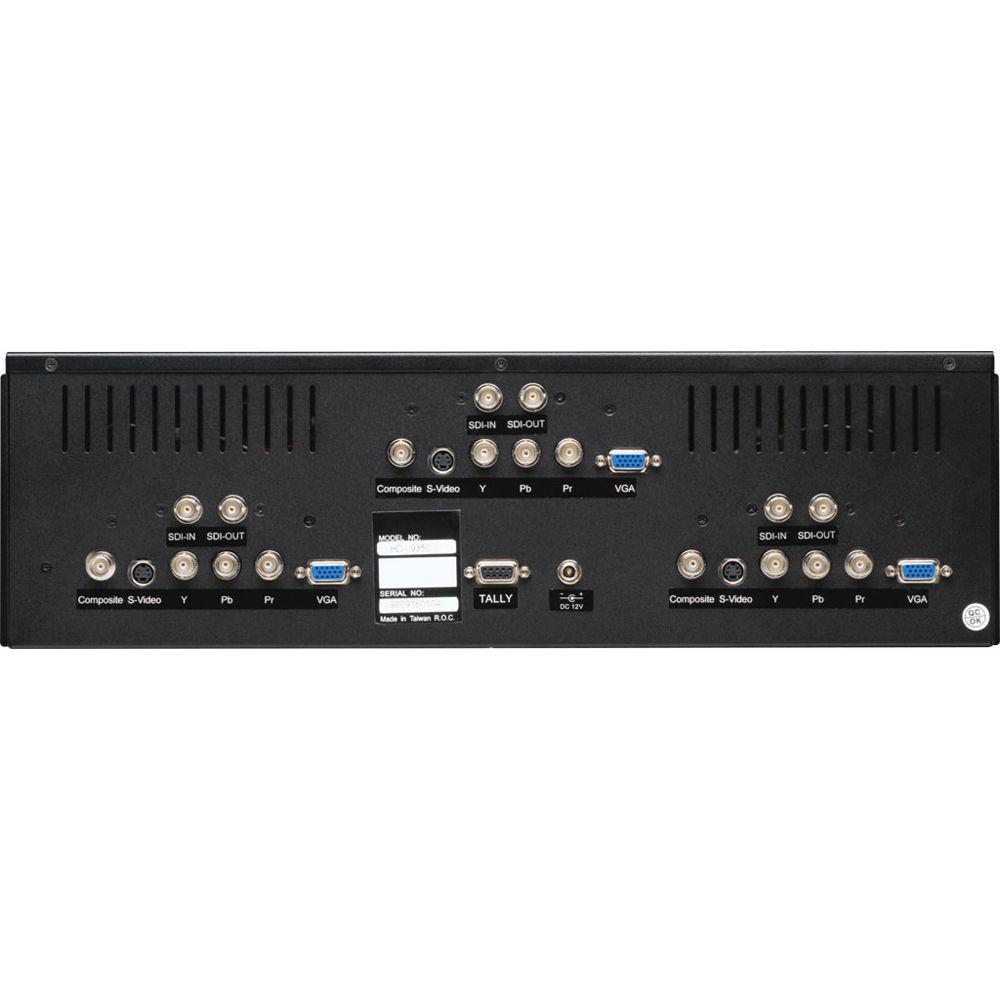

- Supports SD/HD-SDI, analog RGBHV, YPbPr Component Video, CV and YC inputs, and automatically detects the NTSC and PAL television supported standards
- DB9connector enables you to externally activate the Front panel Tally LEDs
- OSD menu for adjusting various monitor setting such as contrast, brightness, sharpness, and color level (R-G-B)
- Built-in audio function minimizes the need for an external audio system
- Equipped rack mount kit can be tilted up or down for better viewing
- Locking External DC Power Supply
In the Box TV One HDTV Triple Color Monitor with Audio (5") Power Adapter Operations Manual Rackmount Screws Set Rack Ears 3-Year Warranty (Parts and Labor) Table of Contents
|
Upload User Manual
Have you got an user manual for the TV One HDTV Triple Color Monitor with Audio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTV One LM-503HDA Specs | LCD Size | 5.0" (127 mm) | | Display Area | 4.25 x 2.55" (108 x 64.8 mm) | | Resolution | 800 x 480 (16 x 9) | | Dot Pitch | 0.135 mm | | Color Resolution | 16.7 million Colors | | Contrast Ratio | 600:1 | | Brightness | 300 cd/m2 | | Response Time | 25 msec | | Viewing Angle | Left / right: 170° Up / down: 170° | | Aspect Ratio | 16:9 | | Video Inputs | SD/HD-SDI: 1x via BNC with active output, Analog RGBHV: 1x via HD-15 female, Composite video: 1x via BNC connectors, YC (S-Video): 1x via 4-pin mini-DIN connector, YPbPr Component: 1x via 3 BNC connectors | | SD/HD-SDI Input Range | SDTV: 480i, 576i HDTV: 1080P/30 Hz, 1080P/29.97 Hz, 1080P/25 Hz, 1080P/24 Hz, 1080P/23.98 Hz, 1080i/60 Hz, 1080i/59.94 Hz, 1080i/50 Hz, 1035i/60 Hz, 1035i/59.94 Hz, 720P/60 Hz, 720P/59.94 Hz, 720P/50 Hz | | Analog Component Input Range | SDTV: 480i, 576i HDTV - YPbPr: 480p, 576p, 720p, 1080i, 1080p | | Analog RGBHV Input Range | 640 x 350: 70, 85 Hz 720 x 350: 70, 85 Hz 640 x 400: 56, 70, 85 Hz 720 x 400: 70, 85 Hz 640 x 480: 60, 66, 72, 75, 85 Hz 800 x 600: 56, 60, 70, 72, 75, 85 Hz 1024 x 768: 60, 70, 72, 75, 85 Hz | | Composite & S-Video Input Range | Vertical frequency: NTSC 60 Hz, PAL 50 Hz Horizontal frequency: NTSC 15.75 KHz, PAL 15.625 KHz | | Tally Control | Tally input: 1x via DB9 connector | | Display Element | Active matrix TFT | | Video Adjustments | Brightness, contrast, sharpness, color level (RGB) | | TV Standards | NTSC / PAL auto-detect | | HD/SD-SDI | SD-SDI: 270 Mbps (525/625 line) HD-SDI: 1.485, 1.4835 Gpbs | | Mode | Blue Only mode: for setup with color bars Sync Delay mode: for checking sync | | Menu Navigation | Menu, left, right | | Input Selection | SDI, YPbPr, CV, SV, PC (RGB) | | Power | On / off | | Power Supply | 12 VDC @ 4 A (external) | | Operating Temperature | 14 to 122° F (-10 to 50° C) | | Operating Humidity | 10% to 90%, non-condensing | | Storage Temperature | -14 to 140° F (-10 to 60° C) | | Storage Humidity | 10% to 90%, non-condensing | | Regulatory Approvals | Monitors: FCC, CE, RoHS Power supplies: UL, CUL, CE, PSE, GS, RoHS | | Dimensions (HxWxD) | 5.2 x 19 x 5.9" (132 x 483.5 x 150 mm) | | Weight | 12.1 lb (5.5 kg) |
