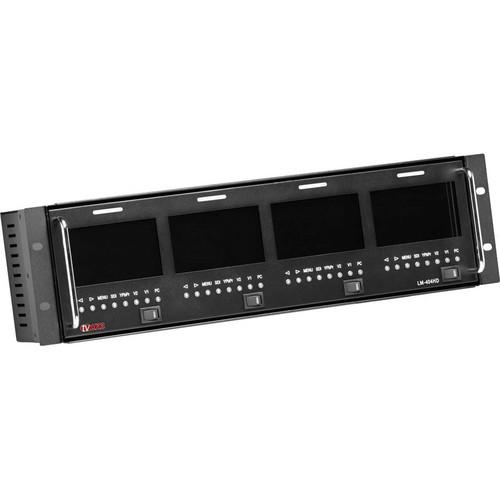

Product description The LM-404HDA 4.3" Multi-Format Quad Color LCD Monitor from TV One is a high performance multi-format, quad color LCD monitor for the broadcast and professional market. A multitude of video signal formats can be accurately monitored. The high brightness, wide viewing angle, high contrast ratio and high definition color result in an outstanding image. The unit features inputs for SDI (either SD or HD) with an active output, Analog RGBHV, YPbPr Component Video, a Composite Video, and a YC input. NTSC and PAL Television Standards are supported and automatically detected.Front panel Tally LEDs can be activated externally via the DB9 connector. The menu contains all the necessary controls to adjust contrast, brightness, sharpness, color Level (R-G-B), and other parameters necessary for optimum monitor performance. Results of these adjustments can be viewed via the on screen display. A rack mount kit is included that can tilt up or down. Although the monitor has excellent viewing angles, the tilt feature can be beneficial when circumstances necessitate mounting the monitor considerably above or below normal eye level. - Inputs: SD/HD-SDI, RGBHV, YPbPr, CV and YC
- Resolutions up to 800 x 480, 1080p
- High brightness, pro grade LCD panels
- 130° left/right and 110° up/down view angles
- Vertically tiltable rackmount housing
- Locking external DC power supply
In the Box TV One LM-404HDA 4.3" Multi-Format Quad Color LCD Monitor Power Adapter 4 x Rackmount Screws Set Rackmount Ears (Tiltable Configuration) Limited 3-Year Warranty on Parts and Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the TV One LM-404HDA 4.3" Multi-Format Quad Color LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTV One LM-404HDA Specs | | | Display Size | 4.3" (109.2mm) diagonal | | Display Area | 3.66 x 2.22" (91.44 x 56.38 mm) | | Resolution | 800 x 480 (16 x 9) | | Dot Pitch | 0.116 mm | | Color | 16.7 million | | Contrast Ratio | 400:1 | | Brightness | 200 cd/m2 | | Response Time | 20 ms | | View Angle | Left/Right:130˚
Up/Down: 110˚ | | Aspect Ratio | 16:9; 4:3 | | | | Display Element | Active Matrix TFT | | Video Adjustments | Brightness, Contrast, Sharpness, Color | | TV Standards | NTSC/ PAL Auto-detect | | Inputs | Video:
SD/HD-SDI: 1 x via BNC with Active Output
Analog RGBHV: 1 x via HD-15 Female
Composite Video: 1 x via BNC Connectors
YC (S-Video): 1 x via 4-Pin Mini-DIN Connector
YPbPr Component: 1 x via 3 BNC Connectors
SD/HD-SDI:
SDTV Bit Rate: 270 Mb/s, 525i (60/59.94), 625i (50)
HDTV Bit Rate: 1.485, 1.4835 Gb/s
HDTV Resolutions: 1080P/30 Hz, 1080P/29.97 Hz, 1080P/25 Hz,1080P/24 Hz, 1080P/23.98 Hz, 1080i/60 Hz, 1080i/59.94 Hz, 1080i/50 Hz, 1035i/60 Hz,1035i/59.94 Hz, 720P/60 Hz, 720P/59.94 Hz, 720P/50 Hz
Analog:
SDTV (CV, Y/C) 1 Vpp CVBS, 0.8 Vpp Y/C
HDTV - YPbPr 480p, 576p, 720p, 1080i, 1080p
Analog RGBHV:
640x350 70, 85 Hz; 720x350 70, 85 Hz; 640x400 56, 70, 85 Hz; 720x400 70, 85 Hz; 640x480 60, 66, 72, 75, 85 Hz; 800x600 56, 60, 70, 72, 75, 85 Hz; 1024x768 60, 70, 72, 75, 85 Hz
CV/S-Video:
Vertical Frequency: NTSC 60 Hz, PAL 50 Hz
Horizontal Frequency: NTSC 15.75 kHz, PAL 15.625 kHz | | Tally Control Input | 1 x via DB9 Connector | | Front Panel Controls | Menu Navigation: Menu, Left, Right
Input Select: SDI, YPbPr, CV, SV, PC (RGBHV)
Power: On/Off | | Power Requirement | External Power Supply: 12 VDC at 4 A | | | | Operating Temperature | 14 to 122° F (-10 to 50°C) | | Operating Humidity | 10% to 90%, Non-condensing | | Storage Temperature | -14 to 140°F (10 to 60°C) | | Storage Humidity | 10% to 90%, Non-condensing | | Regulatory Approvals | Monitors: FCC, CE, RoHS Power Supplies: UL, CUL, CE, PSE, GS, RoHS | | | | Dimensions (H x W x D) | 5.2 x 19.0 x 5.9" (132.0 x 482.6 x 149.8 mm) | | Weight | 12.1 lb (5.4 kg) | | | | Package Weight | 17.25 lb | | Box Dimensions (LxWxH) | 20.75 x 11.5 x 8.0" |
