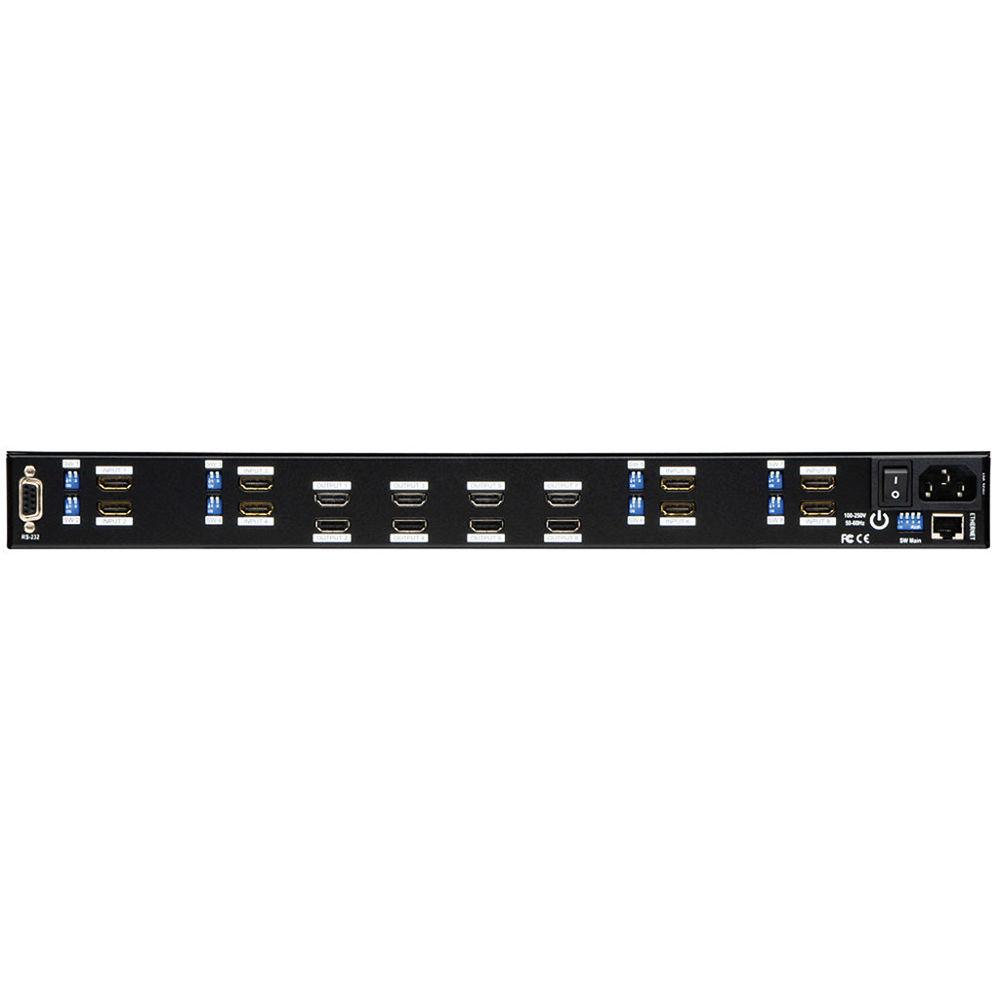

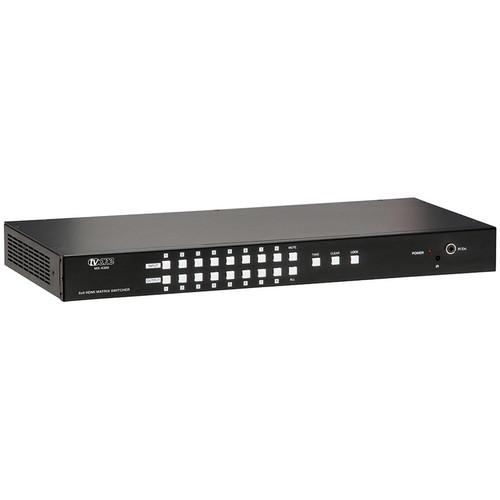

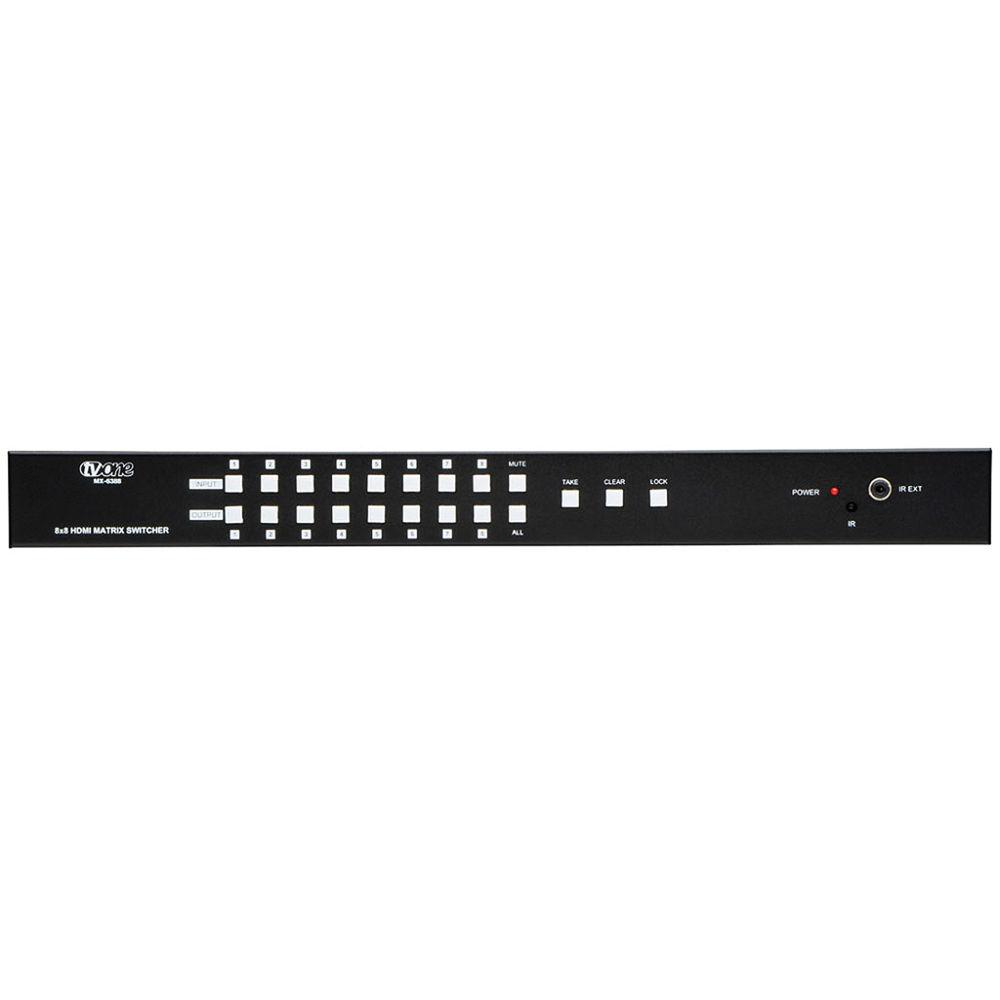

Product description The TV One MX-6388 8 x 8 HDMI Matrix Routing Switcher is designed to allow distribution of 8 HDMI (with HDCP) sources to 8 devices independently or all at the same time. This matrix also enables the distribution of multiple video outputs to multiple displays. The MX-6388 supports HDMI (with HDCP) video with Deep Color, EDID and 7.1 channel audio. All video paths are buffered to prevent cross talk and 480i through 1080p HDTV signals. VGA (640 x 480) through WUXGA (1900 x 1200) signals are also accepted as valid inputs and outputs.
The Switcher also supports 3D signals. All inputs are processed at full bandwidth, using single link, 225 MHz (6.75 Gb/s) circuitry so as to deliver no compromise outputs on all paths. Switcher memory is employed to ensure last selection recall, should power be temporarily lost. RS-232, Ethernet, and Infrared control supplement the front panel input/output selection. This Switcher is 1RU rack mountable and comes with a rack mount kit. It also provides output independent, per-input EDID cloning support.
Regardless of whether you use the IR remote, RS-232, Ethernet, or the front panel push button operation, control of the MX-6388 Switcher is easy. - 8 x 8 Matrix HDMI signal switching
- 480i to 1080p HDTV & VGA-WUXGA resolutions
- HD up to 1080p, 60 signals are supported
- Supports DTS-HD Master Audio, Dolby True-HD, DTS, DD+, and DD Embedded Audio
- Per-output monitor EDID cloning support
- Buffered video signal handling
- IR Remote, RS-232, and Ethernet controllable
- 1 RU rack mountable, Rack Mount Kit included
- Supports HDMI Deep Color and 3D video signals
- Supports 7.1 channel digital audio
- Power-fail protection provided by switcher memory
- Front panel button controllable
In the Box TV One MX-6388 8 x 8 HDMI Matrix Routing Switcher AC Power Cable (US, UK, or European Type) IR Remote Control IR Extender Rack Mount Kit Software CD Limited 3-Year Warranty on Parts and Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the TV One MX-6388 8 x 8 HDMI Matrix Routing Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTV One MX-6388 Specs | Video Inputs | HDMI Video: 8 x Type A HDMI connectors | | Video Outputs | HDMI Video: 8 x Type A HDMI connectors | | | | Video Resolution | 480i through 1080p (12-bit color), VGA through WUXGA | | Supported Standards | HDMI 1.3, HDCP 1.1, DVI 1.0 | | Supported Signal Types | HDMI / HDMI Deep Color, 3D (with HDCP) | | Video Processing | Single-Link, 225 MHz, 6.75 Gb/s | | Device Control | Front Panel, IR, RS-232, Ethernet | | EDID Capacity | Standard monitor resolutions | | | | Formats | 24 Bit: RGB / YCbCr 4:4:4
30 / 36 Bit: RGB / YCbCr 4:4:4 (Deep Color)
24 / 30 / 36 Bit: RGB / YCbCr 4:2:2 | | | | Embeddable Audio | DTS-HD Master Audio, DTS, Dolby True-HD, DD+, DD | | | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Humidity | Operating and Storage: 20 to 90%, non-condensing | | | | Internal Power | Supply: 100 to 250 VAC, 50 to 60 Hz, 60 W | | Regulatory Approvals | Switcher Units: FCC, CE, RoHS
Power Supplies: UL, CUL, CE, PSE, GS, RoHS | | | | Dimensions (H x W x D) | Without Rack Mount: 1.75 x 17.00 x 12.20" (4.45 x 43.18 x 30.99 cm)
With Rack Mount: 1.75 x 19.00 x 12.20" (4.45 x 48.26 x 30.99 cm) | | Weight | 7.30 lb (3.33 kg) | | | | Package Weight | 11.32 lb | | Box Dimensions (LxWxH) | 20.38 x 18.25 x 5.75" |
