User Manual for TV One MX-8488 8 x 8 HDBaseT Matrix Switcher Click to enlarge the picture
Contents of the user manual for the TV One MX-8488 8 x 8
- Product category: Routers & Switchers TV One
- Brand: TV One
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TV One Routers & Switchers
|
User manual for the TV One MX-8488 8 x 8 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TV One product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TV One user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TV One product will considerably shorten its lifespan!
|

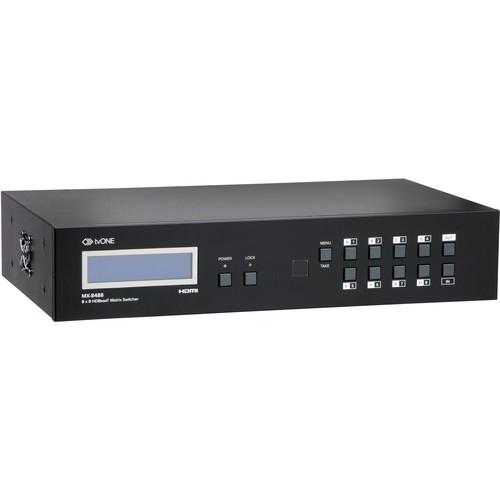

Product description The MX-8488 8 x 8 HDBaseT Matrix Switcher from TV One allows you to route up to eight HDMI signals to eight destinations. It features eight standard HDMI inputs and eight HDBaseT outputs on RJ-45 connectors. HDBaseT allows the HDMI signal to be carried over CAT6 or higher Ethernet cable for runs of up to 325'. At the other end of the Ethernet run you will need compatible HDBaseT receivers (Rx) or connect to devices with integrated HDBaseT support.
This is a full matrix switch / router, meaning any input can be routed to any output; it is even possible to send one input to several outputs at once. The MX-8488 can be controlled locally using either front panel buttons or the included IR remote. Additionally, Ethernet and RS-232 remote connectivity allow the unit to be controlled from a web browser or using a third-party wired remote or automation system. The switcher also include two IR transmitters and two IR receivers so that remotely installed A/V devices can be operated from one central location at the switcher. - Accepts video resolutions up to 1080p and computer resolutions up 1920 x 1200
- Compatible HDBaseT receivers that can be used include: HD One LX (non-PoH mode only), 1T-CT-654, 1T-CT-652, and 1T-CT-642
- HDMI 1.3, HDCP 1.1, and DVI 1.0 compliant with
- 7.1 LPCM, Dolby TrueHD, and DTS HD Master Audio support
- HDMI Deep Color and 3D support
- Power over HDBaseT (PoH) support allows this unit to supply power to connected devices that accept PoH
In the Box TV One MX-8488 8 x 8 HDBaseT Matrix Switcher 2 x DC Power Adapter IR Remote Control 2 x IR Transmitter 2 x IR Receiver Rackmount Kit Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TV One MX-8488 8 x 8 HDBaseT Matrix Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTV One MX-8488 Specs | Input | 8 x HDMI on HDMI connector | | Output | 8 x HDMI on RJ-45 Ethernet connector | | Additional Inputs/Outputs | 1 x RS-232 on DB9 connector
1 x Ethernet Control on RJ-45 connector
9 x IR Receiver port on 3.5 mm mini jack
9 x IR Transmitter port on 3.5 mm mini jack
1 x Mini-USB - for service | | Supported Standards | HDMI 1.3, HDCP 1.1, DVI 1.0, 3D, Infrared | | Bandwidth | 22h MHz / 6.75 Gbps | | Maximum Resolution | Video: 1080P at 60 Hz
Computer: 1920 x 1200 at 60 Hz | | Color Depth | 8, 10, or 12-bit | | Audio Sampling Rate | Up to 192 kHz | | IR Frequency | 30 to 50 kHz | | Maximum Range | Source to Matrix
1080p / 8-bit: 45' / 15 m
1080p / 12-bit: 30' / 10 m
Matrix to HDBaseT Rx
325' / 100 m | | Control Method | Local: Front Panel via 13 Buttons
Remote Control: RS-232 and Ethernet | | Power Requirements | External PSU: 24 VDC at 6.25 A - push lock connector
Optional PSU (PoH Support): 24 VDC at 6.25 A - push lock connector | | Power Consumption | Without PoH: 64 W
With PoH Enabled: 120 2 | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Humidity | 20 to 90% non-condensing | | Dimensions | 3.7 x 17.3 x 10"/ 93 x 438 x 255 | | Weight | 9.8 lb / 4.5 kg | | | | Package Weight | 2.5 lb | | Box Dimensions (LxWxH) | 24.0 x 8.0 x 4.0" |
