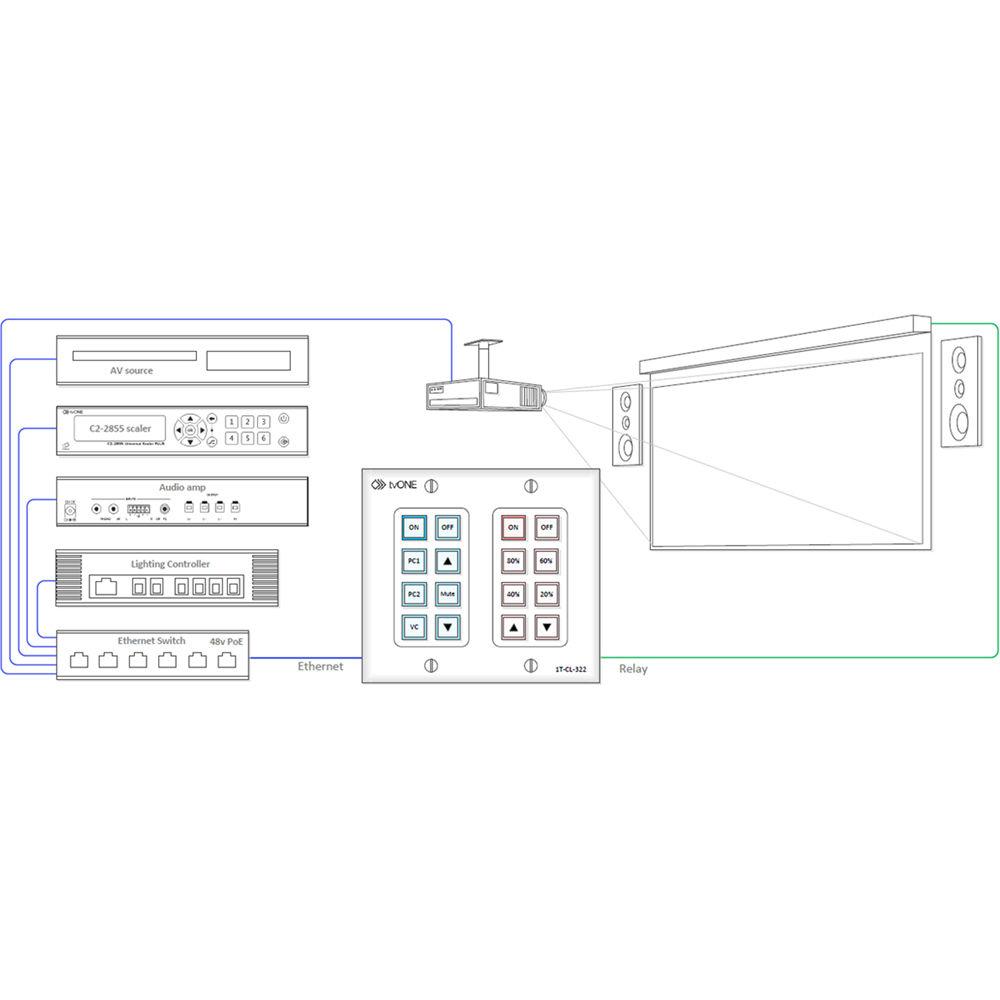

Product description Control all of your home entertainment-related devices with the TV One North American 2-Gang Wall Plate Control Panel. It is fully programmable with up to 128 commands and supports up to 32 macros, with up to 16 commands per macro. It will control your lighting, display and source equipment including an electric projector screen, and more. - Supports PoE (power over Ethernet)
- WebUI interface for setup
- Supports up to 128 commands
- Up to 32 macros each maintaining up to 16 commands
- 2-color LED-backlit buttons, dimmable from 0 to 100%
In the Box TV One North American 2-Gang Wall Plate Control Panel 1/8" Terminal Block USB Type-A to Mini USB OTG Adapter Pre-Printed Button Label Stickers 5 VDC 2.6A Power Adapter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TV One North American 2-Gang Wall Plate Control Panel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTV One 1T-CL-322-US Specs | Program | Web interface or Telnet | | Input Ports | 16 x Buttons
1 x IP (RJ45) | | Output Ports | Ethernet: 1 x RJ45
Relay: 1 x Terminal block (supports 0 to 24 VDC, 8 A) | | Data Correction | 10/100 Mbps via RJ45 connector | | Material of Construction | Front Panel: Plastic
Chassis: Pressed aluminum
Buttons: Silicon | | Power Supply | 5 VDC, 2.6 A CE/FCC/RoHS/UL
PoE: 48 V | | Power Consumption | 6.1 W | | ESD Protection | Human Body Model: ±8 kV air-gap discharge
±4 kV contact discharge | | Buttons | 2 x Color LED backlit, 0 to 100% dimmable | | MTBF | Approximately 295,000 | | Compliance | FCC, CE, RoHS | | Operating Conditions | Temperature: 32 to 104°F (0 to 40°C)

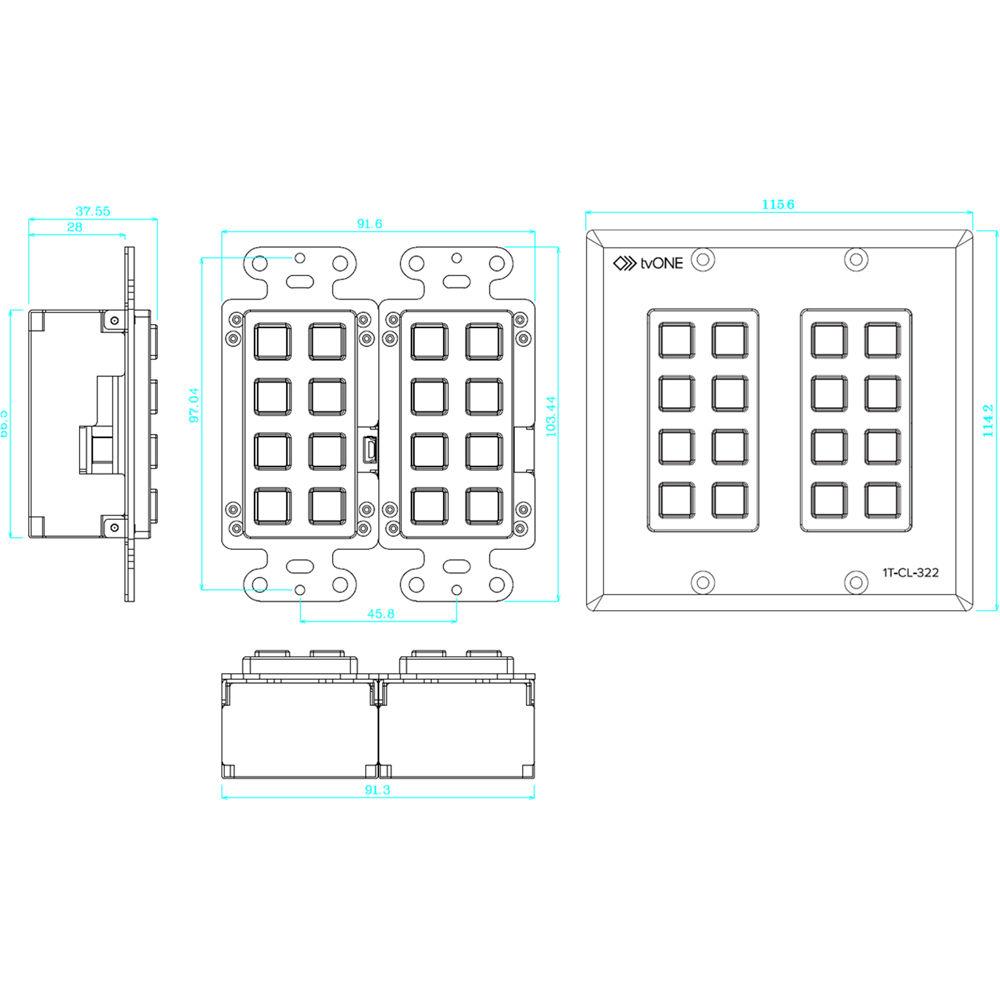

Humidity: 20 to 90% | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Dimensions (W x H x D) | 4.5 x 4.6 x 1.9" (114 x 116 x 47 mm) | | Weight | 8.4 oz (238 g) |
