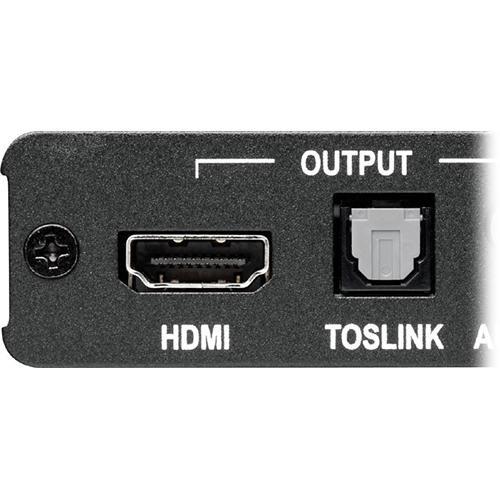

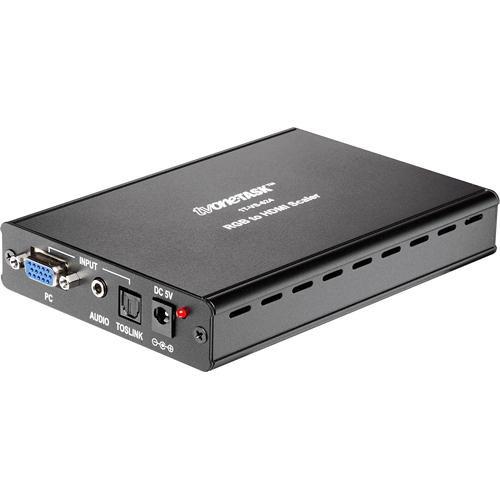

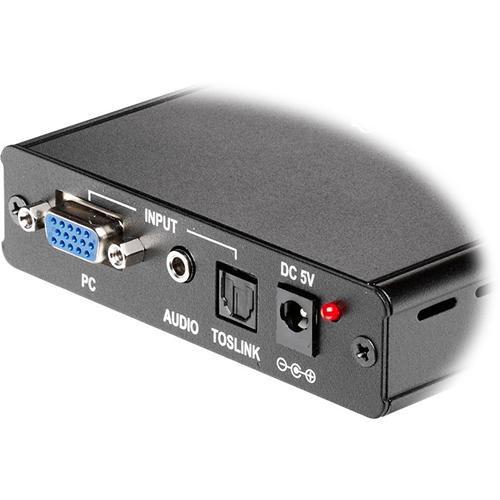

Product description The RGB to HDMI Scaler from TV One converts a wide variety of standard PC (RGB) signals between VGA and WUXGA to a an HDMI output at PC, standard-definition, or high-definition resolutions. Externally available audio can also be embedded into the output of HDMI signals via separate Toslink and analog stereo inputs. This solution is well suited for use in setups that require PC or RGB video to be output to an HDMI display device, among many other possible uses. The unit automatically detects output resolution, although resolution and other settings can also be adjusted manually using the unit's on-screen display menu. This unit is HDCP-compliant, ensuring that it will properly play copyright-protected media. It will support DVI signals by using separately available HDMI-to-DVI adapters. A locking DC power connector adds a layer of security to the unit to prevent tampering. - Additional Features
-
- PC (RGB) to HDMI converter/scaler
- Input Resolutions: VGA through WUXGA
- Output Resolutions: 480i, 576i, 480p, 576p, 720p, 1080i, 1080p
- Automatically detects HDMI display resolution

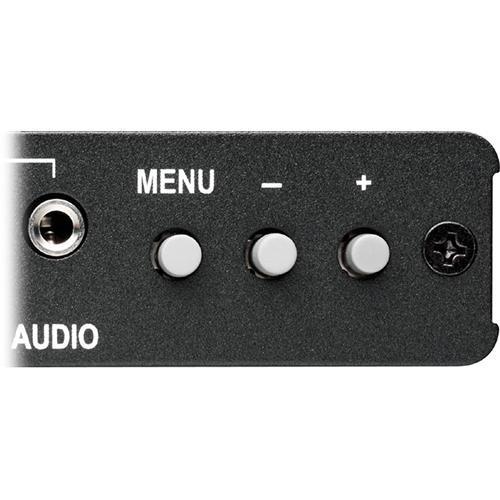

- OSD menu and video level adjustments
- Supports embedded and external audio in and out (analog stereo and Toslink)

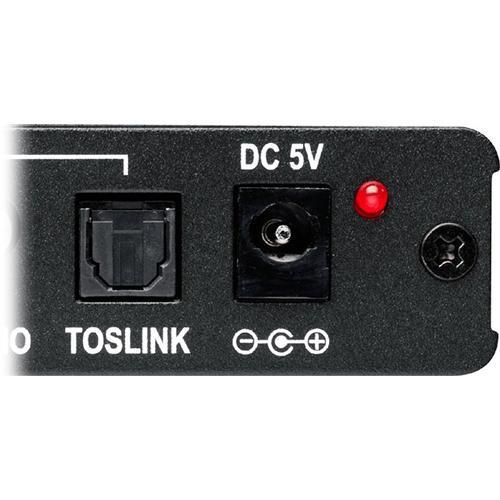

- Locking DC power connector
In the Box TV One RGB to HDMI Scaler with Audio Embedding AC Power Adapter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TV One RGB to HDMI Scaler with Audio Embedding in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

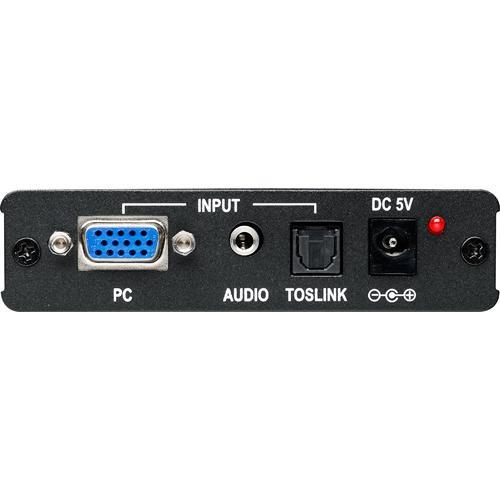

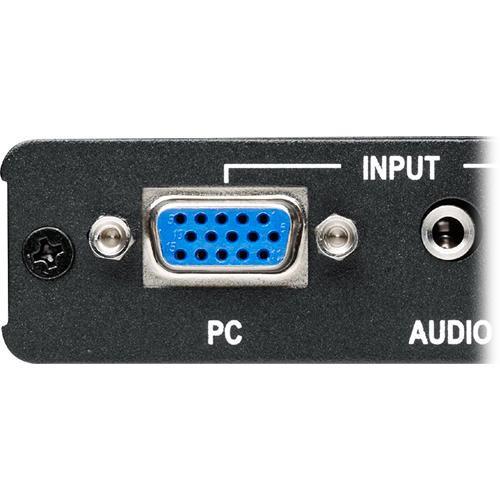

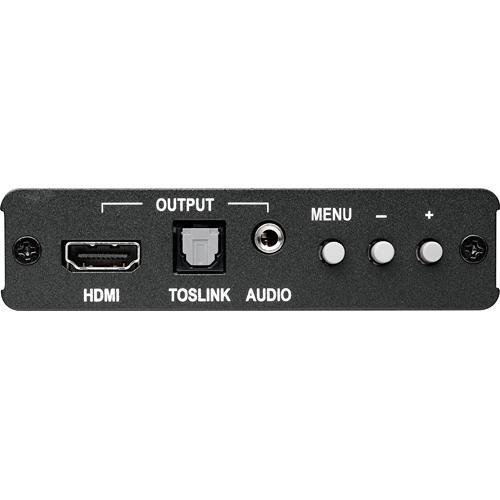

Technical parametersTV One 1T-VS-624 Specs | Video Input | 1 x PC (RGB) video via HD-15 connector | | Video Output | 1 x HDMI Type A | | Analog Audio Input | 1 x 3.5 mm stereo mini-jack (2 Vrms at 47 kOhms max. input level) | | Analog Audio Output | 1 x 3.5 mm stereo mini-jack | | Digital Audio Input | 1 x SPDIF via Toslink connector | | Digital Audio Output | 1 x SPDIF via Toslink connector | | Input Resolutions | WUXGA (1920 x 1200) at 60 Hz
WSXGA (1680 x 1050) at 60 Hz
WXGA (1280 x 800) at 60 Hz
UXGA (1600, 1200) at 60 Hz
SXGA (1280 x 1024) at 60, 75, 85 Hz
XGA (1024 x 768) at 60, 70, 75, 85 Hz
SVGA (800 x 600) at 56, 60, 72, 75, 85 Hz
VGA (640 x 480) at 60, 72,75, 85 Hz | | Output Resolutions | PC Resolutions:
WUXGA (1920 x 1200) at 60 Hz
WSXGA (1680 x 1050) at 60 Hz
WXGA (1280 x 800) at 60 Hz
UXGA (1600, 1200) at 60 Hz
SXGA (1280 x 1024) at 60 Hz
XGA (1024 x 768) at 60 Hz
SVGA (800 x 600) at 60 Hz
VGA (640 x 480) at 60 Hz
TV Resolutions:
1080p (1920 x 1080) at 50, 60 Hz
1080i (1920 x 1080) at 50, 60 Hz
720p (1280 x 720) at 50, 60 Hz
480p (852 x 480) at 60 Hz
576p (852 x 576) at 50 Hz
480i (852 x 480) at 60 Hz
576i (852 x 576) at 50 Hz | | Video Standards | HDMI v1.2, HDCP 1.1, DVI 1.0 | | Power | 5 VDC at 2A (locking DC connector) | | Regulatory Approvals | Converter Unit: FCC, CE, RoHS
Power Supply: UL, CUL, CE, PSE, GS, RoHS | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Operating Humidity | 10 to 90% (non-condensing) | | Storage Temperature | 14 to 140°F (-10 to 60°C) | | Storage Humidity | 10 to 90% (non-condensing) | | Dimensions (HxWxD) | 1 x 4 x 5.7" (25 x 102 x 145 mm) | | Weight | 12 oz (340 g) | | | | Package Weight | 1.5 lb | | Box Dimensions (LxWxH) | 11.0 x 7.0 x 3.0" |
