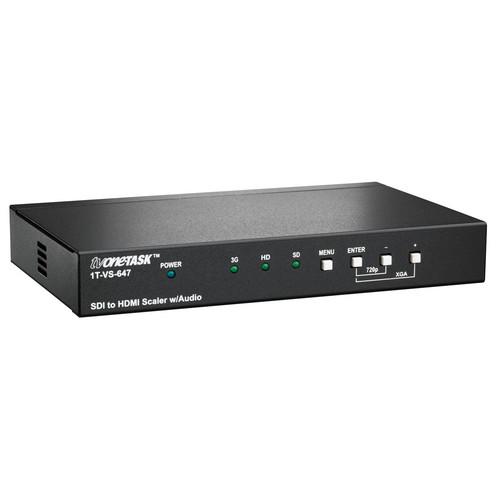

User Manual for TV One SDI to HDMI Scaler with Audio Click to enlarge the picture
Contents of the user manual for the TV One SDI to HDMI Scaler
- Product category: Signal Converters TV One
- Brand: TV One
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TV One Signal Converters
|
User manual for the TV One SDI to HDMI Scaler contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TV One product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TV One user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TV One product will considerably shorten its lifespan!
|
Product description The 1T-VS-647 SDI to HDMI Scaler with Audio from TV One is an SDI to HDMI Scaler and SDI Repeater. This small device, converts a variety of SD/HD/3G-SDI inputs - from 480i to 1080p - into an HDMI signal. It can convert an SDI signal into an HDMI pathway and easily integrate an SDI source into an HDCP system. Adjustments to the HDMI signal are available through an on-screen menu display overlay. Audio can be output to a separate digital or analog recorder or monitor via the built in RCA jacks on the device. The 1T-VS-647 is suitable for both field use and post use. In addition one or two of the 1T-VS-647 units can be mounted in a rack with a single optional 1U Rackmount kit. - Plug and Play SDI to HDMI Scaler, Easy to Use, Adjustable
- The 1T-VS-467 works as a plug and play device, seamlessly detecting and converting a variety of SD/HD/3G-SDI inputs - from 480i to 1080p - into an HDMI signal. The HDMI output defaults to the native resolution of the connected display. Should you wish to make adjustments to the HDMi signal the OSD (On Screen Display) menu system overlays a settings menu, allowing for adjustments to Output Resolution, Overscan/Underscan, Color, Brightness, Contrast, and SDI Audio Group selection.
- SDI Repeater
- With its Loop-Thru feature the 1T-VS-647 can act as an SDI repeater and send a 3G-SDI signal up to a distance of 100 meters. The Loop-Thru feature does not interfere with the scaling of the SDI Signal to HDMI. The HDMI signal uses PC Timing, which enables compatability with HDTV with HDMI input, or a DVI-D device - such as a PC Monitor.
- De-Embedded Audio - Audio Breakout Connectors
- The 1T-VS-467 provides De-Embedded Audio from the SDI input stream via RCA jacks (Output only) on the unit. Audio can be monitored/recorded through a Digital Coaxial jack, or through Analog R & L channel audio.
In the Box TV One SDI to HDMI Scaler with Audio AC Power Adapter Operations Manual Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TV One SDI to HDMI Scaler with Audio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTV One 1T-VS-647 Specs | Video Input | SDI Format Support
SD: 480i, 576i
HD: 720p 50/60,1080i 50/60, 1080p 24/25/30
3G-SDI: 1080P 50/60
Transmission Bit Rates
SDI Inputs: 2.970 Gbit/s & 2.97/1.001 Gbit/s
Frequency Bandwidth 165 MHz | | Input/Output Connectors | Video/Audio Input
1x BNC (w/Loop-Thru)
Supports SDI, HD-SDI, 3G-SDI
Video Output
1x BNC
Supports SDI, HD-SDI, 3G-SDI
Maximum Cable Run - Using Belden 1694A Cable
SD=300 m
HD=200 m
3G=100 m
HDMI v1.3 Via 1x HDMI Connector
Ancillary Audio Outputs
1x RCA,
Supports De-Embedded Digital Audio
2x RCA
Supports De-embedded Analog Audio | | Video Output | Signal Conversion
SMPTE Standard: 425M Level B to Level A
Max Output Resolution: 1080P 60, WUXGA
HDMI Output Signals
60Hz
720x480P
1280x720p
1920x1080i
1920x1080p
800x600
1024x768
1280x768
1360x768
1200x800
1440x900
1400x1050
1680x1050
1600x1200
1920x1200
50Hz
720x576p
1280x720p
1920x1080i
1920x1080p | | Audio Output | De-Embedded Audio Output Signal Types
Digital SPDIF, 48 KHz
Analog R&L, 48 KHz
Channel Complement
4 Groups, 2 per Group | | SMPTE | Supported SMPTE Standards
SMPTE 425 A&B, 424M, 292M & 259M-C
SMPTE 425M level B to level A Conversion | | Menu Display | On Screen Display Structure
Display Setup
Color Adjustments
SDI Audio Group
Factory Reset
Device Information | | Processing Delay | One to Two Frames | | Temperature & Humidity | Operating Conditions
Temperature 32 to 104°F (0 to 40°C)
Humidity 20% to 90%, Non-condensing
Storage Conditions
Temperature -4 to 140°F (-20 to 60 °C)
Humidity 20% to 90%, Non-condensing | | Power / Consumption | External Power Supply 5VDC@2.6A | | Optional Mounting Accessory Notes | Optional 1U Rack Mount Kit available
Can fit two units in each Rackmount Kit | | Dimensions (H x W x D) | 1.2 x 7 x 5.6" (30 x 180 x 142 mm) | | Weight | 16.2 oz (460 g) | | | | Package Weight | 2.55 lb | | Box Dimensions (LxWxH) | 11.2 x 7.2 x 2.8" |
