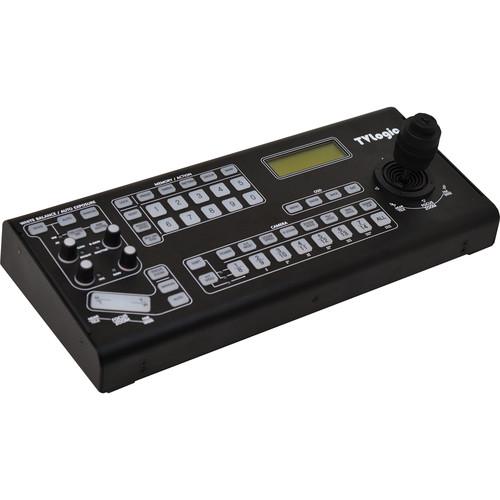

Product description The 14-Channel PTZ Controller from TVLogic is composed of 50 function keys, four knobs, a three-axis joystick, and an LCD display for controlling up to 14 select Sony PTZ cameras. The speed of the pan and tilt can be controlled at either 9600 or 38400 bps with the buttons and control knob. The controller supports preset, pattern, swing, and group functions. - Four-line text LCD is used to check and input the menu control operation status
- Three-color LED for checking the operation status of the camera
In the Box TVLogic 14-Channel PTZ Controller for Select Sony Cameras Power Supply Power Cord RS-232C/422 9-Pin Connector Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TVLogic 14-Channel PTZ Controller for Select Sony Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

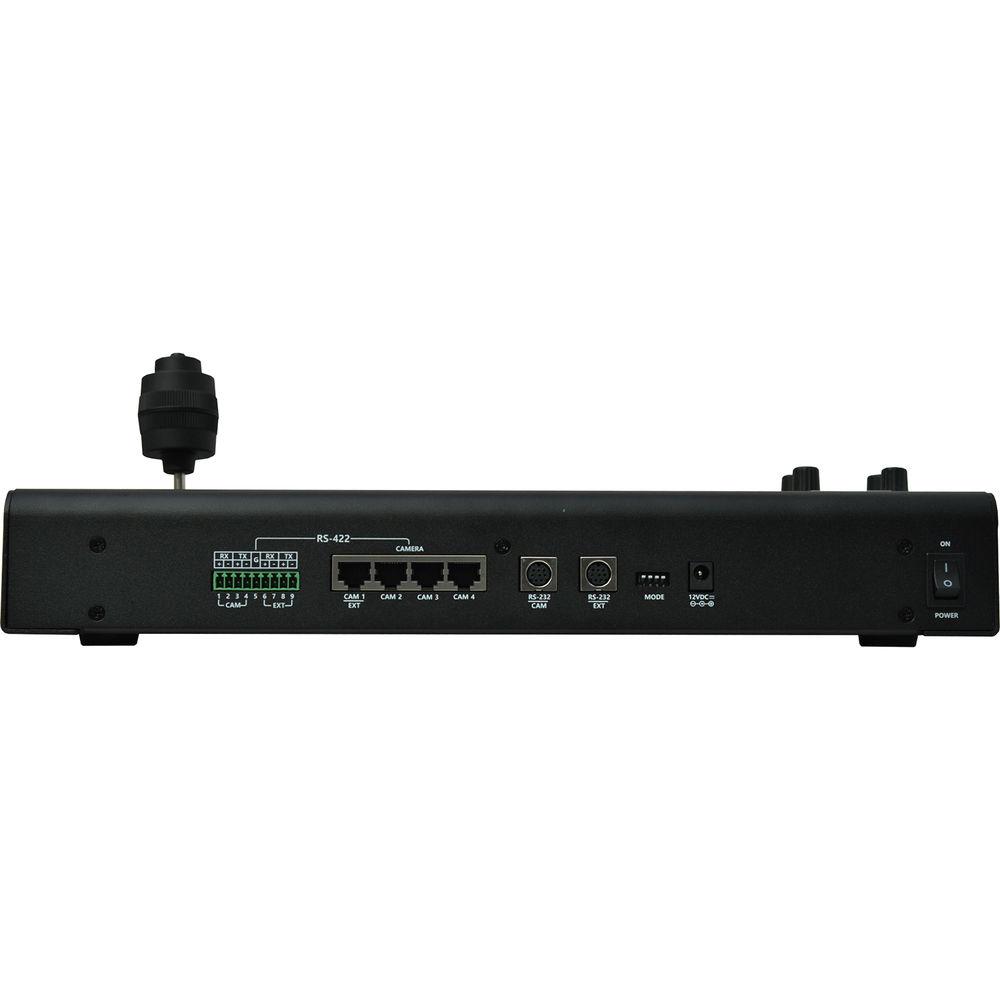

Technical parametersTVLogic TVR-200H Specs | Compatibility | Up to 14 Sony Cameras: EVI-D30/31, EVI-D70/P, EVI-HD1, EVI-H100V, EVI-H100S, BRC-300/P, BRC-H700, BRC-Z700, BRC-H900, BRC-Z330, and SRG-300H | | Interface | 1 x 9-Pin Terminal, RS-422 Camera/External Port
4 x RJ45, RS-422 Camera/External Port
1 x 8-Pin Mini DIN, RS-232C Camera Port
1 x 8-Pin Mini DIN, RS-232C External Port
1 x DC Barrel, Power Input | | Transmission Speed | 9600/38400 bps | | Steps | Pan: 24
Tilt: 23

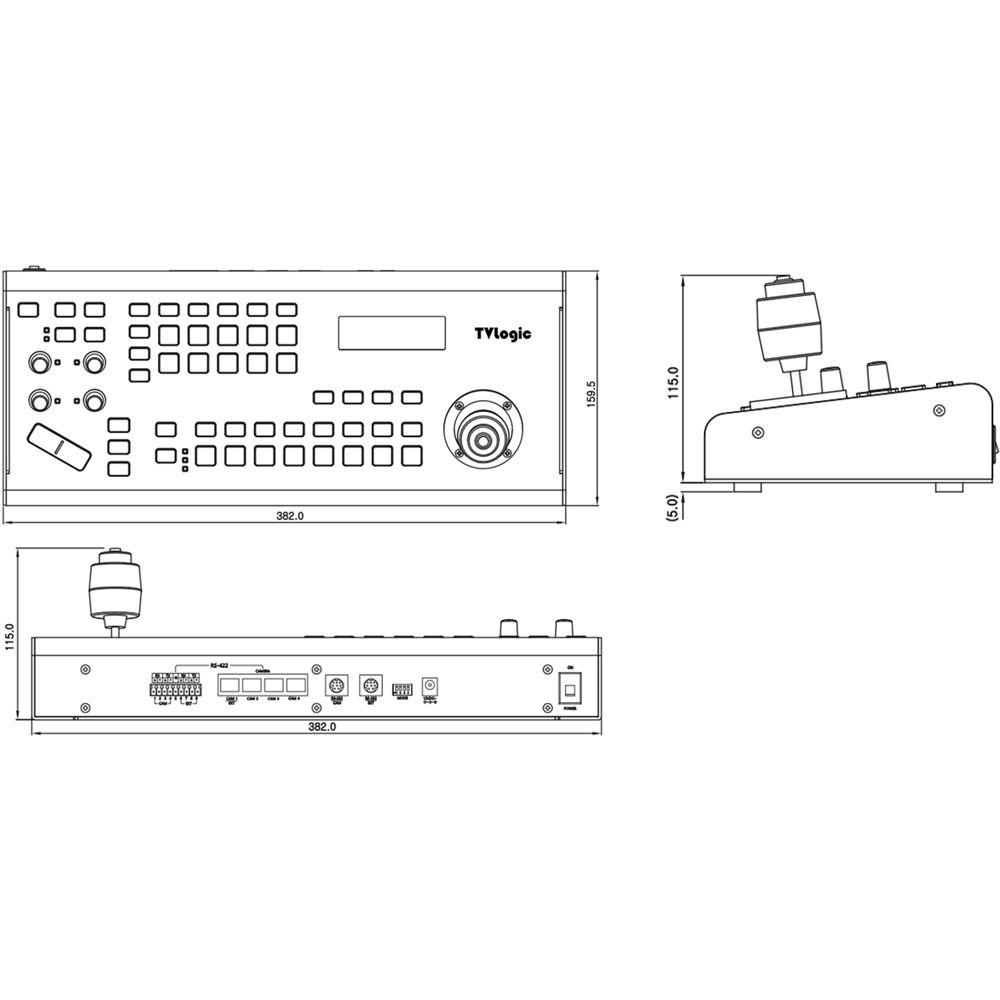

Zoom: 16 | | Function Keys | Preset, Pattern, Swing, and Group | | Power | 12 VDC ±10%, 1 A | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Dimensions | 15.0 x 6.3 x 4.5" / 38.2 x 16.0 x 11.5 cm | | Weight | 3.1 lb / 1.4 kg |
