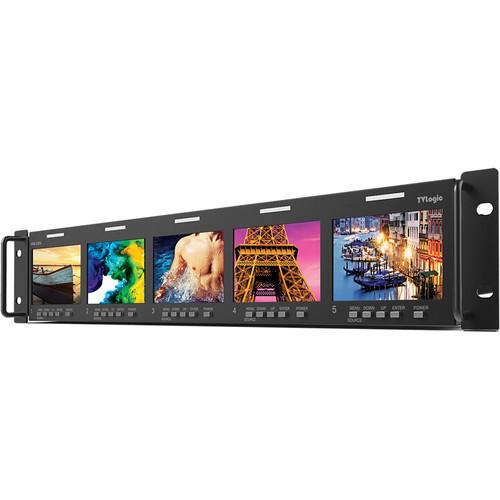

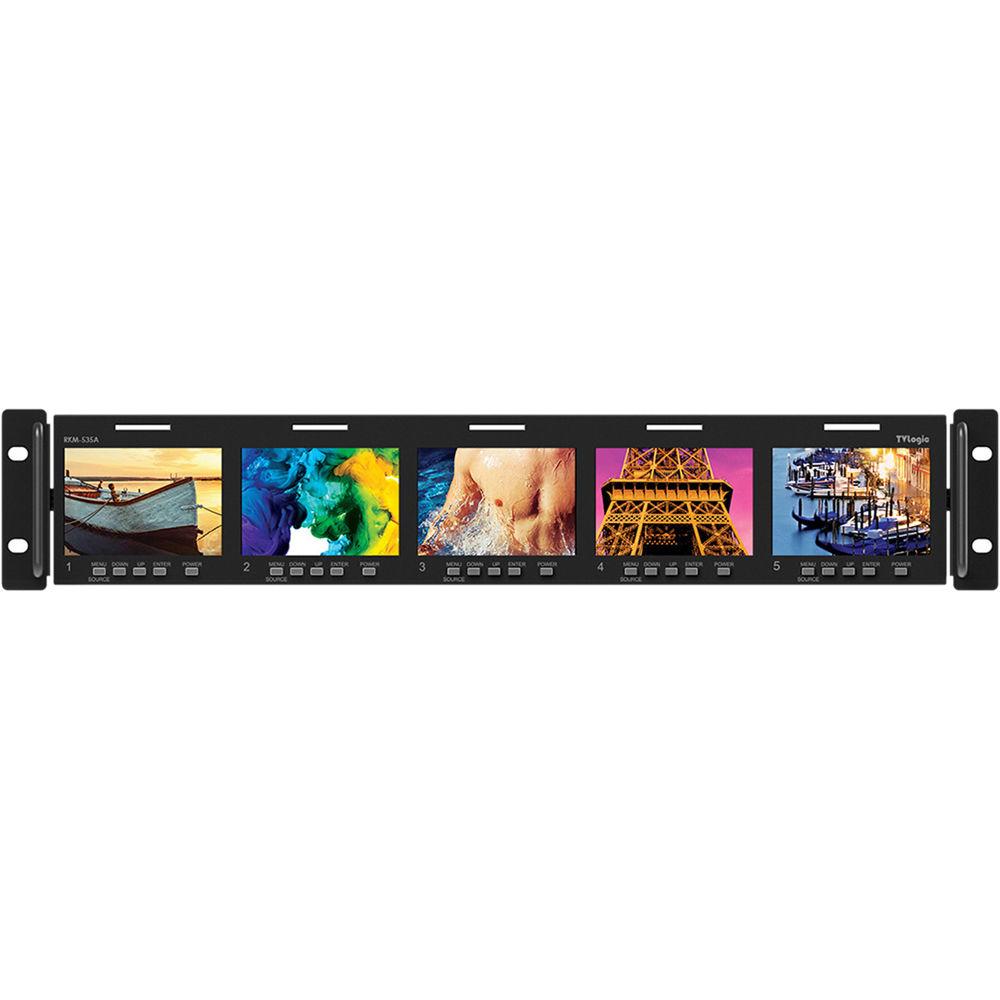

Product description The 3.5" x 5-LCD 3G-SDI Multichannel Rackmount Monitor from TVLogic features five 3.5" displays housed in a single, 2 RU rack-mountable frame. Each screen features a native resolution of 960 x 640, wide viewing angle of 160°, contrast ratio of 1000:1, and maximum luminance of 250 cd/m². Each monitor supports both a 3G-SDI and analog video input. This monitor also includes features like focus assist, various scan modes, markers, audio level metering, timecode display, closed captioning, waveform, vectorscope, and more. - Five 3.5" LCD screens with native resolution of 960 x 640 (3:2) each
- High-contrast ratio of 1000:1
- 1:1-pixel mapping modes for SD/HD/FHD
- Displays waveform luma (Y' level) and vectorscope (B-Y, R-Y on XY axis) in YCbCr, wide, and line modes
- Waveform and vectorscope can be enlarged two times
- Audio level meter display
- TVLogic color calibration utility
- Closed captioning (608, 708)
- Various scan modes including zero scan, overscan, pixel-to-pixel, and user aspect
In the Box TVLogic 3.5" x 5-LCD 3G-SDI Multichannel Rackmount Monitor (2 RU) Limited 2-Year Warranty on Hardware Limited 1-Year Warranty on Display Panel Table of Contents
|
Upload User Manual
Have you got an user manual for the TVLogic 3.5" x 5-LCD 3G-SDI Multichannel Rackmount Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

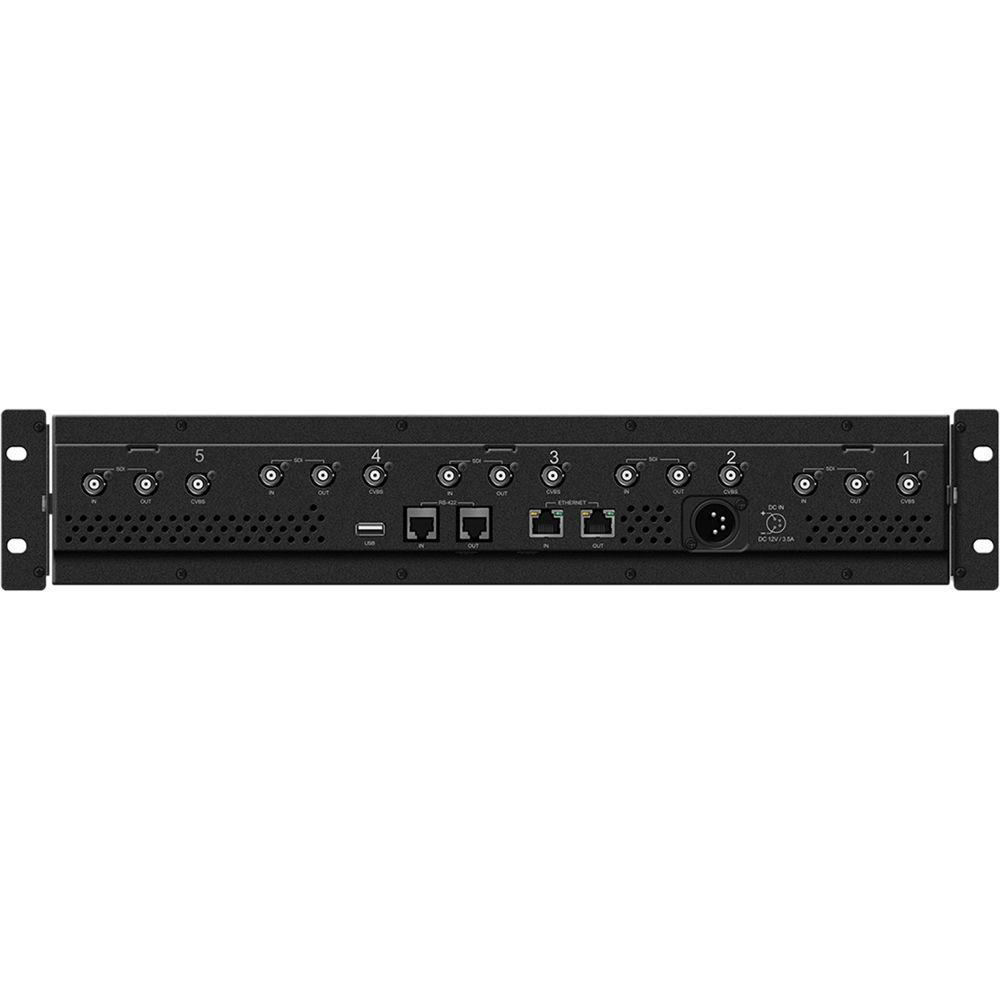

Technical parametersTVLogic RKM-535A Specs | Application | Field production applications | | Number of Screens | 5 | | LCD Size | 3.5" / 8.9 cm each | | Video System | NTSC, PAL | | Resolution | 960 x 640 | | Aspect Ratio | 3:2 | | Pixel Pitch | 0.078 mm | | Color Depth | 1.07B (10-bit) | | Viewing Angle (H x V) | 160˚/160˚ | | Brightness | 500 cd/m² (maximum) | | Contrast Ratio | 1000:1 | | Display Area | 1.96 x 2.9" / 49.92 x 74.88 mm | | Input and Output Connectors | Inputs:
5 x 3G-SDI A/B channel (BNC)
5 x Analog video (BNC)
Output:
5 x 3G-SDI A/B channel (BNC) | | Picture Controls | 1:1-pixel mapping modes, waveform, vectorscope, audio level meter display, focus assist, luma (Y') zone check, timecode display, TVLogic color calibration utility, various scan modes (zero scan, overscan, pixel-to-pixel, and user aspect), range error, blue-only, H/V delay, key lock, marker, mono, UMD | | Remote Control | No | | Input Signal | Analog: Composite video
3G SDI: 2.97 Gb/s
HD-SDI: 1.485 Gb/s
SD-SDI: 270 Mb/s | | Analog Input | CVBS: 1.0 Vpp (with sync) NTSC, PAL | | SDI Input Signal Formats | SMPTE-425M-A/B:
1080p: 30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50)
SMPTE-274M:
1080p: 30/29.97/25/24/23.98
1080PsF: 24/23.98
1080i: 60/59.94/50
SMPTE-296M:
720p: 60/59.94/50
SMPTE-260M:
1035i: 60/59.94
SMPTE-125M:
480i: 59.94
ITU-R BT.656:
576i: 50 | | Audio In | Embedded audio | | Power Requirements | 12 VDC | | Power Consumption | 60 W (maximum 5 A) | | Operating Temperature | 32 to 113°F / 0 to 45°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Rackmount Space | 2 RU | | Dimensions | 18.9 x 3.5 x 4.7" / 480.8 x 87.7 x 118.7 mm | | Weight | 6.35 lb / 2.88 kg |
