User Manual for TVLogic 7" FHD HDR Field Monitor with 3G-SDI, HDMI 1.3, and 3600 cd m² Click to enlarge the picture
Contents of the user manual for the TVLogic 7" FHD HDR Field Monitor
- Product category: On Camera Monitors TVLogic
- Brand: TVLogic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TVLogic On Camera Monitors
 |
User manual for the TVLogic 7" FHD HDR Field Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TVLogic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TVLogic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TVLogic product will considerably shorten its lifespan!
|

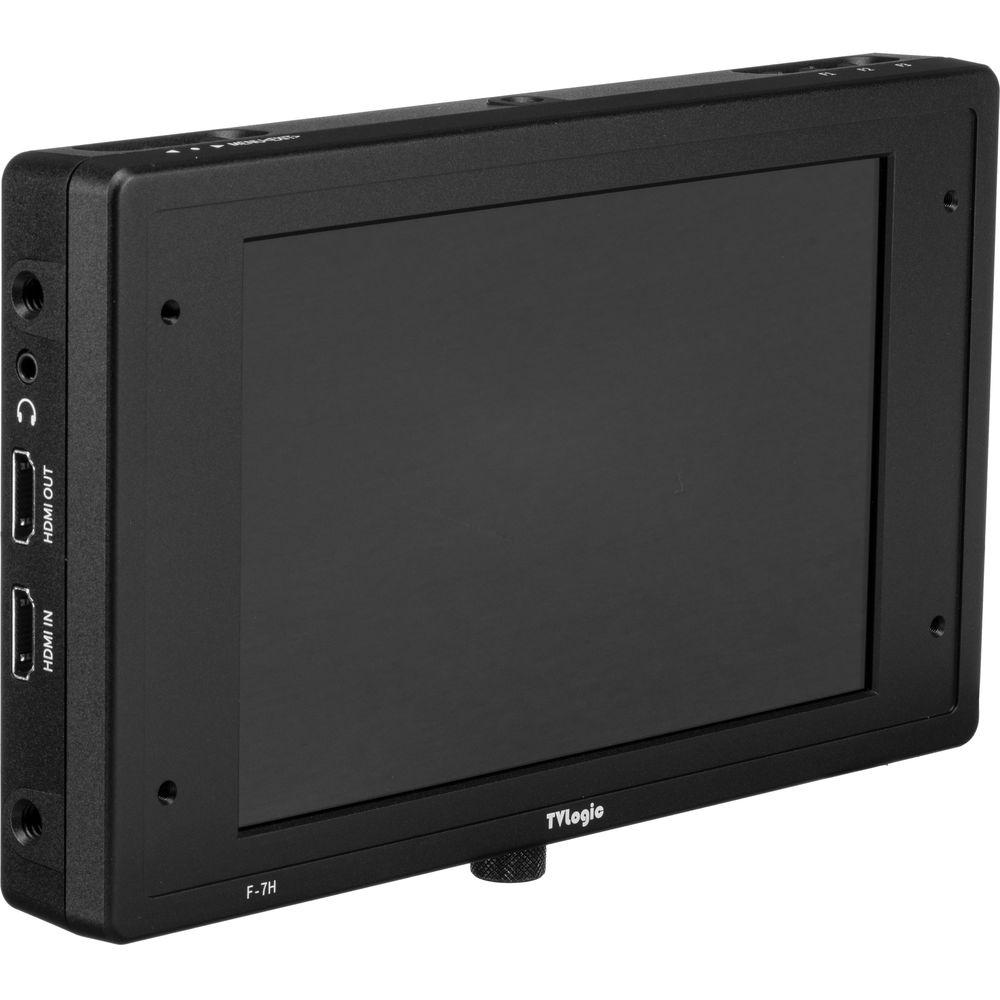

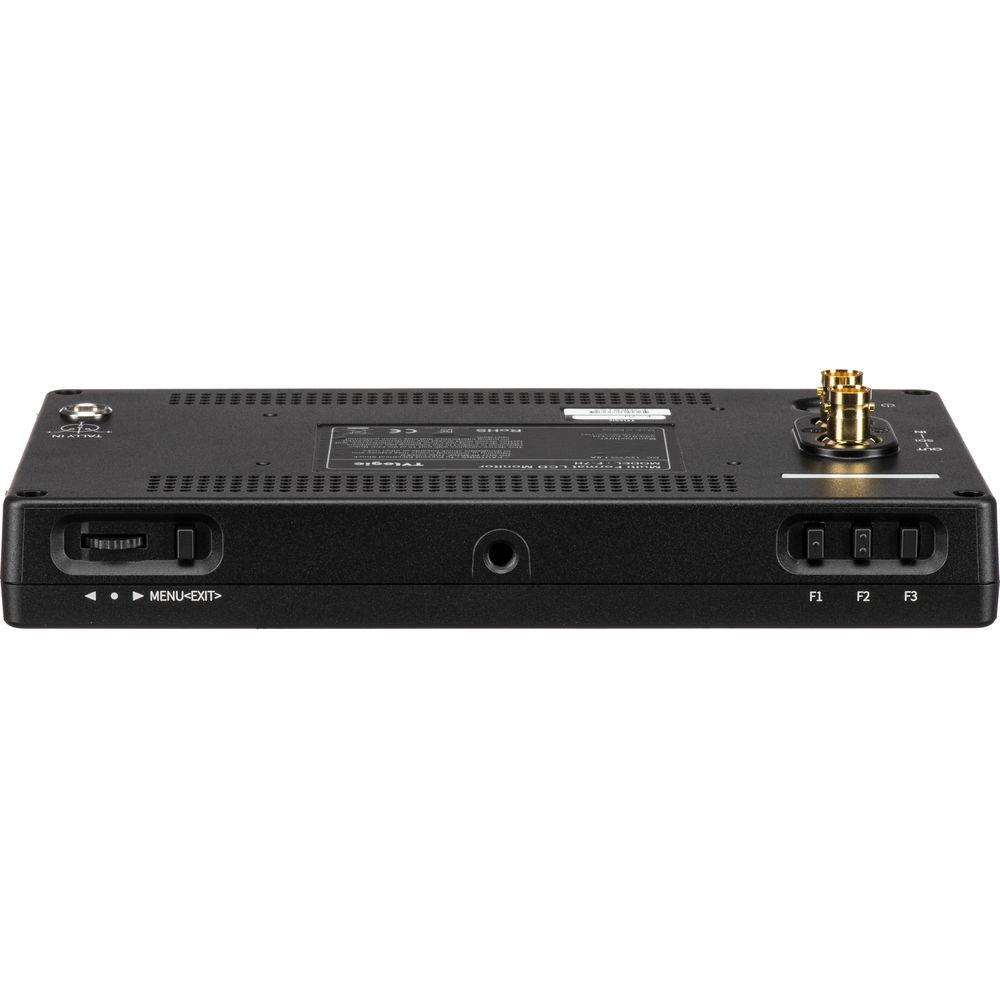

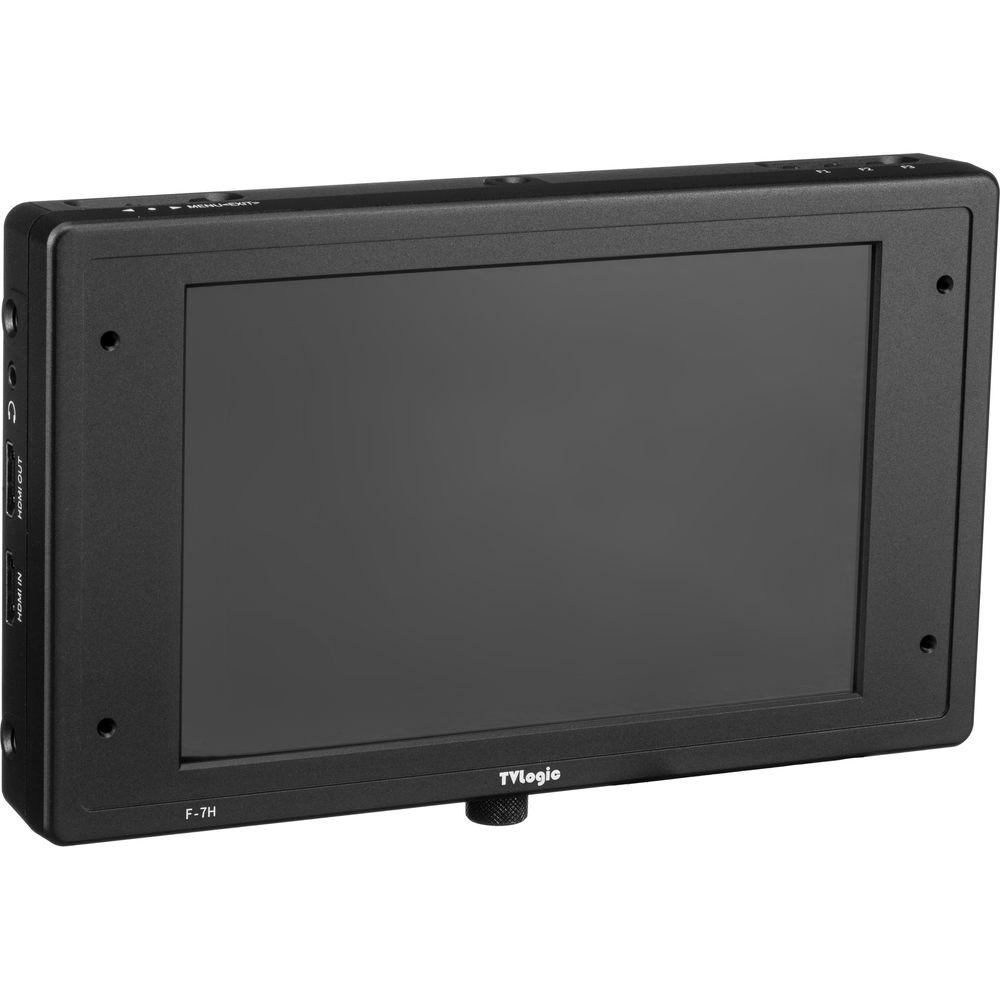

Product description The TVLogic 7" FHD HDR Field Monitor with 3G-SDI, HDMI 1.3, and 3600 cd/m² is well suited for work in the field, on a camera, or in a studio. the IPS panel features 1920 x 1080 resolution with a 160° viewing angle. It supports 3G-SDI as well as HDMI 1.3, and can cross-convert between SDI and HDMI. The 3600 cd/m² brightness and 1200:1 contrast ratio provide a bright clear image that is viewable in daylight without a hood. The screen supports REC 709, but can also display HDR imagery supporting HLG, PQ, and SLOG3. It features a top-mounted menu, assignable functions buttons, and a selection knob, leaving the front of the screen uncluttered.

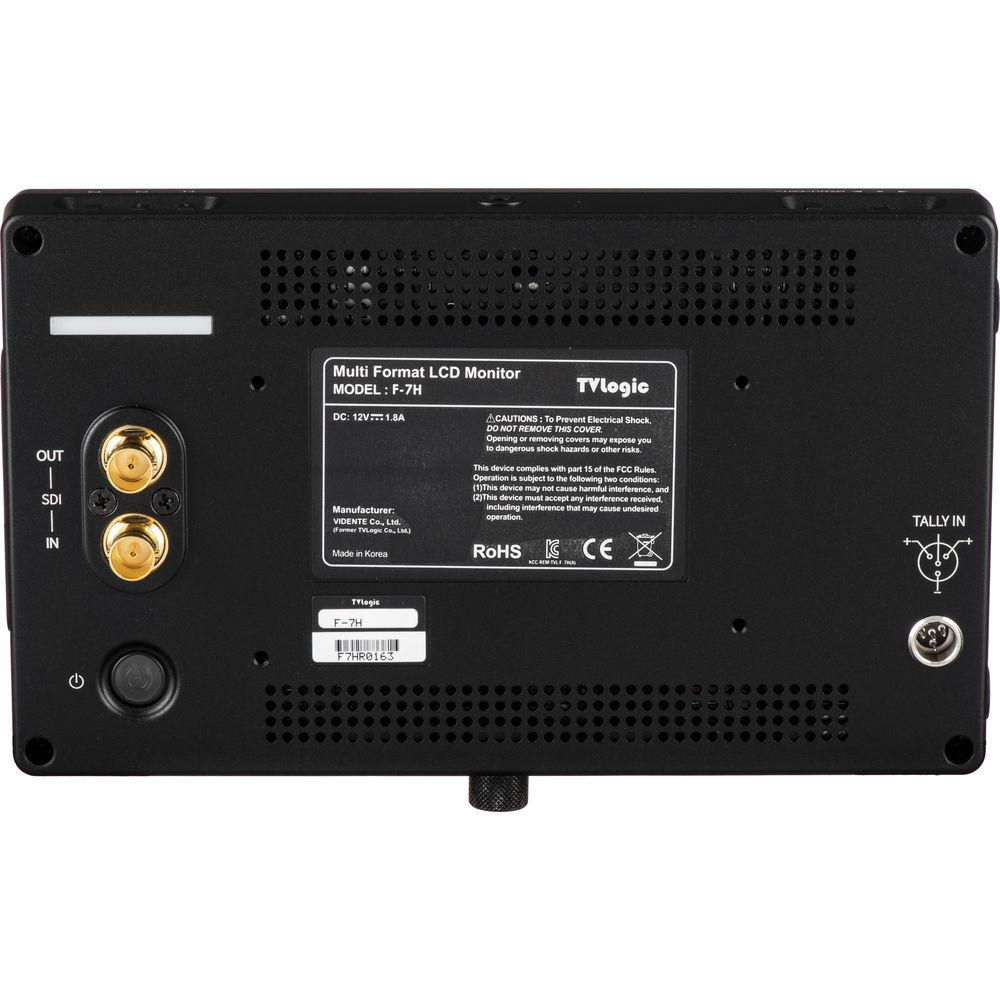

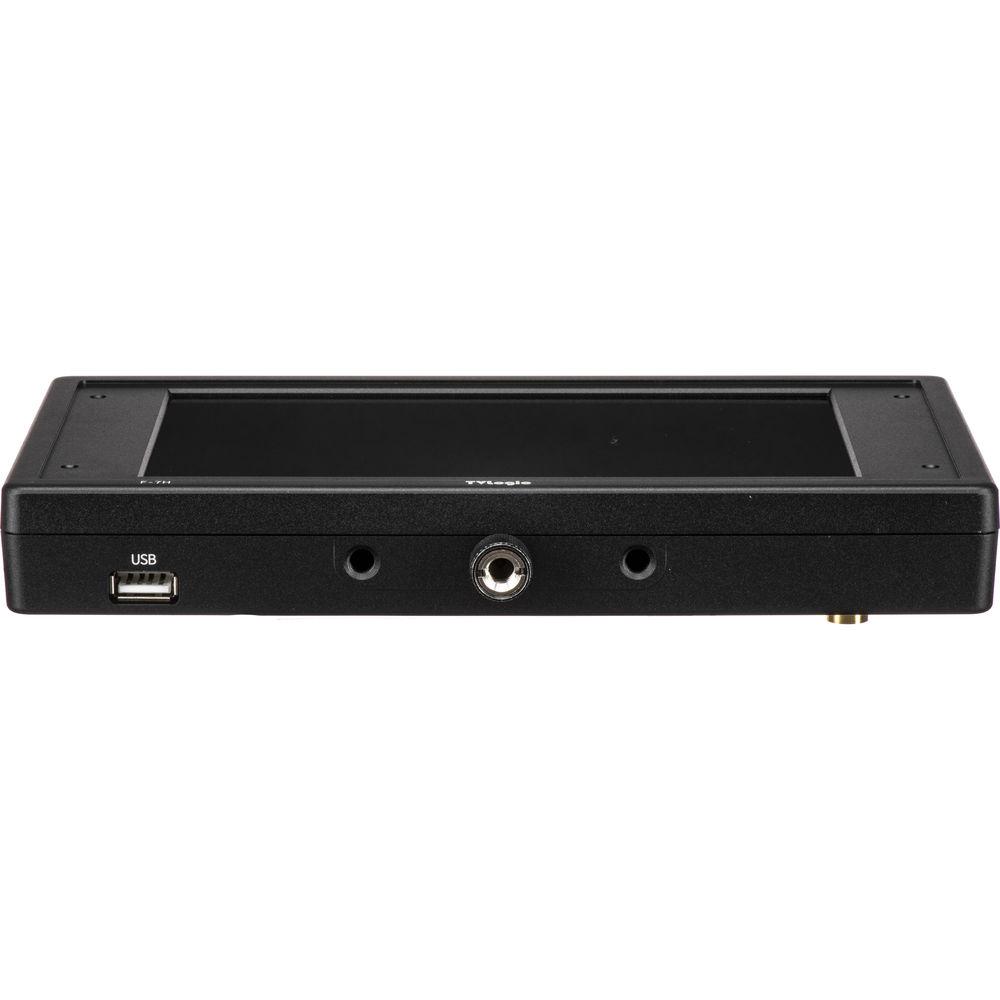

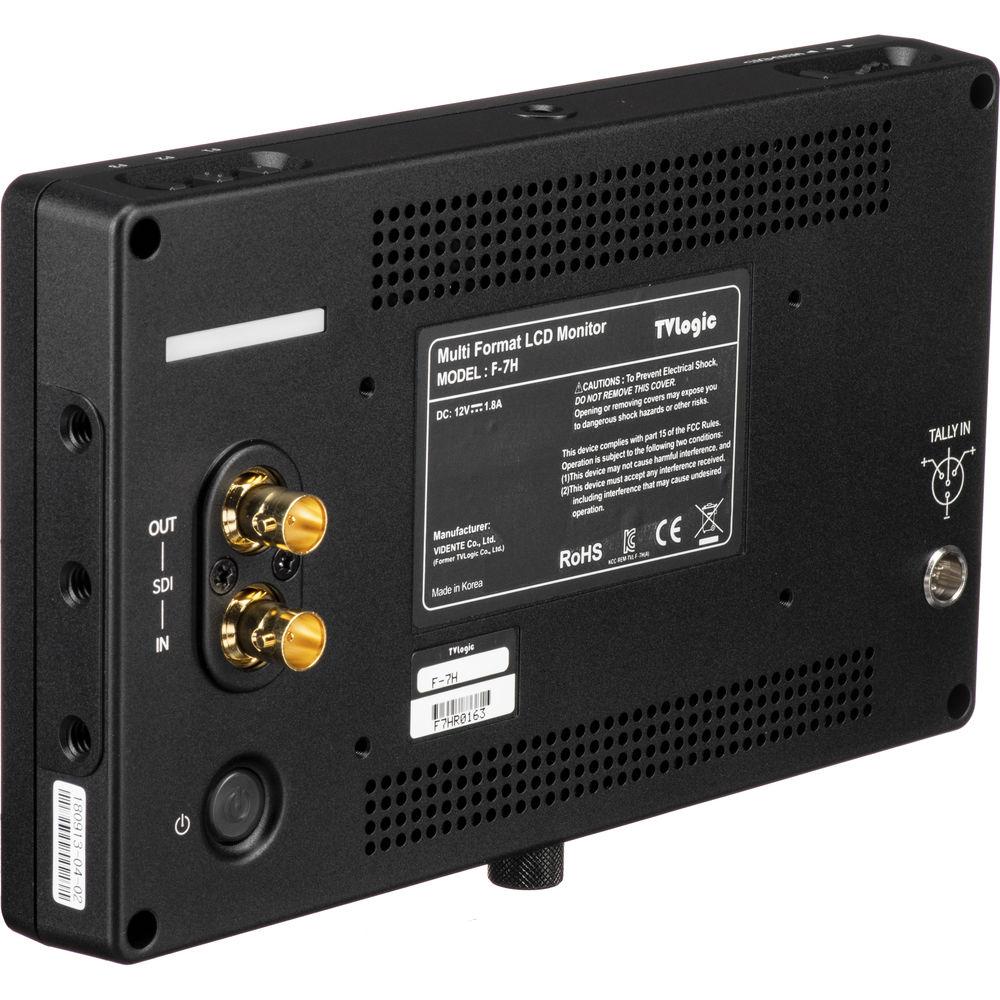

The built-in, on-screen menu display allows you to select and adjust the monitor's controls, on-screen markers, load and save 3D LUTs, and select from SDR to HDR. It displays tally signal through the power connection and displays tally on both the front and rear of the monitor. Threaded 1/4"-20 mounting holes are built into the top, bottom, left, and right sides, allowing you to mount it using an optional accessory arm, or to your camera using the included cold shoe mounting adapter. Optionally available battery plates expand the power options of the monitor. -
- Audio level meter display
- Blue-only/mono
- Focus Assist
- H/V delay
- H/V flip
- Waveform and vectorscope
- Key lock
- Luma(Y') zone check
- Marker
- Max brightness on/off
- Range Error
- Timecode display
- 1-to-1 pixel zoom
- ARRI camera metadata support
- Anamorphic de-squeeze
- HDMI to SDI conversion
- SDI to HDMI conversion
- Internal pattern generator (0~100% gray/color bars + pluge)
- Center marker, safety area marker, marker mat, marker size, fit marker, thickness adjustment function
- 3D LUT Support
- The monitor internally stores up to three 3DLUTs. You can also load from a list of available 3DLUT files. The monitor supports the following formats: Cube, GV Lut, Quantel, DaVinci, and AssScratch. Once saved, the 3DLUT is retained even when the power is turned off.
- HDR
- The F-7H supports HDR display using EOTF in PQ, HLG, or SLOG3. In the Auto mode, the HDR image is converted within the range of set peak luminance and black level. In the Off mode, the video will clip.
- Marker
- Available Marker types are Off, 16:9, 4:3, 4:3, On Air, 15:9, 14:9, 13:9, 1.85:1, 2.35:1, 1.85:1, 4:3, and user-definable top/bottom and left/right.
- Aspect Ratio
- You can adjust the aspect ratio of the monitor, regardless of the original aspect ratio of the input signal. Aspect modes are changed as follow: 16:9, 4:3, 2.35:1, 1.85:1, 15:9, 16:10], Anamorphic 1.3x, Anamorphic 1.5x, Anamorphic 2.0x, and Auto. Auto mode enables the aspect ratio of the output signal to be synchronized to the original aspect ratio of the input signal.
- Tally
- The F-7H supports on-screen and rear tally. Tally signals are sent through the power connector.
- On-Screen Display
- You can select the type, then adjust the size and transparency of the waveform and vectorscope.
- Optional Battery Plates
- Optional battery plates are available to power your monitor from:
- L-series
- Cannon BP series
- Panasonic CGA/VB series
- Sony BP-U series
- LP-E6
- V-mount
- Gold mount
In the Box TVLogic 7" FHD HDR Field Monitor with 3G-SDI, HDMI 1.3, and 3600 cd/m² D-Tap to Mini-XLR Power Coiled Cable for VFM Monitors (Expands to 29") Threaded Camera Mount for VFM-056WP and VFM-058W Monitors BNC Connector Limited 1-Year Warranty on LCD Panel Limited 2-Year Warranty on Hardware User Manual PDF 3.4mbuxdyrqaswtvecrcfccrfse Table of Contents
|
Upload User Manual
Have you got an user manual for the TVLogic 7" FHD HDR Field Monitor with 3G-SDI, HDMI 1.3, and 3600 cd m² in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTVLogic F-7H Specs | | | Panel Type | IPS-Type LCD | | Display Size | 7.0" / 17.8 cm | | Active Area | 5.95 x 3.72" / 151.2 x 94.5 mm | | Screen Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Viewing Angle | Horizontal: 160°
Vertical: 160° | | Touchscreen | No | | Maximum Brightness | 3600 cd/m2 | | Contrast Ratio | 1200:1 | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Real-Time LUT Monitoring | SDR | | Image Controls | Blue Only, H/V Delay, Waveform, Zebra, Vectorscope | | | | Video | 1 x BNC (3G-SDI) Input
1 x BNC (3G-SDI) Output
1 x HDMI Type A (HDMI 1.3) Input
1 x HDMI Type A (HDMI 1.3) Output | | Embedded Audio | SDI
HDMI | | Audio | 1 x 3.5 mm Line Input
1 x 3.5 mm Headphone Output | | Built-In Speaker | 1 | | Other I/O | None | | Card Slot | None | | | | Video Format | SDI (10-Bit 4:2:2 YCC)
1080p: 50/59.94/60
1080PsF: 24/25/29.97/30
1080i: 50/59.94/60
720p: 50/59.94/60
PAL: 50
NTSC: 59.94
SDI (10/12-Bit 4:4:4 RGB, YCC)
1080p: 23.98/24/25/29.97/30
1080PsF: 23.98/24/25/29.97/30
HDMI (8/10/12-Bit 4:4:4 RGB, YCC)
1080p: 23.98/24/25/29.97/30/50/59.94/60
1080i: 50/59.94/60
720p: 50/59.94/60
576p: 50
PAL: 50
480p: 60
NTSC: 60
HDMI (8/10/12-Bit 4:2:2)
1080p: 23.98/24/25/29.97/30/50/59.94/60
1080i: 50/59.94/60
720p: 50/59.94/60
576p: 50
PAL: 50
480p: 60
NTSC: 60 | | PC Resolutions | 1920 x 1080 at 60 Hz
1280 x 1024 at 60 Hz
1280 x 800 at 60 Hz
1280 x 768 at 60 Hz
1024 x 768 at 60/70/75 Hz
800 x 600 at 60/75 Hz
640 x 480 at 60/75 Hz
640 x 400 at 70 Hz | | Video Signal Conversion | SDI to HDMI
HDMI to SDI
| | | | DC Input Power | 6.8 to 12 VDC at 1.8 A | | Battery Type | None | | Power Consumption | 19 W | | | | Mounting | 9 x 1/4"-20 Female | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | | | Dimensions (W x H x D) | 8.31 x 4.92 x 1.11" / 211 x 125 x 28.3 mm, Including Connectors | | Weight | 1.68 lb / 0.76 kg | | | | Package Weight | 2.35 lb | | Box Dimensions (LxWxH) | 11.6 x 6.4 x 3.4" |
