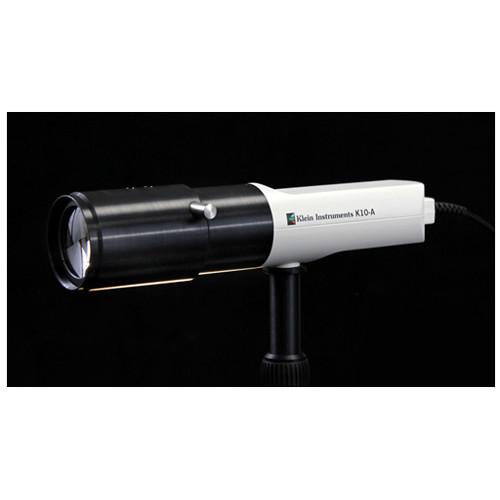

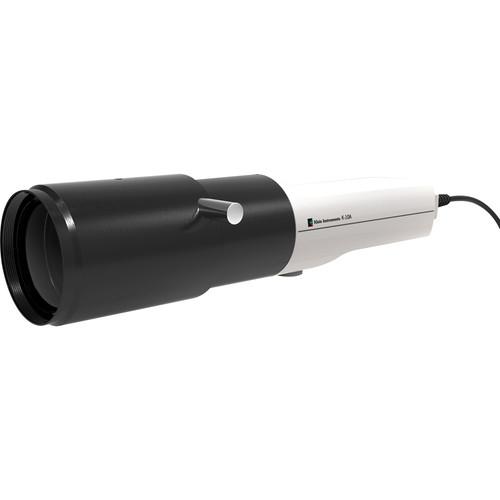

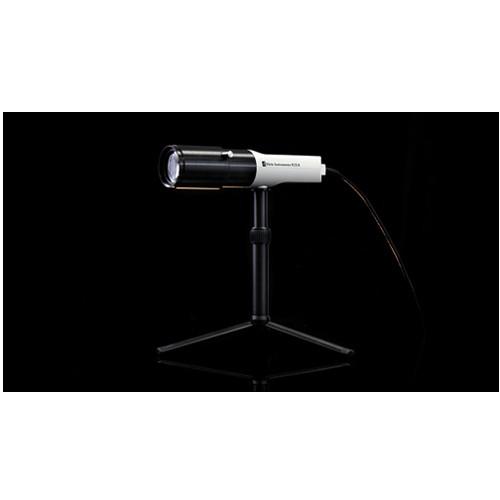

Product description The Klein K-10 Colorimeter Probe from TVLogic is a professional colorimeter, designed for use with LCD displays. The probe connects to a PC via the RS-232 serial interface, and includes software for Windows. - Large photodiodes, 5x5mm in size, are coupled with thermally stable components for extremely accurate measurement

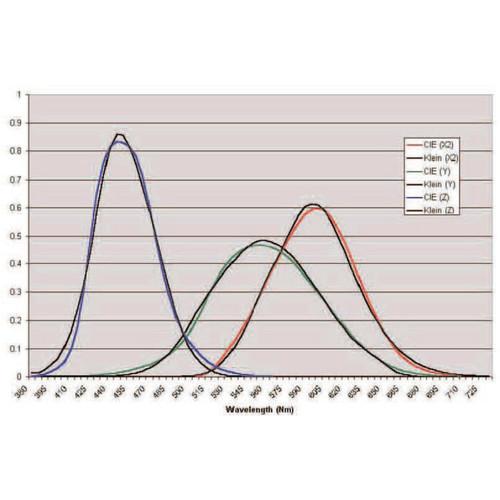

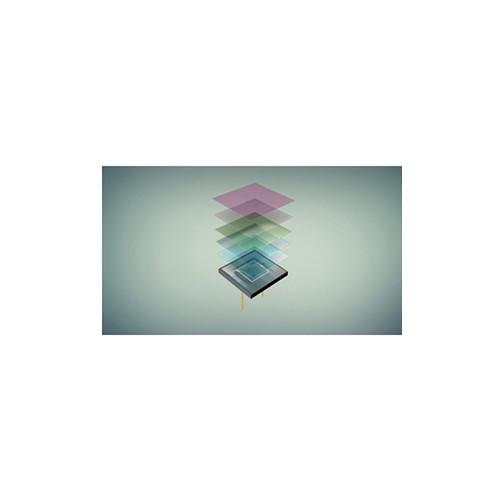

- Accurate filters ensure that the f1' of Y, X, and Z are measured correctly
- Light mixing chamber ensures that all diodes see the same light, eliminating x,y variations that can be caused by rotating the probe clockwise or counterclockwise
- Head takes 256 measurements per second, even in low light

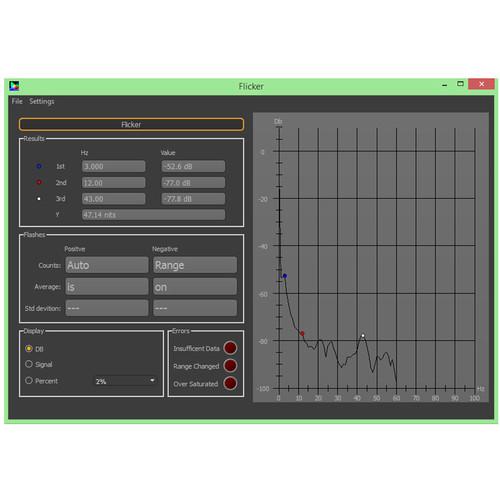

- FFT Flicker Meter measures and integrates Y data in the head, streamed in real-time to the connected computer
- Luminance measurements are taken from 100% video to 0% video in 10% increments, ensuring accurate gamma measurement

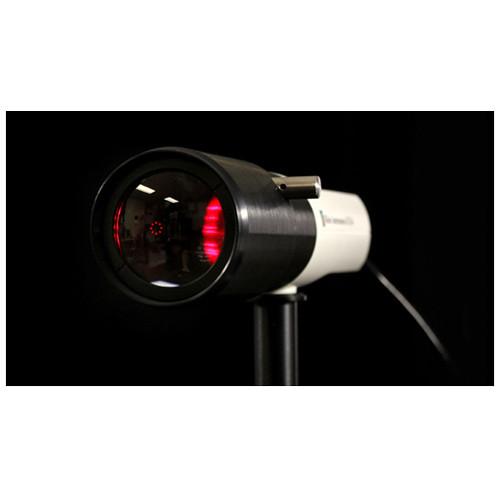

- Eight bright LEDs project through a 62mm focal length lens to define the measurement area
- Solid-state design with an impact-resistant case, designed for constant 24/7 use

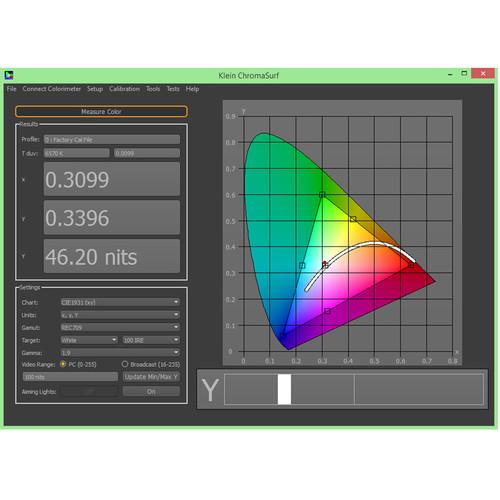

- Includes software for Windows
In the Box TVLogic Klein K-10 Colorimeter Probe Power Supply Certificate of Calibration Software CD-ROM 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TVLogic Klein K-10 Colorimeter Probe in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTVLogic Klein K-10 Specs | Measuring Functions | Colorimetric; x y Y, u v Y, RGB, Tc Tuv Y | | Measuring Range | 0.00006-2919fL; 0.0002-10,000cd/m2 (candelas/sq. meter) | | Measures | 22mm diameter, 110mm from display | | Scan Interval | 0.1 sec., auto ranging; 6 ranges, each channel independently | | Filters | 20Hz low pass 3 pole analog filter, 14-bit A/D Converter; digital averaging | | Accuracy | Chroma ±0.002 x, y (displayed value > 1.00cd/m2)
Luminance ±1% Y, ±1 LSB (displayed value > 0.01cd/m2) | | Repeatability | Chroma ±0.002 x, y (displayed value > 1.00cd/m2)
Luminance ±1% Y, ±1 LSB (displayed value > 0.01cd/m2) | | Interface | 9600 baud RS-232 communication to PC | | Connectors | Serial COM 9-pin (DB9), USB plug for 5v power only | | Electrical Requirements | 5VDC, 75mA nominal (175mA maximum with LEDs on) from a PC's USB port, or from included power supply | | Environmental Requirements | Operating
Temperature: 32-104°F (0-40°C)
Humidity: 85%, non-condensing | | Material | Platinum colored high-impact plastic and black anodized aluminum | | Dimensions (LxDiameter) | 10.5 x 2.375" (26.7 x 6cm) | | Weight | 1.2 lb (0.59kg) |
