User Manual for TVLogic LUM-240G 24" UHD 4K 12G-SDI Single-Link IPS LCD Monitor Click to enlarge the picture
Contents of the user manual for the TVLogic LUM-240G 24" UHD 4K 12G-SDI
- Product category: Production Monitors TVLogic
- Brand: TVLogic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TVLogic Production Monitors
 |
User manual for the TVLogic LUM-240G 24" UHD 4K 12G-SDI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TVLogic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TVLogic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TVLogic product will considerably shorten its lifespan!
|

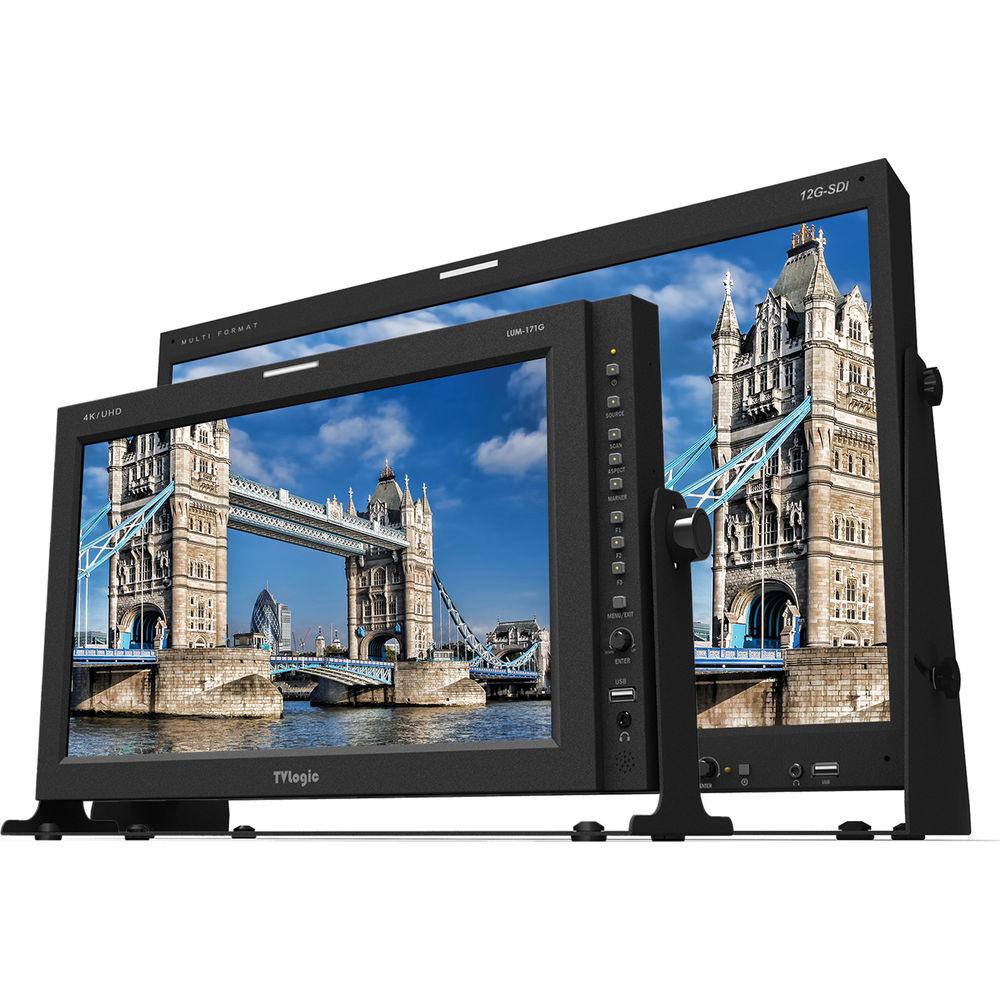

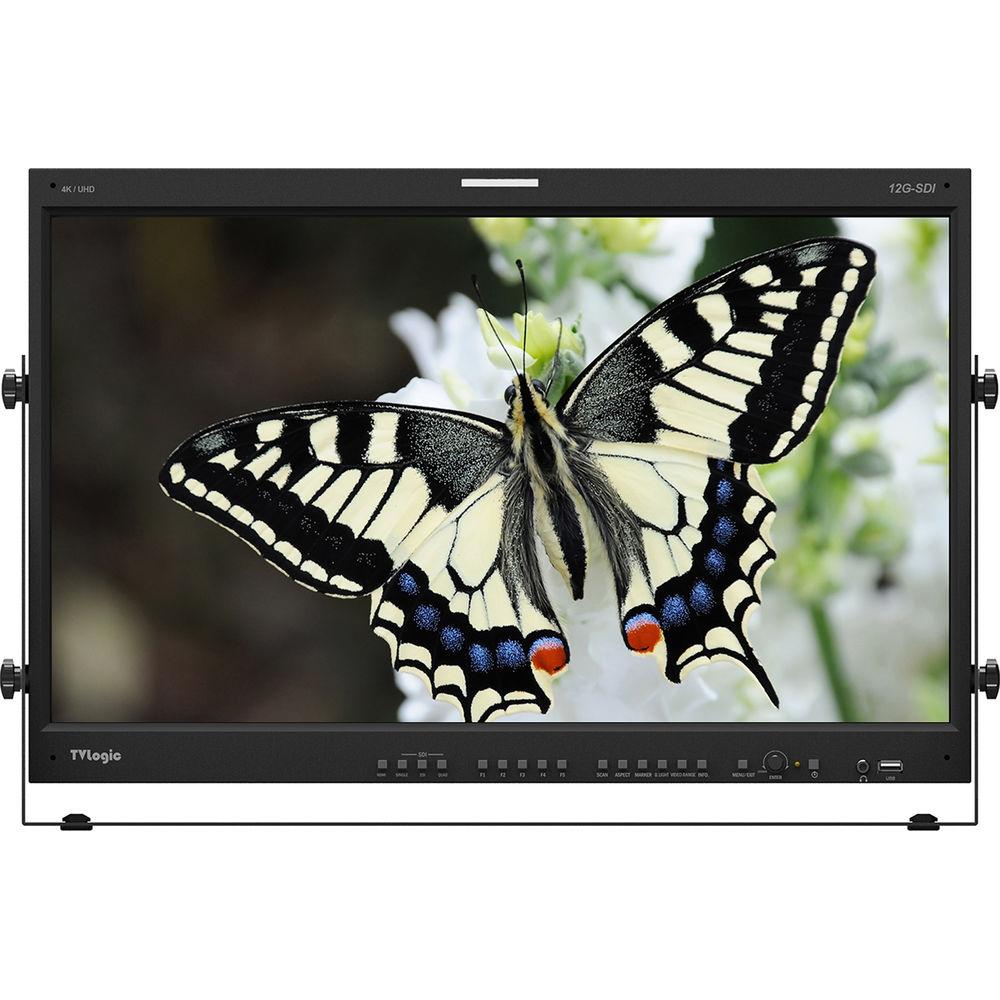

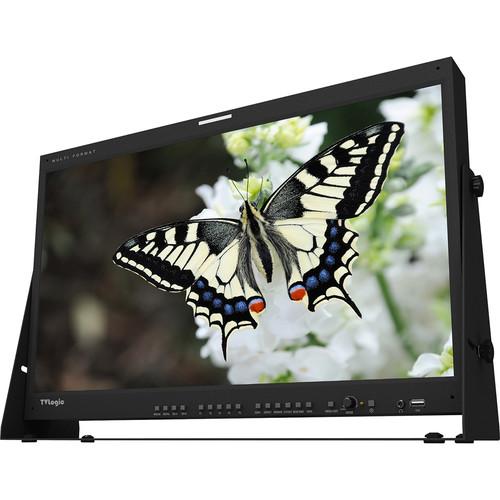

Product description The LUM-240G 24" UHD 4K 12G-SDI Single-Link IPS LCD Monitor from TVLogic supports various video formats including 12G/3G/HD-SDI and HDMI 2.0. It also provides a wide color gamut up to DCI and includes 3D LUT support and various professional features. It provides a wide viewing angle of 178°, contrast ratio of 1000:1, and maximum brightness of 350 cd/m². - 23.8" display with UHD 4K (3840 x 2160) native resolution
- 3D lookup table (LUT) for accurate color reproduction
- TVLogic color calibration utility
- Color gamut covers up to DCI-P3
- 10-bit 1.07B color depth and TVLogic color calibration utility
- True 24p (48 Hz) driving for digital cinema
- 12G-SDI, 6G-SDI, and HDMI 2.0 single-link interfaces support 4K signals up to 2160p60
- 3G-SDI quad link with quad and two-sample interleave modes
- Single-mode (via HDMI 2.0 port) supports HD signals up to 1080p60 and 1080i60, displaying one Full HD quadrant to fill the screen (zoom)
- Wide viewing angles of 178°
- 1:1 pixel mapping modes for SD/HD/FHD
- Timecode display, focus assist, audio level meter, internal pattern, blue only, H/V delay, marker, mono
- HDMI 2.0 support for 4K/60p
In the Box TVLogic LUM-240G 24" UHD 4K 12G-SDI Single-Link IPS LCD Monitor AC Power Cord Stand Limited 2-Year Warranty on Hardware Limited 1-Year Warranty on Display Panel Table of Contents
|
Upload User Manual
Have you got an user manual for the TVLogic LUM-240G 24" UHD 4K 12G-SDI Single-Link IPS LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

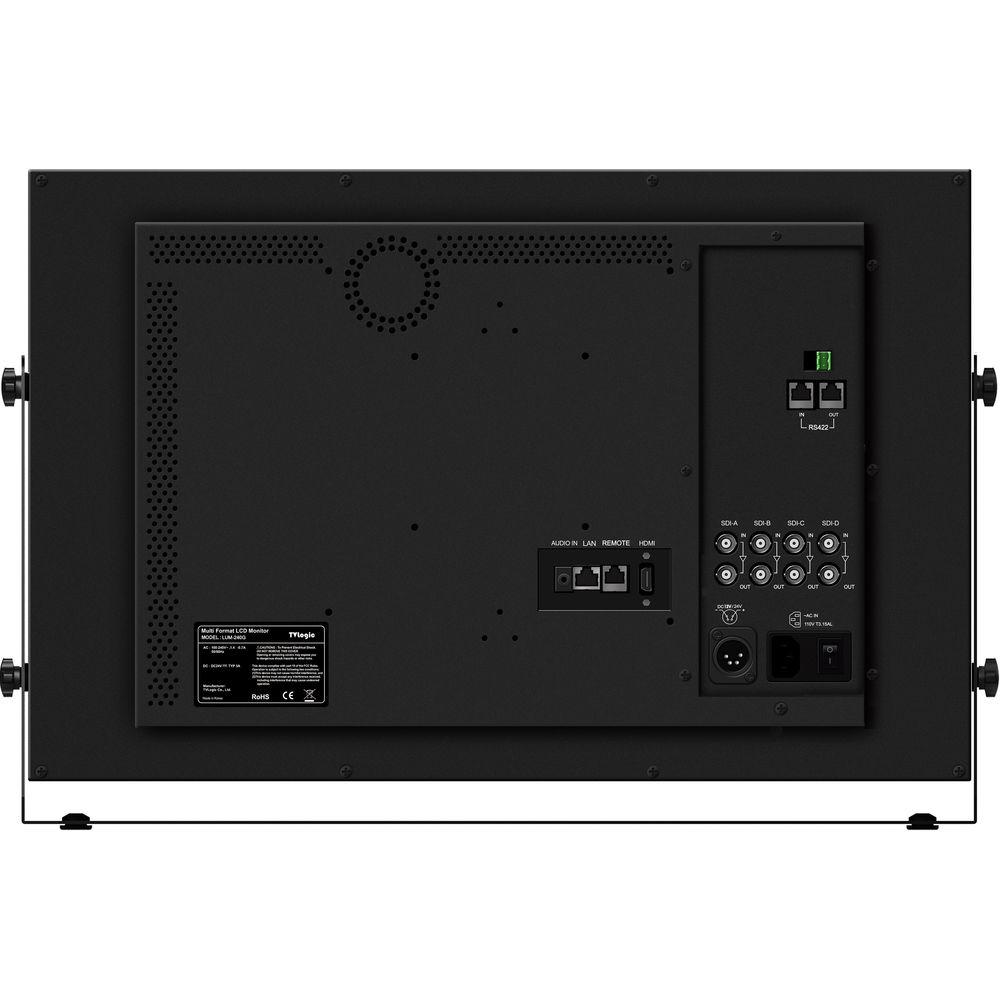

Technical parametersTVLogic LUM-240G Specs | Application | UHD 4K monitoring and field production | | LCD Size | 23.8" / 60.5 cm | | Video System | Not specified by the manufacturer | | Resolution | 3840 x 2160 | | Aspect Ratio | 16:9 | | Pixel Pitch | 0.13725 mm | | Color Depth | 1.07B (10-bit) | | Viewing Angle (H x V) | 178˚ / 178˚ | | Brightness | 350 cd/m² | | Contrast Ratio | 1000:1 | | Display Area | 527.04 x 296.46 mm | | Input and Output Connectors | Inputs:
4 x BNC (12G-SDI A/B channel input, 3G-SDI C/D channel input)
1 x HDMI 2.0
1 x Analog stereo
Output:
4 x BNC (12G-SDI A/B, 3G-SDI C/D channel, active throughout)
1 x Analog stereo (phone jack) | | Speaker | Yes, mono | | Picture Controls | Timecode display
Focus assist
Audio level meter
Internal pattern
Blue only
H/V delay
Marker | | Remote Control | No | | Front Panel | HDMI
Single
2SI
Quad
Function (F1 to F5)
Scan
Aspect
Marker
Back light
Video range
Information
Menu / Exit
Enter
Power on/off | | Input Signal | 12G-SDI: 12 Gb/s
6G-SDI: 6 Gb/s (2160p30)
3G-SDI: 2.97 Gb/s
HD-SDI: 1.485 Gb/s
HDMI: 2160p / 1080p / 720p / 480p | | SDI Input Signal Formats | SMPTE-425M-A/B:
1080p 50/59.94/60
SMPTE-274M:
1080p 23.98/24/25/29.97/30
1080PsF 23.98/24/25/29.97/30
SMPTE-296M:
720p 50/59.94/60
SMPTE ST 2036-1:2009:
3840 x 2160p 23.98/24/25/29.97/30/50/59.94/60
SMPTE ST 2048-2:2011:
2048 x 1080p 23,98/24/25/29.97/30/47.95/48/50/59.94/60
2048 x 1080PsF 23,98/24/25/29.97/30
SMPTE ST 2081:
3840 x 2160p 24/25/30
SMPTE ST 2082:
3840 x 2160p 24/25/30/50/60 | | Power Requirements | 24 VDC / 100 to 240 VAC (50 to 60 Hz) | | Power Consumption | 115 W (maximum) | | Operating Temperature | 32 to 95°F / 0 to 35°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Dimensions | 21.7 x 14.2 x 3.8" / 552 x 360 x 96 mm (without stand)
23.1 x 15.3 x 5.9" / 586 x 388 x 150 mm (with stand) | | Weight | 22.7 lb / 10.3 kg | | | | Package Weight | 31.6 lb | | Box Dimensions (LxWxH) | 26.5 x 21.0 x 11.25" |
