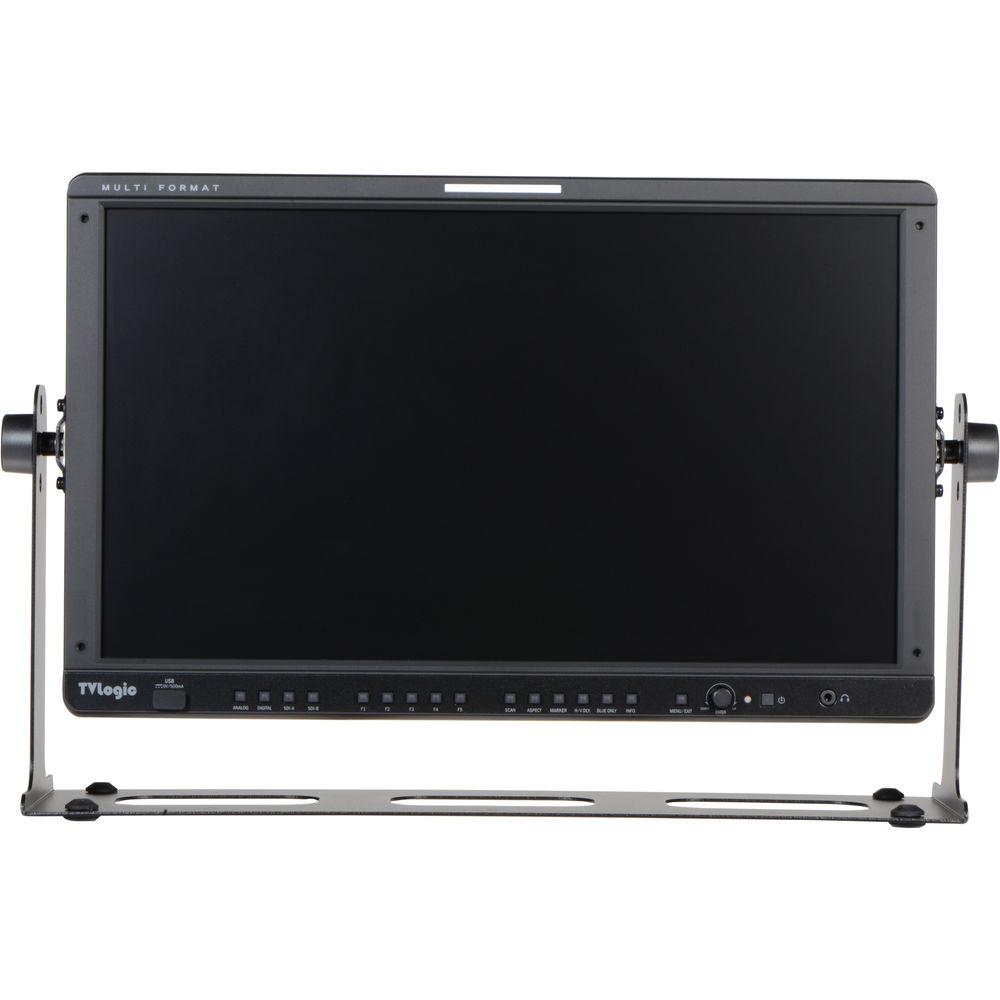

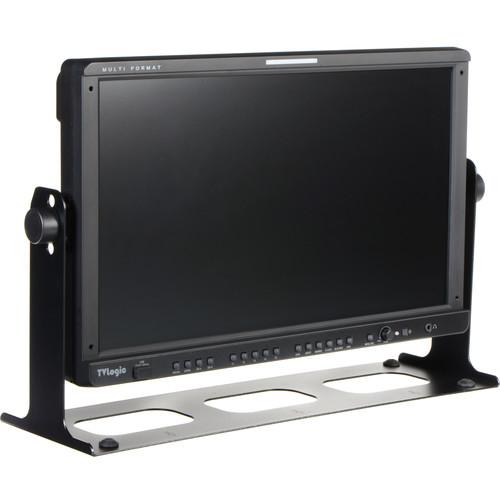

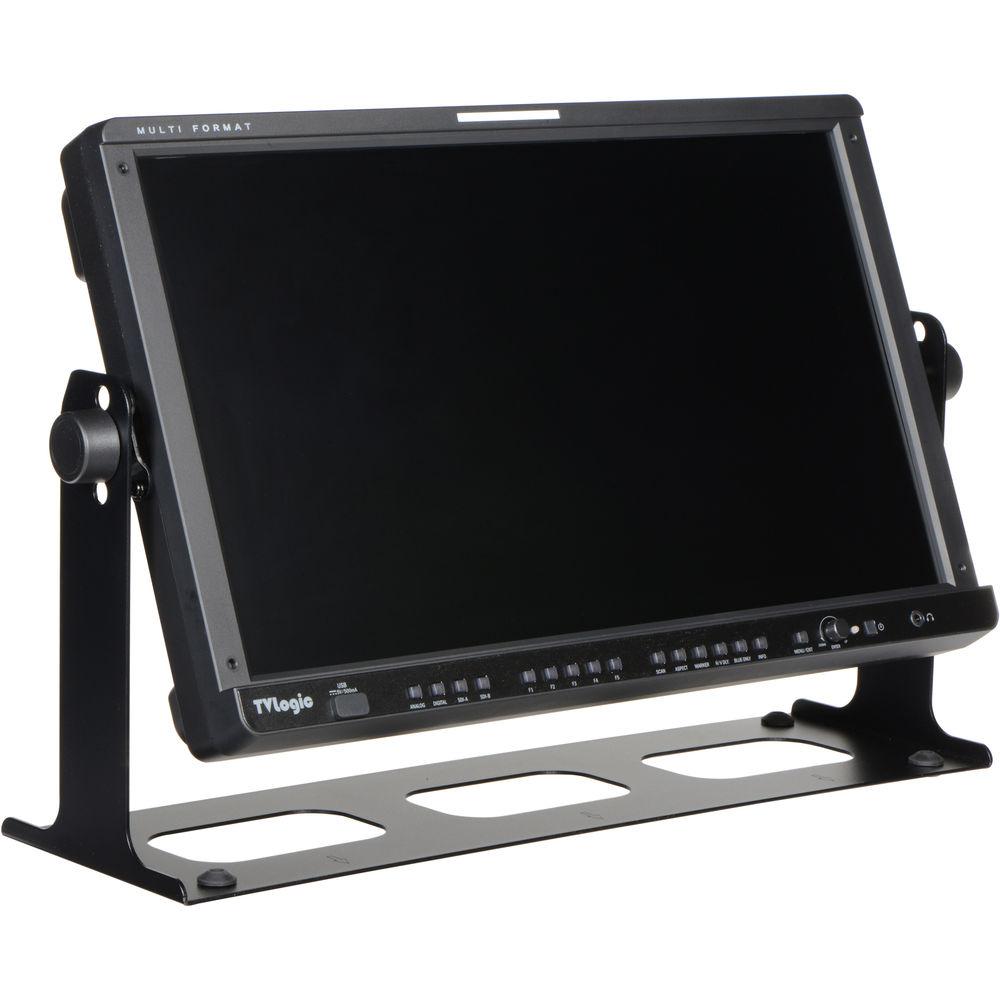

Product description The LVM-170A 17" Full HD SD/HD/3G-SDI Multi-Format Monitor from TVLogic supports multi-format analog, 3G/HD/SD-SDI, DVI, and HDMI signal inputs. It features a true 16:9 aspect ratio LCD panel with 12-bit video processing performance allowing for accurate reproduction of interlaced video and scaling performance. It provides a wide viewing angle of 178°, contrast ratio of 700:1, and maximum luminance of 300 cd/m². - 17" 1920 x 1080 (16:9) resolution
- Audio level meter display
- CC-608 ANC, CC-608 LINE 21, and CC-708
- TVLogic color calibration utility
In the Box TVLogic LVM-170A 17" Full HD SD/HD/3G-SDI Multi-Format Monitor AC Power Cord Stand USB Cover Limited 2-Year Warranty on Hardware Limited 1-Year Warranty on Display Panel Table of Contents
|
Upload User Manual
Have you got an user manual for the TVLogic LVM-170A 17" Full HD SD HD 3G-SDI Multi-Format Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

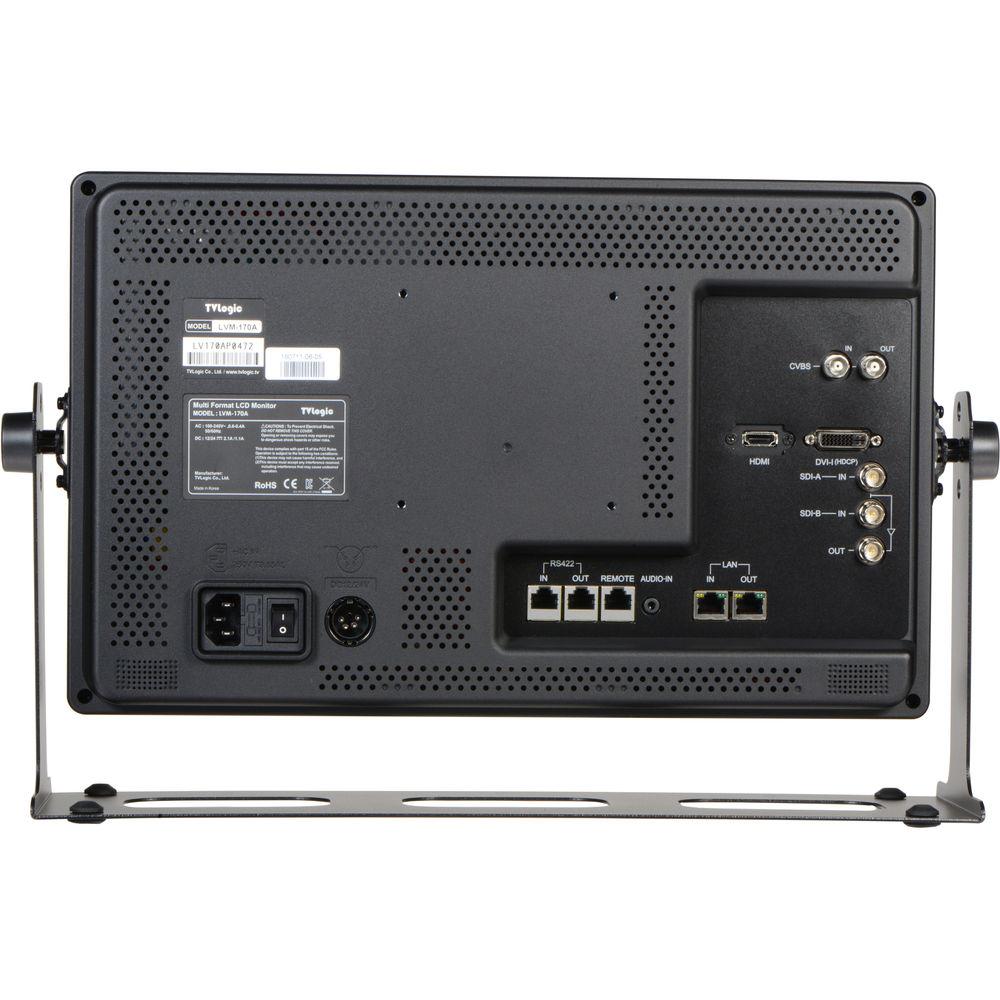

Technical parametersTVLogic LVM-170A Specs | LCD Size | 17.3" / 44 cm | | Video System | Not Specified by the Manufacturer | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Pixel Pitch | 0.199 mm | | Color Depth | 16.7 million | | Viewing Angle (H x V) | 178° / 178° | | Brightness | 300 cd/m² | | Contrast Ratio | 700:1 | | Display Area | 381 x 214 mm | | Input and Output Connectors | Inputs:
3 x BNC: CVBS / S-Video / Component / RGB(D-TV)
2 x BNC: SDI A/B Channel Input
1 x HDMI Input
1 x DVI - I Input
Output:
3 x BNC: CVBS / S-Video / Component / RGB(D-TV)
1 x BNC: 3G/HD/SD-SDI Output | | Input Signal | Analog: CVBS / S-Video / Component / RGB(D-TV)
3G-SDI: 2.970 Gb/s
HD-SDI: 1.485 Gb/s
SD-SDI: 270 Mb/s
DVI-Analog: 640 x 480 / 720 x 400 / 800 x 600 / 1024 x 768 / 1280 x 1024 / 1366 x 768
DVI-D (PC & HDMI): 640 x 480 / 720 x 400 / 800 x 600 / 1024 x 768 / 1280 x 768 / 1280 x 1024 / 1366 x 768 / 1080p (23.98/24/25/30/50/60)/ 1080i (50/59.94/60) / 720p (50/60) / 480i (60) / 480p (60) / 576i (50) / 576p (50)
HDMI (PC & HDMI): 640 x 480 / 720 x 400 / 800 x 600 / 1024 x 768 / 1280 x 768 / 1280 x 1024 / 1366 x 768 / 1080p (23.98/24/25/30/50/60) / 1080i (50/59.94/60) / 720p (50/60) / 480i (60) / 480p(60) / 576i(50) / 576p (50) | | Analog Input | CVBS: 1.0 V p-p (With Sync) NTSC. PAL
S-Video: 1.0 V p-p (Y With Sync), 0.286/0.300 V p-p (Chroma)
Component Video: 1.0 V p-p (Y With Sync), +350mV (Pb,Pr)
RGB: 1.0 V p-p (G With Sync), 0.7 V p-p (B,R) | | SDI Input Signal Formats | SMPTE-425M-A/B: 1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/ 29.97sF/25sF/24sF/23.98sF) / 1080i (60/59.94/50)
SMPTE-274M: 1080i (60/59.94/50) / 1080p (30/29.97/25/24/24sF/ 23.98/23.98sF)
SMPTE-296M: 720p (60/59.94/50)
SMPTE-260M: 1035i (60/59.94)
SMPTE-125M: 480i (59.94)
ITU-R BT.656: 576i (50)
2K Format: 2048 x 1080p (24/24sF/23.98/23.98sF) | | Audio In | Embedded audio / analog stereo (Phone Jack) | | Audio Out | Analog stereo (Phone Jack)
Internal speaker (Stereo) | | Power Requirements | 12 / 24 VDC
100 to 240 VAC (50 to 60 Hz) | | Power Consumption | Approximately 60 W | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Dimensions | 16.6 x 10.4 x 2.9" / 42.2 x 26 x 7.4 cm without stand
19 x 12.2 x 5.4" / 48.3 x 31 x 13.7 cm with stand | | Weight | 9.25 lb / 4.19 kg | | | | Package Weight | 17.5 lb | | Box Dimensions (LxWxH) | 21.3 x 18.0 x 11.5" |
