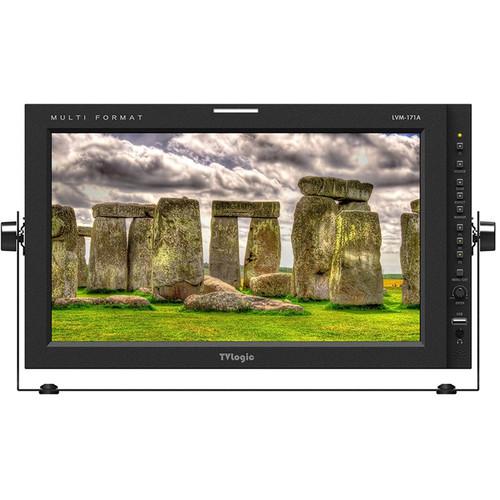

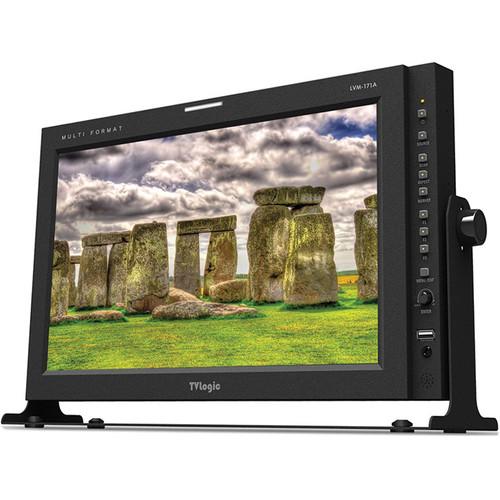

User Manual for TVLogic LVM-171A 17" Full HD 3G-SDI HDMI IPS Multi-Format Field Monitor Click to enlarge the picture
Contents of the user manual for the TVLogic LVM-171A 17" Full HD 3G-SDI
- Product category: Production Monitors TVLogic
- Brand: TVLogic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TVLogic Production Monitors
 |
User manual for the TVLogic LVM-171A 17" Full HD 3G-SDI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TVLogic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TVLogic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TVLogic product will considerably shorten its lifespan!
|
Product description The LVM-171A 17" Full HD 3G-SDI/HDMI IPS Multi-Format Field Monitor from TVLogic supports multi-format analog, 3G/HD/SD-SDI, DVI, and HDMI signal inputs. It features a true 16:9 aspect ratio LCD panel with 12-bit video processing, allowing for accurate reproduction of interlaced video and scaling performance. It provides a wide viewing angle of 178°, contrast ratio of 1400:1, and maximum luminance of 450 cd/m². - Key Features
-
- 16.5" display with native resolution of 1920 x 1080
- 10-bit 1.07B color depth and up to 450 cd/m² cd/m² luminance
- Contrast ratio of 1400:1
- Accurate color reproduction
- IPS panel with wide viewing angle of 178
|
Upload User Manual
Have you got an user manual for the TVLogic LVM-171A 17" Full HD 3G-SDI HDMI IPS Multi-Format Field Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

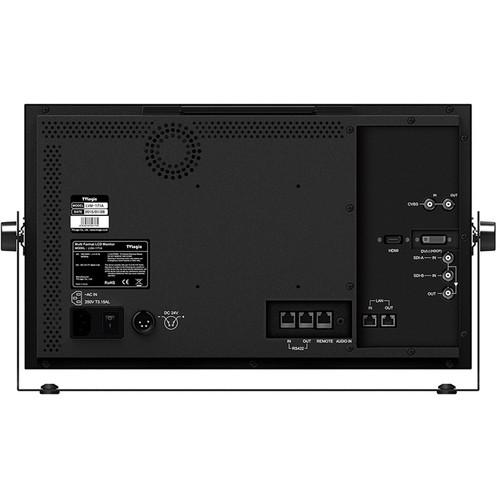

Technical parametersTVLogic LVM-171A Specs | Application | Field production applications | | LCD Size | 16.5" / 41.9 cm | | Video System | Not specified by manufacturer | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Pixel Pitch | 0.1905 mm | | Color Depth | 1.07B | | Viewing Angle (H x V) | 178˚ / 178˚ | | Brightness | 450 cd/m² | | Contrast Ratio | 1400:1 | | Display Area | 14.4 x 8.09" / 36.58 x 20.57 cm | | Input and Output Connectors | Inputs
1 x DVI-I
3 x Analog (BNC)
2 x SDI 1-channel (BNC)
1 x HDMI
Output
3 x Analog (BNC)
2 x SDI channel output, active loop-through (BNC) | | Picture Controls | Waveform
Vectorscope
TVLogic color calibration utility
Audio level meter
Blue-only
Focus assist
H/V delay
Key lock
Luma (Y') zone check
Marker
Mono
Range error
Timecode display
UMD
User aspect
Various scan mode | | Remote Control | No | | Front Panel Controls | Power on/off
Source
Scan
Aspect
Marker
Function (F1 to F3)
Menu/Exit
Enter | | Markers | Types: Off, 16:9, 4:3, 4:3 On-Air, 15:9, 14:9, 13:9, 1.85:1, 2.35:1, 1.85:1 & 4:3
Safety Area: 80, 85, 88, 90, 93 & 100%, EBU Action 16:9/14:9/4:3, EBU Graphic 16:9/14:9/4:3
Marker Mat: Darkness level outside the marker, Off (transparent) to 7 (black)
Custom: Color, thickness, position | | Input Signal | Analog: Composite / S-Video / component / RGB (D-TV)
3G-SDI: 2.970 Gb/s
HD-SDI: 1.485 Gb/s
SD-SDI: 270 Mb/s
DVI: VESA/IBM modes
HDMI: 480i/480p/720p/1080i /1080p & VESA/IBM modes | | Analog Input | Composite: 1.0 Vpp (with sync)
S-Video: 1.0 Vpp (Y with sync), 0.286 Vpp (C)
Component: 1.0 Vpp (Y with sync), 0.7 Vpp (Pb, Pr)
RGB: 1.0 Vpp (G with sync), 0.7 Vpp (B, R) | | SDI Input Signal Formats | SMPTE-425M-A/B
1080p: 60/59.94/50
SMPTE-372M
Dual HD-SDI YPbPr 4:2:2: 1080p: 60/59.94/50
Dual HD-SDI YPbPr/RGB 4:4:4: 1080p/PsF: 30/29.97/25/24/23.98
Dual HD-SDI YPbPr/RGB 4:4:4: 1080i: 60/59.94/50
SMPTE-274M
1080p: 30/29.97/25/24/23.98
1080PsF: 24/23.98
1080i: 60/59.94/50
SMPTE-296M
720p: 60/59.94/50
SMPTE-260M
1035i: 60/59.94
SMPTE-125M
480i: 59.94
ITU-R BT.656
576i: 50 | | Audio In | Analog stereo | | Audio Out | Analog stereo (phone jack) | | Power Requirements | 12 VDC / 100 to 240 VAC (50 to 60 Hz) | | Power Consumption | 60 W | | Operating Temperature | 32 to 113°F / 0 to 45°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Dimensions | 17.52 x 10.39 x 3.09" / 44.5 x 26.4 x 7.84 cm (without stand)
19.38 x 11.38 x 5.41" / 49.2 x 28.9 x 13.7 cm (with stand) | | Weight | 14.99 lb / 6.8 kg | | | | Package Weight | 21.515 lb | | Box Dimensions (LxWxH) | 21.7 x 18.4 x 11.4" |
