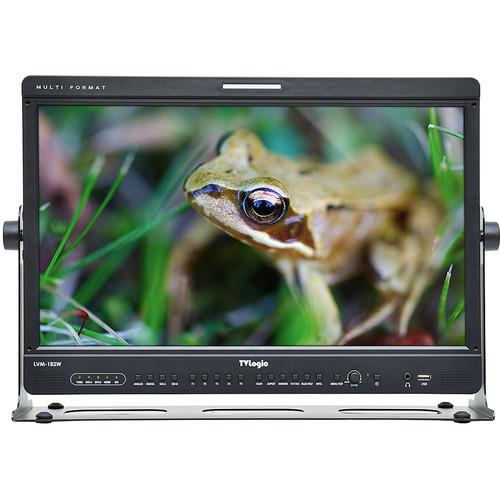

Product description Monitor your audio as well as your video with the TVLogic LVM-182W 18.5" IPS LCD Monitor. It has a native resolution of 1366 x 768 and supports HDMI, 3G-SDI, and DVI-I inputs. It has a built-in speaker and can also output to external speakers for added versatility. The 178 x 178° viewing angle, 1000:1 contrast ratio, and peak brightness of 300 cd/m² help enhance visibility while in the field. The monitor can be VESA- or rack-mounted. - Compatible with Various Signal Types
- The LVM-185W is compatible with 3G/HD/SD-SDI, 480i, 576i, 720p, 1080i/p, and 1080PsF. It also supports composite video and HDMI/DVI signals with HDCP support.
- All-in-One Design
- The all-in-one design requires no other accessories and is optimized for space utilization.
- Onboard Metering
- Waveform, vectorscope, luma (Y') zone check (false color), embedded audio level, color/zebra type, and range error functions and metering are available.
- Audio In & Out
- There's a built-in speaker and a stereo audio output, enabling you to monitor audio as well as video.
- 1:1 SCAN / Zoom
- This function outputs the original signal image on the screen either without scaling, with zoom-in, or with left/right/up/down scrolling.
- Remote Control Function
- The LVM-182W can be controlled remotely using an optional switch or RS-422 communication.
- Additional Features
-
- Knobs help make it easy to adjust settings to your preference
- Blue-only, mono, focus-assist, and H/V delay modes
- Internal pattern generator (0 to 100% gray / color bar+pluge)
- Center, safety area, aspect, and display size (scan) markers
- Widescreen 16:9 aspect ratio
- AC/DC compatible
- Support for protocols provided by TVLogic or a TSL
- Wide 178 x 178° viewing angle
- SDI and analog loop-through
- VESA mounting
- OSD user interface
- Rack-mountable design
- 250 cd/m² typical brightness, up to 300 cd/m²
- 3G-SDI level A/B
- Timecode display
- UMD
- User aspect
- X3 zoom (PBP)
- CC-608 ANC, CC-608 LINE 21, CC-708
- TVLogic color calibration utility
- Supports signals up to 1080p/60 via SDI
In the Box TVLogic LVM-182W 18.5" IPS LCD Monitor Stand AC Power Cord Limited 1-Year Warranty on LCD Panel Limited 2-Year Warranty on Hardware Table of Contents
|
Upload User Manual
Have you got an user manual for the TVLogic LVM-182W 18.5" IPS LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTVLogic LVM-182W-A Specs | | | Panel Type | IPS-Type LCD | | Display Size | 18.5" / 47.0 cm | | Active Area | 16.14 x 9.06" / 410 x 230 mm | | Screen Resolution | 1366 x 768 | | Aspect Ratio | 16:9 | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Touchscreen | No | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 1000:1 | | Dot Pitch | 0.3 x 0.3 mm | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Real-Time LUT Monitoring | No | | Image Controls | Blue Only, Waveform, Vectorscope | | | | Video | 2 x BNC (3G-SDI) Input
1 x BNC (3G-SDI) Output
1 x HDMI Type A Input
1 x DVI-I Input
1 x BNC (Composite) Input
1 x BNC (Composite) Output | | Audio | 1 x 3.5 mm Input | | Built-In Speaker | 1 | | Power | 1 x IEC Input | | Other I/O | 2 x RS-422 (RJ45)
1 x RJ45 | | Card Slot | None | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 12 / 24 VDC | | Battery Type | None | | Power Consumption | 60 W | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | | | Dimensions (W x H x D) | 17.42 x 12.17 x 2.57" / 442.5 x 309.2 x 65.4 mm
19 x 12.99 x 5.42" / 482.5 x 330 x 137.6 mm, Including Stand | | Weight | 11.28 lb / 5.12 kg | | | | Package Weight | 18.0 lb | | Box Dimensions (LxWxH) | 22.0 x 18.0 x 11.0" |
