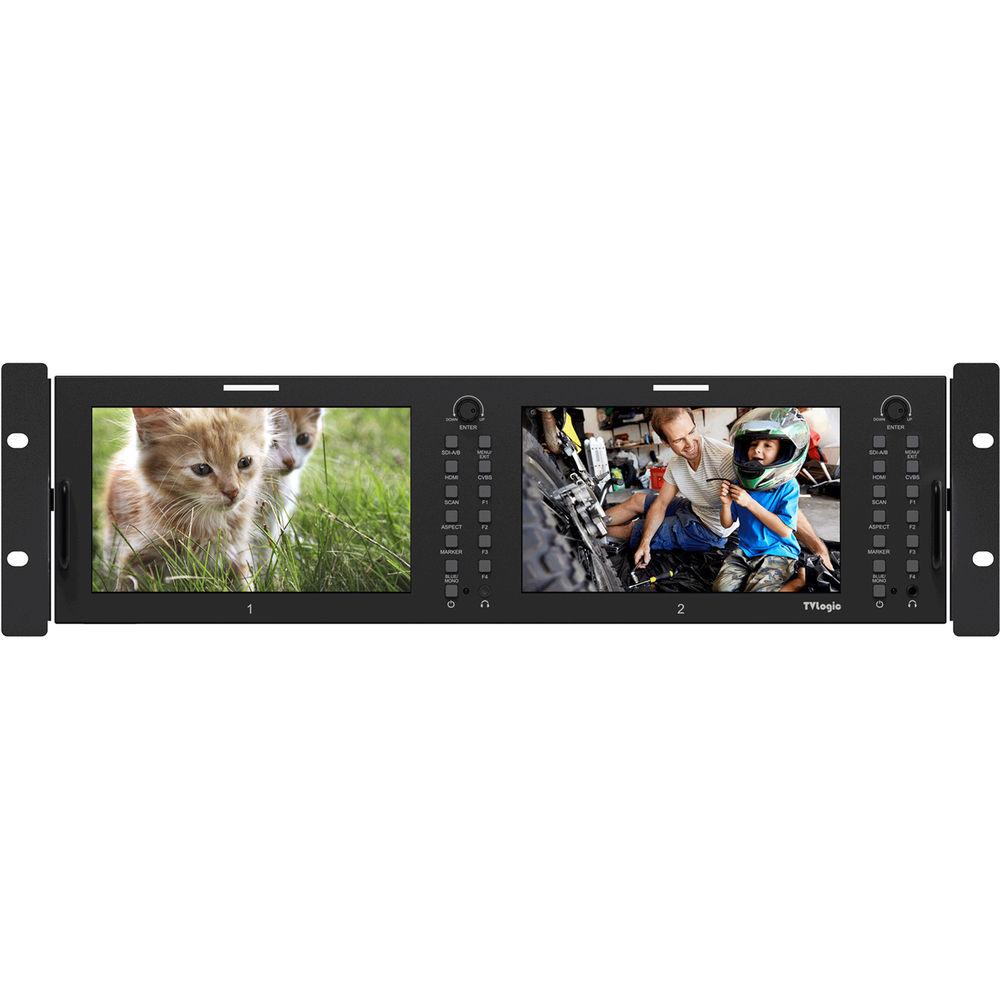

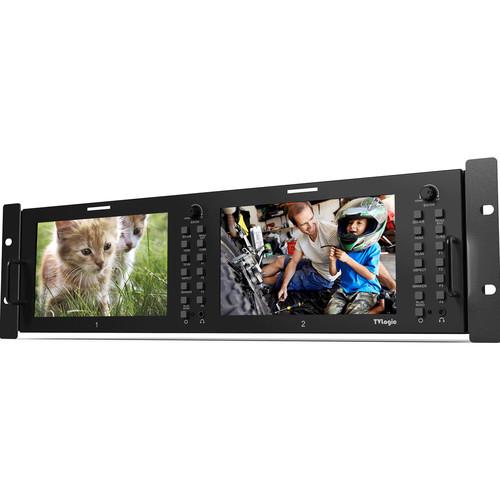

Product description The TVLogic RKM-270A HD/SD Multichannel LCD Rack Monitor features two 7" IPS LCD screens with a 1024 x 600 resolution. Both screens offer wide viewing angles of 170° (horizontal and vertical) with a maximum brightness of 400 cd/m² and contrast ratio of 800:1. The screens support multiple formats including 3G, HD-SDI, SD-SDI, and HDMI. Each screen features a built-in internal speaker and supports stereo audio out using a phone jack. This dual monitor can be VESA or rack-mounted. - Key Features
-
- Two 7" screens with 1024 x 600 resolution
- Native 16:9 wide screens
- 400 cd/m² brightness and 800:1 contrast ratio
- 170°/170° (H/V) wide viewing angles
- 1:1 pixel mapping modes for SD/HD
- Compatible with various SDI signal formats (480i, 576i, 720p, 1035i, 1080i, 1080p, 1080PsF)
- Compatible with composite video signals
- Supports HDMI (with HDCP) input, and DVI (without HDCP) input signals
- Waveform and vectorscope
- Embedded audio level meter function
- Luma (Y') zone check (color/zebra type); range error function
- Internal speaker with embedded audio and external audio input
- Stereo audio out through phone jack and external audio input
- Adjust user configuration using the control knob on front of the monitor
- Blue only, mono, focus assist, H/V delay function
- Internal pattern generator (0 to 100% gray; color bars + pluge)
- Markers and safety areas (center marker, safety area marker, aspect marker, display size)
- 1:1 scan/zoom function displays original image resolution without scaling while zoom function enlarges the original image
- Externally controlled using parallel switch and network via a cable connection without having to attach other equipment to the unit
- Supports TSL protocols via RS-422
- Loop-through (SDI)
- OSD user interface
- VESA or rack-mounted
Table of Contents
|
Upload User Manual
Have you got an user manual for the TVLogic RKM-270A Dual 7" HD SD Multichannel LCD Rack Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

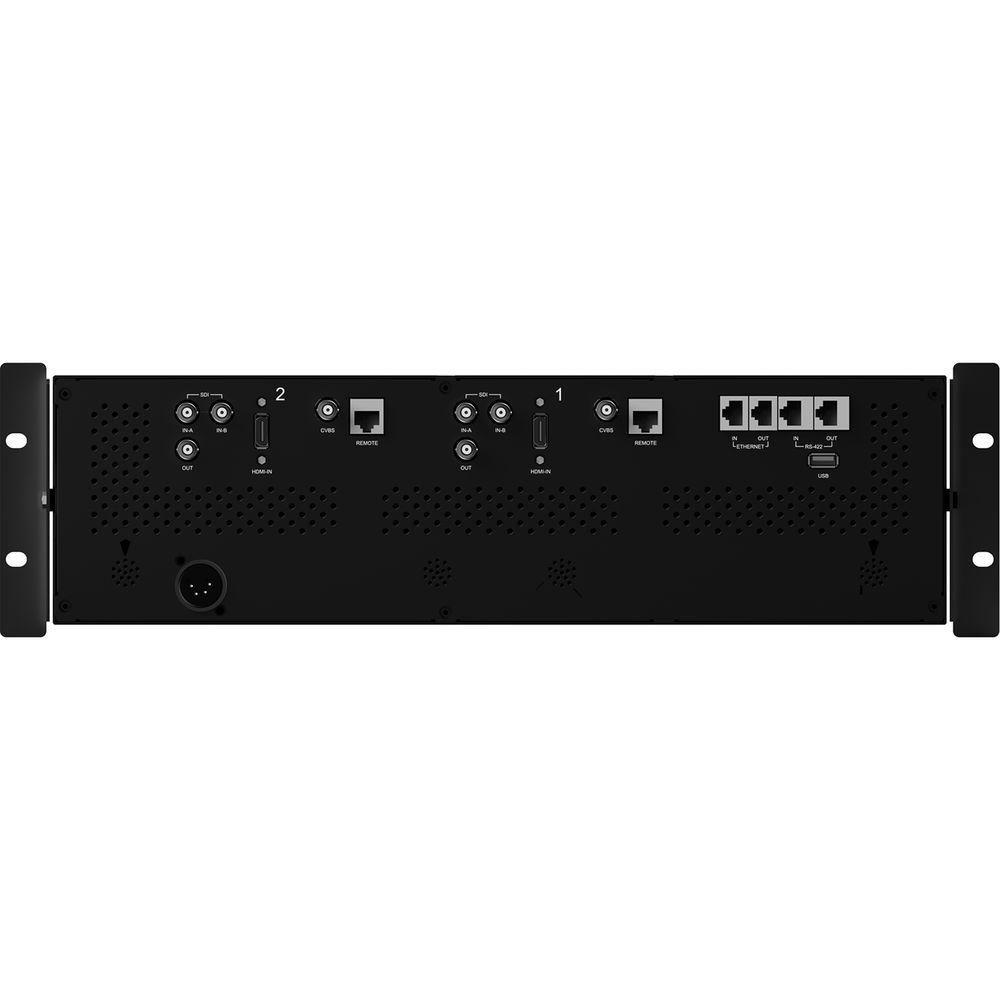

Technical parametersTVLogic RKM-270A Specs | Display Size | 7" / 17.8 cm | | Resolution | 1024 x 600 | | Aspect Ratio | 16:9 | | Pixel Pitch | 0.15 mm | | Color Depth | 16.7M | | Viewing Angle (H/V) | 170°/170° | | Brightness | 400 cd/m² | | Contrast Ratio | 800:1 | | Display Area (H × V) | 154 x 90 mm | | Input | 1 x HDMI
2 x BNC (3G-SDI A/B channel)
1 x BNC (CVBS) | | Output | 1 x BNC (3G-SDI selected channel) | | Input Signal | Analog: Composite
3G-SDI: 2.97 Gb/s
HD-SDI: 1.485 Gb/s
SD-SDI: 270 Mb/s
HDMI:
1080p 60/50/30/25/24
1080i 60/50
720p 60/50
576p/i 50
480p/i 60 | | SDI Formats Supported | SMPTE-425M-A/B:
1080p 30/29.97/25/24/23.98
1080PsF 30/29.97/25/24/23.98
1080i 60/59.94/50
SMPTE-274M:
1080p 30/29.97/25/24/23.98
1080PsF 24/23.98
1080i 60/59.94/50
SMPTE-296M:
720p 60/59.94/50
SMPTE-260M:
1035i 60/59.94
SMPTE-125M:
480i 59.94
ITU-R BT.656:
576i 50
| | Audio In | Embedded audio
Analog stereo (phone jack) | | Audio Out | Analog stereo (phone jack)
Internal speaker (mixed mono) | | Functions Supported | FPGA Functions:
1:1 pixel mapping modes for SD/HD, 3G-SDI level A/B, audio level meter display, blue only, focus assist, H/V delay, key lock, luma (Y') zone check, marker, mono, range error, timecode display, UMD, various scan modes, waveform/vectorscope, zoom | | Closed Caption | CC-608 ANC, CC-608 LINE 21, CC-708 | | Other Functions | USB: Firmware updated via USB cable or USB flash drive
Ethernet control support
SDI-to-SDI conversion | | Power | 12/24 VDC | | Operating Temperature | 32 to 95°F / 0 to 35°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Dimensions | 18.92 x 5.19 x 1.98" / 48.08 x 13.20 x 5.05 cm | | Weight | 8.81 lb / 4.0 kg | | | | Package Weight | 8.96 lb | | Box Dimensions (LxWxH) | 22.0 x 10.0 x 7.0" |
