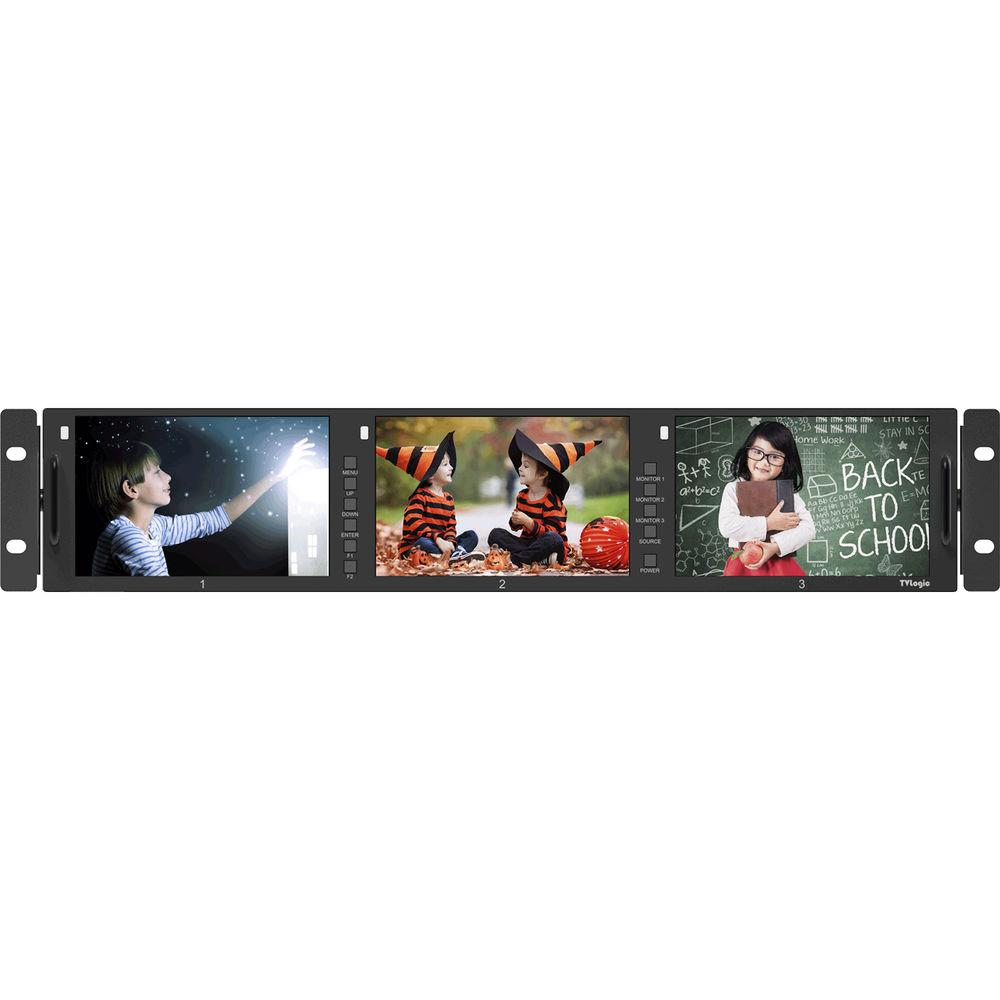

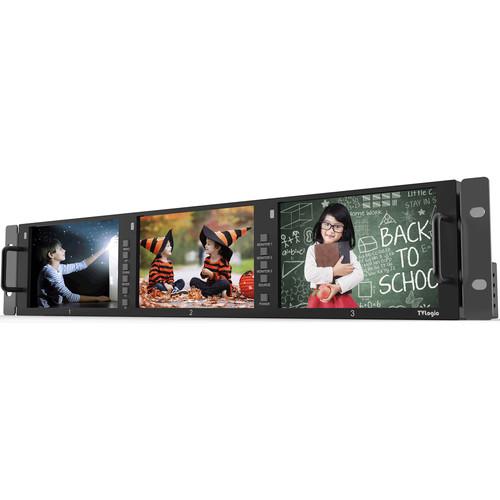

Product description The TVLogic RKM-356A 3G-SDI Multichannel LCD Rack Monitor features three 5.6" IPS LCD screens with a 1280 x 800 resolution. Each screen offers wide viewing angles of 170° (horizontal and vertical) with a maximum brightness of 300 cd/m² and contrast ratio of 500:1. The screens support multiple formats including 3G/HD/SD-SDI, and HDMI. Each screen features a built-in internal speaker and supports stereo audio out using a phone jack. This triple LCD monitor can be VESA or rack-mounted. - Three 5.6" screens with 1280 x 800 resolution
- Native 16:10 wide screens
- 300 cd/m² brightness and 500:1 contrast ratio
- 170°/170° (H / V) wide viewing angles
- 1:1 pixel mapping modes for SD/HD
- Compatible with various SDI signals formats: 480i, 576i, 720p, 1035i, 1080i, 1080p, 1080PsF
- Compatible with composite signals
- Supports HDMI (with HDCP) input, and DVI (without HDCP) input signals
- Embedded audio level meter function
- Luma (Y') zone check (color/zebra type), range error function
- Internal speaker with embedded audio and external audio input
- Stereo audio out through phone jack and external audio input
- Adjust user configuration using the control knob on front of the monitor
- Blue-only, mono, focus assist, H/V delay function
- Internal pattern generator (0 to 100% gray/color bar + PLUGE)
- Markers and safety areas: Center marker, safety area marker, aspect marker, display size (scan)
- 1:1 scan/zoom function: Displays original image resolution without scaling, and zoom function enlarges the original image
- Externally controlled by using parallel switch and network via a cable connection, without any requirement of attaching a peripheral equipment to the unit
- Supports TSL protocols via RS-422
In the Box TVLogic RKM-356A Triple 5.6" 3G-SDI Multichannel LCD Rack Monitor Limited 2-Year Warranty on Hardware Limited 1-Year Warranty on Display Panel Table of Contents
|
Upload User Manual
Have you got an user manual for the TVLogic RKM-356A Triple 5.6" 3G-SDI Multichannel LCD Rack Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

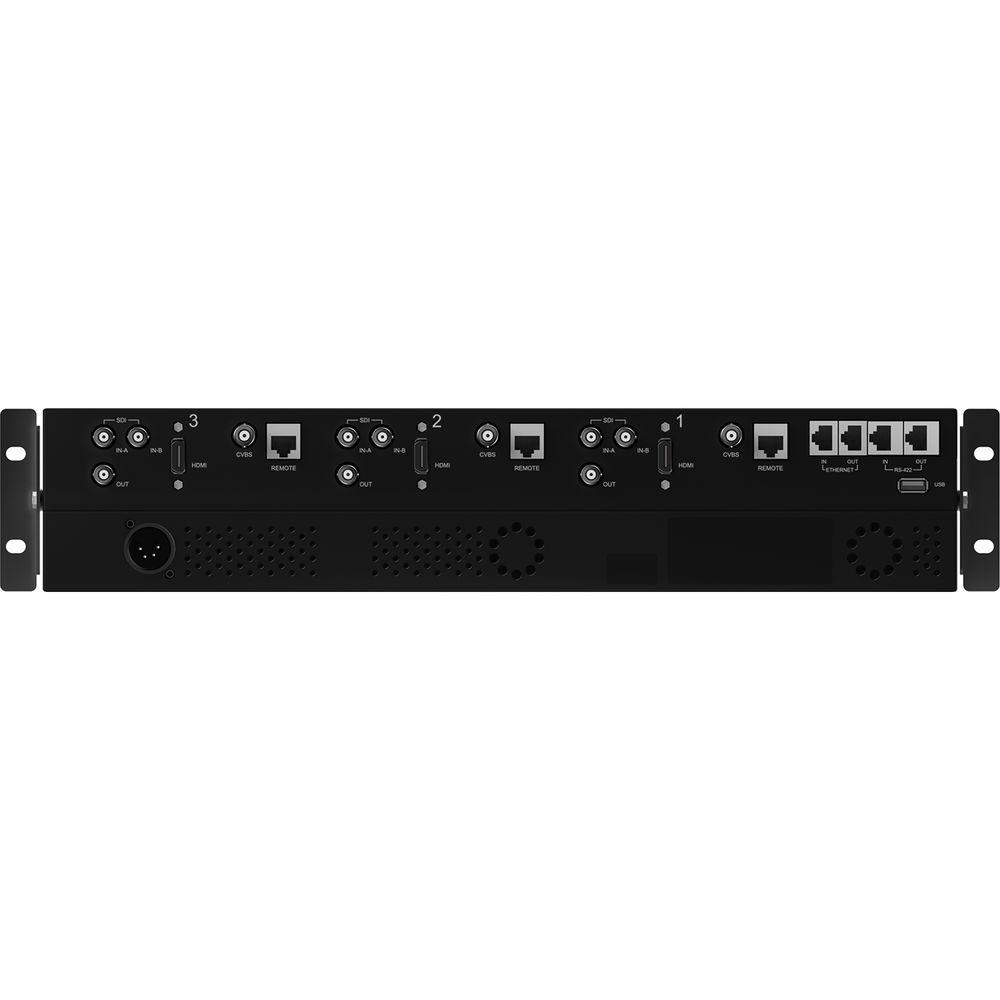

Technical parametersTVLogic RKM-356A Specs | Display Size | 5.6" / 14.2 cm | | Resolution | 1280 x 800 | | Aspect Ratio | 16:10 | | Pixel Pitch | 0.094 mm | | Color Depth | 16.7M | | Viewing Angle | 170°/170° (H / V) | | Brightness | 300 cd/m² (center) | | Contrast Ratio | 500:1 | | Display Area (H × V) | 121 x 76 mm | | Input | 1 x HDMI
2 x BNC (3G-SDI A/B channel)
1 x BNC (composite) | | Output | 1 x BNC (3G-SDI selected channel) | | Input Signal | Analog: Composite
SDI
3G-SDI: 2.97 Gb/s
HD-SDI: 1.485 Gb/s
SD-SDI: 270 Mb/s
HDMI
1080p 24/25/30/50/60
1080i 50/60
720p 50/60
576p/i 50
480p/i 60
VESA/IBM modes | | SDI Formats Supported | SMPTE-425M-A/B
1080p 30/29.97/25/24/23.98
1080PsF 30/29.97/25/24/23.98
1080i 60/59.94/50
SMPTE-274M
1080p 30/29.97/25/24
1080PsF 24/23.98/23.98
1080i 60/59.94/50
SMPTE-296M
720p 60/59.94/50
SMPTE-260M
1035i 60/59.94
SMPTE-125M
480i 59.94
ITU-R BT.656
576i 50 | | Audio In | Embedded audio
Analog stereo (phone jack) | | Audio Out | Analog stereo (phone jack)
Internal speaker (mixed mono) | | Functions Supported | FPGA Functions: 1:1 pixel mapping modes for SD/HD, 3G-SDI level A/B, audio level meter display, blue-only, focus assist, H/V delay, key lock, luma (Y') zone check, marker, mono, range error, timecode display, UMD, user aspect, various scan modes, waveform/vectorscope, zoom | | Closed Caption | CC-608 ANC, CC-608 LINE 21, CC-708 | | Other Functions | USB: Firmware updated via USB cable or memory stick
Ethernet: Control support
Conversion: SDI-to-SDI | | Power | 12 VDC / 3 A (maximum 6 A) | | Operating Temperature | 32 to 113°F / 0 to 45°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Dimensions | 18.9 x 3.46 x 2.85" / 48.02 x 8.81 x 7.25 cm | | Weight | 8.59 lb / 3.9 kg |
