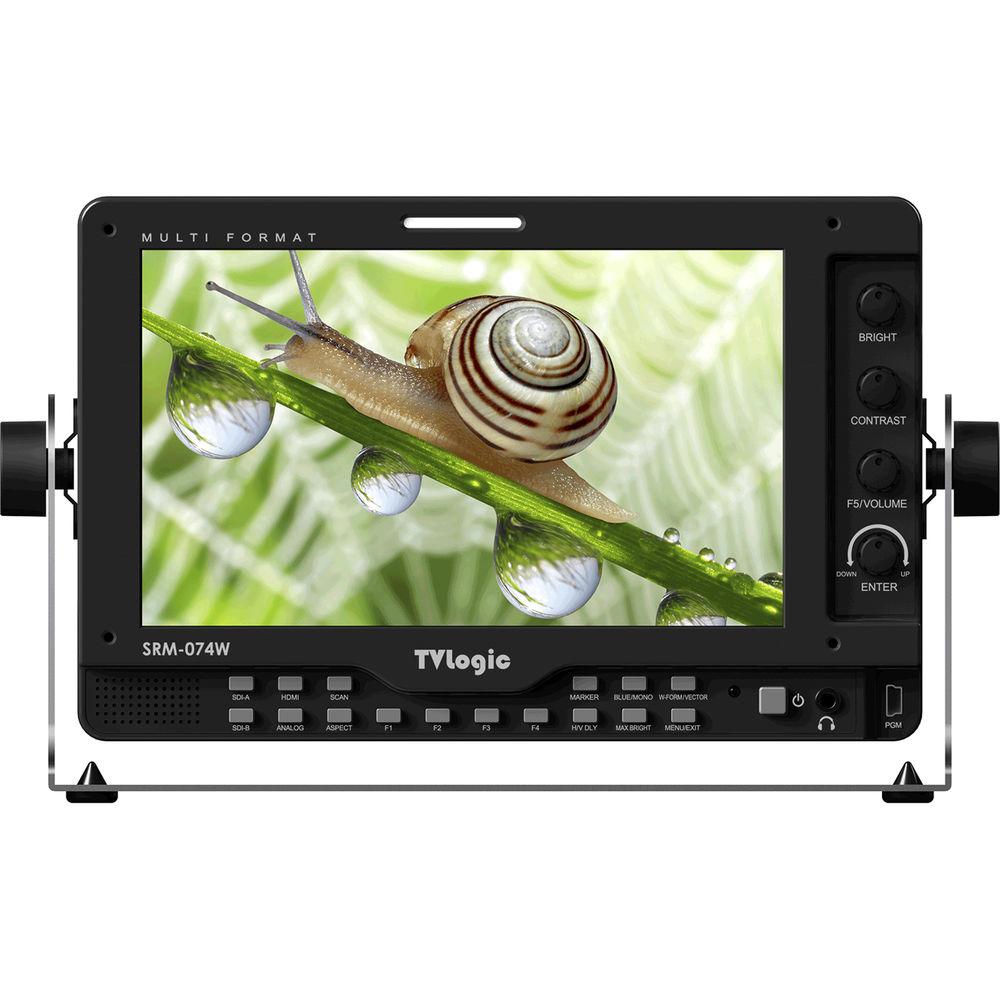

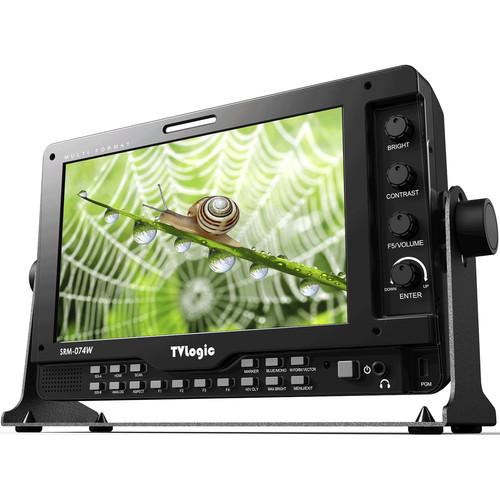

Product description The SRM-074W-N 7" Sunlight-Readable 1024 x 600 HD LCD Monitor from TVLogic features an LED backlit LCD panel housed in a lightweight yet durable magnesium alloy case. Suitable for compact cinema cameras, the monitor offers a wide range of professional features including waveform, vectorscope, built-in HDMI to HD-SDI conversion output, horizontal/vertical image flip, focus assist, audio level meter, and more. The user-selectable temperature adaptive color function measures LCD panel temperature and automatically compensates the white balance drift caused by cold or hot weather. - 7" backlit monitor with 1024 x 600 resolution
- 1:1-pixel mapping modes for SD/HD
- Audio level meter display
- Focus assist with zoom function
- Temperature adaptive color
- Waveform and vectorscope functions
In the Box TVLogic SRM-074W-N 7" Sunlight-Readable 1024 x 600 HD LCD Monitor Limited 2-Year Warranty on Hardware Limited 1-Year Warranty on Display Panel Table of Contents
|
Upload User Manual
Have you got an user manual for the TVLogic SRM-074W-N 7" Sunlight-Readable 1024 x 600 HD LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

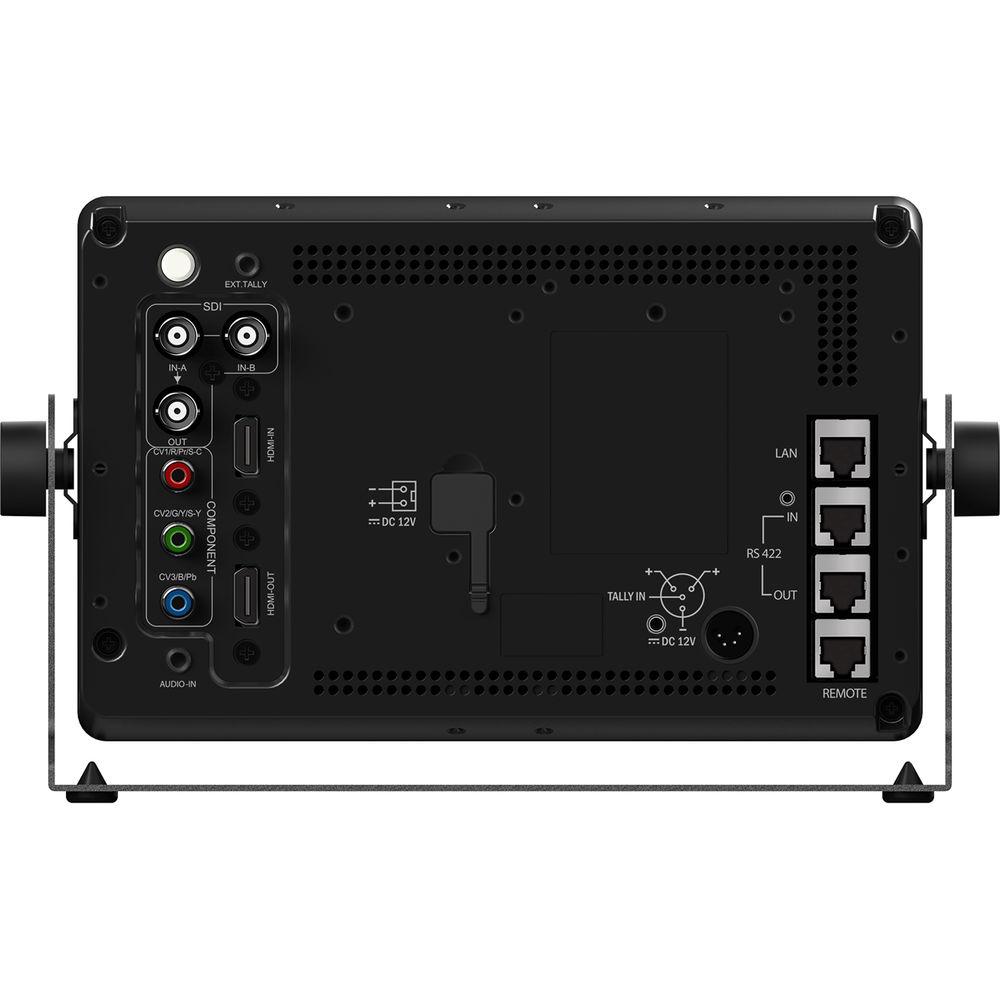

Technical parametersTVLogic SRM-074W-N Specs | Display Size | 7" / 17.78 cm | | Resolution | 1024 x 600 (16:9) | | Pixel Pitch | 0.15 mm | | Color Depth | 16.7 million | | Viewing Angle | 160 x 160° typical | | Luminance | 1500 cd/m2 typical | | Contrast Ratio | 800:1 | | Display Area (H x V) | 6.06 x 3.54" / 154 x 90 mm | | Input | 1 x HDMI
3 x RCA analog video
2 x BNC SDI 2-channel | | Output | 1 x BNC SDI channel (active loop-through) / HDMI-SDI (conversion)
1 x HDMI (loop-through) | | Input Signal | Analog: Composite / S-Video / component video / RGB (D-TV)
3G-SDI: 2.97 Gb/s
HD-SDI: 1.485 Gb/s
SD-SDI: 270 Mb/s
HDMI: 1080p: 24/25/30/50/60 / 1080i: 50/60 / 720p: 50/60 / 576p/i: 50 / 480p/i: 60 | | Analog Input | Composite: 1.0 Vpp (with sync) NTSC, PAL
S-Video: 1.0 Vpp (Y with sync), 0.286/0.300 Vpp (chroma)
Component Video: 1.0 Vpp (Y with sync), +350 mV (Pb,Pr) | | SDI Input | SMPTE-425M-A/B:
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
SMPTE-274M:
1080p: 30/29.97/25/24/23.98
1080PsF: 24/23.98
1080i: 60/59.94/50
SMPTE-296M:
720p: 60/59.94/50
SMPTE-260M:
1035i: 60/59.94
SMPTE-125M:
480i: 59.94
ITU-R BT.656:
76i: 50 | | Audio In | 1 x 3.5 mm analog stereo
Embedded audio | | Audio Out | 1 x 3.5 mm analog stereo
1 x Internal speaker (mixed mono) | | Power | 12 VDC / 1 A (max: 2 A) | | Power Consumption | Approximately 10 W typical | | Operating Temperature | 32 to 95°F / 0 to 35°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Dimensions | Main Body: 8 x 5.16 x 1.36" / 20.3 x 13.1 x 3.5 cm
with Stand: 9.44 x 5.63 x 2.72" / 24.0 x 14.3 x 6.9 cm | | Weight | 2.07 lb / 0.94 kg |
