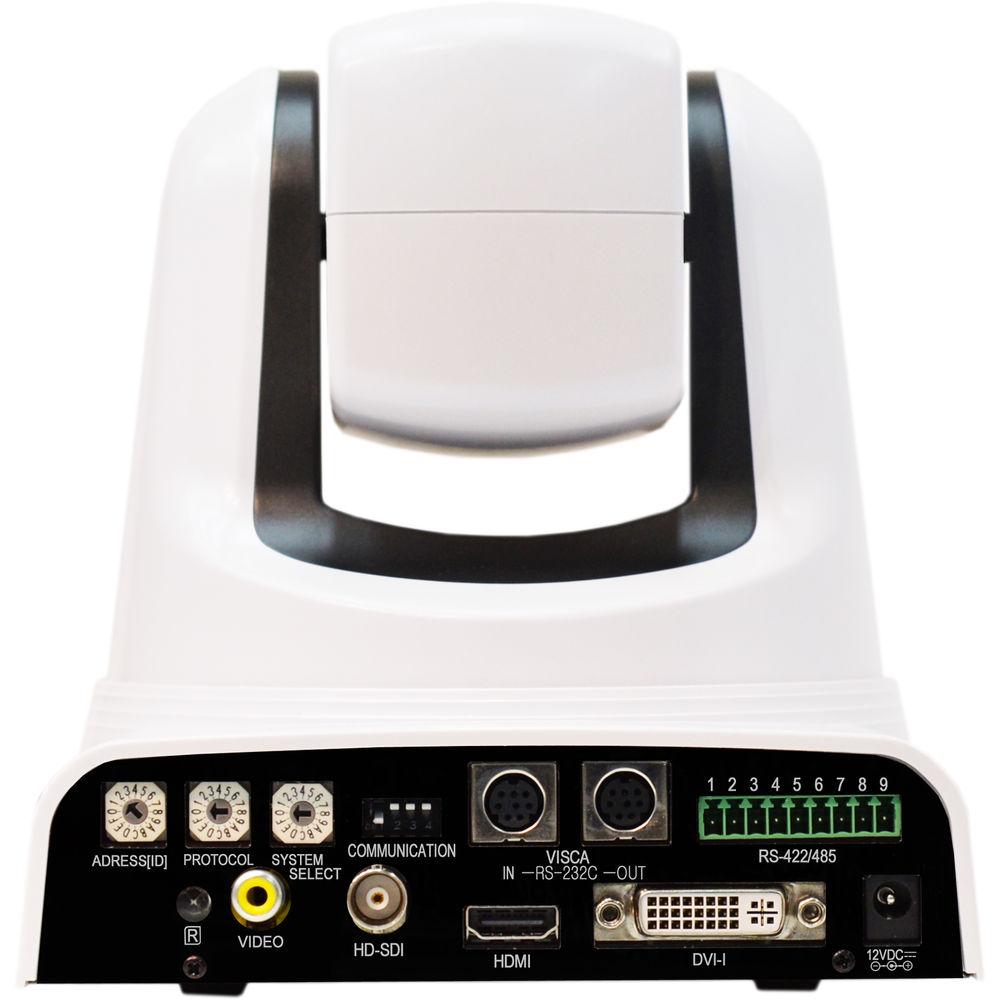

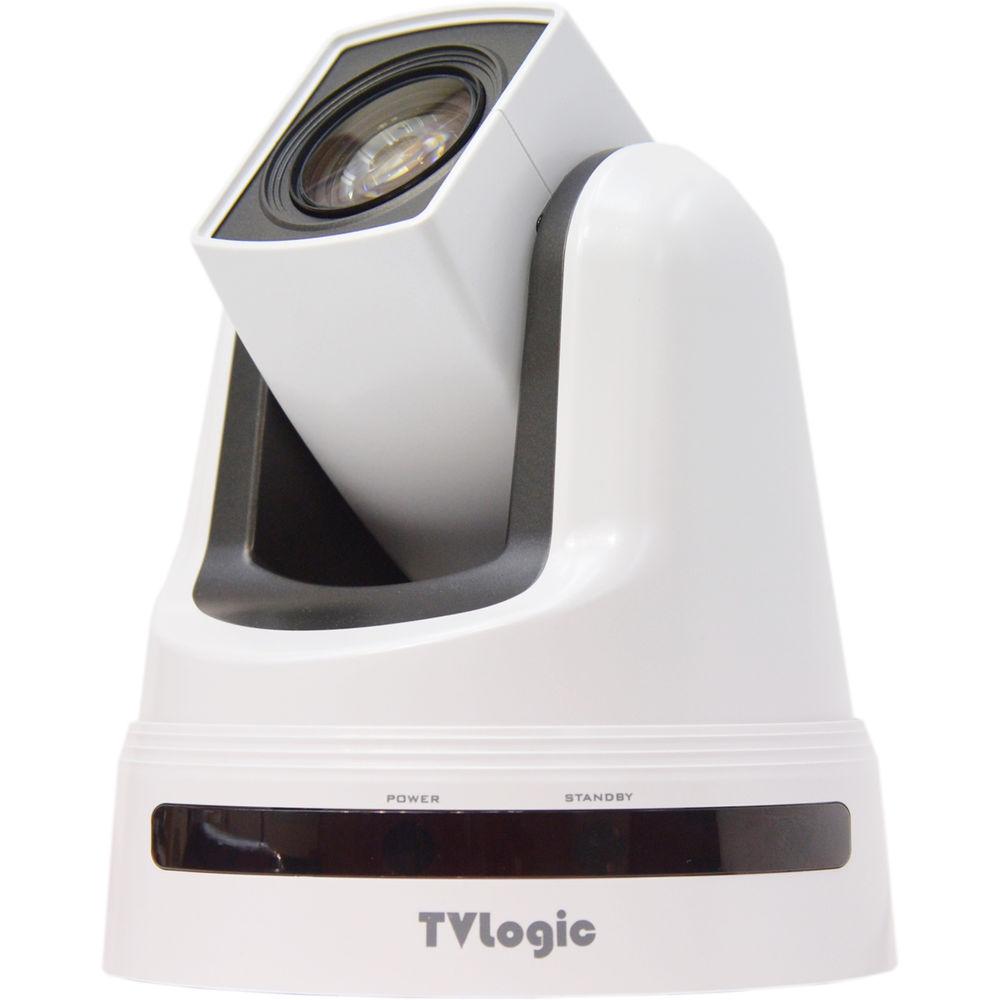

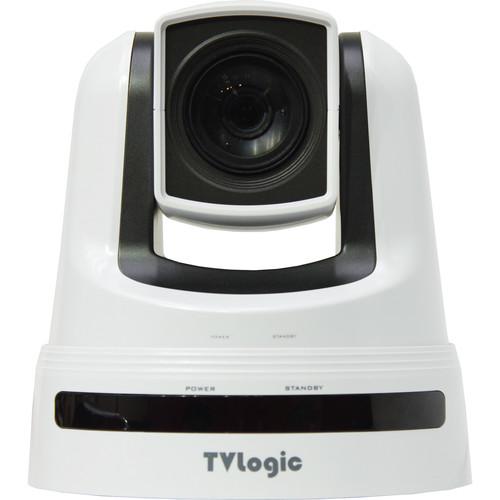

Product description The TVC-FA301N Full HD Professional PTZ Camera from TVLogic features a 1/2.8" Exmor CMOS sensor and outputs over 3G-SDI, HDMI, DVI-I, and composite CVBS. It provides low-light sensitivity of 1.4 lux at 1/30 seconds. Equipped with a 4.3 to 129mm zoom lens with 30x optical zoom and 12x digital zoom, this PTZ camera gives you a wide viewing range and allows you to zoom in for a closer look. The camera supports VISCA control protocols, as well as RS-232, RS-422, and RS-485. You can program the camera with up to 225 assignable preset positions. - Maximum resolution of 1920 x 1080p60
- 30x optical zoom, 12x digital zoom
- Maximum number of 225 assignable presets enables you to save various settings
- Slow shutter, day & night, smart flip, swing, pattern, and group functions
In the Box TVLogic TVC-FA301N Full HD Professional PTZ Camera IR Remote with Battery AC Adapter 9-Pin Connector Camera Body Bracket Ceiling Bracket RS-232C to UTP Cable Mounting Hardware Table of Contents
|
Upload User Manual
Have you got an user manual for the TVLogic TVC-FA301N Full HD Professional PTZ Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTVLogic TVC-FA301N Specs | Sensor | 1/2.8" Exmor CMOS | | Resolution | 1920 x 1080 (approximately 2.38 million pixels) | | Video Output Format | 1920 x 1080p 60/59.94/50/30/25
1920 x 1080i 60/59.94/50
1280 x 720p 60/59.94/50
720 x 576i (PAL), composite only
720 x 480i (NTSC), composite only | | Video Output | 1 x HD-SDI
1 x HDMI
1 x DVI-I
1 x Composite | | Zoom | Optical Zoom: 30x
Digital Zoom: 12x | | Lens | 4.3 to 129mm
f/1.6 to f/4.7 | | Viewing Angle | 63.7° (W)
2.3° (T) | | Minimum Luminance | 0.35 lux (1/30 sec, high-sensitivity on)
1.4 lux (1/30 sec, high-sensitivity off)
0.05 lux (1/4 sec, high-sensitivity on)
0.19 lux (1/4 sec, high-sensitivity off) | | Day & Night | AGC, TDN (ICR) | | Focus | Semi-auto / Auto / Manual | | Image Flip | On / Off | | Zoom Speed | 0 to 7 | | AF Sensitivity | Normal / Low | | Defog | Off / Low / Mid / High | | Sensitivity | High: Off / On | | Noise Reduction | Off / 1 to 5 | | Aperture | 10, 0 to 15 | | White Balance | Auto / Indoor / Outdoor / One-Push / ATW / Manual / Outdoor Auto / Sodium Auto / Sodium / Sodium Out Auto | | Auto Exposure | Full Auto / Bright / Shutter Pri / Iris Pri / Manual | | WDR Mode | Off / On / VE | | BLC | Off / On | | Pan / Tilt | Moving Angle:
Pan -172° to 172° (non-endless)
Tilt -30° to 210° (auto flip), -30° to 95°
Jogging Speed:
Manual 0.002°/sec to 360°/sec (zoom scale interlocked)
Preset 360°/sec, Swing 1°/sec to 180°/sec
Preset Setup:
254 preset (label setup, each display setup) (Pelco)
255 preset (VISCA)
Swing Setup: 8
Pattern Setup: 8
Group Setup: 8 group (20 movements/group) | | Camera ID | Pelco: 1 to 15
VISCA: 1 to 14 setting | | Communication | RS-422/485, RS-232C, IR remote | | Protocol | Pelco-D/P, VISCA | | OSD | Menu, position, and more | | Power | 12 VDC, ± 10% (1 A maximum) | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Dimensions | 4.33 x 5.75 x 0.63" / 110 x 146.2 x 16.2 mm | | Weight | Approximately 2.97 lb / 1.35 kg |
