User Manual for TVLogic TVK-4000SH 4K Cross Converter Click to enlarge the picture
Contents of the user manual for the TVLogic TVK-4000SH 4K Cross Converter
- Product category: Signal Converters TVLogic
- Brand: TVLogic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TVLogic Signal Converters
 |
User manual for the TVLogic TVK-4000SH 4K Cross Converter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TVLogic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TVLogic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TVLogic product will considerably shorten its lifespan!
|
Product description The TVK-4000SH 4K Cross Converter from TVLogic supports HD, 3G level A/B, 6G, and 12G-SDI input and output. It supports resolutions up to UHD 4K (3840 x 2160). The converter includes a dual scaler that supports SDI and HDMI outputs with independent resolutions. Furthermore, the 2.7" LCD front screen features a graphic user interface with touch controls. With the built-in web server, you can monitor the status and controls of the converter. - 12G-SDI Input and Output
- Supports HD, 3G level A/B, 6G, 12G
- HDMI 2.0a Input and Output
- Supports up to UHD 4K (3840 x 2160 @ 60p)
- Included Dual Scaler
- Supports SDI and HDMI outputs with independent resolutions

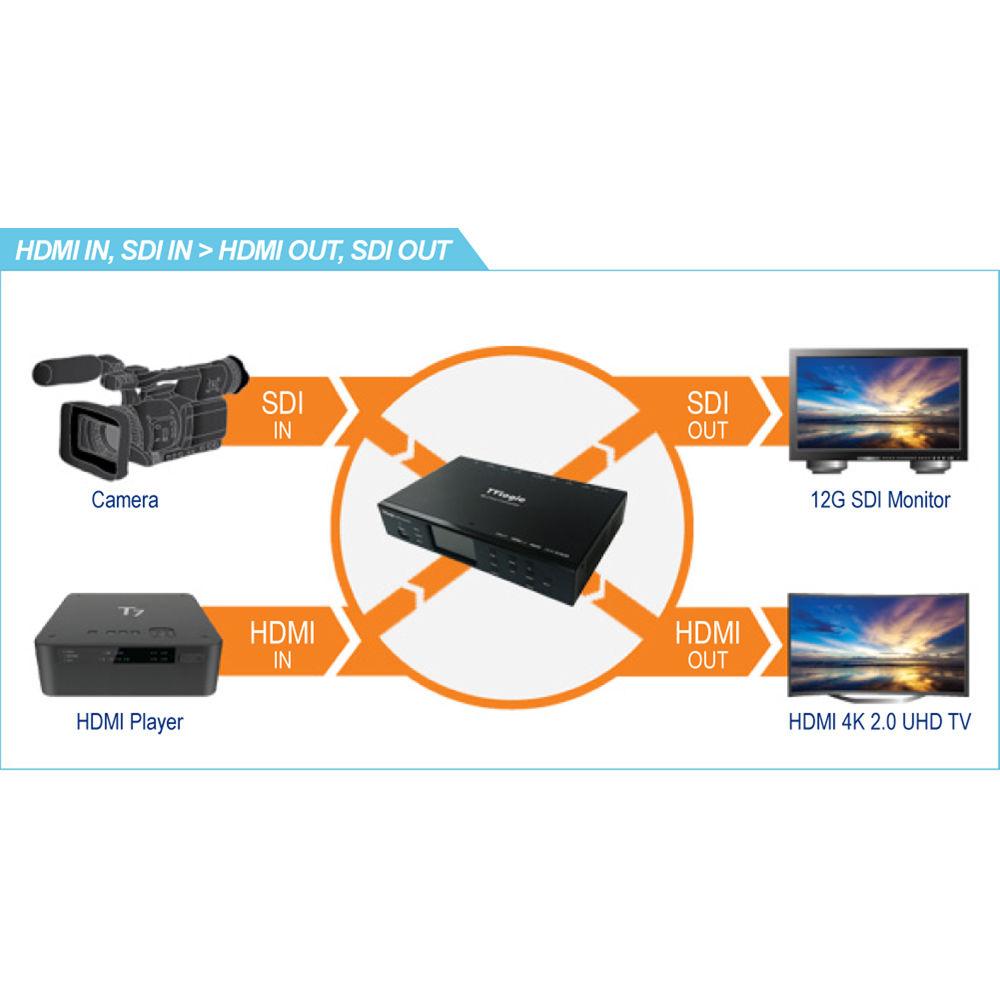

Convert resolutions and frame rates - Cross Conversion
- SDI to HDMI, HDMI to SDI

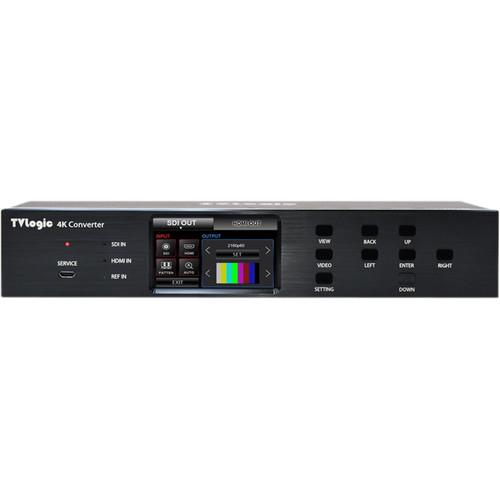

- LCD Preview and Touch Control
- Monitor inputs and outputs
Graphic user interface and touch control - Built-In Web Server
- Monitor and control inputs and outputs settings
Firmware update In the Box TVLogic TVK-4000SH 4K Cross Converter Power Adapter Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TVLogic TVK-4000SH 4K Cross Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

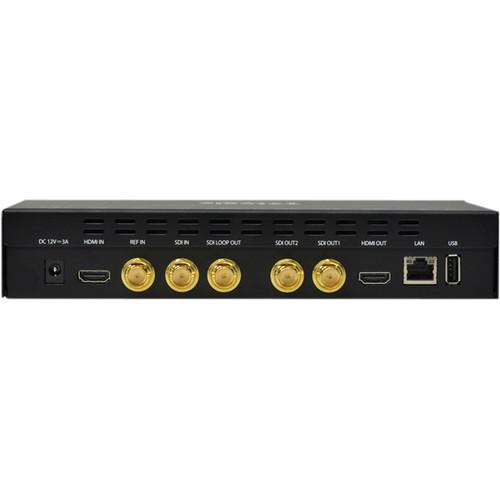

Technical parametersTVLogic TVK-4000SH Specs | Input | 1 x 12G-SDI BNC
1 x HDMI type A, 2.0a | | Output | 2 x 12G-SDI BNC
1 x 12G-SDI BNC, loop-through out
1 x HDMI type A, 2.0a | | LCD | 2.7" / 6.8 cm
Capacitive touch | | Resolutions | 2160p
1080p
1080i
720p | | Frame Rate | 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps | | Scaling | Up/Down: Any resolution | | Frame Rate Conversion | Any resolution | | Power | 1 x DC jack (12 V / 3.5 A) | | Network | 1 x Ethernet 10/100 Mb/s
1 x RJ45 | | Dimensions | 9.4 x 1.7 x 5.9" / 240 x 44 x 150 mm | | Weight | Not specified by manufacturer | | | | Package Weight | 4.3 lb | | Box Dimensions (LxWxH) | 11.2 x 8.5 x 5.5" |
