TVLogic VFM-055A 5.5" OLED On-Camera Monitor

Search your instruction manual in PDF to download

User Manual for TVLogic VFM-055A 5.5" OLED On-Camera Monitor with L-Series Type Plate

Click to enlarge the picture
TVLogic VFM-055A 5.5" OLED On-Camera Monitor with L-Series Type Plate Contents of the user manual for the TVLogic VFM-055A 5.5" OLED On-Camera Monitor
  • Product category: On Camera Monitors TVLogic
  • Brand: TVLogic
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for TVLogic On Camera Monitors

TVLogic VFM-055A 5.5" OLED On-Camera Monitor with L-Series Type Plate TVLogic VFM-055A 5.5" OLED On-Camera Monitor with L-Series Type Plate
User manual for the TVLogic VFM-055A 5.5" OLED On-Camera Monitor contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any TVLogic product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official TVLogic user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a TVLogic product will considerably shorten its lifespan!



Product description

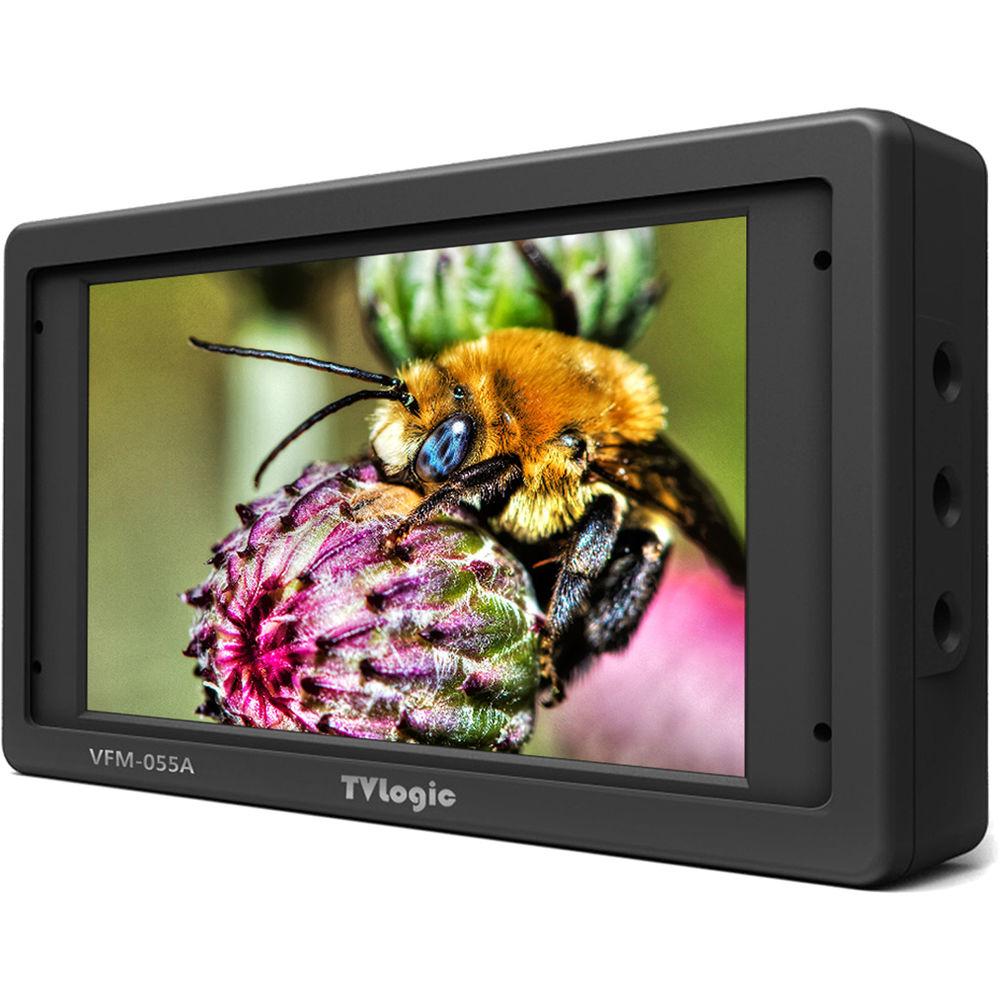

TVLogic's VFM-055A 5.5" OLED Monitor with L-Series Type Plate offers cinematic image quality in a sleek, compact form suitable for use as an EVF or on-board camera monitor. This monitor features a 1080p Full HD OLED display with an impressive 17,000:1 contrast ratio and 160° viewing angle. Monitoring functions include waveform, vectorscope, and 16-channel audio level meter displays. The versatile VFM-055A monitor has both 3G/HD/SD-SDI and HDMI inputs and outputs, enabling HDMI-to-SDI and SDI-to-HDMI conversion. You can preview images using popular camera LUTs from ARRI, Canon, RED, and Sony such as S-Log1/2/3, Log-C/C-Long, and RED Gamma3/4.Select the normal 4:2:2 10-bit 3G input format or choose among a range of 4:2:2/4:4:4/10-bit and 12-bit settings. Customize your viewing area using the VFM-055A's multiple marker and adjustable safety area functions including line color, thickness, and area transparency. Additional features include horizontal/vertical image flip, timecode settings, image zoom, auto/manual aspect ratio selection, blue and mono-only modes, and select DSLR scale and aspect ratio compatibility. Pro-style focus assist functions like color and mono in-focus boundaries help your assistant keep your image sharp.The VFM-055A's DC-in connection doubles as a tally input, enabling front and rear tally functions. Additional interfaces include a USB port for firmware updates, and a stereo audio-out jack. Power the VFM-055A using a separately available battery and either the integrated Sony L-series type battery plate or included D-Tap cable, or via a separately available AC power supply.
    Key Features
    • High 17,000:1 contrast ratio with 350 cd/m² brightness
    • 3G/HD/SD-SDI and HDMI (HDCP) input and output
    • HDMI-to-HDMI / HDMI-to-SDI / SDI-to-HDMI / SDI-to-SDI conversion output
    • Integrated Sony L-series battery bracket
    • Slim, sleek design
    • Waveform, vectorscope, and audio-level meter for precision monitoring
    • 160° viewing angle
    • 3.5mm stereo audio-out jack
    • Control knob and buttons on top of monitor
    • Blue-only, monochrome, and focus assist modes
    • Range error and Luma (Y) zone check (color/zebra) functions
    • Internal pattern generator (0~100% gray/color bar/PLUGE)
    • Markers and safety areas such as center marker, marker size, and thickness adjustment
    • Use pixel-to-pixel to display unscaled images, and zoom to enlarge your original image
    • Zoom scroll function (left/right, top/bottom)
    • Firmware updates via USB cable or thumb drive
    LUT Support
    • S-Log1
    • S-Log2
    • S-Log3
    • Log-C
    • C-Log
    • RED Gamma3
    • RED Gamma4
In the Box TVLogic VFM-055A 5.5" OLED On-Camera Monitor with L-Series Type Plate
  • D-Tap Cable
  • Limited 2-Year Warranty on Hardware
  • Limited 1-Year Warranty on Display Panel
  • Note: The screen protector and AC power supply listed in the VFM-055A manual are no longer included. User Manual PDF 268kbztrxvvbvwtaaystewvaquewxzstt Table of Contents




    Upload User Manual

    Have you got an user manual for the TVLogic VFM-055A 5.5" OLED On-Camera Monitor with L-Series Type Plate in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: pdf, docx, jpg)

    0%


    Technical parameters

    TVLogic VFM-055A Specs

    Panel Type OLED
    Display Size 5.5" / 14.0 cm
    Screen Resolution 1920 x 1080
    Aspect Ratio 16:9
    Viewing Angle Horizontal: 160°
    Vertical: 160°
    Touchscreen No
    Maximum Brightness 350 cd/m2
    Contrast Ratio 17,000:1
    Dot Pitch 0.063 x 0.063 mm
    Bit Depth / Color Support 8-Bit (16.7 Million Colors)
    Real-Time LUT Monitoring SDR
    Image Controls Blue Only, Focus Peaking, H/V Delay, Image Flip, Screen Markers, Underscan, Waveform, Vectorscope

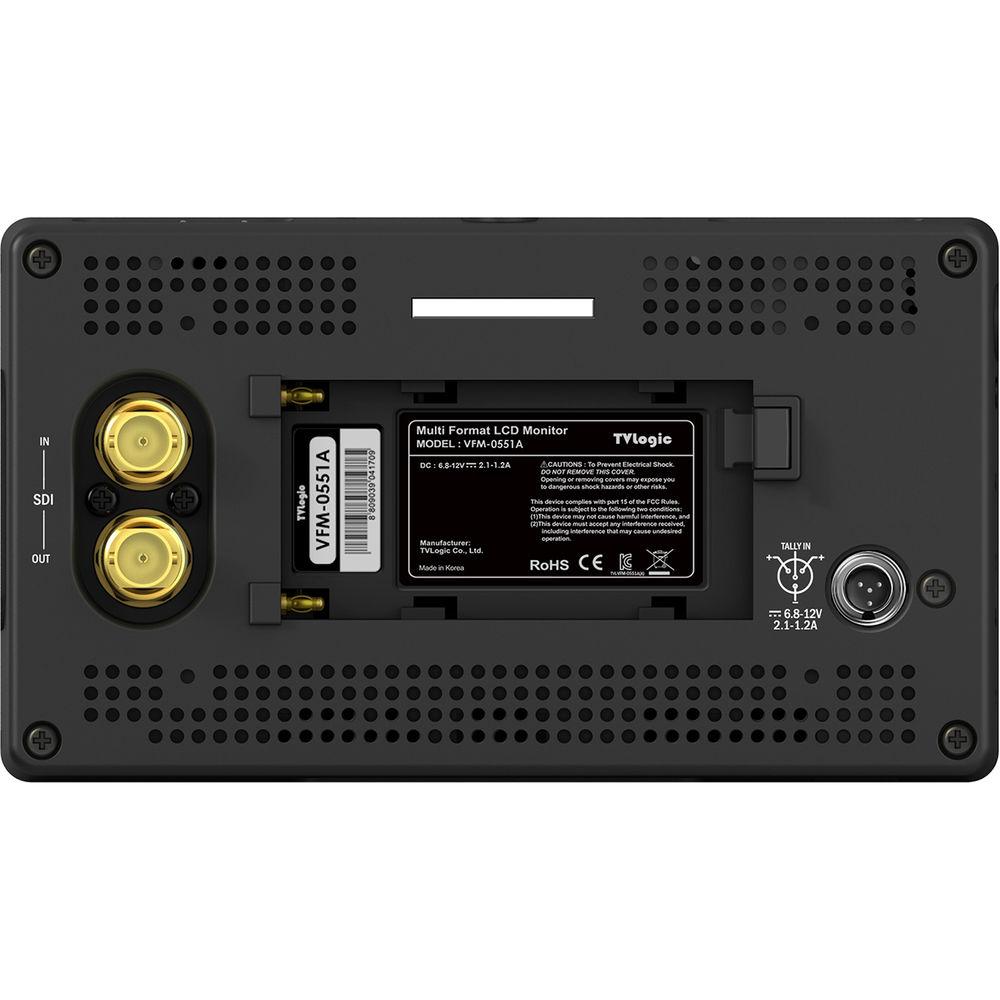

    Video 1 x BNC (SDI) Input
    1 x HDMI Type A (HDMI 1.4) Input
    1 x BNC (SDI) Output
    1 x HDMI Type A (HDMI 1.4) Output
    Embedded Audio HDMI
    SDI
    Audio 1 x 3.5 mm Headphone Output
    Built-In Speaker 1
    Power 1 x Barrel Input
    Other I/O None
    Card Slot None
    Video Format SDI
    1080p
    1080PsF
    1080i
    720p
    NTSC
    PAL
    HDMI
    1080p
    1080i
    720p
    576p
    480p
    NTSC
    PAL
    Video Signal Conversion HDMI to SDI

    SDI to HDMI
    DC Input Power 6 to 12 VDC
    Battery Type 1 x L-Series Built-In L-Series Type Battery Plate.
    Operating Temperature 32 to 104°F / 0 to 40°C
    Storage Temperature -4 to 140°F / -20 to 60°C
    Material of Construction Aluminum
    Dimensions (W x H x D) 6.4 x 3.62 x 1.41" / 162.5 x 92 x 35.8 mm
    Weight 0.93 lb / 0.42 kg
    Package Weight 1.58 lb
    Box Dimensions (LxWxH) 9.0 x 6.0 x 5.25"

    Rating

    60% users recommend this product to others. And what about you?
    Rating: 3 of 5

    This product has already been rated by 09 owners. Add your rating and experience with the product.

    Discussion

    Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems.

    Post new comment to TVLogic VFM-055A 5.5" OLED On-Camera Monitor with L-Series Type Plate

    Subject: Vfm 055a tv logic monitor signal isaues
    Date: 11.08.2020 17:34:17Name: Rahul
    Hi,

    My tv logic vfm 055a monitor is giving signal issues. Initially ot works well on shoot. But later after 45 mins of use it suddenly leaves the signal leaving the screen blank and then gets it back on. This happens frequently. Cab you plz suggest.
