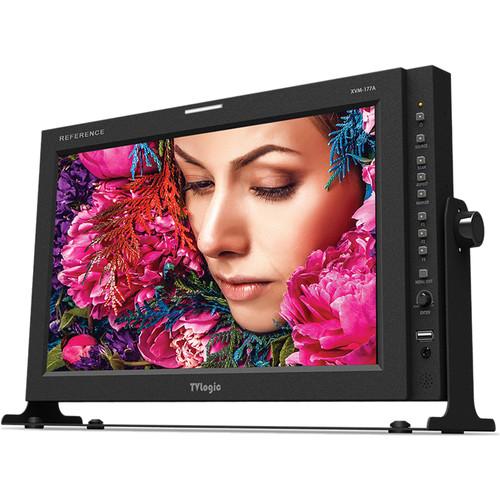

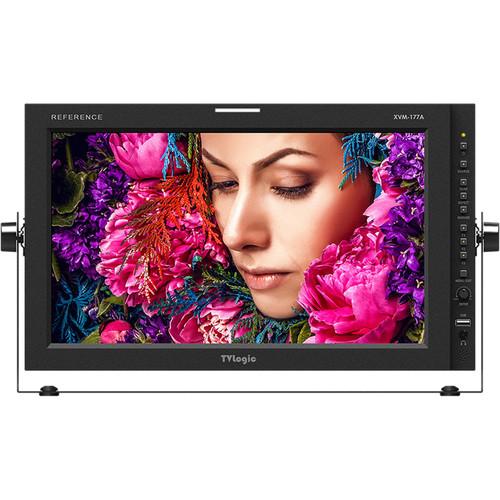

Product description The XVM-177A 17" Full HD 10-Bit Color-Critical Reference Monitor from TVLogic is designed for on-set and studio color-critical monitoring applications. It combines a 12-bit video processing engine and precise color calibration technology with a 10-bit, high-quality native 1920 x 1080 IPS LCD panel for reference standard video monitoring. It includes features like focus assist, markers/mattes, waveform/vectorscope, timecode display, UMD, closed caption, fast mode, multiple color space presets with internal 3D LUT, backlight and gamma control, import of third-party 3D LUTs, and more. - 16.5" LCD screen with a native resolution of 1920 x 1080
- Accurate color reproduction
- Auto calibration function
- TVLogic color calibration utility
- True 24p (48 Hz) driving for digital cinema
- 1:1 pixel mapping modes for SD/HD/FHD
- Audio level meter display
- 3D LUT and adjustable gamma
- Third-party 3D LUT import and export
- Monitor control through RS-422
- Firmware update through Ethernet or USB
- Wide viewing angle of 178˚
- Closed captioning (608, 708, OP42, OP47))
In the Box TVLogic XVM-177A 17" Full HD 10-Bit Color-Critical Reference Monitor AC Power Cord Stand Limited 2-Year Warranty on Hardware Limited 1-Year Warranty on Display Panel Table of Contents
|
Upload User Manual
Have you got an user manual for the TVLogic XVM-177A 17" Full HD 10-Bit Color-Critical Reference Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

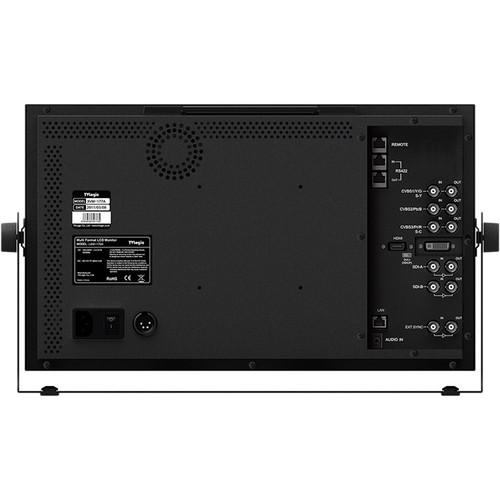

Technical parametersTVLogic XVM-177A Specs | Application | Color-critical monitoring on set or in studio | | LCD Size | 16.5" / 41.9 cm | | Video System | Not specified by manufacturer | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Pixel Pitch | 0.191 mm | | Color Depth | 1.07B (10-bit) | | Viewing Angle (H x V) | 178˚ / 178˚ | | Brightness | 450 cd/m² (maximum) | | Contrast Ratio | 1400:1 | | Display Area | 14.4 x 8.1" / 366 x 206 mm | | Input and Output Connectors | Input:
1 x DVI
3 x Analog (BNC)
2 x SDI A/B channel (BNC)
1 x HDMI
1 x External sync (BNC)
Output:
3 x Analog loop-through (BNC)
2 x SDI A/B channel loop-through (BNC)
1 x External sync (BNC) | | Picture Controls | Accurate color reproduction, auto calibration function, TVLogic color calibration utility, audio level meter display, waveform, vectorscope, 3D LUT and adjustable gamma, third-party 3D LUT import/export, uniformity correction, auto calibration, blue-only, H/V delay, key lock, marker, mono, range error, timecode display, UMD, various scan modes, user aspect, 3x zoom (PbP), closed captioning (608, 708, OP42, OP47) | | Remote Control | No | | Input Signal | Analog: Composite/S-Video/component
3G-SDI: 2.97 Gb/s
HD-SDI: 1.485 Gb/s
SD-SDI: 270 Mb/s
DVI: VESA / IBM modes
HDMI: 480i/480p/720p/1080i/1080p & VESA/IBM modes | | Analog Input | Composite: 1.0 Vpp (with sync)
S-Video: 1.0 Vpp (Y with sync), 0.286 Vpp (C)
Component: 1.0 Vpp (Y with sync), 0.7 Vpp (Pb, Pr) | | SDI Input Signal Formats | SMPTE-425M-A/B:
1080p: 60/59.94/50
SMPTE-372M (Dual-Link):
Dual HD-SDI YCbCr (4:2:2): 1080p: 60/59.94/50
Dual HD-SDI YCbCr/RGB (4:4:4): 1080p: 30/29.97/25/24/23.98
Dual HD-SDI YCbCr/RGB (4:4:4): 1080PsF: 30/29.97/25/24/23.98
Dual HD-SDI YCbCr/RGB (4:4:4): 1080i: 60/59.94/50
SMPTE-274M:
1080p: 30/29.97/25/24/23.98
1080PsF: 24/23.98
1080i: 60/59.94/50
SMPTE-296M:
720p: 60/59.94/50
SMPTE-260M:
1035i: 60/59.94
SMPTE-125M:
480i: 59.94
ITU-R BT.656:
576i: 50 | | Audio In | Embedded audio
3.5 mm analog stereo | | Audio Out | 3.5 mm analog stereo
Speaker | | Power Requirements | 12 VDC / 100 to 240 VAC (50 to 60 Hz) | | Power Consumption | Typical: 72 W (AC) | | Operating Temperature | 32 to 113°F / 0 to 45°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Dimensions | 17.5 x 10.4 x 3.1" / 44.5 x 26.4 x 7.84 cm (without stand)
19.4 x 11.4 x 5.4" / 49.2 x 28.9 x 13.7 cm (with stand) | | Weight | 15.14 lb / 6.88 kg |
