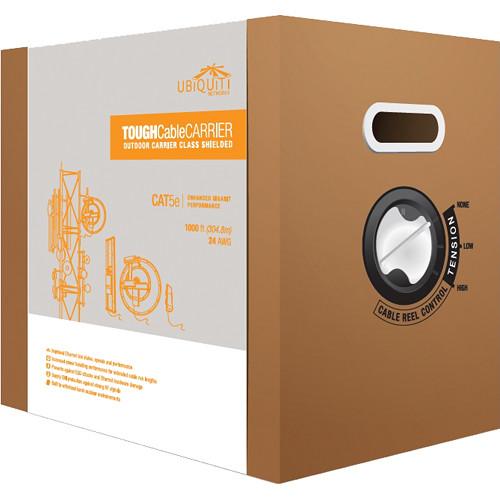

User Manual for Ubiquiti Networks 1000' TOUGHCableCARRIER Outdoor Shielded Cat 5e Ethernet Cable Click to enlarge the picture
Contents of the user manual for the Ubiquiti Networks 1000' TOUGHCableCARRIER Outdoor Shielded
- Product category: Bulk Ethernet Cables Ubiquiti Networks
- Brand: Ubiquiti Networks
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ubiquiti Networks Bulk Ethernet Cables
|
User manual for the Ubiquiti Networks 1000' TOUGHCableCARRIER Outdoor Shielded contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ubiquiti Networks product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ubiquiti Networks user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ubiquiti Networks product will considerably shorten its lifespan!
|
Product description The level 2 Ubiquiti Networks 100' TOUGHCableCARRIER Outdoor Shielded Ethernet Cable is a Category 5e cable that features an integrated ESD drain wire, anti-crosstalk divider, and secondary shielding. It is rated to provide optimal performance on Gigabit Ethernet networks. - Increase Performance
- TOUGHCables improve your Ethernet link states, speeds, and overall performance.
- Extreme Weatherproof
- Weatherproof, PE outdoor-rated TOUGHCables have been built to work in the harshest weather and environments.
- ESD Damage Protection
- Integrated 26 AWG ESD drain wire protects your networks from devastating electrostatic discharge (ESD) attacks.
- Extended Cable Support
- TOUGHCables have been developed to increase power handling performance for extended cable run lengths.
Additional Features - 24 AWG copper conductor pairs
UPC: 810354021336 In the Box Ubiquiti Networks 1000' TOUGHCableCARRIER Outdoor Shielded Cat 5e Ethernet Cable (Level 2) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks 1000' TOUGHCableCARRIER Outdoor Shielded Cat 5e Ethernet Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUbiquiti Networks TC-CARRIER Specs | Cable Type | Category 5e (shielded) | | Ethernet Support | Up to 1 Gbps | | Conductor Wire Gauge | 24 AWG | | Conductor Material | Solid Bare Copper | | Conductor Diameter | 0.500 ± 0.005 mm | | Insulation Type | Solid PE | | Insulation Thickness | 0.295 mm (AVG)
0.29 mm (MIN) | | Insulation Diameter | 1.16 ± 0.02 mm | | Separation (Polyester Wrapping) | 0.025 mm (thick)
20 mm (extent) | | Anti-Crosstalk Divider | 4.2 x 0.3 mm (LDPE) | | Cable Shield (Aluminum Foil) | 0.06 mm (thick)
20 mm (extent) | | Secondary Cable Shield (Braid) | 16 x 8 x 0.16 AA
Density: 95% | | ESD Drain Wire | 0.4 TC | | Rip Cord | Yes | | Jacket Material | PE | | Jacket Thickness | 0.52 mm (AVG)
0.46 mm (MIN) | | Jacket Outer Diameter | 6.8 ± 0.3 mm | | Reference Standard | ISO/IEC 11801
TIA/EIA568B.2 | | Cable Length | 1000' (304.8 m) | | Weight | Not specified by manufacturer | | | | Package Weight | 36.0 lb | | Box Dimensions (LxWxH) | 16.8 x 13.5 x 13.1" |
