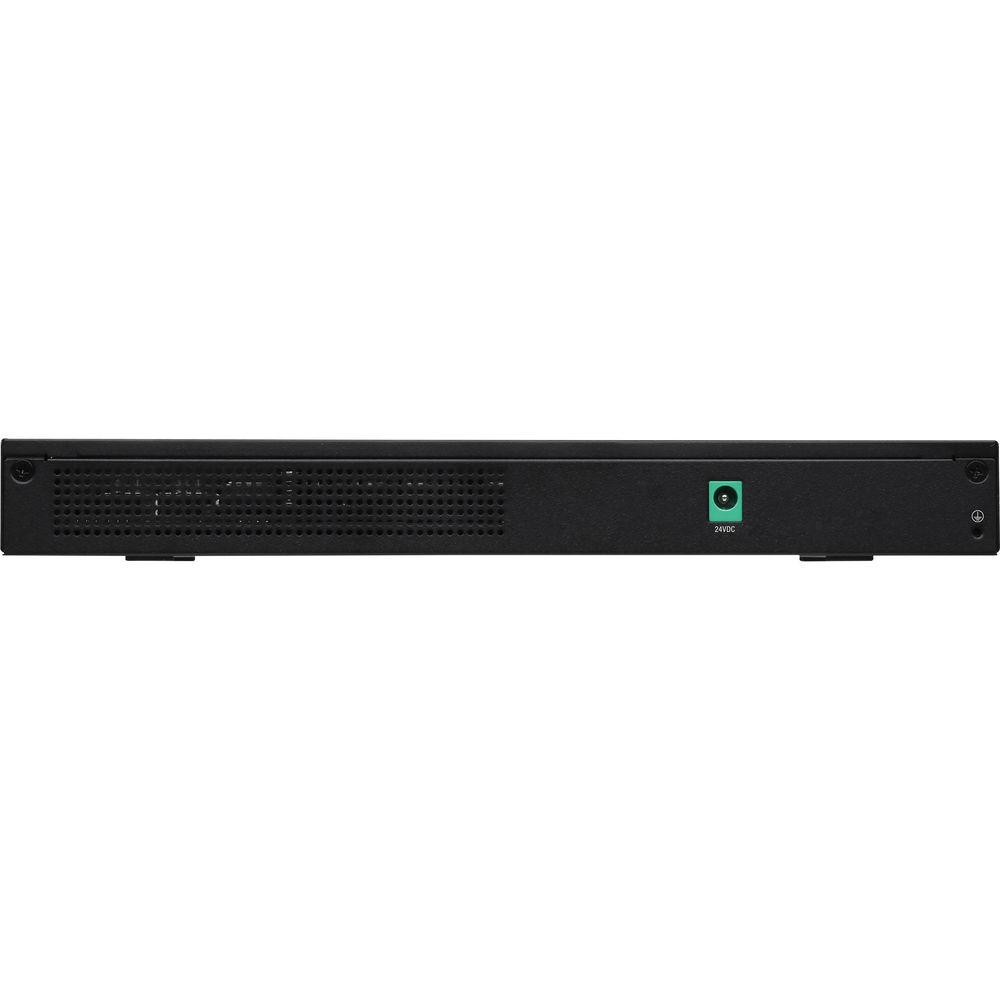

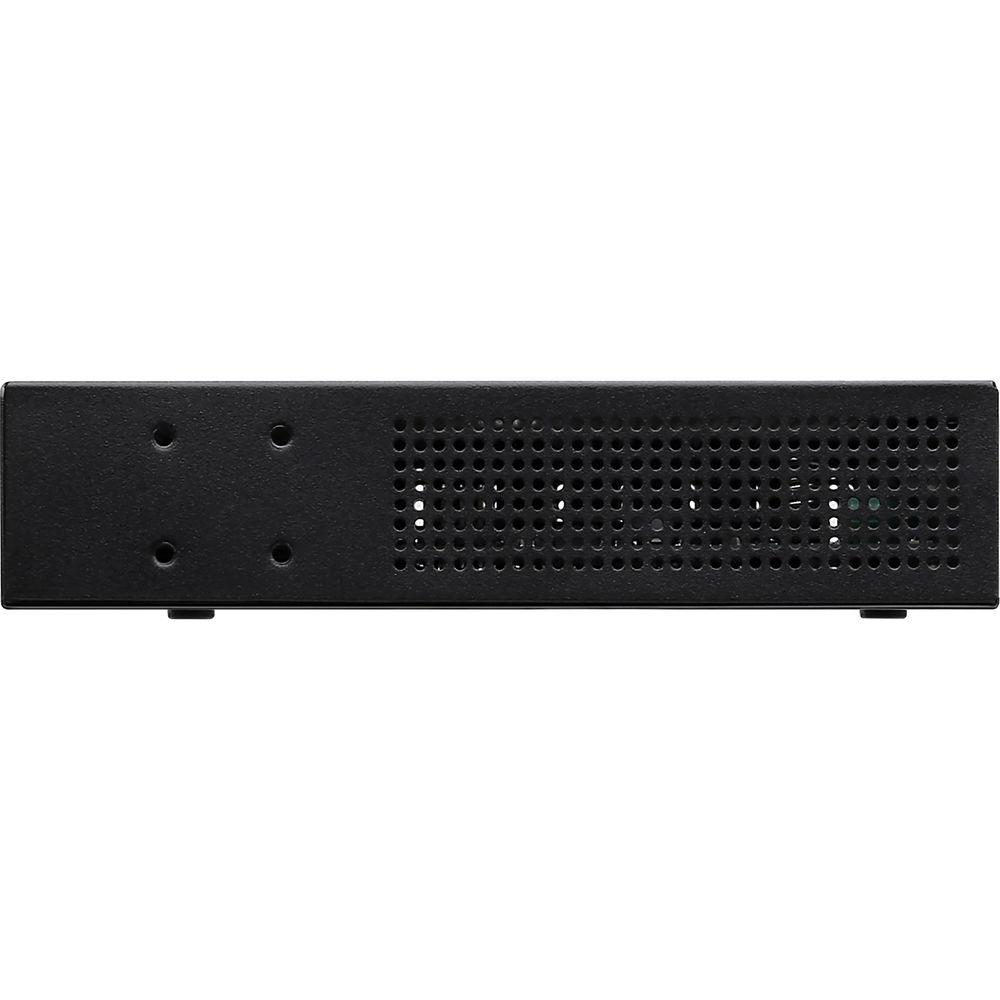

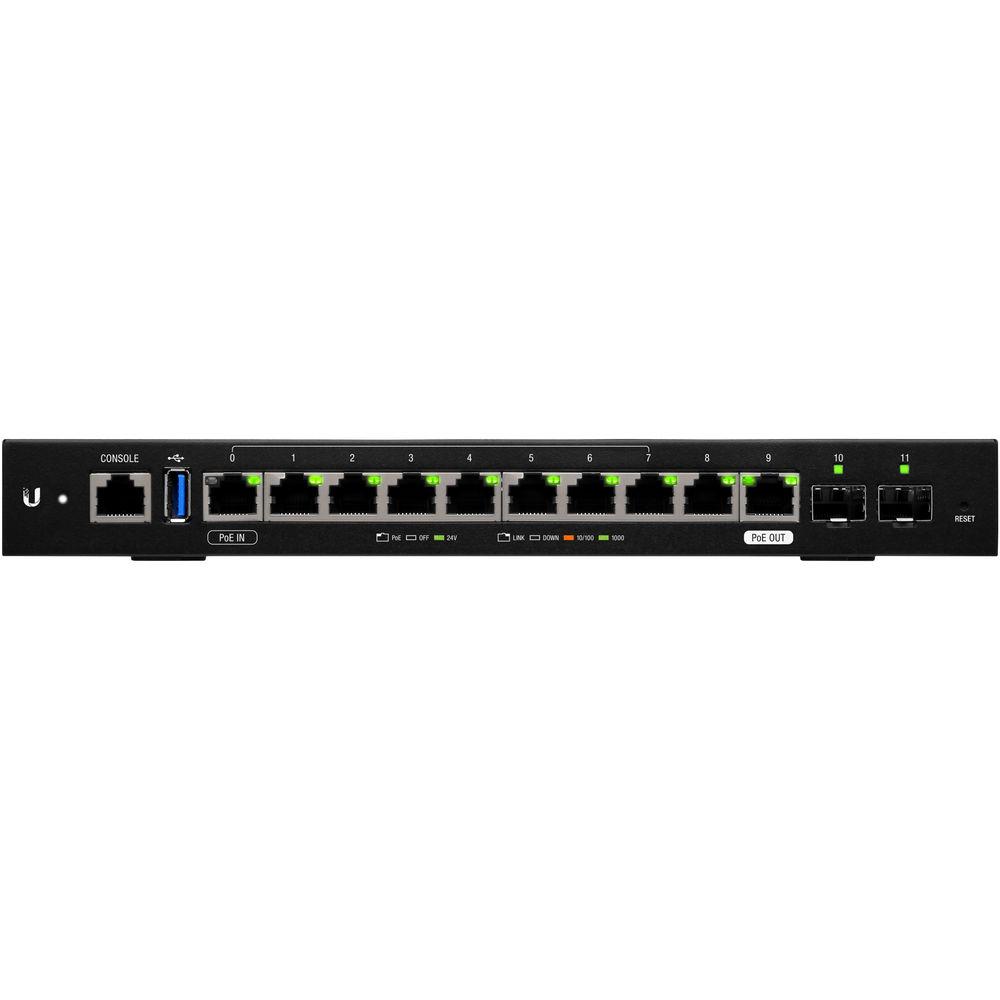

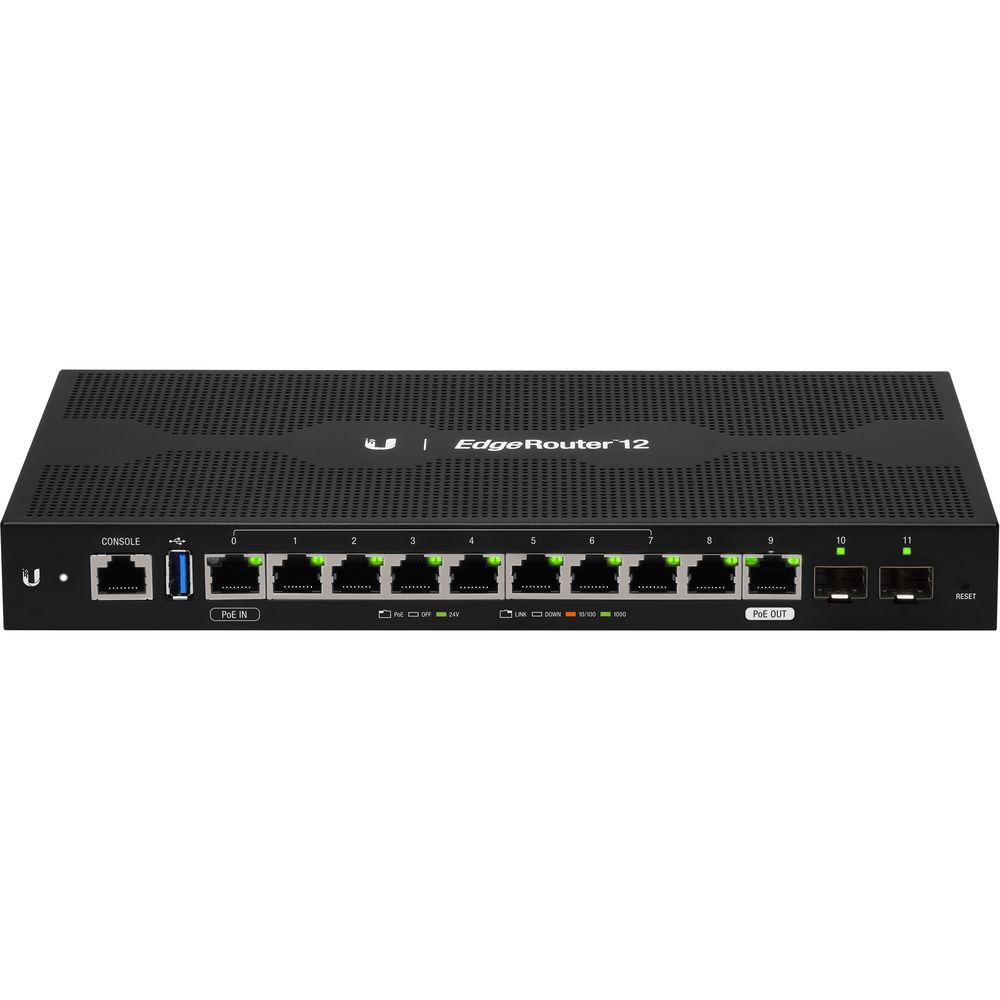

Product description Connect computers, servers, and other devices to your network with the 12-Port EdgeRouter 12 Advanced Network Router from Ubiquiti. Capable of a Layer 3 forwarding rate up to 3.4 million pps and a line rate up to 6.8 Gb/s, the rack-mountable EdgeRouter 12 comes equipped with 10 Gigabit Ethernet ports, two SFP ports, and an RJ45 serial management port. The switch also has a PoE input port and a PoE passthrough port. Powered by a quad-core 1 GHz MIPS64 CPU and 1 GB of DDR3 RAM, the fanless switch can be managed and configured via an integrated command-line interface or with the Ubiquity Network Management System software app. Network Features - Manage Your Network
- Set up multiple DHCP servers to assign IP ranges in different subnets on the different interfaces. Control dynamic and static IP addressing for your network devices. Track network activity and devices from tools such as Ping, Trace, Discover, Packet Capture, and Log Monitor.
- Secure Your Network
- Organize the firewall rules you apply in the order you specify. Apply firewall policies to groups filtered by IP address, network address, or port number. The EdgeRouter changes packet addressing based on your customized source and destination NAT rules.
- Direct Traffic Flow
- Each port functions as an independent interface. You can also configure Virtual Local Area Network (VLAN) interfaces for network segmentation. Configure static routes and dynamic routing protocols to effectively manage the routes used by the EdgeRouter.
Software Features - Intuitive User Interface
- The EdgeRouter provides a graphical user interface designed for setup and control. Configure the routing, security, and management features required to efficiently run your network. For advanced network professionals, an integrated command-line interface is available for quick and direct access using familiar commands. The Ubiquiti Network Management System app makes it possible to manage the EdgeRouter remotely from your mobile device.
- EdgeOS Features
- An operating system that helps manage your EdgeRouter and network, EdgeOS boasts a variety of administrative and configuration features, including VLAN interfaces for network segmentation, static routes and support of routing protocols (OSPF, RIP, BGP, and MPLS), firewall policies and NAT rules, application identification with Deep Packet Inspection (DPI), DHCP services, Quality of Service (QoS), network administration and monitoring tools, administrator and operator accounts, and IPv6 support.
- Command-Line Configuration
- The command-line interface provides configuration and monitoring of all advanced features, as well as direct access to standard Linux tools and shell commands. The CLI can be accessed through the serial console port, SSH, Telnet, or the graphical user interface.
Management Features - Ubiquiti Network Management System
- The EdgeRouter 12 is supported and managed by the Ubiquiti Network Management System (UNMS), a comprehensive management controller featuring a graphical user interface. You can use a single control plane to manage registered EdgeMAX devices across multiple networks and sites.
- Mobile App
- The UNMS app allows you to manage the EdgeRouter using your mobile device. The app can be downloaded from the iOS App Store or Google Play for Android. Once the UNMS app is installed on your mobile device, connect to a wireless network that has access to the EdgeRouter, discover the EdgeRouter, and log into its configuration interface. You can display and configure various settings, such as interface information, throughput per port, system settings, and more.
General Features - Fanless Design
- The fanless EdgeRouter 12 has been designed for silent operation.
- Sturdy Exterior
- The EdgeRouter 12's metal case is both compact and durable.
UPC: 817882023924 In the Box Ubiquiti Networks 12-Port EdgeRouter 12 Advanced Network Router Power Adapter 2 x Wall Mount Screws 2 x Wall Mount Anchors Ground Screw Cable Clip Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks 12-Port EdgeRouter 12 Advanced Network Router in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUbiquiti Networks EdgeRouter 12 Specs | | | Ports | 1 x RJ45 Serial Console Port
10 x 10/100/1000 Mb/s RJ45 Ethernet Ports
2 x 1 Gb/s SFP Ports
1 x USB 3.0/3.1 Gen 1 Port (Reserved for Future Use) | | Processor | 4-Core
1 GHz
MIPS64 | | System Memory | 1 GB DDR3 RAM | | On-Board Flash Storage | 4 GB eMMC
8 MB SPI NOR | | Layer 3 Routing | 64-Byte Packet Forwarding Rate: 3,400,000 pps
1518-Byte or Larger Packet Forwarding Rate: 6.8 Gb/s (Line Rate) | | Layer 2 Switching | Ports 1-7 | | LEDs | Data Ports: Speed/Link/Activity, PoE (Ports 0 and 9 only)
SFP Data Port: Link/Activity | | Button | Reset | | | | PoE Interfaces | PoE In (Port 0): 24 V Passive PoE Port, 2-Pair (4, 5+; 7, 8-)
PoE Out (Port 9): 24 V Passive PoE Port, 2-Pair (4, 5+; 7, 8-) | | Maximum Passive PoE Watts per Port | 20 W (24 V, 0.83 A) | | Passive PoE | DC/PoE Passthrough | | | | Interface | Ethernet
802.1q VLAN
PPPoE
GRE
IP in IP
Bridging
Bonding (802.3ad) | | Addressing | Static IPv4/IPv6 Addressing
DHCP/DHCPv6 | | Routing | Static Routes
OSPF/OSPFv3
RIP/RIPng
BGP (with IPv6 Support)
IGMP Proxy
MPLS | | Security | ACL-Based Firewall
Zone-Based Firewall
Application Identification with Deep Packet Inspection (DPI)
NAT | | VPN | IPSec Site-to-Site and Remote Access
OpenVPN Site-to-Site and Remote Access
PPTP Remote Access
L2TP Remote Access
PPTP Client | | Services | DHCP/DHCPv6 Server
DHCP/DHCPv6 Relay
Dynamic DNS
DNS Forwarding
VRRP
RADIUS Client
Web Caching
PPPoE Server | | Quality of Service (QoS) | FIFO
Stochastic Fairness Queueing
Random Early Detection
Token Bucket Filter
Deficit Round Robin
Hierarchical Token Bucket
Ingress Policing | | Management | Web UI
Ubiquiti Network Management System (UNMS)
CLI (GUI, Console, SSH, Telnet)
SNMP
NetFlow
LLDP
NTP
UBNT Discovery Protocol
Syslog | | | | Power | External AC Power Adapter, 24 W (24 V, 1 A) (Included)
24 V Passive PoE | | Power Consumption (max) | 200 W (Excludes PoE Output) | | Power Input | 110-240 VAC, 50/60 Hz (AC)
20-30 V (24 V Passive PoE) | | | | Mounting | Rack | | Material of Construction | Metal | | Operating Temperature | 14-122°F / -10-50°C | | Operating Humidity | 10-90% (Noncondensing) | | Certifications | CE, FCC, IC | | Dimensions | 10.55 x 5.37 x 1.22" / 268.1 x 136.5 x 31.1 mm | | Weight | 1.54 lb / 700 g | | Warranty | Limited 1-Year Warranty | | | | Package Weight | 2.86 lb | | Box Dimensions (LxWxH) | 15.0 x 7.0 x 2.1" |
