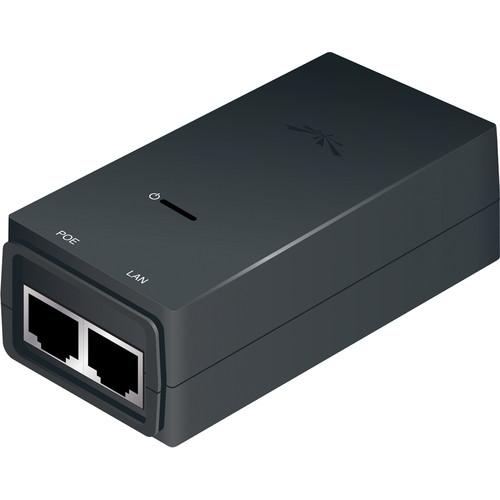

User Manual for Ubiquiti Networks 24V PoE Adapter with Gigabit LAN Port Click to enlarge the picture
Contents of the user manual for the Ubiquiti Networks 24V PoE Adapter with
- Product category: Power over Ethernet (PoE) Ubiquiti Networks
- Brand: Ubiquiti Networks
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ubiquiti Networks Power over Ethernet (PoE)
|
User manual for the Ubiquiti Networks 24V PoE Adapter with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ubiquiti Networks product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ubiquiti Networks user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ubiquiti Networks product will considerably shorten its lifespan!
|
Product description The 24V PoE Adapter with Gigabit LAN Port from Ubiquiti Networks powers a variety of Ubiquiti PoE devices belonging to the airFiber, airMAX, airVision, UniFi, and mFi series. This 24V adapter provides protection against surge, clamping, maximum surge discharge, peak pulse current, and ESD attacks. - Powers Ubiquiti airFiber, airMAX, airVision, UniFi, and mFi PoE devices
- Protection against surge, clamping, maximum surge discharge, peak pulse current, and ESD attacks
- Compatible with Ubiquiti airGateway Access Points
- Remote reset capability with reset button
UPC: 810354021190 In the Box Ubiquiti Networks 24V PoE Adapter with Gigabit LAN Port Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks 24V PoE Adapter with Gigabit LAN Port in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Ubiquiti Networks 24V PoE Adapter with Gigabit LAN Port can be downloaded in PDF format at the link stated below.
Technical parametersUbiquiti Networks POE-24-12W-G Specs | Connectors | 2 x RJ45 shielded ports | | Clamping Protection | 11 V data, 60 V power | | Maximum Surge Discharge | 1500 A (8/20 µS) power | | Peak Pulse Current | 36 A (10/1000 µS) data | | Shunt Capacitance | < 5 pf data | | Response Time | < 1 ns | | Powering | 2-Pair: Pins 4, 5 (+) and pins 7, 8 (-) | | AC Connector | IEC-320 C6 | | Switching Frequency | 50 kHz | | Line Regulation | ± 1% | | Load Regulation | ± 3% | | Output Ripple | 1% max | | Efficiency | > 75% | | Inrush Current | < 30 A peak @ 120 VAC
< 60 A peak @ 230 VAC | | Input Current | 0.3 A @ 120 VAC
0.2 A @ 240 VAC | | Input Voltage | 90-260 VAC @ 47-63 Hz | | Output Voltage | 24 VDC @ 0.5 A | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -22 to 158°F (-30 to 70°C) | | Humidity (Non-Condensing) | 35-95% | | Dimensions | 3.43 x 3.31 x 1.15" (8.7 x 8.4 x 2.9 cm) | | Weight | 3.5 oz (99.4 g) | | | | Package Weight | 0.53 lb | | Box Dimensions (LxWxH) | 7.4 x 4.0 x 1.7" |
