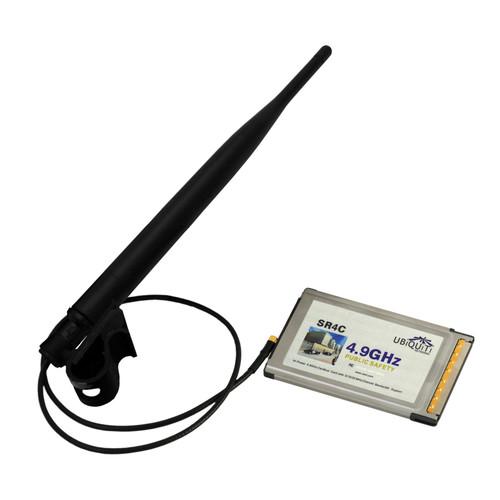

Product description The 4.9 GHz SuperRange4 CardBus Adapter from Ubiquiti Networks is a high-performance high-power FCC Part 90Y certified 4.9 GHz client solution, specifically designed to work with 4.9 GHz mesh networks. In addition to high output power, it features optimal receiver performance, external antenna connectors, advanced mobility functionality, and configuration, as well as Cisco CCX 4.0 support with the QoS and security standards. - Mesh Networking and Mobility Support
- In addition to the range and radio performance of the SR4C, Ubiquiti has developed an enhanced application that has been qualified and tested with systems from Tropos, Skypilot Networks, BelAir Networks, Proxim, and Packet Hop. The utility is able to scan all 4.9 GHz channels, associate at 5/10/20 MHz channels widths, and provide performance feedback to the end user. An advanced mobility application allows network administrators to optimize mobility performance based on a variety of thresholds such as signal level, data rate, and AP credentials.
In the Box Ubiquiti Networks 4.9 GHz SuperRange4 CardBus Adapter Adjustable Laptop Clip Mount Sticker Mount Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks 4.9 GHz SuperRange4 CardBus Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUbiquiti Networks SR4C Specs | | | Radio | Operation: Proprietary 4.9 GHz based on OFDM 802.11a with QPSK/16QAM/64QAM | | Interface | 32-bit Cardbus Type II | | Antenna Ports | Dual MMCX Note: Primary only required; secondary optional for diversity | | Security | WPA, WPA2, AES-CCM, & TKIP Encryption
802.1x
64/128/152bit WEP | | Data Rates | 6/9/12/24/36/48/54 Mb/s | | Voltage | 3.3 VDC | | Temperature Range | -40 to +176°F (-40 to +80°C) Note: Extended temperature version up to +203°F (95°C) | | Compliance | RoHS | | | | TX Specification | Modulation: 4.9 GHz OFDM
Data Rate: 6 Mb/s
TX Power: 23 dBm
Tolerance: ± 1.5 dB
Modulation: 4.9 GHz OFDM
Data Rate: 9 Mb/s
TX Power: 23 dBm
Tolerance: ± 1.5 dB
Modulation: 4.9 GHz OFDM
Data Rate: 12 Mb/s
TX Power: 23 dBm
Tolerance: ± 1.5 dB
Modulation: 4.9GHz OFDM
Data Rate: 18 Mb/s
TX Power: 23dBm
Tolerance: ± 1.5 dB
Modulation: 4.9 GHz OFDM
Data Rate: 24 Mb/s
TX Power: 23 dBm
Tolerance: ± 1.5 dB
Modulation: 4.9 GHz OFDM
Data Rate: 36 Mb/s
TX Power: 21 dBm
Tolerance: ± 1.5 dB
Modulation: 4.9 GHz OFDM
Data Rate: 48 Mb/s
TX Power: 20 dBm
Tolerance: ± 1.5 dB
Modulation: 4.9 GHz OFDM
Data Rate: 54 Mb/s
TX Power: 19 dBm
Tolerance: ± 1.5 dB | | RX Specification | Modulation: 4.9 GHz OFDM
Data Rate: 6 Mb/s
Sensitivity: -94 dBm
Tolerance: ± 1.5 dB
Modulation: 4.9 GHz OFDM
Data Rate: 9 Mb/s
Sensitivity: -93 dBm
Tolerance: ± 1.5 dB
Modulation: 4.9 GHz OFDM
Data Rate: 12 Mb/s
Sensitivity: -91 dBm
Tolerance: ± 1.5 dB
Modulation: 4.9 GHz OFDM
Data Rate: 18 Mb/s
Sensitivity: -90 dBm
Tolerance: ± 1.5 dB
Modulation: 4.9 GHz OFDM
Data Rate: 24 Mb/s
Sensitivity: -86 dBm
Tolerance: ± 1.5 dB
Modulation: 4.9 GHz OFDM
Data Rate: 36 Mb/s
Sensitivity: -83 dBm
Tolerance: ± 1.5 dB
Modulation: 4.9 GHz OFDM
Data Rate: 48 Mb/s
Sensitivity: -77 dBm
Tolerance: ± 1.5 dB
Modulation: 4.9 GHz OFDM
Data Rate: 54 Mb/s
Sensitivity: -74 dBm
Tolerance: ± 1.5 dB | | | | TX Specification | Modulation: 4.9 GHz OFDM
Data Rate: 6 Mb/s
Current: 0.80 A
Tolerance: ± 100 dB
Modulation: 4.9 GHz OFDM
Data Rate: 9 Mb/s
Current: 0.80 A
Tolerance: ± 100 dB
Modulation: 4.9 GHz OFDM
Data Rate: 12 Mb/s
Current: 0.80 A
Tolerance: ± 100 dB
Modulation: 4.9 GHz OFDM
Data Rate: 18 Mb/s
Current: 0.80 A
Tolerance: ± 100 dB
Modulation: 4.9 GHz OFDM
Data Rate: 24 Mb/s
Current: 0.80 A
Tolerance: ± 100 dB
Modulation: 4.9 GHz OFDM
Data Rate: 36 Mb/s
Current: 0.70 A
Tolerance: ± 100 dB
Modulation: 4.9 GHz OFDM
Data Rate: 48 Mb/s
Current: 0.65 A
Tolerance: ± 100 dB
Modulation: 4.9 GHz OFDM
Data Rate: 54 Mb/s
Current: 0.55 A
Tolerance: ± 100 dB | | RX Specification | Modulation: 4.9 GHz OFDM
Data Rate: 6 Mb/s
Current: 300 mA
Tolerance: ± 100 dB
Modulation: 4.9 GHz OFDM
Data Rate: 9 Mb/s
Current: 300 mA
Tolerance: ± 100 dB
Modulation: 4.9 GHz OFDM
Data Rate: 12 Mb/s
Current: 300 mA
Tolerance: ± 100 dB
Modulation: 4.9 GHz OFDM
Data Rate: 18 Mb/s
Current: 300 mA
Tolerance: ± 100 dB
Modulation: 4.9 GHz OFDM
Data Rate: 24 Mb/s
Current: 300 mA
Tolerance: ± 100 dB
Modulation: 4.9 GHz OFDM
Data Rate: 36 Mb/s
Current: 300 mA
Tolerance: ± 100 dB
Modulation: 4.9 GHz OFDM
Data Rate: 48 Mb/s
Current300 mA
Tolerance: ± 100 dB
Modulation: 4.9 GHz OFDM
Data Rate: 54 Mb/s
Current: 300 mA
Tolerance: ± 100 dB | | | | Channel Sizes | Frequency 4942.5 MHz: 5 MHz
Frequency 4945.0 MHz: 5/10 MHz
Frequency 4947.5 MHz: 5/10 MHz
Frequency 4950.0 MHz: 5/10/20 MHz
Frequency 4952.5 MHz: 5/10/20 MHz
Frequency 4957.5 MHz: 5/10/20 MHz
Frequency 4960.0 MHz: 5/10/20 MHz
Frequency 4962.5 MHz: 5/10/20 MHz
Frequency 4965.0 MHz: to 5/10/20 MHz
Frequency 4967.5 MHz: to 5/10/20 MHz
Frequency 4970.0 MHz: to 5/10/20 MHz
Frequency 4972.5 MHz: to 5/10/20 MHz
Frequency 4975.0 MHz: to 5/10/20 MHz
Frequency 4980.0 MHz: to 5/10/20 MHz
Frequency 4982.5 MHz: to 5/10 MHz
Frequency 4985.0 MHz: 5/10 MHz
Frequency 4987.5 MHz: 5 MHz | | | | Indoor | Up to 100 m antenna dependent | | Outdoor | Over 1 km antenna dependent | | | | Operating System | Linux MADWIFI, WindowsXP, and Windows2000 | | Advanced Mobility / QuickHandoff | WindowsXP/2000 Utility with enhanced mobility driver from Ubiquiti | | Cisco Support | CCX 4.0 Supported Driver/Utility also available from Ubiquiti | | | | Cable | 18.0" (45.7 cm) with MMCX plug | | Antenna Type | Omni-directional / Vertical polarized | | Antenna Gain | 4 dBi | | Antenna Dimensions | 5.10 x 0.83" (12.95 x 2.10 cm) | | | | Package Weight | 0.25 lb | | Box Dimensions (LxWxH) | 6.5 x 3.5 x 1.1" |
