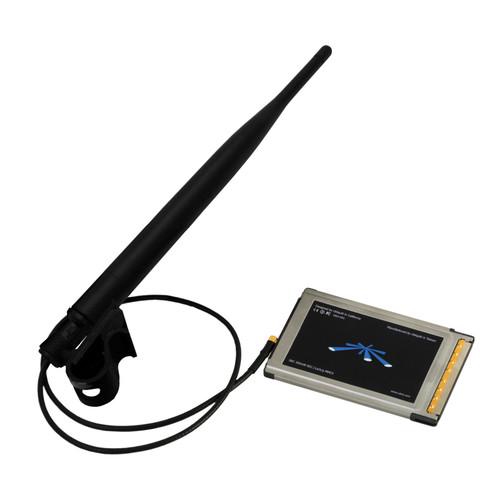

Product description The 802.11a/b/g SuperRange Cardbus Adapter from Ubiquiti Networks is an FCC-compliant client solution, suitable for long distance links. It offers optimal receiver performance, and has external antenna connectors, mobility functionality, and Cisco CCX 4.0 support with 802.11 QoS and security standards. - Mesh Networking and Mobility Support
- In addition to the range and radio performance of the SRC, Ubiquiti has developed an enhanced application that has been qualified and tested with systems from Tropos, Skypilot Networks, BelAir Networks, Proxim, and Packet Hop. This utility contains scanning functionality with filtering options and detailed performance feedback reporting. An advanced mobility application allows network administrators to optimize mobility performance based on a variety of thresholds such as signal level, data rate, and AP credentials.
In the Box Ubiquiti Networks 802.11a/b/g SuperRange Cardbus Adapter Adjustable Laptop Clip Mount Sticker Mount Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks 802.11a b g SuperRange Cardbus Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUbiquiti Networks SRC Specs | | | Wireless Chipset | Atheros 5004 | | Radio Operation | IEEE 802.11a/b/g | | Interface | 32-bit Cardbus type II | | Security | WPA, WPA2, AES-CCM, and TKIP encryption
802.1x
64/128/152-bit WEP | | Data Rates | 6/9/12/24/36/48/54 Mb/s data rates | | Antenna Ports | Dual MMCX* Primary only required; secondary optional for diversity. | | Voltage | 3.3 VDC | | Temperature Range | -40 to +80°C Extended temperature version up to +203°F(95°C) close | | Compliance | RoHS | | | | 2412 to 2462 MHz Operating Frequency | 2.4 GHz TX Specification:
802.11b Modulation:
Data Rate: 1 Mb/s
TX Power: 24 dBm
Tolerance: +/-1 dB
Data Rate: 2 Mb/s
TX Power: 24 dBm
Tolerance: +/-1 dB
Data Rate: 5.5 Mb/s
TX Power: 24 dBm
Tolerance: +/-1 dB
Data Rate: 11 Mb/s
TX Power: 24 dBm
Tolerance: +/-1 dB
802.11g OFDM Modulation:
Data Rate: 6 Mb/s
TX Power: 24 dBm
Tolerance: +/-1 dB
Data Rate: 9 Mb/s
TX Power: 24 dBm
Tolerance: +/-1 dB
Data Rate: 12 Mb/s
TX Power: 24 dBm
Tolerance: +/-1 dB
Data Rate: 18 Mb/s
TX Power: 24 dBm
Tolerance: +/-1 dB
Data Rate: 24 Mb/s
TX Power: 24 dBm
Tolerance: +/-1 dB
Data Rate: 36 Mb/s
TX Power: 23 dBm
Tolerance: +/-1 dB
Data Rate: 48 Mb/s
TX Power: 22 dBm
Tolerance: +/-1 dB
Data Rate: 54 Mb/s
TX Power: 20 dBm
Tolerance: +/-1 dB
2.4 GHz RX Specifications:
802.11b Modulation:
Data Rate: 1 Mb/s
Sensitivity: -96 dBm
Tolerance: +/-1 dB
Data Rate: 2 Mb/s
Sensitivity: -95 dBm
Tolerance: +/-1 dB
Data Rate: 5.5 Mb/s
Sensitivity: -94 dBm
Tolerance: +/-1 dB
Data Rate: 11 Mb/s
Sensitivity: -91 dBm
Tolerance: +/-1 dB
802.11g OFDM Modulation:
Data Rate: 6 Mb/s
Sensitivity: -94 dBm
Tolerance: +/-1 dB
Data Rate: 9 Mb/s
Sensitivity: -93 dBm
Tolerance: +/-1 dB
Data Rate: 12 Mb/s
Sensitivity: -91 dBm
Tolerance: +/-1 dB
Data Rate: 18 Mb/s
Sensitivity: -90 dBm
Tolerance: +/-1 dB
Data Rate: 24 Mb/s
Sensitivity: -86 dBm
Tolerance: +/-1 dB
Data Rate: 36 Mb/s
Sensitivity: -83 dBm
Tolerance: +/-1 dB
Data Rate: 48 Mb/s
Sensitivity: -77 dBm
Tolerance: +/-1 dB
Data Rate: 54 Mb/s
Sensitivity: -74 dBm
Tolerance: +/-1 dB | | 5745 to 5825 MHz Operating Frequency | 5 GHz TX Specification
802.11a OFDM Modulation:
Data Rate: 6 Mb/s
TX Power: 20 dBm
Tolerance: +/-1 dB
Data Rate: 9 Mb/s
TX Power: 20 dBm
Tolerance: +/-1 dB
Data Rate: 12 Mb/s
TX Power: 20 dBm
Tolerance: +/-1 dB
Data Rate: 18 Mb/s
TX Power: 20 dBm
Tolerance: +/-1 dB
Data Rate: 24 Mb/s
TX Power: 20 dBm
Tolerance: +/-1 dB
Data Rate: 36 Mb/s
TX Power: 19 dBm
Tolerance: +/-1 dB
Data Rate: 48 Mb/s
TX Power: 18 dBm
Tolerance: +/-1 dB
Data Rate: 54 Mb/s
Sensitivity: 16 dBm
Tolerance: +/-1 dB
RADIO 2.5 GHz RX Specification
802.11a OFDM Modulation:
Data Rate: 6 Mb/s
Sensitivity: -94 dBm
Tolerance: +/-1 dB
Data Rate: 9 Mb/s
Sensitivity: -93 dBm
Tolerance: +/-1 dB
Data Rate: 12 Mb/s
Sensitivity: -91 dBm
Tolerance: +/-1 dB
Data Rate: 18 Mb/s
Sensitivity: -90 dBm
Tolerance: +/-1 dB
Data Rate: 24 Mb/s
Sensitivity: -86 dBm
Tolerance: +/-1 dB
Data Rate: 36 Mb/s
Sensitivity: -83 dBm
Tolerance: +/-1 dB
Data Rate: 48 Mb/s
Sensitivity: -77 dBm
Tolerance: +/-1 dB
Data Rate: 54 Mb/s
Sensitivity: -74 dBm
Tolerance: +/-1 dB | | Current Consumption Information | TX Current Consumption
802.11b Modulation:
Data Rate: 1 Mb/s
TX Power: 0.80 A
Tolerance: +/-100 mA
Data Rate: 2 Mb/s
TX Power: 0.80 A
Tolerance: +/-100 mA
Modulation: 802.11b
Data Rate: 5.5 Mb/s
TX Power: 0.80 A
Tolerance: +/-100 mA
Modulation: 802.11b
Data Rate: 11 Mb/s
TX Power: 0.80 A
Tolerance: +/-100 mA
11g/a Modulation:
Data Rate: 6 to 24 Mb/s
TX Power: 0.80 A
Tolerance: +/-100 mA
Data Rate: 36 Mb/s
TX Power: 0.75 A
Tolerance: +/-100 mA
Data Rate: 48 Mb/s
TX Power: 0.70 A
Tolerance: +/-100 mA
Data Rate: 54 Mb/s
TX Power: 0.60 A
Tolerance: +/-100 mA
RX Current Consumption
802.11b Modulation:
Data Rate: 1 Mb/s
Sensitivity: 350 mA
Tolerance: +/-100 mA
Modulation: 802.11b
Data Rate: 2 Mb/s
Sensitivity: 350 mA
Tolerance: +/-100 mA
Data Rate: 5.5 Mb/s
Sensitivity: 350 mA
Tolerance: +/-100 mA
Data Rate: 11 Mb/s
Sensitivity: 350 mA
Tolerance: +/-100 mA
11g/a Modulation:
Data Rate: 6 to 24 Mb/s
Sensitivity: 350 mA
Tolerance: +/-100 mA
Data Rate: 36 Mb/s
Sensitivity: 350 mA
Tolerance: +/-100 mA
Data Rate: 48 Mb/s
Sensitivity: 350 mA
Tolerance: +/-100 mA
Data Rate: 54 Mb/s
Sensitivity: 350 mA
Tolerance: +/-100 mA | | | | Indoor (Antenna Dependent) | Up to 150 m | | Outdoor (Antenna Dependent) | Over 1 km | | | | Operating System | Linux, Windows XP, Windows 2000 | | Advanced Mobility / QuickHandoff | Windows XP/2000 Utility with enhanced mobility driver from Ubiquiti | | Cisco Support | CCX 4.0 Supported Driver/Utility also available from Ubiquiti | | | | Cable | 18.0" (45.7 cm) with MMCX plug | | Antenna type | Omni-directional / Vertical polarized | | Antenna Gain | 5 dBi | | Antenna Dimensions | 5.10 x 0.83" (12.95 x 2.10 cm) |
