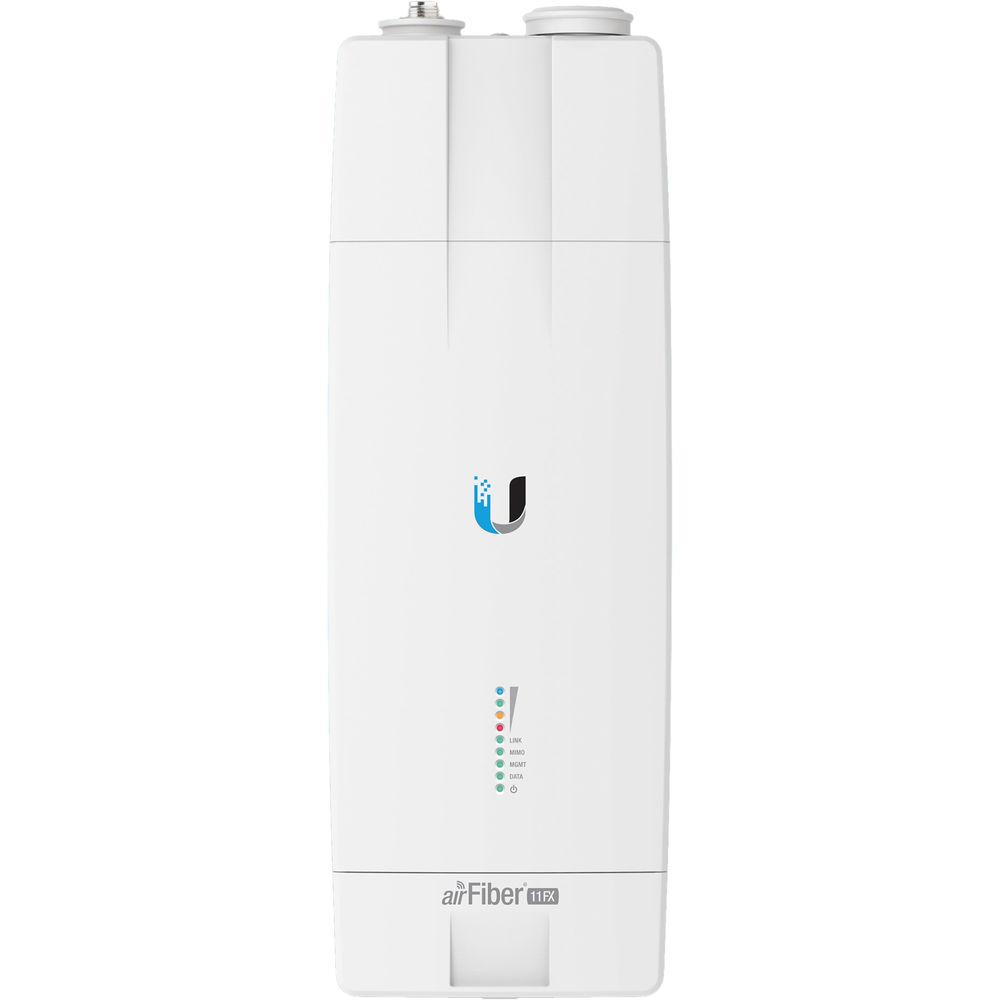

User Manual for Ubiquiti Networks AF-11FX-H airFiber 11FX Licensed Backhaul Radio with High-Band Duplexer Click to enlarge the picture
Contents of the user manual for the Ubiquiti Networks AF-11FX-H airFiber 11FX Licensed
- Product category: Networking Accessories Ubiquiti Networks
- Brand: Ubiquiti Networks
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ubiquiti Networks Networking Accessories
 |
User manual for the Ubiquiti Networks AF-11FX-H airFiber 11FX Licensed contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ubiquiti Networks product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ubiquiti Networks user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ubiquiti Networks product will considerably shorten its lifespan!
|

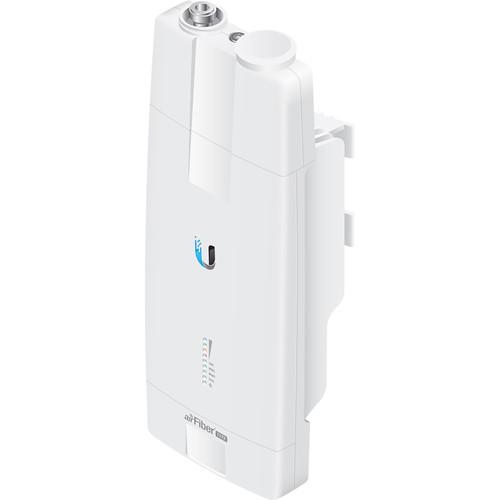

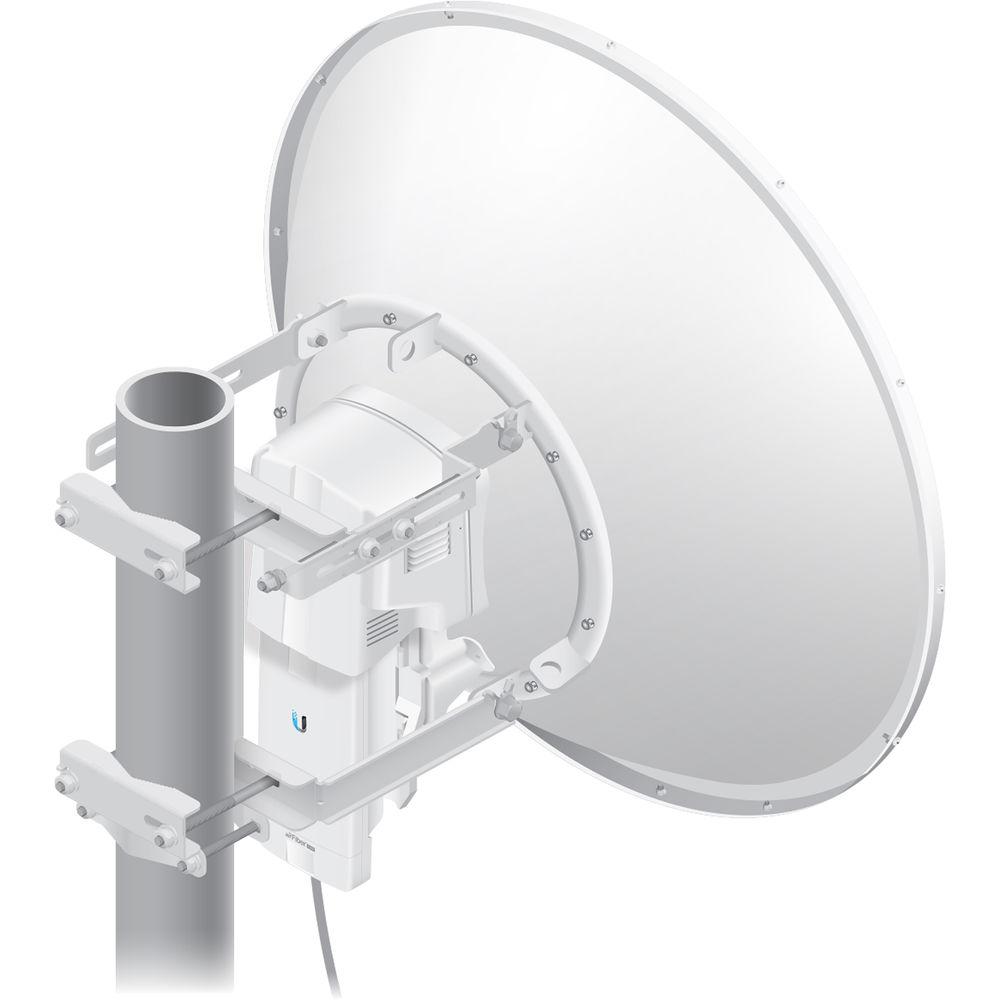

Product description Ideal for outdoor point-to-point bridging and carrier-class network backhauls, the AF-11FX-H airFiber 11FX Licensed Backhaul Radio with High-Band Duplexer from Ubiquiti Networks is capable of delivering up to 1.2 Gb/s throughput using the licensed 11 GHz radio band. Boasting a range up to 186 miles, the airFiber 11FX is designed to connect to the Ubiquiti AF-11G35 antenna, or it can be fitted onto a variety of third party antennas with an optional adapter kit.
This Ubiquiti Backhaul Radio comes equipped with four SMA weatherproof RF connectors, a Gigabit Ethernet data port, and a 10/100 Mb/s management port. It can be configured to use either single (SISO) or bonded (MIMO) channels, while its transmit and receive signals can be configured to reside on separate channels to further improve network performance. The radio supports both DC and PoE power and comes with silicone boots to help protect against the elements when installed outdoors. Each airFiber 11FX radio requires one or two duplexers. The AF-11FX-H comes with a high-band duplexer. - True Full-Duplex Design
- The AF-11FX-H offers a FDD solution that satisfies licensing requirements for the 11 GHz band.
- Ultra-Low Latency
- Overall customer experience and system capacity is enhanced with FDD performance.
- Enhanced Robustness
- The AF-11FX-H features a unique, built-in, rain-fade mitigation strategy for increased link robustness.
- Extended Range
- The RF power amplifiers feature a unique bias scheme, allowing high-order constellations at longer ranges.
- Optimized Channels
- The airFiber AF-11FX-H can use single (SISO) or bonded (MIMO) channels, depending on your specific licensing requirements. The radio also features different channel width sizes to suit your deployment needs, and you can independently configure TX and RX channel frequencies.
- Reconfigurable Duplexers

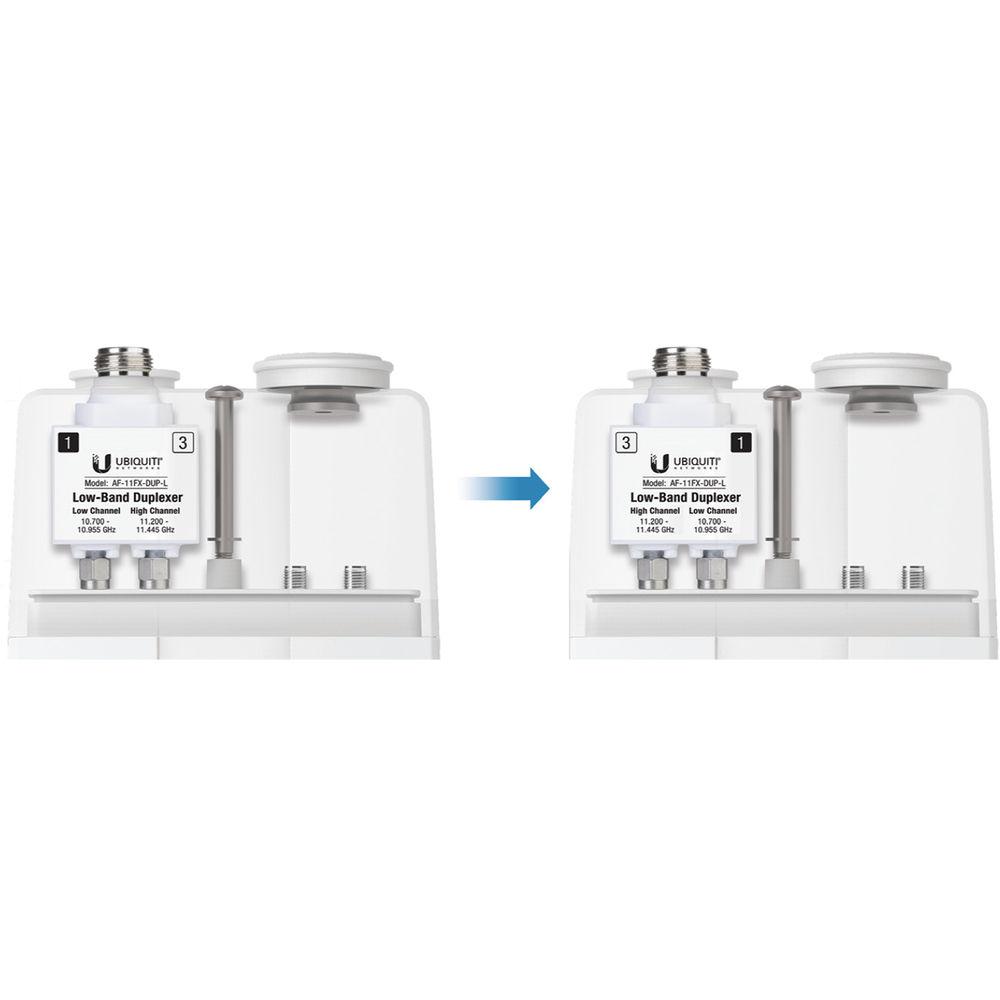

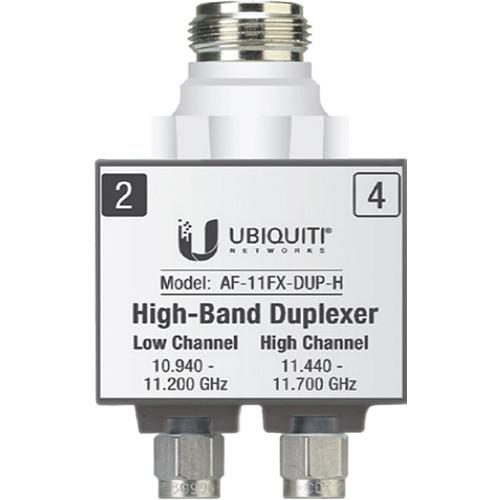

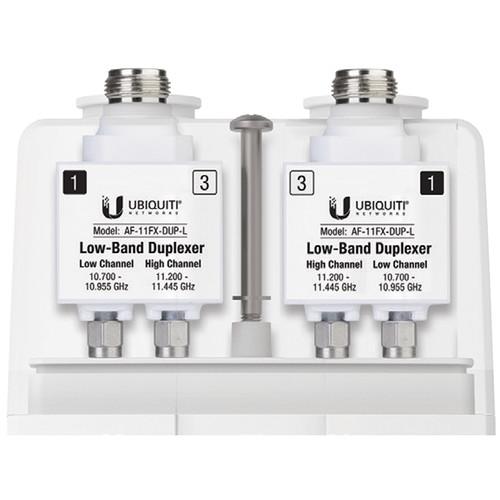

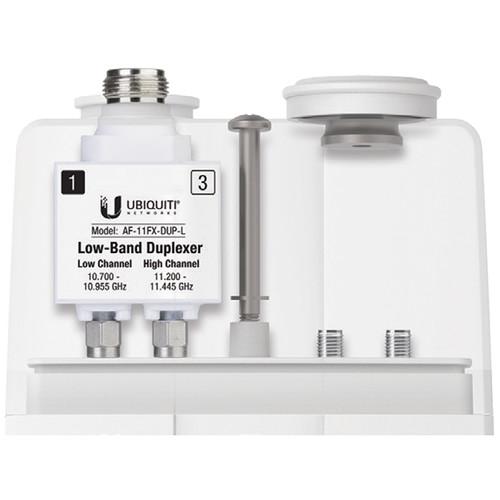

- The AF-11FX-H features a modular duplexer design to suit multiple frequency configurations. The radio can be configured to support any allowable frequency by simply changing the duplexers for high-band or low-band use in the 10.7-11.7 GHz allocation. Each duplexer has a low channel and a high channel that can be configured by simply reversing the position of the duplexer. The AF-11FX-H comes with a high-band duplexer.
- High Performance
- The compact AF-11FX supports high-order constellations up to 1024 QAM, allowing it to deliver enhanced spectral efficiency.
- INVICTUS 2 Custom Silicon Design
- Ubiquiti's INVICTUS 2 custom silicon and proprietary radio architecture are designed specifically for long-distance, outdoor wireless applications, helping to provide superior performance, long-range capability, and higher delivered throughput.
- Power Source Options

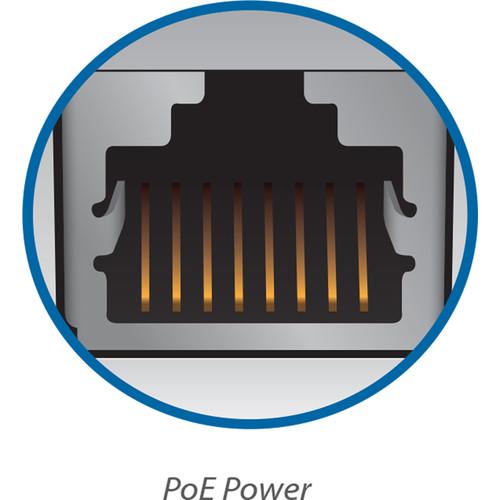

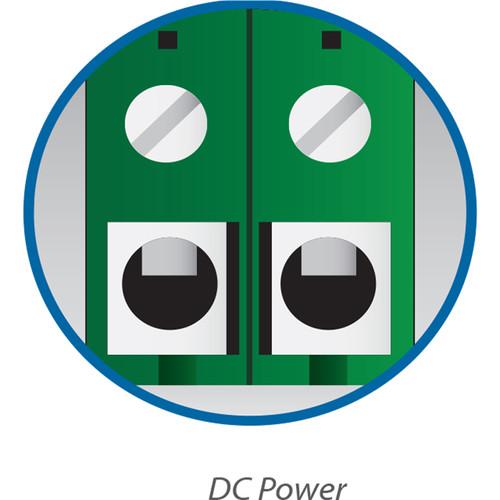

- Support for PoE or DC power gives you the flexibility to power the AF-11FX separately from Ethernet traffic. PoE power can be supplied on the DATA port using the provided PoE adapter, while DC power can be supplied using the terminal block.
- Versatile, Ruggedized N-Type Connectors

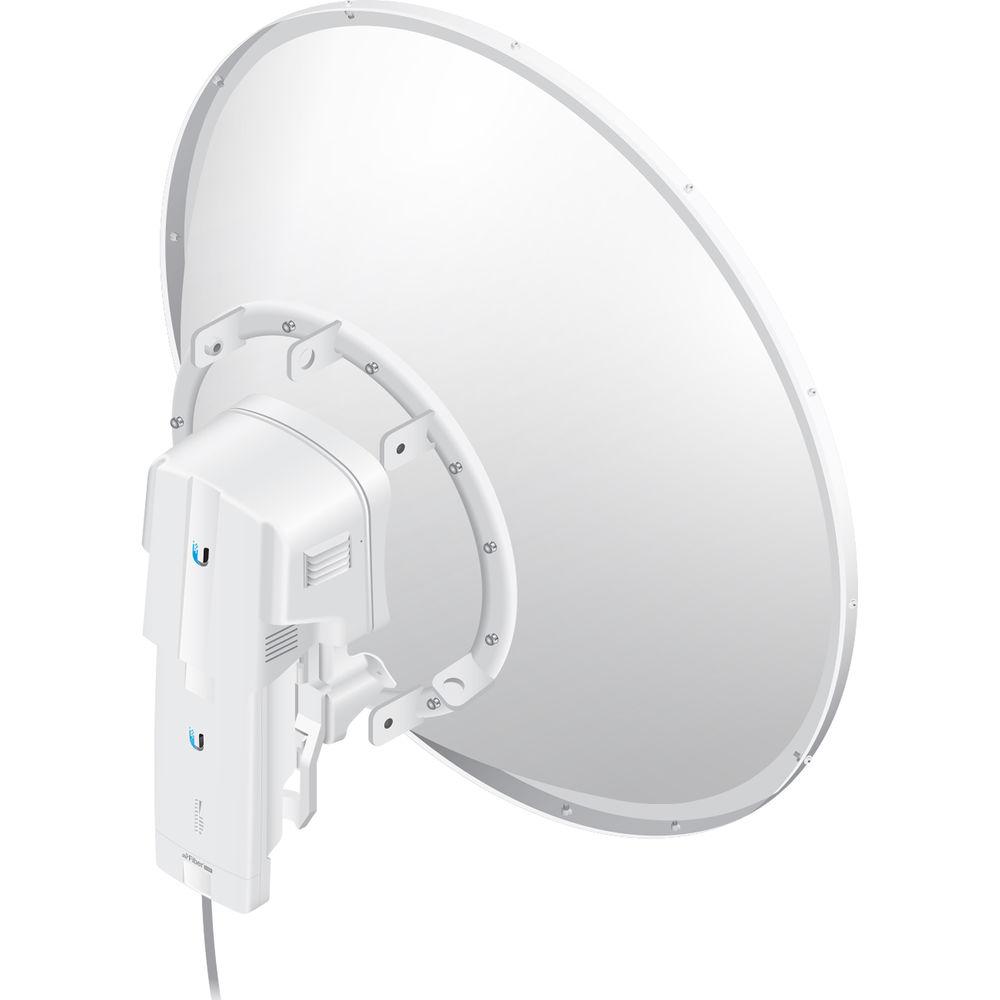

- N-connectors allow the AF-11FX to be used with either the Ubiquiti AF-11G35 antenna or a variety of commonly available antennas. Specially designed silicone boots provide a weatherproof barrier against dust and moisture.
UPC: 810354026393 In the Box Ubiquiti Networks AF-11FX-H airFiber 11FX Licensed Backhaul Radio with High-Band Duplexer High-Band Duplexer 2 x Cable Ties AirFiber Gigabit PoE Adapter (50V, 1.2A) Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks AF-11FX-H airFiber 11FX Licensed Backhaul Radio with High-Band Duplexer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUbiquiti Networks AF-11FX-H Specs | RF Connectors | 4 x SMA weatherproof
TX 0, RX 0 (chain 0) and TX 1, RX 1 (chain 1)
2 x N-Type waterproof, one per duplexer | | Power Supply | 50 VDC, 1.2 A PoE Gigabit adapter (included) | | Power Method | Passive Power over Ethernet
Pins 1, 2, 4, 5 (+) and Pins 7, 8, 3, 6 (-) or DC power block | | Power Consumption | 36 W | | Supported Voltage | 38-56 VDC | | Mounting | Integrated pole mount included
Oversized rocket mound compatible | | Certifications | CE, FCC, IC | | Operating Temperature | -40 to 131°F / -40 to 55°C | | LEDs | 8 x Status LED indicators
• Data port link/activity
• Management port link/activity
• MIMO mode
• RF link
• 4 x Autoscaling signal strength bar graph | | Networking Interface | Data Port
1 x 10/100/1000 Ethernet port
Management Port
1 x 10/100 Ethernet port | | System Specifications | Processor
INVICTUS 2 IC
Maximum Throughput
1.2+ Gbps
Maximum Range
186+ mi / 300+ km
Encryption
128-bit AES
OS
airOS F
Wireless Modes
SISO/MIMO | | Wireless Radio Specifications | Frequency Range
10.7-11.7 GHz
Max. Conducted TX Power
30 dBm
(Dependent on regulatory region)
Frequency Accuracy
± 2.0 ppm
Channel Bandwidth
3.5/5/7/10/14/20/28/30/40/50/56 MHz selectable | | Suggested Max. TX Power | 10x (1024 QAM) 18 dBm
8x (256 QAM) 21 dBm
6x (64 QAM) 24 dBm
4x (16 QAM) 30 dBm
2x (4 QAM) 30 dBm
1x (QPSK) 30 dBm | | Duplex Operation | Low Channel: 10.940 to 11.200 GHz
High Channel: 11.440 to 11.700 GHz | | Dimensions | 12.87 x 4.41 x 3.39" / 327 x 112 x 86 mm | | Weight | 5.00 lb / 2.26 kg | | | | Package Weight | 6.4 lb | | Box Dimensions (LxWxH) | 14.0 x 6.1 x 4.4" |
