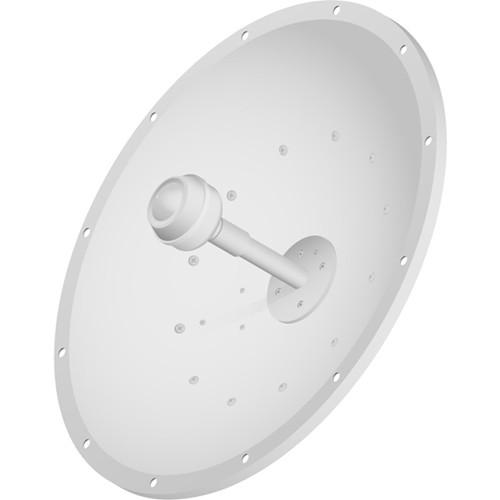

User Manual for Ubiquiti Networks AF-2G24-S45 24 dBi Antenna for airFiber X 2.4 GHz Carrier Backhaul Radio Click to enlarge the picture
Contents of the user manual for the Ubiquiti Networks AF-2G24-S45 24 dBi Antenna
- Product category: Antennas & Accessories Ubiquiti Networks
- Brand: Ubiquiti Networks
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ubiquiti Networks Antennas & Accessories
|
User manual for the Ubiquiti Networks AF-2G24-S45 24 dBi Antenna contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ubiquiti Networks product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ubiquiti Networks user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ubiquiti Networks product will considerably shorten its lifespan!
|
Product description The AF-2G24-S45 24 dBi Antenna for airFiber X 2.4 GHz Carrier Backhaul Antenna from Ubiquiti Networks is designed to be paired with an airFiber X radio as part of a large point-to-point network. By integrating this antenna into your network setup you benefit from increased performance on the 2.4 GHz frequency. With a 2x2 dual-polarity antenna configuration, the antenna/radio configuration is perfect for handling high-density network traffic. The rugged external housing ensures the antenna can withstand harsh weather conditions, while plug-and-play setup eliminates the need for special tools during installation. - Performance
- The airFiber X antenna delivers 2x2 dual-polarity performance. The airFiber X antenna along with an airFiber X radio can be deployed as endpoints in a backhaul link to deliver bandwidth from a WISP network out to a neighborhood tower. From there, an airMAX Sector antenna with a Rocket radio delivers bandwidth to the WISP's customers.
- Carrier-Class Construction
- Incorporating a dish reflector design for improved beam directivity, the airFiber X antennas feature enhanced mechanical design using industrial-strength hardware for outdoor application use.
- Plug-and-Play Integration
- airFiber X antennas and airFiber X radios have been designed to seamlessly work together. Every airFiber X antenna has a built-in airFiber X radio mount, so installation requires no special tools. Snap the airFiber X radio securely into place and mount the antenna; you then have the optimal combination of airFiber X antenna and airFiber X radio for your PtP application.
- Mechanical Design
- • Secure Pole-Mounting maintains the position of the dish during harsh outdoor conditions.
• Low-Profile Form Factor of the AF-5G23-S45 Reduces wind-loading. - Weatherproof Design
- • Protective Shroud protects the cables and connectors from the elements.
UPC: 810354023743 In the Box Ubiquiti Networks AF-2G24-S45 24 dBi Antenna for airFiber X 2.4 GHz Carrier Backhaul Radio Universal Pole Mount airFiber X Radio Bracket Weatherproof RF Connectors Limited 1-Year Manufacturer Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks AF-2G24-S45 24 dBi Antenna for airFiber X 2.4 GHz Carrier Backhaul Radio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUbiquiti Networks AF-2G24-S45 Specs | Frequency Range | 2.3-2.7 GHz | | Gain | 24 dBi | | Beamwidth | +45°: 6.6° (3 dB)
-45°: 6.8° (3 dB) | | F/B Ratio | 28 dB | | VSWR | 1.6:1 (max.) | | Wind Loading | 177 lbf @ 125 mph (787 N @ 200 km/h) | | Wind Survivability | 125 mph (200 km/h) | | Polarization | Dual-linear | | Cross-pol Isolation | 35 dB (min.) | | ETSI Specification | EN 302 326 DN2 | | Dimensions | 25.59 x 11.61" / 650 x 295 mm | | Weight | 21.61 lb / 9.80 kg | | | | Package Weight | 22.0 lb | | Box Dimensions (LxWxH) | 28.0 x 27.1 x 7.04" |
