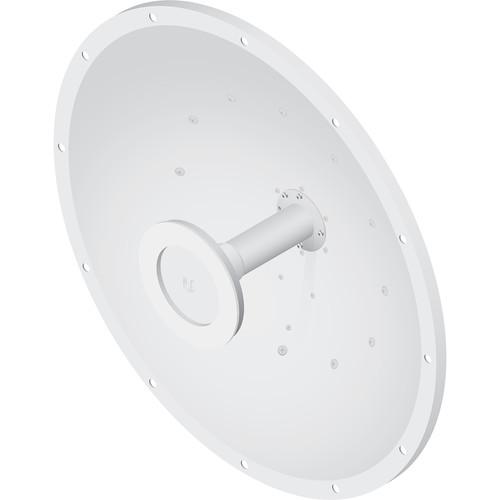

Product description Operating within the 3.3 to 3.8 GHz frequency, the AF-3G26-S45 26 dBi Antenna for airFiber X 3 GHz Carrier Backhaul Radio from Ubiquiti Networks produces a reliable point-to-point signal complete with a 26 dBi gain. In addition to the strength of the signal, users also benefit from a 7° (3dB) beamwidth and a wind survivability rating of up to 125 mph. Installation has also been simplified thanks to the included pole mounting kit while the weatherproof design allows the antenna to be deployed nearly anywhere. - Powerful Performance
- The airFiber X antenna delivers 2x2, dual-polarity performance. The airFiber X antenna with the airFiber X radio can be deployed as endpoints in a backhaul link to deliver bandwidth from a WISP network out to a neighborhood tower. From there, an airMAX Sector antenna with a Rocket radio delivers bandwidth to the WISP's customers.
- Carrier-Class Construction
- Incorporating a dish reflector design for excellent beam directivity, the airFiber X antennas feature robust mechanical design using industrial-strength hardware for outdoor application use.
- Plug-and-Play Integration
- airFiber X antennas and airFiber X radios have been designed to seamlessly work together. Every airFiber X antenna has a built-in airFiber X radio mount, so installation requires no special tools. Snap the airFiber X radio securely into place and mount the antenna; you then have the optimal combination of airFiber X antenna and airFiber X radio for your PtP application.
- Innovative Mechanical Design
- Secure Pole-Mounting
Maintains the position of the dish during harsh outdoor conditions.
Low-Profile Form Factor
Reduces wind-loading - Weatherproof Design
- Protective Shroud
Protects the cables and connectors from the elements
Integrated Radome of the AF-5G23-S45
Shields the radio from the environment UPC: 810354023750 In the Box Ubiquiti Networks AF-3G26-S45 26 dBi Antenna for airFiber X 3 GHz Carrier Backhaul Radio 2 x Universal Pole Mount airFiber X Radio Bracket Weatherproof RF Connectors Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks AF-3G26-S45 26 dBi Antenna for airFiber X 3 GHz Carrier Backhaul Radio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUbiquiti Networks AF-3G26-S45 Specs | Frequency | 3.3 - 3.8 GHz | | Gain | 26 dBi | | Beamwidth | +45°:7° (3 dB)
-45°: 7° (3 dB) | | F/B Ratio | -33 dB | | Maximum VSWR | 1.4:1 | | Wind Loading | 790 N @ 200 km/h (177 lbf @ 125 mph) | | Wind Survivability | 200 km/h (125 mph) | | Polarization | Dual-linear | | Cross-Pol Isolation | 35 dB minimum | | ETSI Specification | EN 302 326 DN2 | | Mounting | Universal pole mount, airFiber X Radio bracket, and weatherproof RF connectors included | | Dimensions | ø 25.59 x 11.81" / ø 650 x 300 mm | | Weight | 21.61 lb / 9.8 kg | | | | Package Weight | 21.0 lb | | Box Dimensions (LxWxH) | 27.75 x 27.75 x 8.5" |
