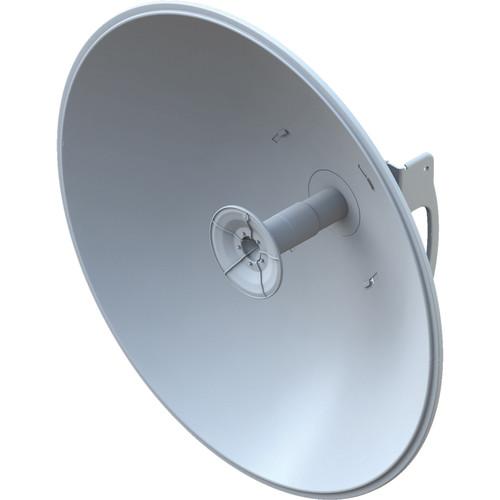

Product description Operating within the 5.1 to 5.9 GHz frequency, the 2-pack of AF-5G30-S45 30 dBi Antennas for airFiber AF-5X 5 GHz Carrier Backhaul Radios from Ubiquiti Networks produce a reliable point-to-point signal complete with a 30 dBi gain. In addition to the strength of the signal, users also benefit from a 5.8° (3dB) beamwidth and a wind survivability rating of up to 125 mph. Installation has also been simplified thanks to the included pole mounting kit while the weatherproof design allows the antennas to be deployed nearly anywhere. - Hardware is designed to securely mount and maintain the position of the dish during harsh outdoor conditions
- Precision elevation adjustment for quickly fine-tuning and adjusting the elevation
- Mounting hardware is made of galvanized steel that is powder-coated for superior corrosion resistance
- Fasteners are GEOMET-coated for improved corrosion resistance when compared with zinc-plated fasteners
- Housed in a compact form factor, antenna offers 30 dBi of gain
- Lightweight yet robust components lessen the load
- Extended depth of the dish reflector rejects noise interference in co-location deployments
- Design of the mounting bracket allows for ease of installation on a pole or tower
- Shroud protects the cables and connectors from nature's elements
- Powerful performance for long-range links
- Seamless integration with airFiber radio
UPC: 810354022005 In the Box Ubiquiti Networks AF-5G30-S45 30 dBi Antennas for airFiber AF-5X 5 GHz Carrier Backhaul Radio (2-Pack) 2 x Universal Pole Mount airFiber X Radio Bracket Weatherproof RF Connectors Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks AF-5G30-S45 30 dBi Antennas for airFiber AF-5X 5 GHz Carrier Backhaul Radio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUbiquiti Networks AF-5G30-S45 Specs | Frequency | 5.1-5.9 GHz | | Gain | 30 dBi | | Beamwidth | +45°: 5.8° (3 dB)
-45°: 5.8° (3 dB) | | F/B Ratio | 30 dB | | Maximum VSWR | 1.6:1 | | Wind Loading | 790 N @ 200 km/h (178 lbf @ 125 mph) | | Wind Survivability | 200 km/h (125 mph) | | Polarization | Dual-linear | | Cross-Pol Isolation | 35 dB minimum | | ETSI Specification | EN 302 326 DN2 | | Mounting | Universal pole mount, airFiber X Radio bracket, and weatherproof RF connectors included | | Dimensions | 25.6 x 25.6 x 15.2" (650 x 650 x 386 mm) | | Weight | 16.31 lb (7.4 kg) | | | | Package Weight | 43.8 lb | | Box Dimensions (LxWxH) | 28.0 x 28.0 x 11.0" |
