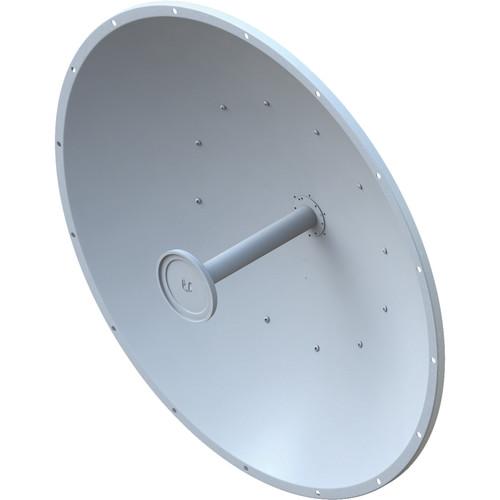

User Manual for Ubiquiti Networks AF-5G34-S45 34 dBi Antenna for airFiber AF-5X 5 GHz Carrier Backhaul Radio Click to enlarge the picture
Contents of the user manual for the Ubiquiti Networks AF-5G34-S45 34 dBi Antenna
- Product category: Antennas & Accessories Ubiquiti Networks
- Brand: Ubiquiti Networks
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ubiquiti Networks Antennas & Accessories
|
User manual for the Ubiquiti Networks AF-5G34-S45 34 dBi Antenna contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ubiquiti Networks product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ubiquiti Networks user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ubiquiti Networks product will considerably shorten its lifespan!
|
Product description Operating within the 5.1 to 5.8 GHz frequency the AF-5G34-S45 34 dBi Antenna for airFiber AF-5X 5 GHz Carrier Backhaul Radio from Ubiquiti Networks produces a reliable point-to-point signal complete with a 34 dBi gain. In addition to the strength of the signal, users also benefit from a 90° beamwidth and a wind survivability rating of up to 125 mph. Installation has also been simplified thanks to the included pole mounting kit while the weatherproof design allows the antennas to be deployed nearly anywhere. - Hardware is designed to securely mount and maintain the position of the dish during harsh outdoor conditions
- Shroud protects the cables and connectors from nature's elements
- Housed in a compact form factor, antenna offers 34 dBi of gain
- Powerful performance for long-range links
- Seamless integration with airFiber radio
UPC: 810354023446 In the Box Ubiquiti Networks AF-5G34-S45 34 dBi Antenna for airFiber AF-5X 5 GHz Carrier Backhaul Radio Universal Pole Mount airFiber X Radio Bracket Weatherproof RF Connectors Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks AF-5G34-S45 34 dBi Antenna for airFiber AF-5X 5 GHz Carrier Backhaul Radio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUbiquiti Networks AF-5G34-S45 Specs | Frequency | 5.1-5.8 GHz | | Gain | 34 dBi | | Beamwidth | +45°: 3° (3 dB)
-45°: 3° (6 dB) | | F/B Ratio | 42 dB | | Maximum VSWR | 1.4:1 | | Wind Loading | 1179 N @ 200 km/h (400 lbf @ 125 mph) | | Wind Survivability | 200 km/h (125 mph) | | Polarization | Dual-linear | | Cross-Pol Isolation | 35 dB minimum | | ETSI Specification | EN 302 326 DN2 | | Mounting | Universal pole mount, airFiber X radio bracket, and weatherproof RF connectors included | | Dimensions | 41.34 x 41.34 x 16.57" (1050 x 1050 x 421 mm) | | Weight | 29.76 lb (13.5 kg) | | | | Package Weight | 43.5 lb | | Box Dimensions (LxWxH) | 43.7 x 43.7 x 9.5" |
