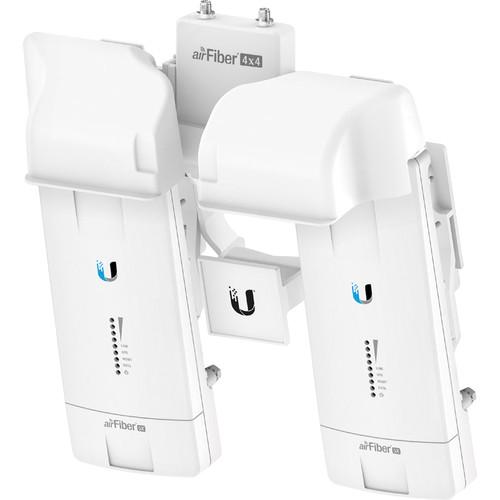

Product description Upgrade your wireless network to multi-Gigabit throughput with the AF-MPX4 Scalable airFiber MIMO Multiplexer from Ubiquiti Networks. Mount two airFiber 5X radios to a single dish antenna using this multiplexer and enhance data throughput by up to 400% resulting in enhanced data speeds along with improved network redundancy. The dual radio configuration supports 4x4 MIMO coverage offering data transfer rates of up to 1 Gbps, which is perfect for large data transfers, multimedia streaming and much more. Additionally, the AF-MPX4 comes with built-in GPS synchronization to provide improved network timing while helping to eliminate traffic errors and congestion. - Multi-Gigabit Throughput
- The airFiber NxN is an engineered MIMO multiplexer that increases the throughput of your airFiber link by up to 400%, while simultaneously establishing redundancy without the need of additional antennas.
The airFiber NxN is a scalable MIMO multiplexer that combines multiple airFiber 5X radios on a single dish antenna for enhanced noise immunity performance, redundancy, and multi-Gigabit throughput.
Upgrading a 5 GHz airMAX or airFiber link is fast and easy. Simply attach the airFiber NxN to the fast-mount on the antenna and connect the RF cables. - Precise GPS Synchronization
- Using a common GPS timing reference, the airFiber 5X radios work cohesively to deliver powerful, multi-Gigabit bridging performance for PtP links.
- 4x4 MIMO Backhaul Technology
- Simply mount two airFiber 5X radios for Plug and Play installation. You can use multiple channels-even adjacent channels with no guard band-and place them anywhere within the radio band.
- Reduced Tower Costs
- Multiple airFiber 5X radios mounted on a single dish antenna maximizes throughput and capacity in a clean, compact tower footprint, minimizing tower costs.
UPC: 810354024504 In the Box Ubiquiti Networks AF-MPX4 Scalable airFiber MIMO Multiplexer 4x4 Radio Bracket Protective Shrouds (Left and Right) 2 x M4x12 Screws 4 x M3x8 Screws Limited 1-Year Manufacturer Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks AF-MPX4 Scalable airFiber MIMO Multiplexer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUbiquiti Networks AF-MPX4 Specs | RF Connectors | 2 x RP-SMA Weatherproof (CH0, CH1)
4 x RP-SMA Weatherproof (A0, A1, B0, B1) | | Cable Loss | 4.1 dB | | Supported Radio Technologies | Supported airFiber X Radio: AF-5X | | Multiplexer | Multiplex MIMO: 2 x (2x2) | | Mounting | airFiber X / Rocket Mount compatible | | Dimensions | 7.78 x 9.48 x 4.06" / 197.5 x 240.9 x 103.2 mm | | Weight | 0.8 lb / 0.4 kg | | | | Package Weight | 1.95 lb | | Box Dimensions (LxWxH) | 14.8 x 9.2 x 3.7" |
