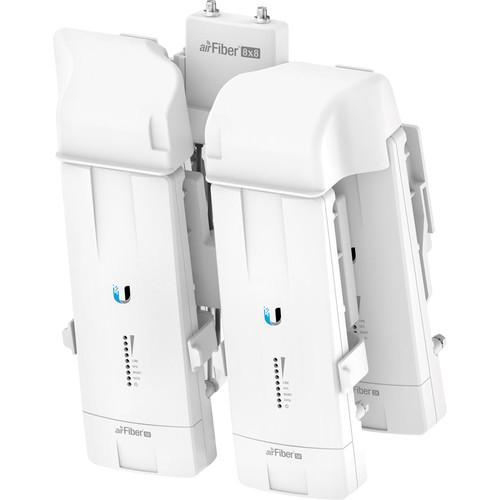

User Manual for Ubiquiti Networks AF-MPX8 Scalable airFiber MIMO Multiplexer Click to enlarge the picture
Contents of the user manual for the Ubiquiti Networks AF-MPX8 Scalable airFiber MIMO
- Product category: Wireless Bridges Ubiquiti Networks
- Brand: Ubiquiti Networks
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ubiquiti Networks Wireless Bridges
 |
User manual for the Ubiquiti Networks AF-MPX8 Scalable airFiber MIMO contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ubiquiti Networks product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ubiquiti Networks user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ubiquiti Networks product will considerably shorten its lifespan!
|
Product description Upgrade your wireless network to multi-Gigabit throughput with the AF-MPX8 Scalable airFiber MIMO Multiplexer from Ubiquiti Networks. Mount four airFiber 5X radios to a single dish antenna using this multiplexer and enhance data throughput by up to 400% resulting in enhanced data speeds along with improved network redundancy. The quad radio configuration supports 8x8 MIMO coverage offering data transfer rates of up to 2 Gbps, which is perfect for large data transfers, multimedia streaming and much more. Additionally, the AF-MPX8 comes with built-in GPS synchronization to provide improved network timing while helping to eliminate traffic errors and congestion. - Multi-Gigabit Throughput
- The airFiber NxN is an engineered MIMO multiplexer that increases the throughput of your airFiber link by up to 400%, while simultaneously establishing redundancy without the need of additional antennas.

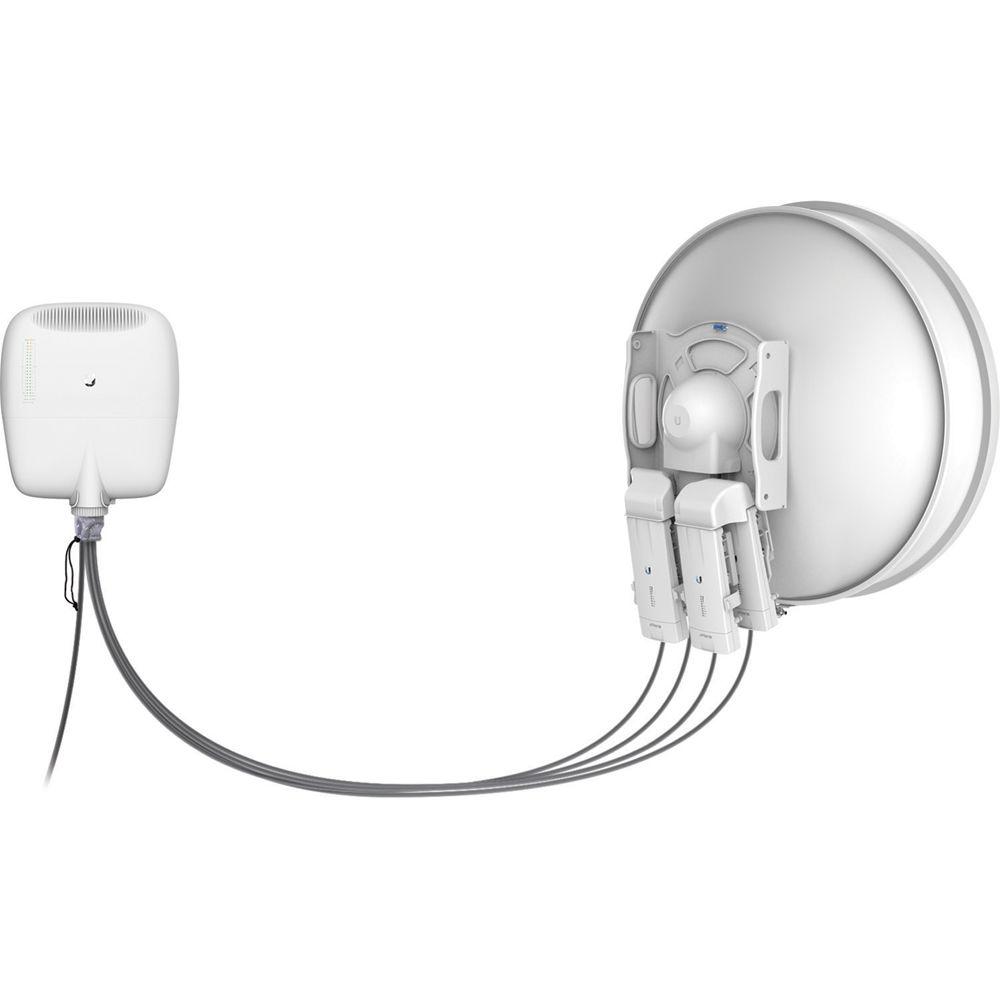

The airFiber NxN is a scalable MIMO multiplexer that combines multiple airFiber 5X radios on a single dish antenna for enhanced noise immunity performance, redundancy, and multi-Gigabit throughput.
Upgrading a 5 GHz airMAX or airFiber link is fast and easy. Simply attach the airFiber NxN to the fast-mount on the antenna and connect the RF cables. - Precise GPS Synchronization
- Using a common GPS timing reference, the airFiber 5X radios work cohesively to deliver powerful, multi-Gigabit bridging performance for PtP links.
- 8x8 MIMO Backhaul Technology
- Simply mount four airFiber 5X radios for plug and play installation. You can use multiple channels-even adjacent channels with no guard band-and place them anywhere within the radio band.
- Reduced Tower Costs

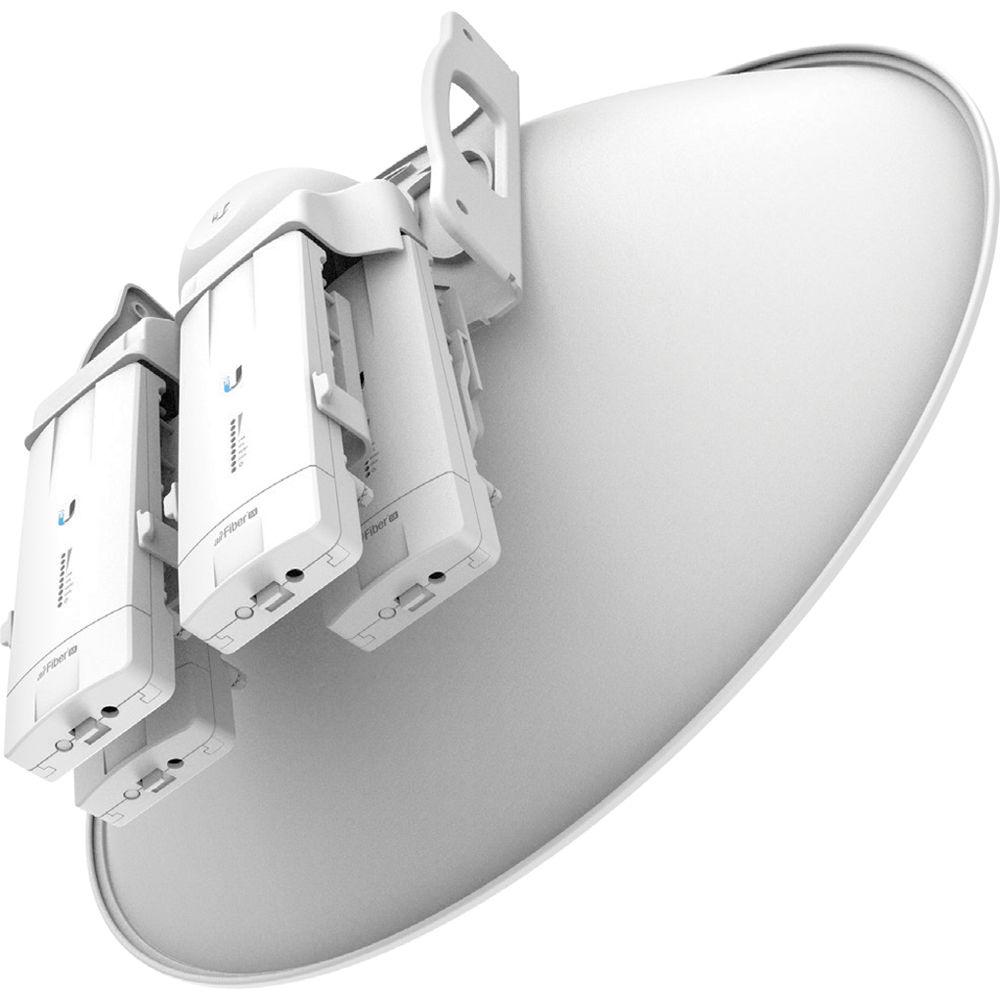

- Multiple airFiber 5X radios mounted on a single dish antenna maximizes throughput and capacity in a clean, compact tower footprint, minimizing tower costs.
UPC: 810354024511 In the Box Ubiquiti Networks AF-MPX8 Scalable airFiber MIMO Multiplexer 8x8 Radio Bracket Protective Shrouds (Left and Right) 2 x M4x12 Screws 4 x M3x8 Screws Limited 1-Year Manufacturer Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks AF-MPX8 Scalable airFiber MIMO Multiplexer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUbiquiti Networks AF-MPX8 Specs | RF Connectors | 2 x RP-SMA Weatherproof (CH0, CH1)
8 x RP-SMA Weatherproof (A0, A1, B0, B1, C0, C1, D0, D1) | | Cable Loss | 7.2 dB | | Supported Radio Technologies | Supported airFiber X Radio: AF-5X | | Multiplexer | Multiplex MIMO: 4 x (2x2) | | Mounting | airFiber X / Rocket Mount compatible | | Dimensions | 8.29 x 9.48 x 4.29" / 210.5 x 240.9 x 109.0 mm | | Weight | 1.00 lb / 0.45 kg | | | | Package Weight | 2.3 lb | | Box Dimensions (LxWxH) | 14.8 x 9.1 x 3.7" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 44 owners. Add your rating and experience with the product.
