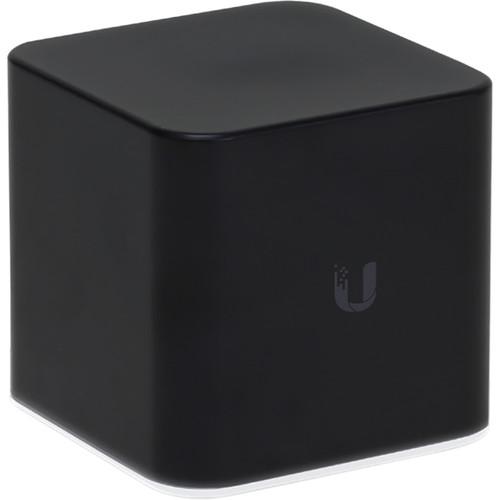

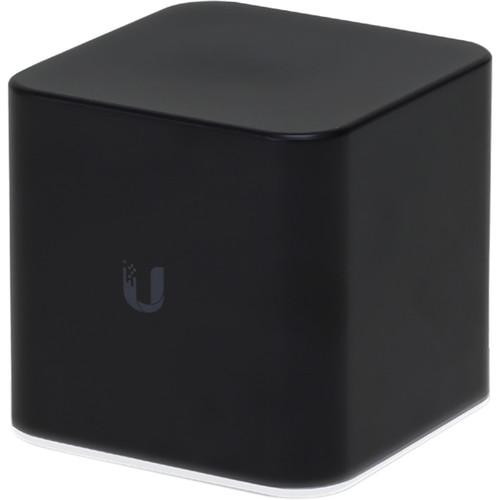

User Manual for Ubiquiti Networks airCube Wireless-AC1167 Dual-Band Wi-Fi Access Point Click to enlarge the picture
Contents of the user manual for the Ubiquiti Networks airCube Wireless-AC1167 Dual-Band Wi-Fi
- Product category: Wireless Access Points Ubiquiti Networks
- Brand: Ubiquiti Networks
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ubiquiti Networks Wireless Access Points
 |
User manual for the Ubiquiti Networks airCube Wireless-AC1167 Dual-Band Wi-Fi contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ubiquiti Networks product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ubiquiti Networks user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ubiquiti Networks product will considerably shorten its lifespan!
|
Product description Expand the reach of your existing network using the airCube Wireless-AC1167 Dual-Band Wi-Fi Access Point from Ubiquiti Networks. This Wi-Fi access point is simple to install, thanks to support for Power over Ethernet while the UMobile app, Web UI, and UNMS applications make it easy to configure and manage your entire network.
Once installed, this Wi-Fi access point supports the 802.11ac Wi-Fi network standard and operates on both the 2.4 GHz and 5 GHz frequencies supporting wireless data transfer rates of up to 1167 Mbps. If that's not enough, clients can plug Ethernet-enabled devices in to any of the four Gigabit Ethernet ports for a more reliable wired network connection. The airCube is powered by a 24V Passive PoE connection or plug in the included power adapter when PoE power is unavailable. - Wireless Performance
- Dual-band, 802.11ac, 2x2 MIMO technology for maximum wireless performance:
• 2.4 GHz radio band speeds of up to 300 Mbps
• 5 GHz radio band speeds of up to 866.7 Mbps - Versatile Power Options

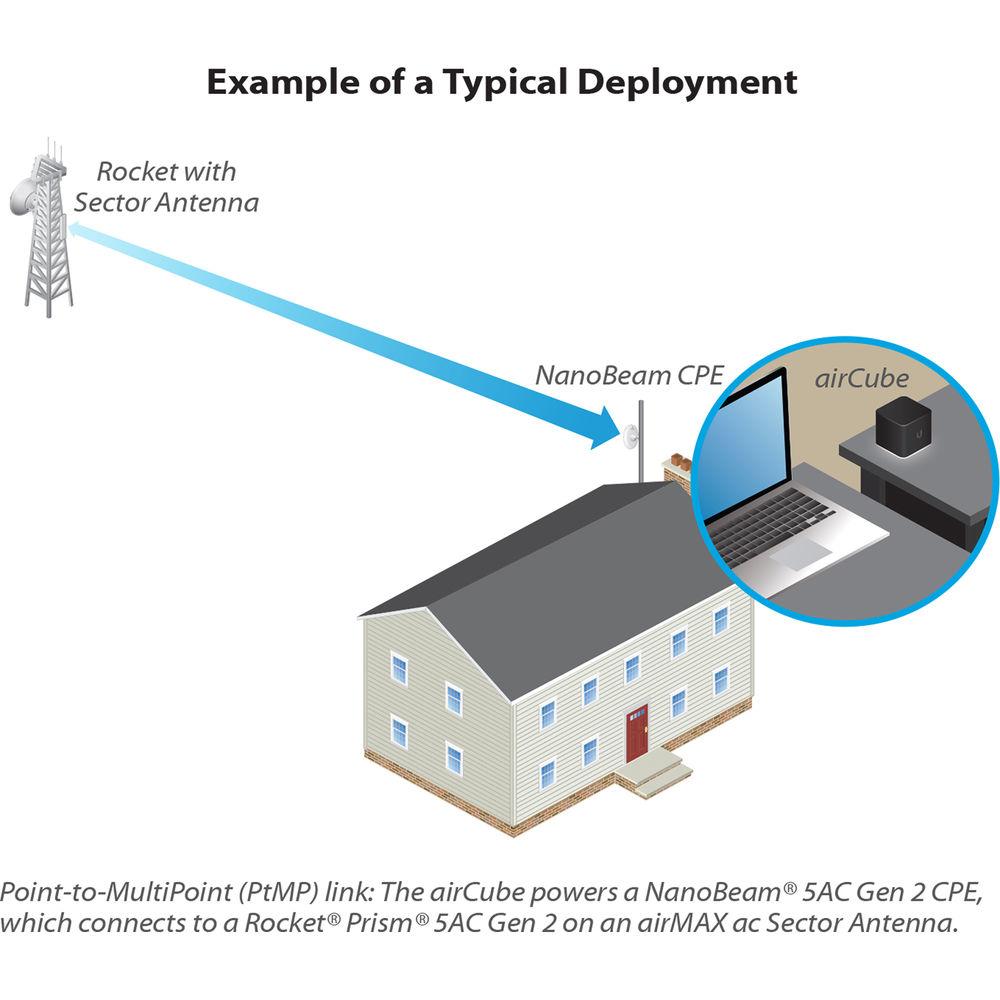

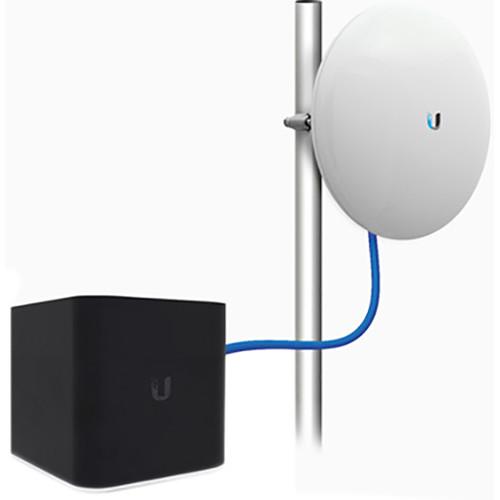

- Convenient PoE passthrough to power a 24 V airMAX CPE device, so you can use a single PoE adapter to power both devices.
To provide sufficient power for PoE passthrough:
• The airCube AC requires the included power adapter or 24V, 1A PoE input - Intuitive Software

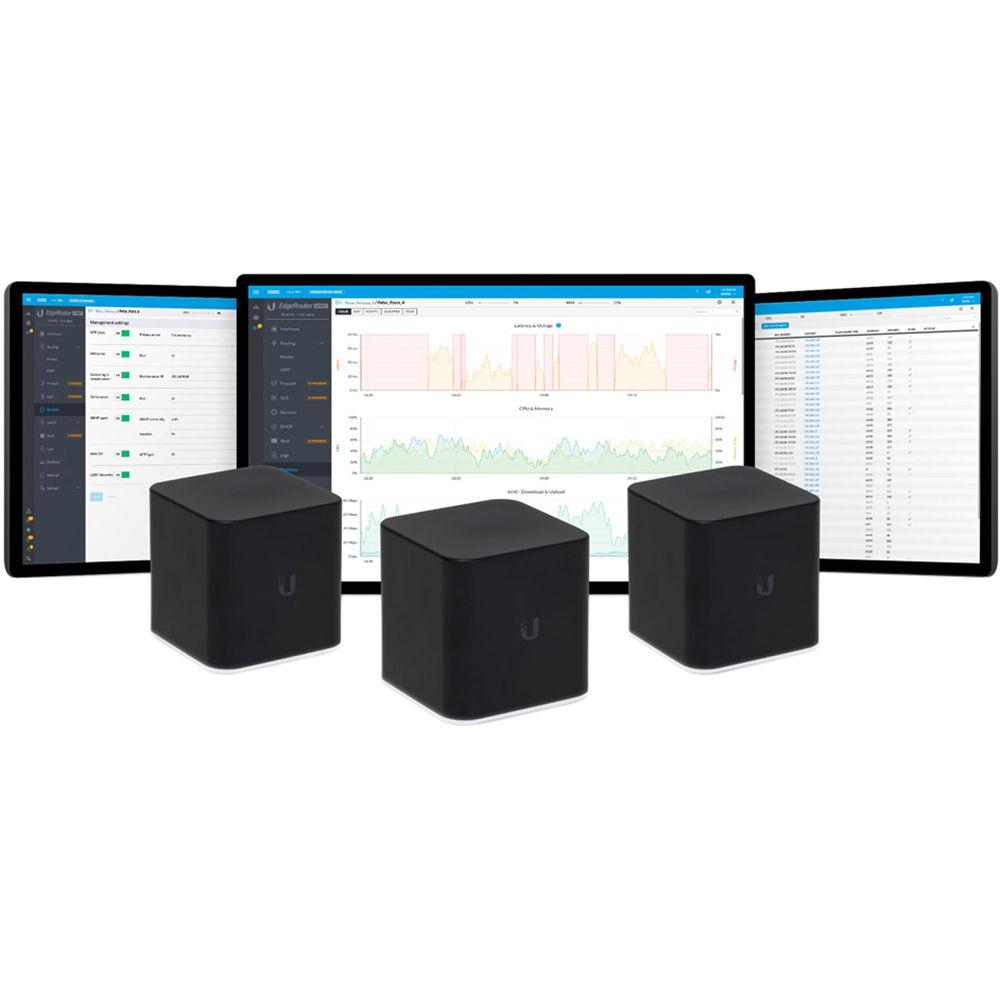

- Management options feature a graphical user interface designed for streamlined setup and control.
Available options include:

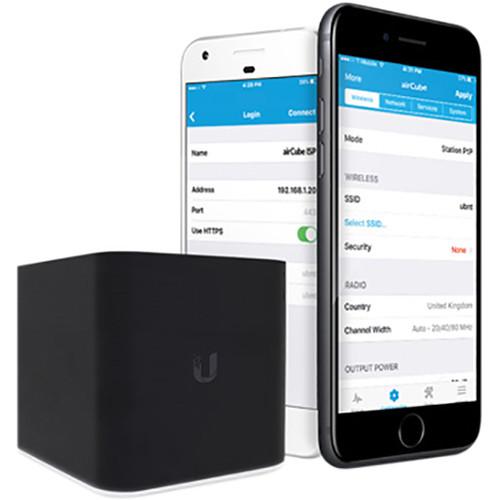

• UMobile App supports quick setup and status information
• Web UI Enables a standalone utility for basic configuration
• UNMS Provides advanced remote control of Ubiquiti devices UPC: 810354026638 In the Box Ubiquiti Networks airCube Wireless-AC1167 Dual-Band Wi-Fi Access Point Power Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks airCube Wireless-AC1167 Dual-Band Wi-Fi Access Point in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUbiquiti Networks airCube Specs | Power Supply | 24 VDC | | Power | Power Method
24 VDC, 0.83 A

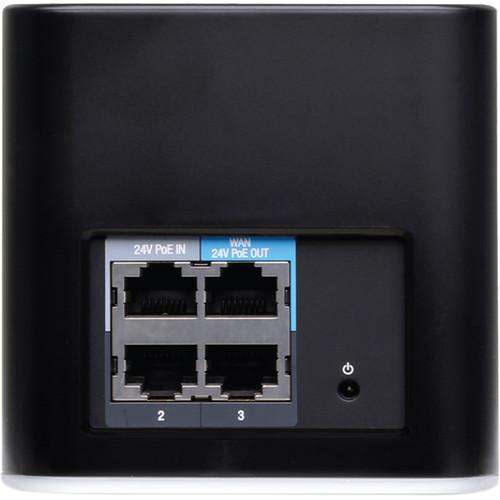

PoE 24 V in on LAN port 1
Supported Power Voltage
22 to 26 V
Max Power Consumption
8.5 W | | PoE | PoE Out

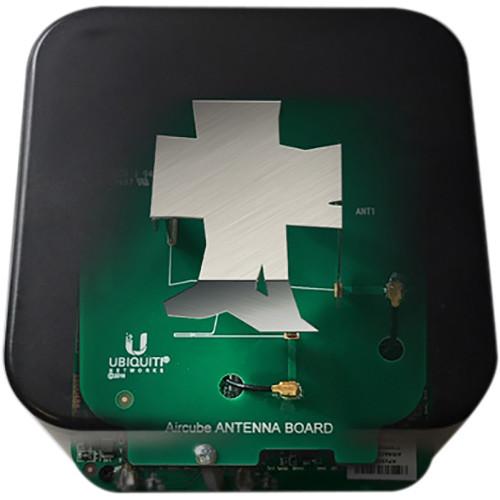

Controllable 24 V PoE out (+4, 5; -7, 8) on WAN port | | Management Interface | Wi-Fi / Ethernet | | Networking Interface | 4 x Gigabit Ethernet ports | | LED | Status LED indicator | | TX Power | 22 dBm | | Antenna Gain | 2.4 GHz
4 dBi
5 GHz
5 dBi | | Max Data Transfer Rate | 2.4 GHz
300 Mbps
5 GHz
866.7 Mbps | | Enclosure Characteristics | Black plastic | | ESD/EMP Protection | ±24 kV contact / air | | Temperature & Humidity | Operating Temperature
-14 to 122° F / -10 to 50°C
Operating Humidity
5 to 95% non-condensing | | Certifications | CE, FCC, IC | | Dimensions | 3.46 x 3.52 x 3.51" / 87.80 x 89.50 x 89.25 mm | | Weight | 9.88 oz / 280 g | | | | Package Weight | 1.15 lb | | Box Dimensions (LxWxH) | 5.6 x 5.5 x 4.8" |
