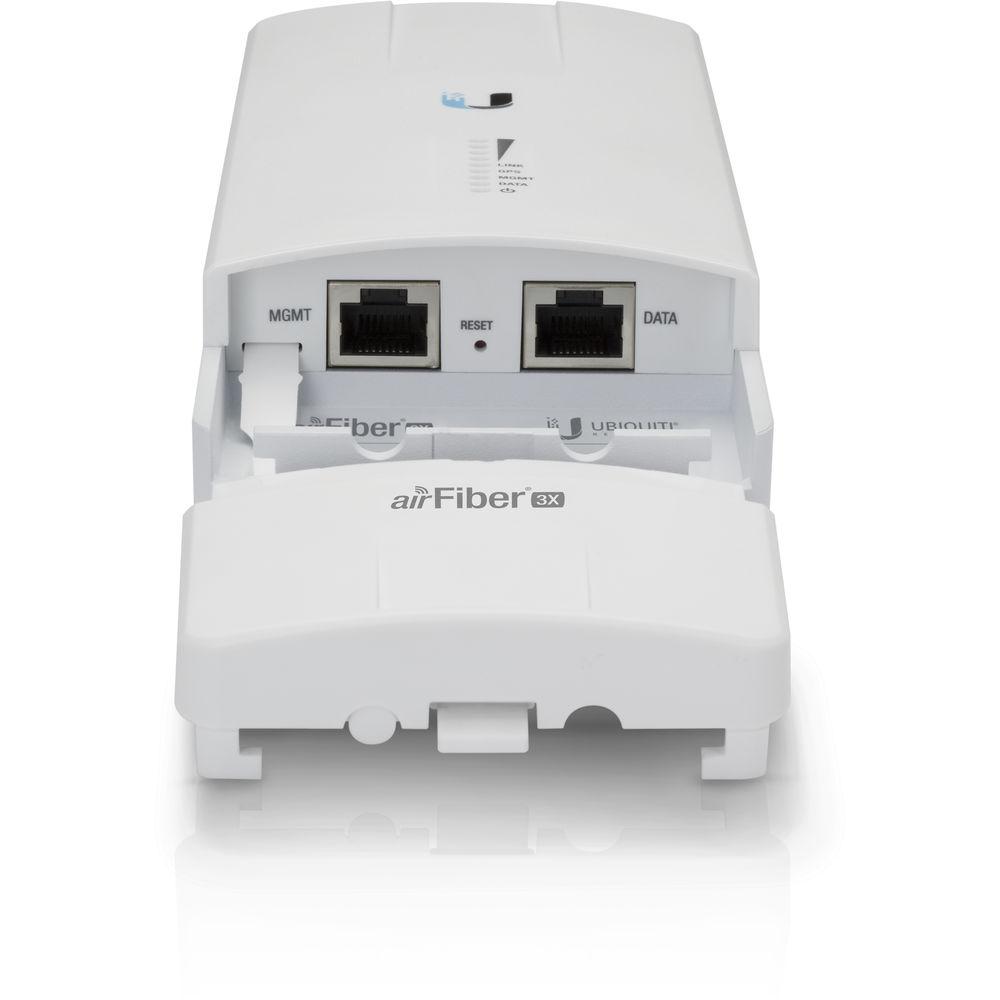

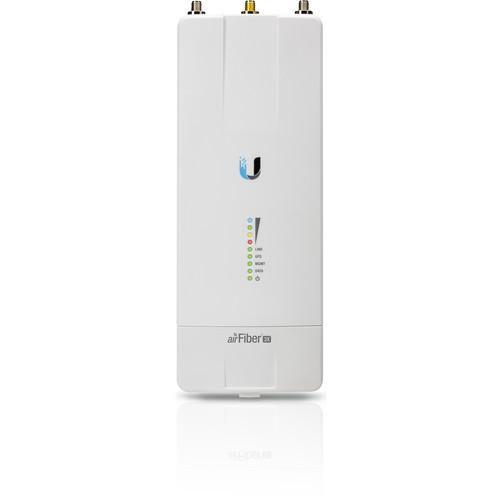

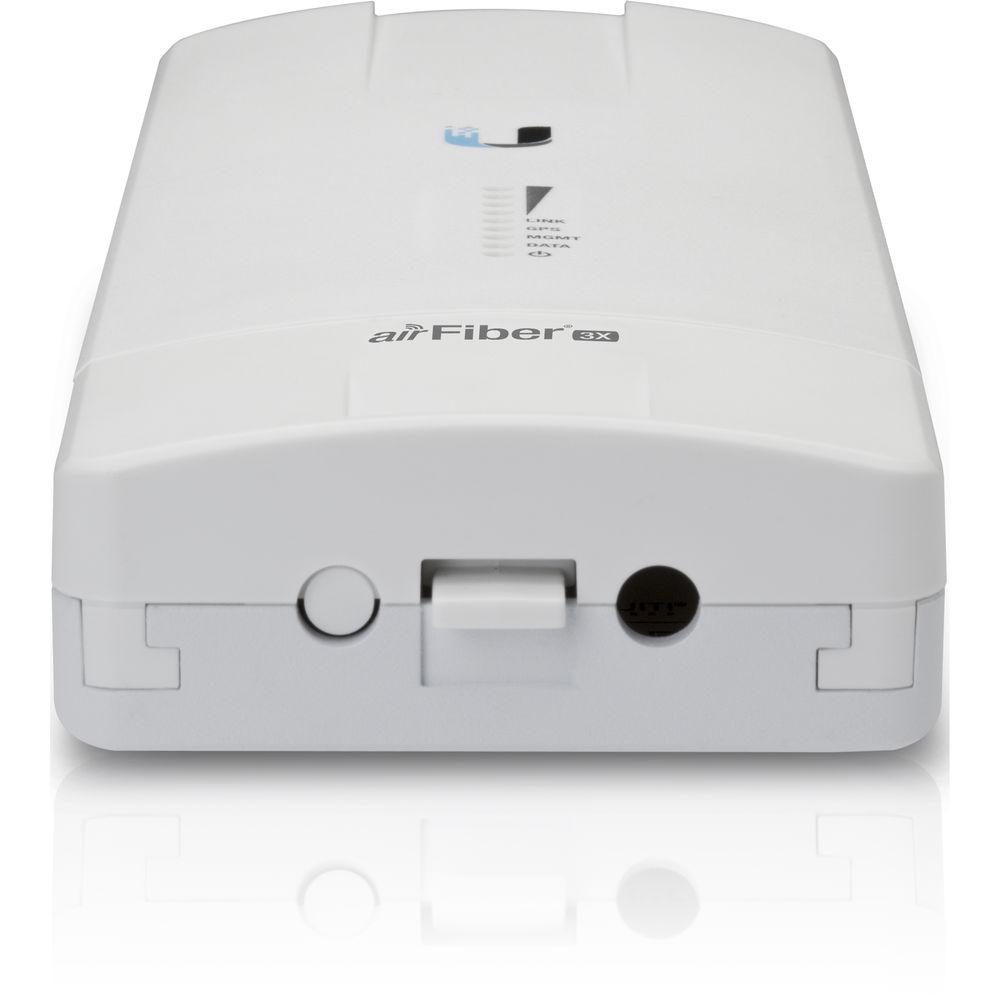

User Manual for Ubiquiti Networks airFiber AF-3X 3 GHz Carrier Backhaul Radio Click to enlarge the picture
Contents of the user manual for the Ubiquiti Networks airFiber AF-3X 3 GHz
- Product category: Wireless Bridges Ubiquiti Networks
- Brand: Ubiquiti Networks
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ubiquiti Networks Wireless Bridges
 |
User manual for the Ubiquiti Networks airFiber AF-3X 3 GHz contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ubiquiti Networks product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ubiquiti Networks user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ubiquiti Networks product will considerably shorten its lifespan!
|
Product description The airFiber AF-3X 3 GHz Carrier Backhaul Radio from Ubiquiti Networks is designed for long-range, Point-to-Point (PtP) backhaul links. It features a high TDD throughput and Hybrid Division Duplexing (HDD) technology that helps the device achieve low latency. The airFiber 3X also allows users to customize backhaul links or upgrade existing PtP links.
The airFiber AF-3X operates using the 3 GHz frequency band and features a range of 656,168' / 200,000m. Included with this device is a GPS antenna mount, an external GPS antenna, a metal strap, two cable ties, a 24V/1A airFiber PoE adapter with a mounting bracket, and a power cord. - Performance
- Ubiquiti's INVICTUS silicon and radio architecture are designed specifically for long-distance, outdoor wireless applications. Their INVICTUS core communications processing engine surpasses virtually all of the limitations inherent to generic Wi-Fi chips to help provide superior performance, long-range capability, DFS flexibility, and power output.
- Backhaul
- The 3 GHz frequency band offers interference-free operation, enabling the AF-3X to provide a high-reliability backhaul solution, although a license may be required in some regions.
- Operation in Unlicensed Bands
- Channel width flexibility (10/20/30/40/50 MHz) allows independent TX and RX channel frequency configurations virtually anywhere within the radio band to avoid local interference, and the channel centers are selectable in 1 MHz increments. You also have the ability to program different uplink and downlink duty cycles to support asymmetric traffic requirements
- Low Latency with HDD Technology
- The airFiber X is designed to provide the highest TDD throughput and lowest latency available using proprietary Hybrid Division Duplexing (HDD) technology.
- Co-Location
- With tower space at a premium, the importance of being able to co-locate equipment is becoming an essential attribute for modern wireless networks. The airFiber X is engineered to permit multiple radios to operate side by side, allowing maximum spectral efficiency.
- GPS Synchronization
- Precise GPS frame synchronization enables co-located airFiber X radios to transmit and receive data without interfering with each other, enabling better frequency reuse and increased network stability.
- Clean Power Output
- Using advanced digital signal processing, the innovative airFiber X radio design has an ultra -clean transmitter output, reducing broadband noise, facilitating co-location, and enabling higher-order modulations like 256QAM for greater throughput.
UPC: 810354023408 In the Box Ubiquiti Networks airFiber AF-3X 3 GHz Carrier Backhaul Radio GPS Antenna Mount External GPS Antenna Metal Strap 2 x Cable Tie airFiber PoE Adapter with Mounting Bracket (24V, 1A) Power Cord Limited 1-Year Warranty (from date of purchase) Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks airFiber AF-3X 3 GHz Carrier Backhaul Radio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUbiquiti Networks AF-3X-US Specs | | | RF Connectors | 2 x RP-SMA Weatherproof (CH0, CH1)
1 x SMA Weatherproof (GPS) | | GPS Antenna | External, Magnetic Base | | Power Supply | 24 V, 1 A PoE Gigabit Adapter (included) | | Power Method | Passive Power over Ethernet | | Mounting | airFiber X Mount (Rocket Mount compatible)
GPS Pole Mount (included) | | Certifications | DFS Certified FCC Part 15.407 CE EN 302502 v1.2.1, EN 301 893 v1.7.1 | | | | Data Port | 1 x 10/100/1000 Ethernet Port | | Management Port | 1 x 10/100 Ethernet Port | | | | Processor | INVICTUS IC | | Maximum Throughput | 525 Mbps | | Maximum Range | 656,168' / 200,000 m | | Encryption | 128-bit AES | | Operating System | airOS F | | Wireless Modes | Master/Slave | | | | Operating Frequency | 3300-3900 MHz
(Dependent on regulatory region) | | Power | Max. Conducted TX Power: 29 dBm
(Dependent on regulatory region) | | Frequency Accuracy | ± 2.5 ppm without GPS synchronization
± 0.2 ppm with GPS synchronization | | Channel Bandwidth | 10/20/30/40/50 MHz selectable
Programmable uplink and downlink duty cycles | | | | Operating Temperature | -40 to 131°F / -40 to 55°C | | | | Dimensions | 8.82 x 3.32 x 1.89" / 224.03 x 84.33 x 48.01 mm | | Weight | 0.77 lb / 0.35 kg | | | | Package Weight | 2.75 lb | | Box Dimensions (LxWxH) | 10.5 x 4.5 x 4.4" |
