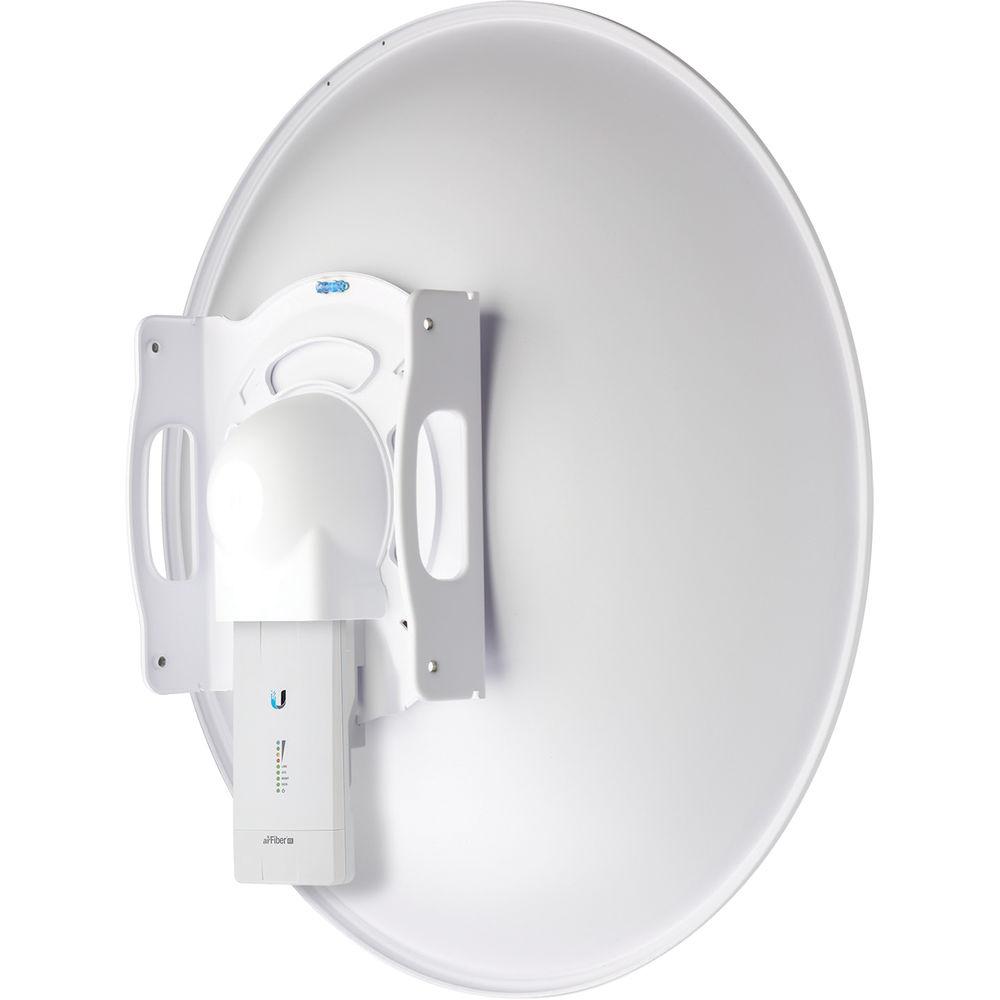

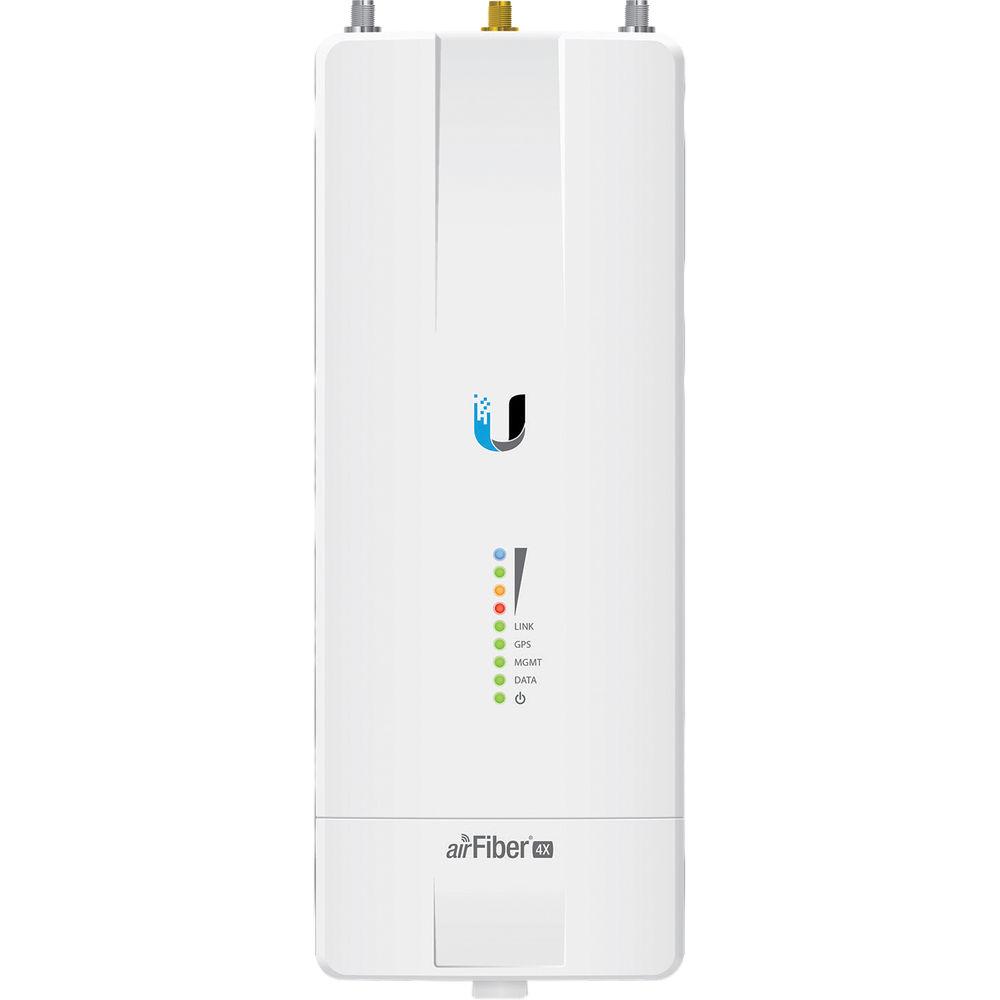

Product description The airFiber AF-4X 4 GHz Carrier Backhaul Radio from Ubiquiti Networks is designed for long-range, Point-to-Point (PtP) backhaul links. It features a high TDD throughput and Hybrid Division Duplexing (HDD) technology that helps the device achieve low latency. The airFiber 4X also allows users to customize backhaul links or upgrade existing PtP links.
The airFiber AF-4X operates using the 4 GHz frequency band and features a range of 656,168' / 200,000m. Included with this device is a GPS antenna mount, an external GPS antenna, a metal strap, two cable ties, a 24V/1A airFiber PoE adapter with a mounting bracket, and a power cord. - Performance

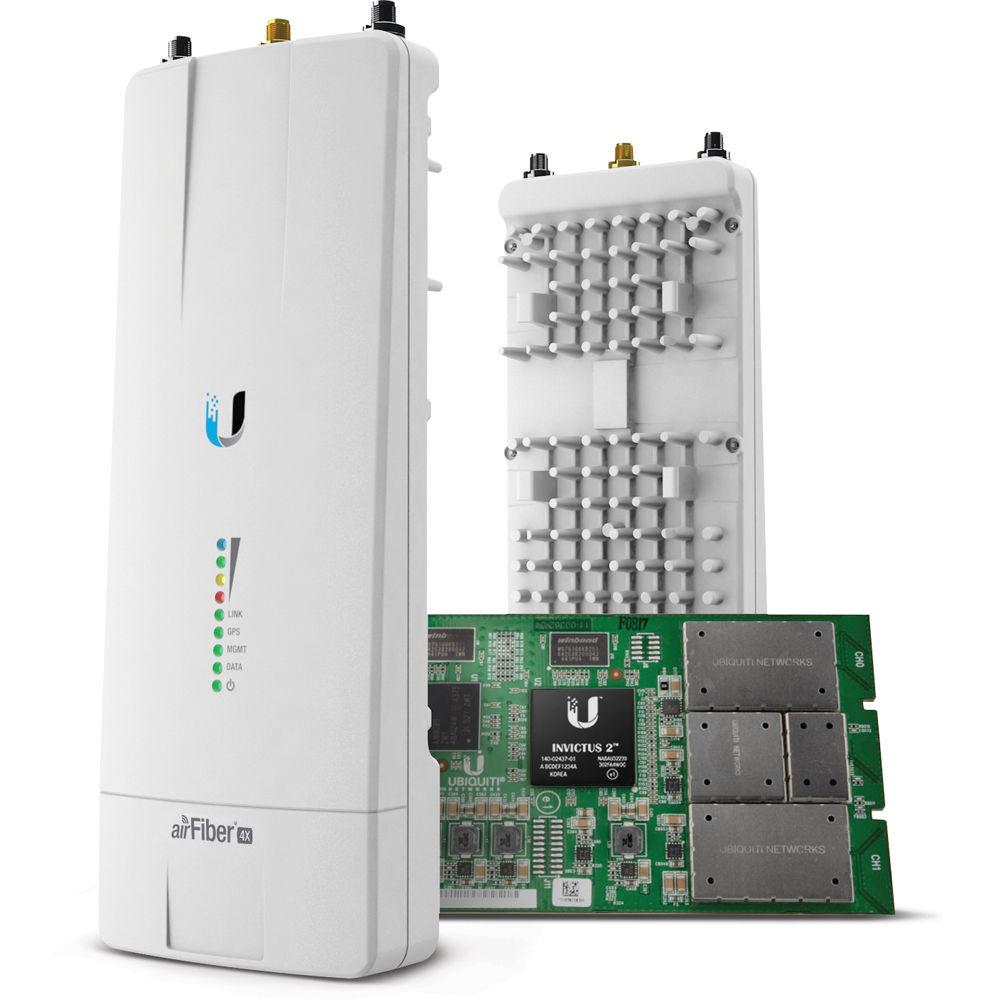

- Ubiquiti's INVICTUS silicon and radio architecture are designed specifically for long-distance, outdoor wireless applications. Their INVICTUS core communications processing engine surpasses virtually all of the limitations inherent to generic Wi-Fi chips to help provide superior performance, long-range capability, DFS flexibility, and power output.
- Backhaul
- Deploy the 4 GHz model that meets your specific spectrum requirements, anywhere around the world. The airFiber X features multiple channel width options to suit your deployment needs.
- Operation in Unlicensed Bands
- Channel width flexibility (10/20/30/40/50 MHz) allows independent TX and RX channel frequency configurations virtually anywhere within the radio band to avoid local interference, and the channel centers are selectable in 1 MHz increments. You also have the ability to program different uplink and downlink duty cycles to support asymmetric traffic requirements
- Low Latency with HDD Technology
- The airFiber X is designed to provide the highest TDD throughput and lowest latency available using proprietary Hybrid Division Duplexing (HDD) technology.
- Co-Location
- With tower space at a premium, the importance of being able to co-locate equipment is becoming an essential attribute for modern wireless networks. The airFiber X is engineered to permit multiple radios to operate side by side, allowing maximum spectral efficiency.
- GPS Synchronization
- Precise GPS frame synchronization enables co-located airFiber X radios to transmit and receive data without interfering with each other, enabling better frequency reuse and increased network stability.
- Clean Power Output
- Using advanced digital signal processing, the innovative airFiber X radio design has an ultra -clean transmitter output, reducing broadband noise, facilitating co-location, and enabling higher-order modulations like 256QAM for greater throughput.
UPC: 810354025662 In the Box Ubiquiti Networks airFiber AF-4X 4 GHz Carrier Backhaul Radio GPS Antenna Mount External GPS Antenna Metal Strap 2 x Cable Tie airFiber PoE Adapter with Mounting Bracket (24V, 1A) Power Cord Limited 1-Year Warranty (from date of purchase) Brochure PDF 4.9mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks airFiber AF-4X 4 GHz Carrier Backhaul Radio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUbiquiti Networks AF-4X-US Specs | | | RF Connectors | 2 x RP-SMA Weatherproof (CH0, CH1)

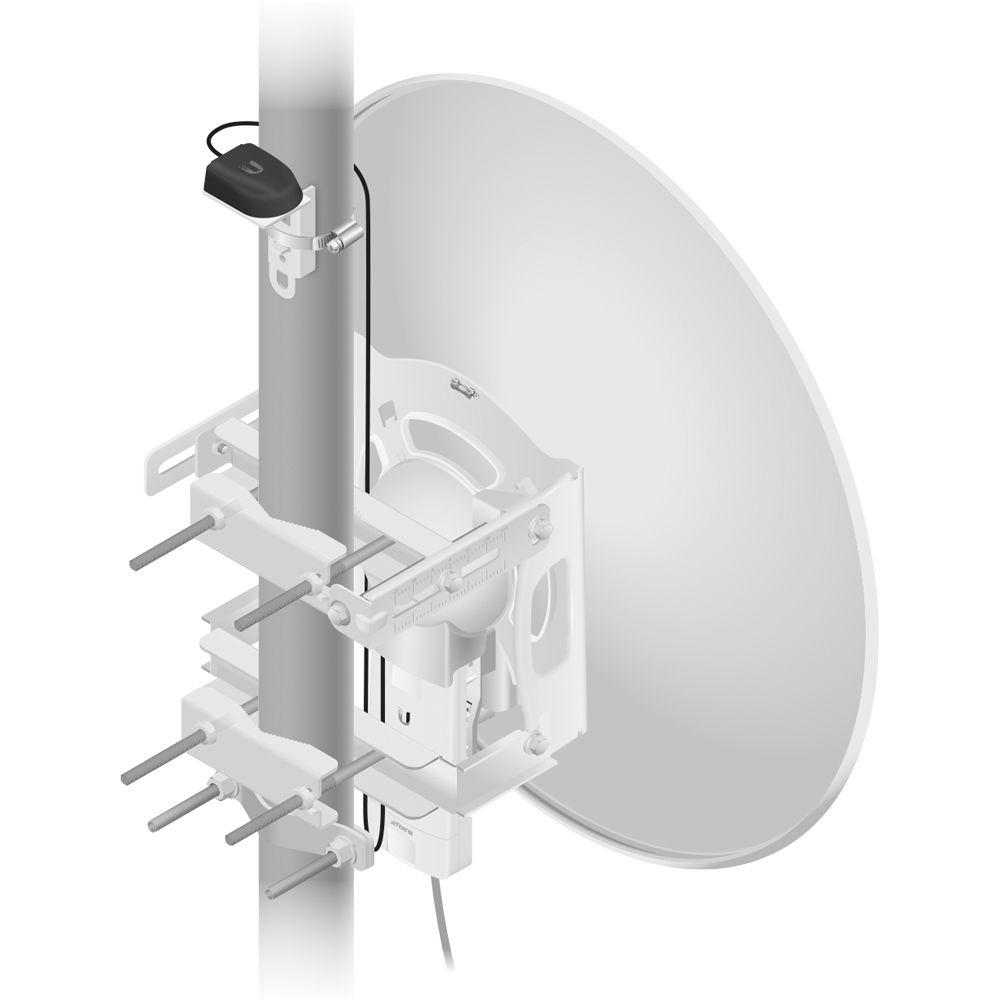

1 x SMA Weatherproof (GPS) | | GPS Antenna | External, Magnetic Base | | Power Supply | 24 V, 1 A PoE Gigabit Adapter (included) | | Power Method | Passive Power over Ethernet | | Mounting | airFiber X Mount (Rocket Mount compatible)
GPS Pole Mount (included) | | Certifications | CE, FCC, IC | | | | Data Port | 1 x 10/100/1000 Ethernet Port | | Management Port | 1 x 10/100 Ethernet Port | | | | Processor | INVICTUS IC | | Maximum Throughput | 500+ Mbps | | Maximum Range | 656,168' / 200,000 m | | Encryption | 128-bit AES | | Operating System | airOS F | | Wireless Modes | Master/Slave | | | | Operating Frequency | FCC: 4940 - 4990 MHz
IC: 4940 - 4990 MHz
ETSI: 4700 - 4990 MHz
Other Regions: 4700 - 4990 MHz | | Power | Max. Conducted TX Power: 29 dBm
(Dependent on regulatory region) | | Frequency Accuracy | ± 2.5 ppm without GPS synchronization
± 0.2 ppm with GPS synchronization | | Channel Bandwidth | 10/20/30/40/50 MHz selectable
Programmable uplink and downlink duty cycles | | | | Operating Temperature | -40 to 131°F / -40 to 55°C | | | | Dimensions | 8.82 x 3.32 x 1.89" / 224.03 x 84.33 x 48.01 mm | | Weight | 0.77 lb / 0.35 kg | | | | Package Weight | 2.42 lb | | Box Dimensions (LxWxH) | 10.55 x 4.55 x 4.35" |
