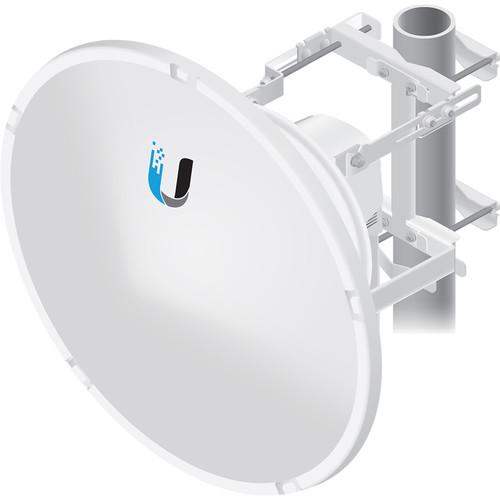

User Manual for Ubiquiti Networks airFiber X 11 GHz 35 dBi Antenna Click to enlarge the picture
Contents of the user manual for the Ubiquiti Networks airFiber X 11 GHz
- Product category: Antennas & Accessories Ubiquiti Networks
- Brand: Ubiquiti Networks
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ubiquiti Networks Antennas & Accessories
 |
User manual for the Ubiquiti Networks airFiber X 11 GHz contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ubiquiti Networks product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ubiquiti Networks user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ubiquiti Networks product will considerably shorten its lifespan!
|
Product description Operating on the 11 GHz band, the airFiber X 11 GHz / 35 dBi Antenna from Ubiquiti Networks is designed to offer enhanced performance when compared to devices operating on the more congested 5 GHz band. This antenna features both SISO or 2x2 MIMO dual-polarity performance making it suitable for long-range point-to-point deployment. Installation is simple as the airFiber X 11 antenna is virtually plug-and-play, and with the ability to securely mount it to a pole, it is designed to stand up to harsh weather conditions. - Powerful Performance
- The airFiber AF-11G35 antenna delivers SISO or 2x2 MIMO dual-polarity performance.
- Upgrade to Licensed Full-Duplex 11 GHz
- For existing Ubiquiti Networks AF-5 and AF-5U installations, the AF-11G35 provides a quick, convenient upgrade path to the licensed 11 GHz band. The airFiber AF-11G35 uses the same antenna mount as the airFiber AF-5 and AF-5U. By simply swapping out an AF-5 or AF-5U with the AF-11G35, you can quickly and easily upgrade an unlicensed, full-duplex 5 GHz link to a licensed, full-duplex 11 GHz link.
- Carrier-Class Construction
- Incorporating a dish-reflector design for excellent beam directivity, the airFiber AF-11G35 antenna features robust mechanical design using industrial-strength hardware for outdoor applications.
- Plug-and-Play Integration

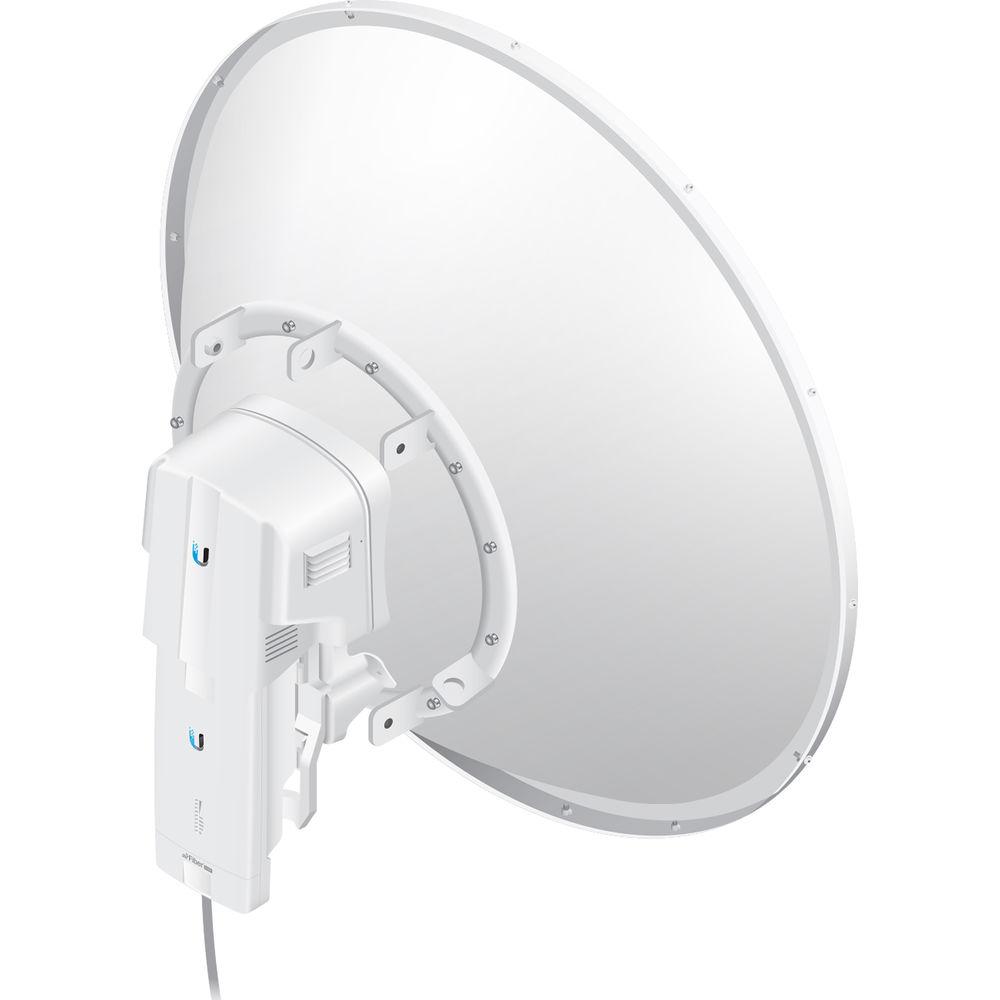

- The AF-11G35 antenna has a built-in mount for the AF-11FX radio, so installation requires no special tools. Snap the airFiber AF-11FX radio securely into place and mount the antenna; you then have the optimal airFiber X antenna and radio combination for your 11 GHz PtP application.
- Weatherproof Design

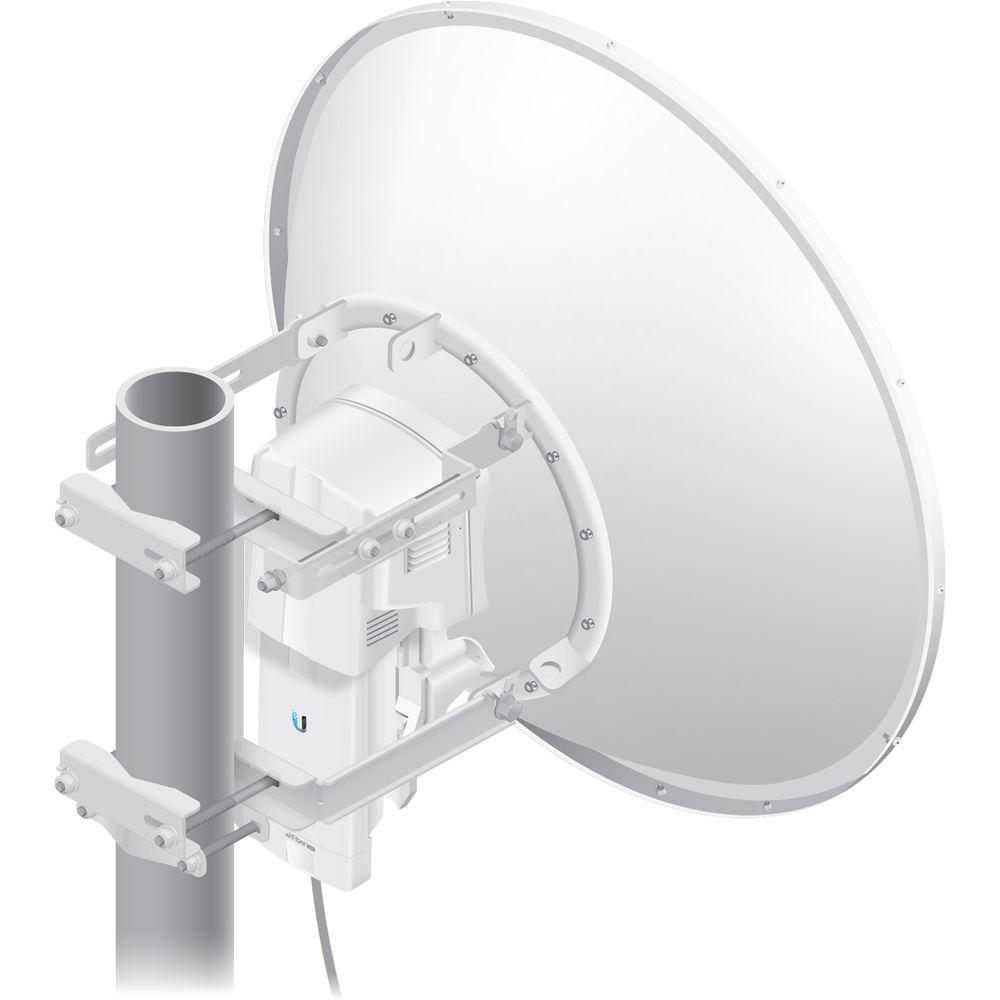

- Secure pole-mounting maintains the position of the dish during harsh outdoor conditions.
Protective shroud protects the cables and connectors from the elements.
Integrated radome shields the radio from the environment. - Enhanced Mount Design
- Lanyard loops assist in safely hoisting the antenna up a tower and into place.
Azimuth support brackets allow the antenna to be safely supported while the azimuth is adjusted.
Shared AF-5/AF-5U mount design facilitates upgrade of full-duplex links from unlicensed 5 GHz to licensed 11 GHz. UPC: 810354029936 In the Box Ubiquiti Networks airFiber X 11 GHz / 35 dBi Antenna Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks airFiber X 11 GHz 35 dBi Antenna in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUbiquiti Networks AF-11G35 Specs | Frequency | 10.3-11.7 GHz | | Gain | 35 dBi | | Beamwidth | HPOL
2.5°
VPOL
2.5° | | Front-to-Back Ratio | 60 dB | | Max VSWR | 2:1 | | Wind Survivability | 125 mph (200 km/h) | | Wind Loading | 346 lbf @ 125 mph (1538 N @ 200 km/h) | | Polarization | Default: H/V
After Rotating OMT: ±45° | | Cross-Pol Isolation | 35 dB | | Mounting | Uses the AF-5/AF-5U mounting system | | Regulatory Compliance | ETSI 302 217-4-2, Class 3 and FCC Cat B | | Dimensions | ø 31.9 x 18.1" (ø 811 x 460 mm) | | Weight | Mount Not Included: 15.74 lb (7.14 kg)
Mount Included: 26.12 lb (11.85 kg) | | | | Package Weight | 51.0 lb | | Box Dimensions (LxWxH) | 37.5 x 35.3 x 19.3" |
