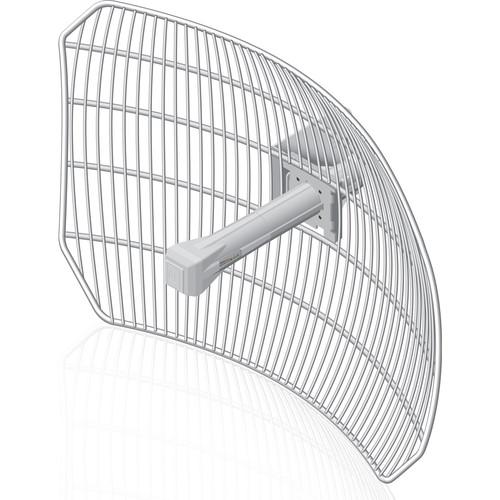

Product description Provided by third party: Utilizing InnerFeed technology, the airGrid M HP series from Ubiquiti Networks represents the latest evolution of outdoor wireless broadband devices. The revolutionary InnerFeed technology integrates the entire radio system into the feed horn of the antenna. airGridM combines Ubiquiti's InnerFeed and airMAX (TDMA protocol) technologies to create a simple, yet extremely powerful and robust wireless CPE (Customer Premises Equipment).
Complete antenna and radio system integration provides affordable cost/performance solutions to the wireless broadband industry. airGridM operates in the worldwide, license-free frequency range of either 2 GHz or 5 GHz, and features breakthrough performance up to 100+ Mbps in real outdoor throughput and incredible range up to 30+ km.
The low-cost, high-performance, robust "all-in-one" design and light weight of airGridM make it versatile and ideal in several different applications.
- Key Features
-
- High performance, long range
- Integrated InnerFeed CPE
- Easy assembly and installation
- Integrated airMAX technology
- Unlike standard Wi-Fi protocol, the exclusive Ubiquiti Networks airMAX Time Division Multiple Access (TDMA) protocol allows each client to send and receive data using pre-designated time slots managed by an intelligent AP controller. This "time slot" method eliminates hidden node collisions and maximizes airtime efficiency. Compared to other systems in its class, the airGridM delivers superior performance in reduced latency, throughput, and scalability.
- Easy, no tool assembly
- The updated mechanical design makes assembling and disassembling the airGridM, literally, a snap. No tools are required. You simply snap the feed, antenna, mounting bracket and rear housing together for a secure, solid assembly.
Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks airGrid M5 HP 5 GHz High-Performance Integrated InnerFeed Antenna in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUbiquiti Networks AG-HP-5G23(US) Specs | | | Product Type | Antenna | | Product Material | Plastic | | Width | 14.6 in | | Depth | 10.6 in | | Height | 10.2 in | | Weight | 3.2 lbs | | Localization | United States | | | | Intended For | Wi-Fi | | Antenna Placing / Mounting | Outdoor, pole mount | | Compatibility | 802.11 a/b/g/n | | Frequency Range | 5.725 - 5.850 GHz | | Gain | 23 dBi | | Voltage Standing Wave Ratio (VSWR) | 1.5:1 | | | | Connector Provided | 1 x RJ-45 | | | | Min Operating Temperature | -22
