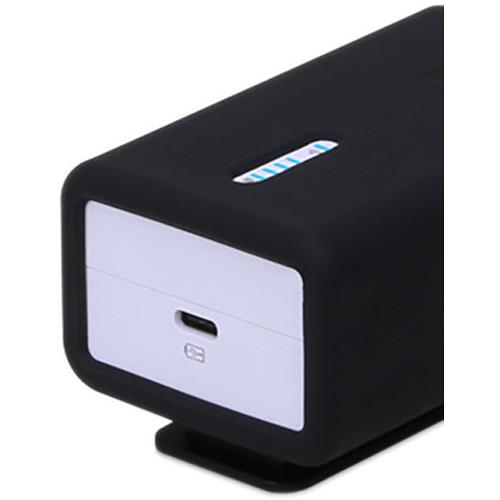

User Manual for Ubiquiti Networks airMAX CPE Installation Tool Click to enlarge the picture
Contents of the user manual for the Ubiquiti Networks airMAX CPE Installation Tool
- Product category: Networking Accessories Ubiquiti Networks
- Brand: Ubiquiti Networks
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ubiquiti Networks Networking Accessories
 |
User manual for the Ubiquiti Networks airMAX CPE Installation Tool contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ubiquiti Networks product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ubiquiti Networks user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ubiquiti Networks product will considerably shorten its lifespan!
|

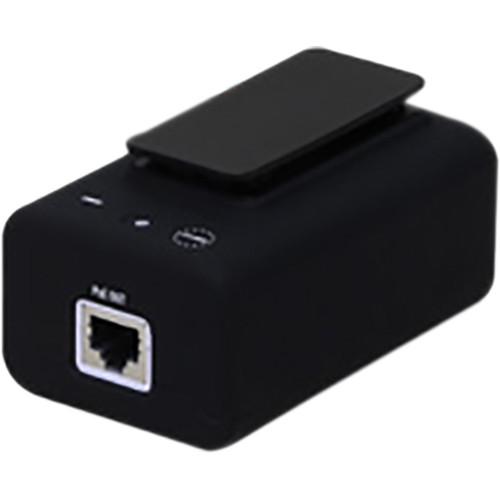

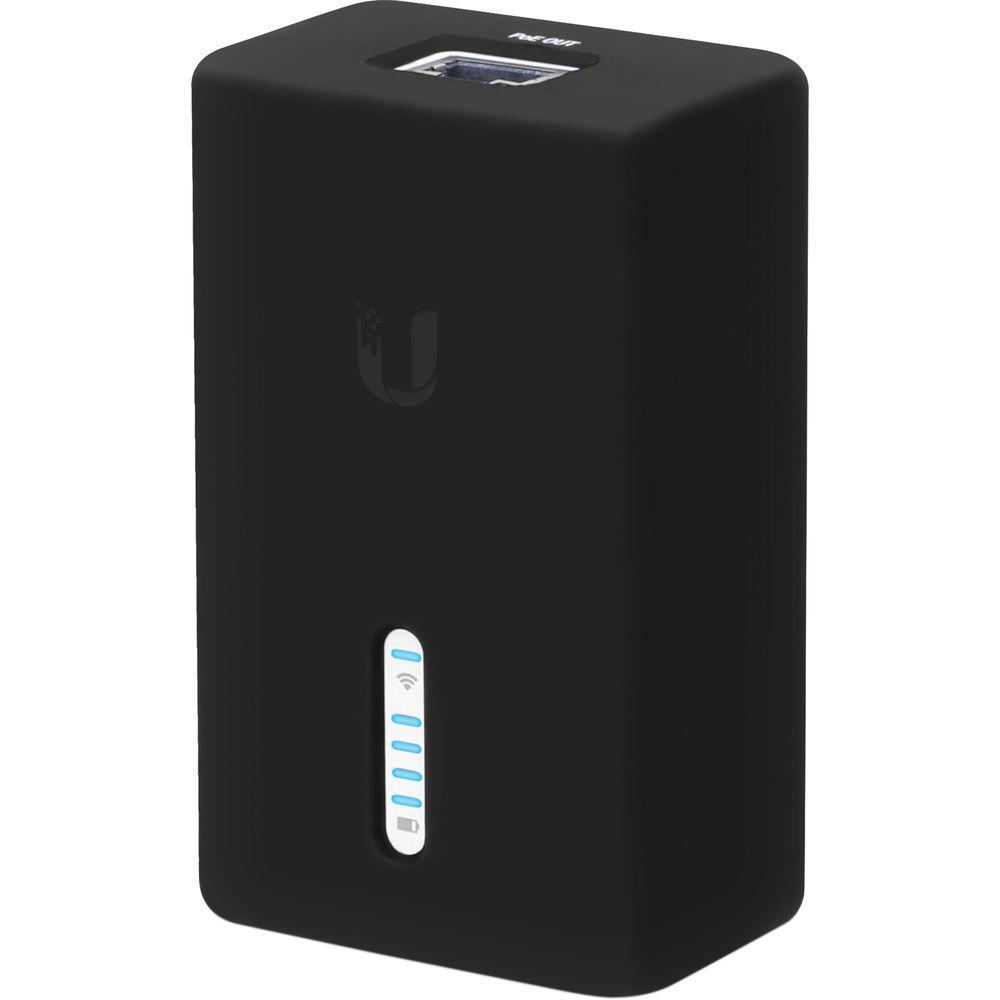

Product description With the airMAX CPE Installation Tool from Ubiquiti Networks, it is possible to provision airMAX Customer Premise Equipment right from your iOS- or Android-based mobile device. Simply download the UMobile app to access the airOS configuration interface and you can make the necessary adjustments to the CPE equipment. Additionally, this installation tool also provides 24V PoE power to the CPE device through the single Gigabit Ethernet port along with the ability to access the device via the Wi-Fi management interface. The airMAX CPE Installation tool also comes equipped with a single USB Type-C port and both Wi-Fi and battery status LED indicators. - Mobile Device Friendly Installation

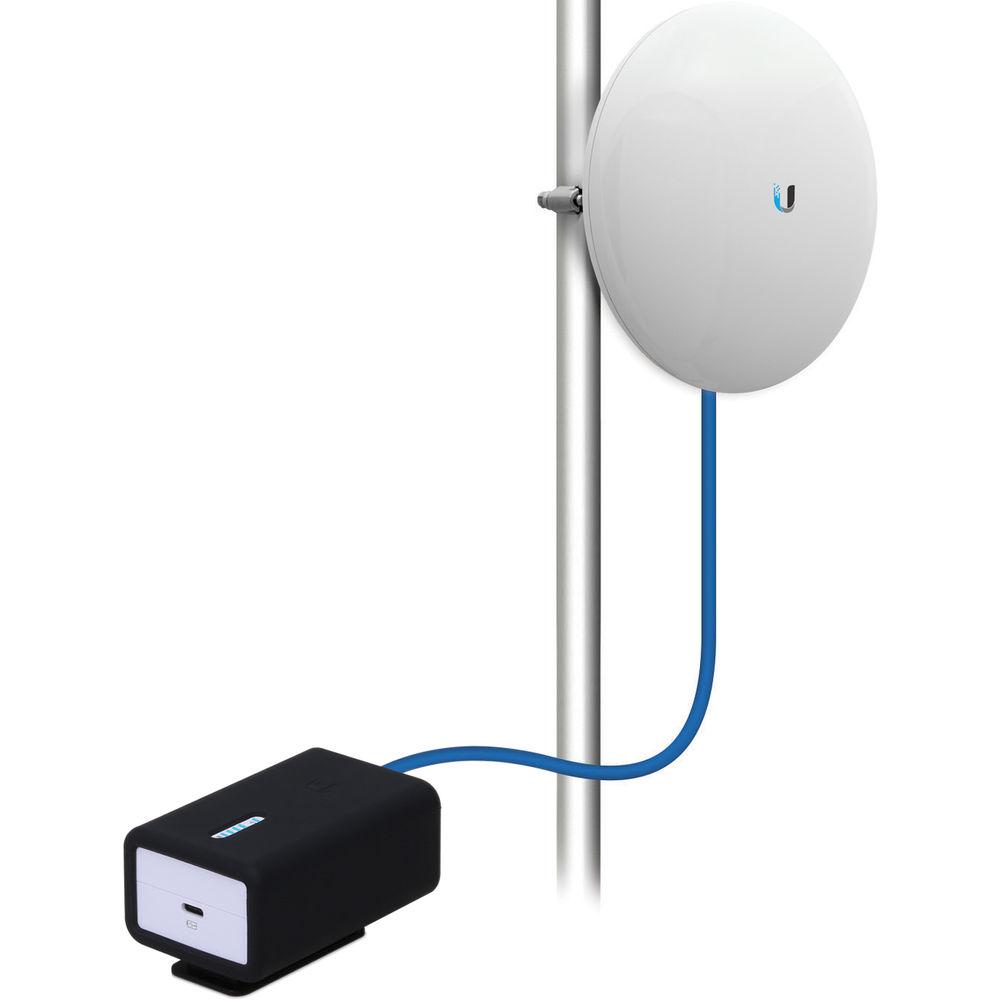

- The U-Installer provides Wi-Fi connectivity to the CPE management interface during installation, so provisioning and final adjustments can be made with a tablet or smartphone. The U-Installer also provides 24V PoE to the CPE, making installation easier. The Wi-Fi functionality allows the U-Installer to be used with devices that don't support 24V PoE.
- Accessing airOS via Wi-Fi
- The U-Installer gives you the ability to configure your CPE device through its Wi-Fi management radio and the UMobile app. Broadcasting its own SSID, the U-Installer allows mobile devices to connect wirelessly to the same network as your CPE device. This simplifies both device discovery and configuration. The UMobile app provides instant accessibility to the airOS configuration interface and can be downloaded from the App Store (iOS) or Google Play (Android). UMobile allows you to set up, configure, and manage your CPE devices.
- Hardware Overview
- Powers CPE via PoE

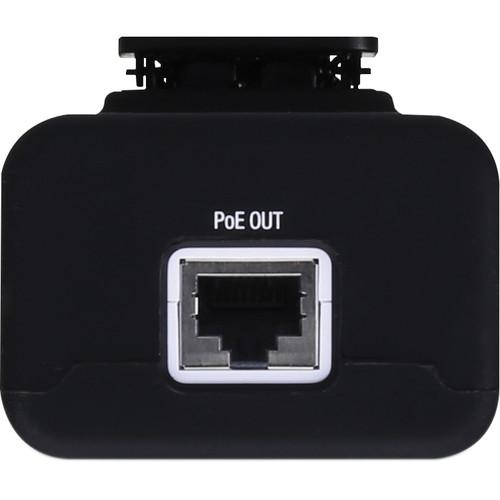

The U-Installer's PoE out port conveniently supplies 24V passive PoE to the CPE device
Durable Rubber Casing
The removable rubber casing protects the U-Installer during installation

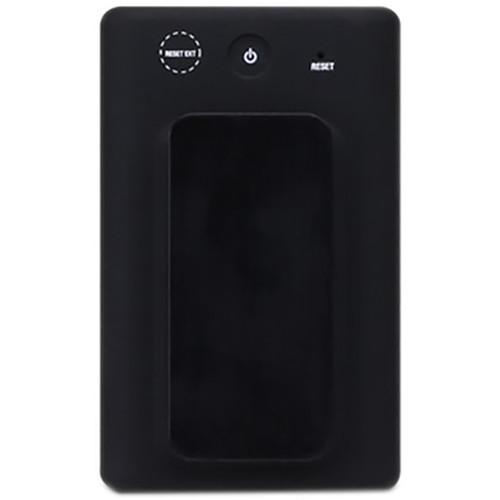

External PoE Reset
Quickly reset the device connected to the U-Installer to factory defaults

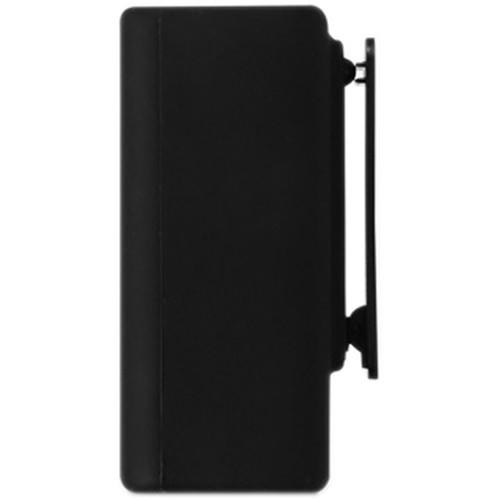

Rubber Case Clip
Use the clip on the back of the rubber casing to secure the U-Installer to a belt or pocket - Power
- Built-In Battery

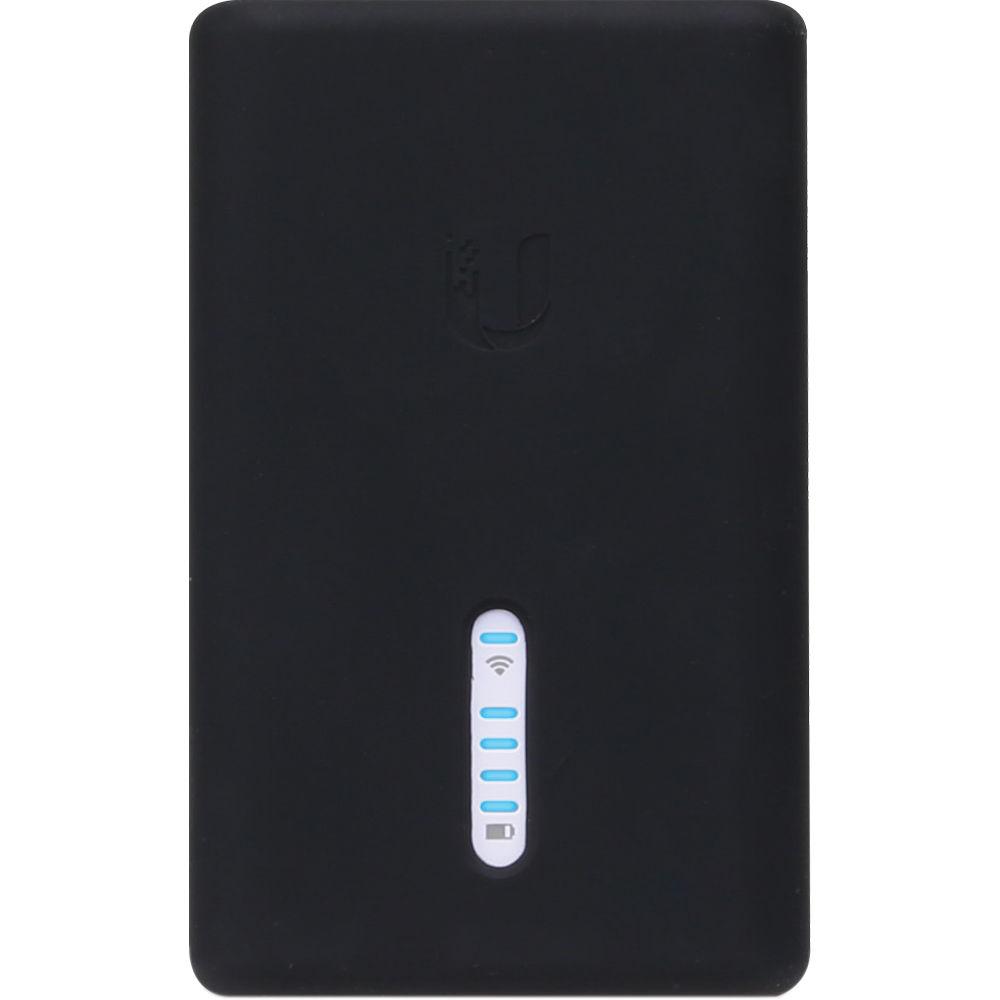

The internal battery provides up to one hour of runtime. Check the four blue LEDs on your U-Installer to verify the internal battery's charge level

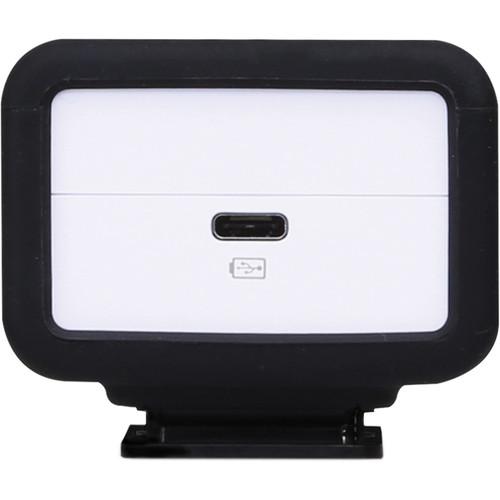

Rechargeable via USB
With a USB Type-C connector, the U-Installer can be charged on the go using a mobile battery pack, simplifying installation UPC: 817882020930 In the Box Ubiquiti Networks airMAX CPE Installation Tool Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks airMAX CPE Installation Tool in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUbiquiti Networks airMAX CPE Specs | Processor | Atheros MIPS 74KC, 560 MHz | | Memory | 64 MB DDR2 | | Buttons | 1 x Reset U-Installer
1 x Reset External airMAX Device
1 x Power On/Off | | Networking Interface | (1) 10/100 Ethernet Port
Wi-Fi | | Ports | 1 x USB-C Port | | PoE | Passive PoE Output
Voltage: 24 V
Max. Power: 12 W | | Management Interface | Wi-Fi | | Frequencies | 2.4 GHz | | Wi-Fi Standards | 802.11b/g/n | | Power Method | Internal battery
USB Mobile Battery Pack: 5 V, 3 A (not included) | | Power Supply | 5 V, 3 A | | Voltage Range | 4.95 - 5.05 V | | Power Consumption | U-Installer: 3 W
U-Installer with CPE: 15 W | | LED Indicators | 1 x Wi-Fi
4 x Battery | | ESD/EMP Protection | 24 kV contact/air | | Temperature & Humidity | Operating Temperature
32 to 95°F / 0 to 35°C
Operating Humidity
5 to 95% non-condensing | | Certifications | CE, FCC, IC | | Dimensions | 3.66 x 2.24 x 1.50" / 93.00 x 57.00 x 38.20 | | Weight | Not specified by manufacturer | | | | Package Weight | 0.75 lb | | Box Dimensions (LxWxH) | 4.5 x 3.05 x 2.35" |
