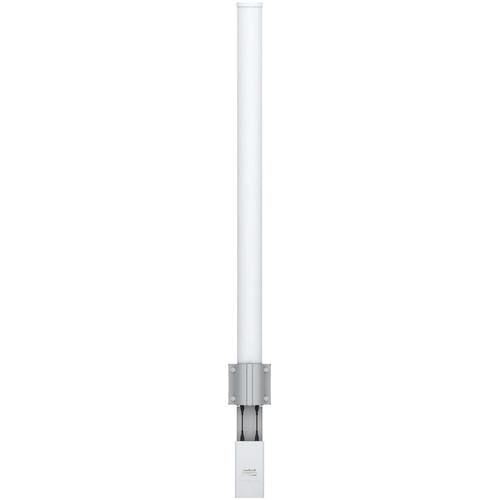

User Manual for Ubiquiti Networks AirMAX Omni 2x2 Dual Polarity MIMO Antenna Click to enlarge the picture
Contents of the user manual for the Ubiquiti Networks AirMAX Omni 2x2 Dual
- Product category: Antennas & Accessories Ubiquiti Networks
- Brand: Ubiquiti Networks
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ubiquiti Networks Antennas & Accessories
|
User manual for the Ubiquiti Networks AirMAX Omni 2x2 Dual contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ubiquiti Networks product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ubiquiti Networks user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ubiquiti Networks product will considerably shorten its lifespan!
|
Product description The Ubiquiti Networks AirMAX Omni 2x2 Dual Polarity MIMO Antenna is designed to be compatible with an optional Rocket M BaseStation to deliver 360° wireless networking. This dual-polarity antenna operates under the 3 GHz frequency and offers a gain of 12 dBi. It delivers 2x2 MIMO performance and supports airMAX technology, which uses a Time Division Multiple Access protocol to send and receive data at pre-designated time slots. Ubiquiti has outfitted the antenna with a robust mechanical design that helps ensure outdoor survivability. Included along with the antenna are a pole mount kit, Rocket M bracket, and weatherproof RF jumpers to make your base station building experience easier. - Seamlessly integrates with RocketM radios
- airMAX Technology: Intelligent QoS: Priority is given to voice/video for seamless streaming
Scalability: High capacity and scalability
Long Distance: Capable of high-speed, carrier-class links - Up to 100 airMAX clients can be connected to an airMAX Omni
UPC: 810354020971 In the Box Ubiquiti Networks AirMAX Omni 2x2 Dual Polarity MIMO Antenna Universal Pole Mount RocketM Bracket Weatherproof RF Jumpers Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks AirMAX Omni 2x2 Dual Polarity MIMO Antenna in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUbiquiti Networks AMO-3G12 Specs | Frequency Range | 3.4 to 3.7 GHz | | Gain | 12 dBi | | Elevation Beamwidth | 8° | | VSWR (Voltage Standing Wave Ratio) | 1.6:1 | | Electrical Downtilt | 4° | | Wind Survivability | 125 mph | | Wind Loading | 16 lb @ 100 mph | | Polarization | Dual-Linear | | Cross-pol Isolation | 25 dB Min | | ETSI Specification | EN 302 326 DN2 | | Mounting | Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included | | Dimensions | 39.84 x 4.80 x 4.13" (1012 x 122 x 105 mm) Excluding pole mount and RocketM (RocketM sold separately) | | Weight | 4.51 lb (2.05 kg) | | | | Package Weight | 6.15 lb | | Box Dimensions (LxWxH) | 43.5 x 6.25 x 4.7" |
