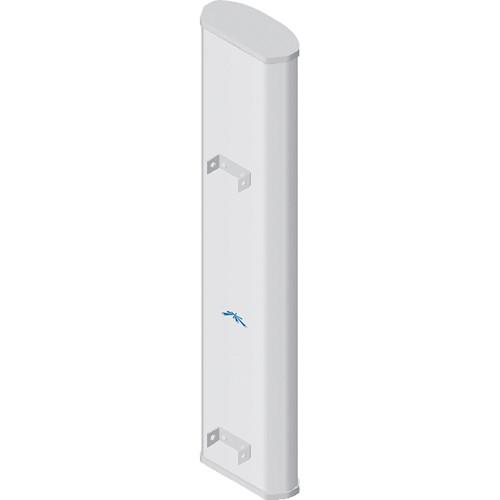

User Manual for Ubiquiti Networks airMAX Sector AM-9M13 2 x 2 MIMO BaseStation Sector Antenna Click to enlarge the picture
Contents of the user manual for the Ubiquiti Networks airMAX Sector AM-9M13 2
- Product category: Antennas & Accessories Ubiquiti Networks
- Brand: Ubiquiti Networks
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ubiquiti Networks Antennas & Accessories
|
User manual for the Ubiquiti Networks airMAX Sector AM-9M13 2 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ubiquiti Networks product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ubiquiti Networks user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ubiquiti Networks product will considerably shorten its lifespan!
|
Product description The 900 MHz airMAX Sector AM-9M13 2 x 2 MIMO BaseStation Sector Antenna from Ubiquiti Networks is designed to support both point-to-point (PtP) backhaul links and point-to-multipoint (PtMP) airMAX links when paired with the RocketM BaseStation (sold separately). The antenna features a built-in Rocket mount eliminating the need for additional tools to install it. Once installed, paring this sector antenna with the RocketM BaseStation lets you utilize Ubiquiti's airMAX technology. This airMAX technology is highly resistant to noise interference and provides enhanced gain and beam performance for high-capacity, multi-point networks. Antenna - Carrier-class construction and 2 x 2 dual-polarity performance
- Provides sector-wide coverage and utilizes airMAX technology
- High resistance to noise interference provides excellent gain and beam performance for high-capacity, multi-point networks
- Robust design for outdoor applications
- Provision of Rocket mount allows for tool-free installation of RocketM BaseStation
airMAX Technology - Ubiquiti's Time Division Multiple Access (TDMA) airMAX protocol allows each client to send and receive data using pre-designated timeslots scheduled by an intelligent AP controller
- Eliminates hidden node collisions and maximizes airtime efficiency
- Improves latency, throughput, and scalability
- Intelligent QoS: Priority is given to voice/video for seamless streaming
- Supports high-speed, carrier-class links
- Up to 100 airMAX clients can be connected to an airMAX Sector
UPC: 810354020933 In the Box Ubiquiti Networks airMAX Sector AM-9M13 2 x 2 MIMO BaseStation Sector Antenna (900 MHz) Antenna Bottom Cover 2 x U-Bracket 3 x V-Bracket Mounting Hardware Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks airMAX Sector AM-9M13 2 x 2 MIMO BaseStation Sector Antenna in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUbiquiti Networks AM-9M13-120 Specs | Frequency Range | 902 to 928 MHz | | Gain | 13.2 to 13.8 dBi | | Hpol Beamwidth | 109° (6 dB) | | Vpol Beamwidth | 120° (6 dB) | | Beamwidth | Electrical: 15° | | VSWR | 1.5:1 (maximum) | | Wind Survivability | 125 mph (200 kph) | | Wind Loading | 95 lbf @ 100 mph | | Polarization | Dual-linear | | Isolation | Cross-Polarization Isolation: 30 dB minimum | | Mounting | Universal pole mount, RocketM bracket, and weatherproof RF jumpers (included) | | Dimensions | 50.8 x 11.4 x 5.3" (129.0 x 29.0 x 13.4 cm)
Note: Excluding pole mount and RocketM (not included) | | Weight | 27.6 lb (12.5 kg)
Note:Including pole mount and excluding RocketM | | | | Package Weight | 26.5 lb | | Box Dimensions (LxWxH) | 52.0 x 14.0 x 9.25" |
