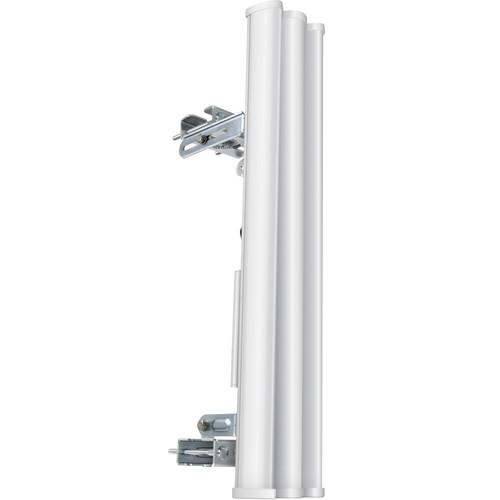

Product description The airMAX Titanium Sector RF Isolation Variable Beamwidth Antenna from Ubiquiti Networks provides adjustable beamwidth options to enhance scalability and streamline inventory. The airMAX Titanium Sector may be custom configured for any deployment requiring a 60°, 90°, or 120° sector. It is highly resistant to noise interference in co-location deployments. - Advanced Carrier-Class 2 x 2 MIMO PtMP BaseStation and Adjustable Beamwidth Configuration
- The advanced RF isolation and variable beamwidth configuration put the titanium sector at the forefront of sector antenna technology. The adjustable beamwidth options enhance scalability and streamline inventory. The sector may be custom configured for any deployment requiring a 60°, 90°, or 120° sector. Antenna gain changes according to the configured beamwidth
- Reduced Co-Location Interference
- The sector is highly resistant to noise interference in co-location deployments
- Easily Mount and Protect Your Rocket
- The airMAX Titanium Sector has an integrated Rocket mount that allows you to mount the rocket without the use of any tools. The custom designed protective shroud helps to shield the Rocket from the elements
- Increased Performance
- It is specifically engineered for optimal performance when paired with a Rocket M Titanium
20% increase in performance with PtMP networks
Up to 90% performance improvement in a co-location environment
Increased durability in harsh weather UPC: 810354021015 In the Box Ubiquiti Networks airMAX Titanium Sector RF Isolation Variable Beamwidth Antenna Protective Shroud 2 x U-Brackets 2 x Pole Brackets 2 x Pole Clamps 4 x Carriage Bolts (M8 x 135) 4 x Serrated Flange Bolts (M8 x 20) 8 x Serrated Flange Nuts (M8) 2 x RF Cables Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks airMAX Titanium Sector RF Isolation Variable Beamwidth Antenna in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUbiquiti Networks AM-V5G-TI Specs | Frequency Range | 5.45 to 5.85 GHz | | Beamwidth Angles | 60°/90°/120° | | Gain (Beamwidth Dependent) | 21 dBi @ 60°
20 dBi @ 90°
19 dBi @ 120° | | Elevation Beamwidth | 4° | | Electrical Down Tilt | 2° | | Wind Survivability | 125 m/h | | Wind Loading | 37 lb (16.7 kg) @ 120 m/h | | Polarization | Dual linear | | Cross-pol Isolation | Typical: 25 dB | | Front-to-Back Ratio | Typical: 30 dB | | VSWR | Maximum: 1.5:1 | | RF Connectors | 2 x RP-SMA (weatherproof) | | Compatible Radios | RocketM5 titanium
RocketM5 GPS
RocketM5 | | Mounting | Pole mount (kit included) | | ETSI Specification | EN 302 326 DN2 | | Certifications | CE, FCC, IC | | Dimensions | 28.30 x 5.80 x 2.90" (721.0 x 149.10 x 75.70 mm) | | Weight | 8.20 lb (3.72 kg) (with brackets) | | | | Package Weight | 10.5 lb | | Box Dimensions (LxWxH) | 36.0 x 8.0 x 6.5" |
