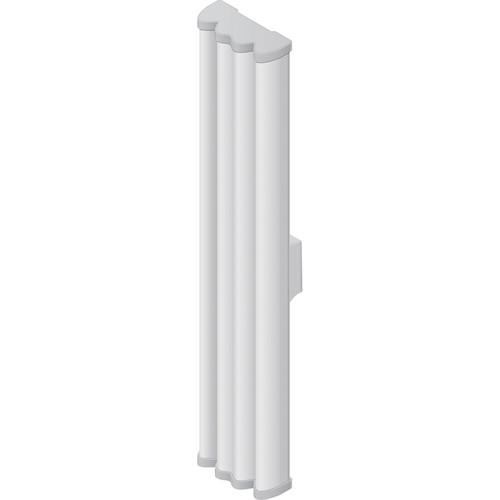

User Manual for Ubiquiti Networks airMAXac Sector 2x2 MIMO BaseStation 5 GHz 22 dBi Antenna Click to enlarge the picture
Contents of the user manual for the Ubiquiti Networks airMAXac Sector 2x2 MIMO
- Product category: Antennas & Accessories Ubiquiti Networks
- Brand: Ubiquiti Networks
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ubiquiti Networks Antennas & Accessories
|
User manual for the Ubiquiti Networks airMAXac Sector 2x2 MIMO contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ubiquiti Networks product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ubiquiti Networks user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ubiquiti Networks product will considerably shorten its lifespan!
|
Product description When used in conjunction with the Rocket 5ac radios from Ubiquiti Networks, the airMAXac Sector 2x2 MIMO BaseStation 5 GHz 22 dBi Antenna also from Ubiquiti Networks is designed to provide network enhancements with regards to scalability, noise isolation, and beam performance. This versatile antenna can also be used with RocketM5 models as well.
This airMAXac antenna is designed for use in point-to-multipoint environments where other antennas and networking equipment may be present. As a result Ubiquiti Networks has built-in enhanced noise isolation technology and a deflector design to deflect nearby signals and help reduce interference producing a cleaner, stronger signal. In addition to noise isolation this antenna implements signal-to-noise ratio technology to transmit more bits per second resulting in improved data transfer rates. UPC: 810354021404 In the Box Ubiquiti Networks airMAXac Sector 2x2 MIMO BaseStation 5 GHz 22 dBi Antenna Universal Pole Mount Rocket Bracket Weatherproof RF Jumpers Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks airMAXac Sector 2x2 MIMO BaseStation 5 GHz 22 dBi Antenna in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUbiquiti Networks AM-5AC22-45 Specs | Frequency Band | 5.10 - 5.85 GHz | | Antenna Gain | 22 dBi | | Beamwidth | HPOL: 45° (6 dBi)
VPOL: 45° (6 dBi)
Electrical: 4° | | Electrical Downtilt | 2° | | Maximum VSWR | 1.5:1 | | Wind Survivability | 200 km/h (125 mph) | | Wind Loading | 347 N at 200 km/h (78 lbf at 125 mph) | | Polarization | Dual-linear | | Cross-Polarization Isolation | 25/30 dB minimum | | ETSI Specification | EN 302 326 DN2 | | Dimensions | 29.53 x 8.47x 3.70" (750.00 x 215.00 x 94.00 mm) | | Weight | 13.23 lb (6.00 kg) | | | | Package Weight | 16.9 lb | | Box Dimensions (LxWxH) | 35.0 x 10.2 x 7.5" |
