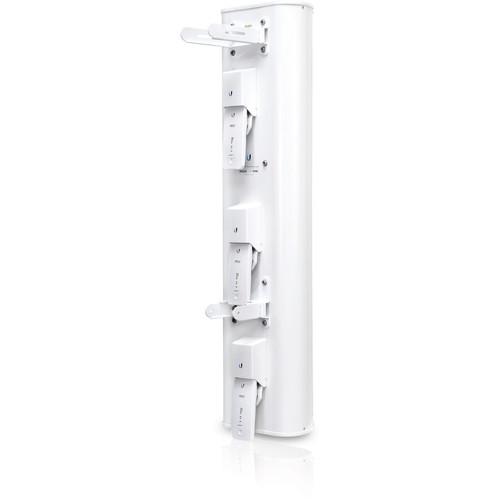

Product description With the ability to install three Rocket5ac Prism radios, the airPRISM 5 GHz 3x30° HD Sector Antenna from Ubiquiti Networks provides three separate 30° beamwidth signal transmissions. The configuration of the radios makes this HD sector antenna a perfect solution for point-to-multipoint setups and with enhanced noise isolation and beam performance users benefit from a stronger signal with enhanced data rates. This antenna also operates on the less congested 5 GHz frequency offering a more reliable connection with reduced interference. - Three Built-in Radios
- Three Rocket5ac Prism radios mounted on a single airPrism antenna maximizes throughput in an efficient tower footprint, minimizing installation and tower costs.
- Powerful Performance
- Highly resistant to noise interference, the airPrism antenna provides superior beam performance in high-density areas for high-capacity, multipoint networks.
- Plug-and-Play Integration
- The airPrism antenna and Rocket5ac Prism radios have been designed to seamlessly work together. Every airPrism antenna has three built-in Rocket radio mounts, so installation requires no special tools.
Snap the three Rocket5ac Prism radios securely into place and mount the antenna for your PtMP link. UPC: 810354021947 In the Box Ubiquiti Networks airPRISM 5 GHz 3x30° HD Sector Antenna Universal Pole Mount Rocket Bracket Weatherproof RF Connectors Limited 1-Year Manufacturer Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks airPRISM 5 GHz 3x30° HD Sector Antenna in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUbiquiti Networks AP-5AC-90-HD Specs | Frequency Range | 5.15 - 5.85 GHz | | Gain | 22 dBi | | Hpol Beamwidth | 3 x 30° (6 dB) | | Vpol Beamwidth | 3 x 30° (6 dB) | | Electrical Beamwidth | 8° | | Electrical Downtilt | 2° | | Maximum VSWR | 1.75:1 | | Polarization | Dual-linear | | Cross-Polarization Isolation | 30 dB minimum | | Interfaces | 6 x RP-SMA connectors (weatherproof) | | Compatible Radios | Rocket5ac Prism, model R5AC-PRISM | | Wind Loading | 120 lbf @ 125 mph / 534 N @ 200 km/h | | Wind Survivability | 125 mph / 200 km/h | | Mounting | Universal Pole Mount, Rocket Bracket, and Weatherproof RF Connectors Included | | ETSI Specification | EN 302 326 DN2 | | Certifications | CE, FCC, IC | | Dimensions | 12.70 x 7.93 x 51.18" / 322.6 x 201.5 x 1300.0 mm | | Weight | 28.9 lb / 13.1 kg | | | | Package Weight | 36.2 lb | | Box Dimensions (LxWxH) | 60.0 x 16.0 x 11.0" |
