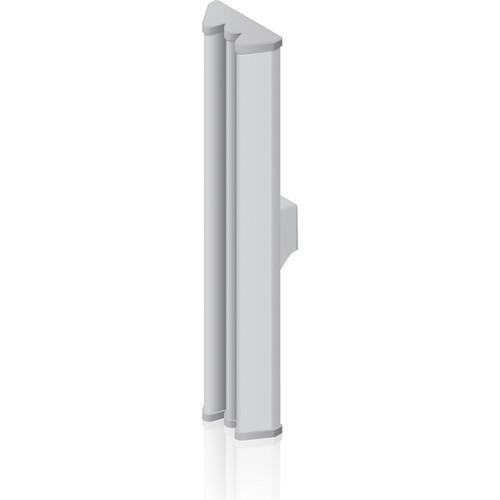

User Manual for Ubiquiti Networks AM-3G18-120 AirMAX 3 GHz 2x2 MIMO Sector Antenna Click to enlarge the picture
Contents of the user manual for the Ubiquiti Networks AM-3G18-120 AirMAX 3 GHz
- Product category: Antennas & Accessories Ubiquiti Networks
- Brand: Ubiquiti Networks
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ubiquiti Networks Antennas & Accessories
|
User manual for the Ubiquiti Networks AM-3G18-120 AirMAX 3 GHz contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ubiquiti Networks product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ubiquiti Networks user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ubiquiti Networks product will considerably shorten its lifespan!
|
Product description The AM-3G18-120 AirMAX 3 GHz 2x2 MIMO Sector Antenna from Ubiquiti Networks provides networking flexibility and convenience by letting you create a customized base station with an optional RocketM radio. This antenna operates under the 3 GHz frequency and offers a gain of 18 dBi. It delivers 2x2 MIMO performance and supports airMAX technology, which uses a Time Division Multiple Access protocol to send and receive data at pre-designated time slots. Included along with the antenna are a pole mount, RocketM bracket, and weatherproof RF jumpers to make your base station building experience easier. - Seamlessly integrates with RocketM radios
- Remarkable cross-polarization isolation
- Intelligent QoS: Priority is given to voice/video for seamless streaming
Scalability: High capacity and scalability Long Distance: Capable of high-speed, carrier-class links - Up to 100 airMAX clients can be connected to an airMAX sector antenna
UPC: 810354020889 In the Box Ubiquiti Networks AM-3G18-120 AirMAX 3 GHz 2x2 MIMO Sector Antenna Universal Pole Mount RocketM Bracket Weatherproof RF Jumpers Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks AM-3G18-120 AirMAX 3 GHz 2x2 MIMO Sector Antenna in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUbiquiti Networks AM-3G18-120 Specs Frequency Range | 3.3 to 3.8 GHz | Gain | 17.3 to 18.2 dBi | Hpol Beamwidth | 118° (6 dB) | Vpol Beamwidth | 121° (6 dB) | Beamwidth | Electrical: 6° | Electrical Downtilt | 3° | VSWR (Voltage Standing Wave Ratio) | 1.5:1 | Wind Survivability | 125 mph | Wind Loading | 21 lbf @ 100 mph | Polarization | Dual-Linear | Cross-pol Isolation | 28 dB Min | ETSI Specification | EN 302 326 DN2 | Dimensions | 28.93 x 5.66 x 3.07" (735 x 144 x 78 mm) | Weight | 13 lb (5.9 kg) | | Package Weight | 10.5 lb | Box Dimensions (LxWxH) | 35.75 x 7.75 x 6.5" |
