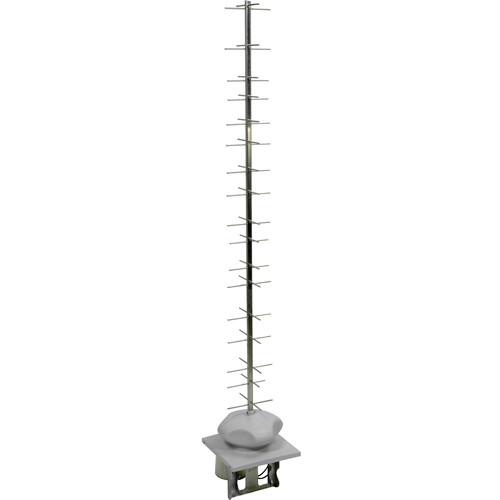

User Manual for Ubiquiti Networks AMY-9M16 900 MHz YAGI Antenna Click to enlarge the picture
Contents of the user manual for the Ubiquiti Networks AMY-9M16 900 MHz YAGI
- Product category: Antennas & Accessories Ubiquiti Networks
- Brand: Ubiquiti Networks
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ubiquiti Networks Antennas & Accessories
|
User manual for the Ubiquiti Networks AMY-9M16 900 MHz YAGI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ubiquiti Networks product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ubiquiti Networks user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ubiquiti Networks product will considerably shorten its lifespan!
|
Product description Extend the reach of your wireless data network with this 2-pack of AMY-9M16 900 MHz YAGI Antennas from Ubiquiti Networks. This antenna operates on the 902-928 MHz frequency range and offers a gain of 16 dBi in both polarizations. With dual linear polarization the antenna is capable of directing the wireless network signal in two directions rather than one like many similar antennas. The antenna is also designed to hold up against harsh weather conditions as it comes equipped with an outdoor UV stabilized plastic enclosure and a pole mounting kit to withstand winds of up to 120 mph. Inside the enclosure you will find a 400 MHz Atheros MIPS 24KC processor backed up by 64MB SDRAM and 8MB Flash memory to ensure smooth operation. - airMAX YAGI Antenna 2x2 MIMO
- The airMAX 900 MHz YAGI is a high-gain array antenna designed to seamlessly integrate with the Rocket M900 radio (sold separately). It features enhanced range performance 12+ mi (20+ km) and breakthrough speed (90+ Mbps real TCP/IP). The Rocket M900 combines the "brains" in one robust unit; it can be paired with the airMAX 900 MHz YAGI (AMY-9M16) or airMax 900 MHz BaseStation (AMS 900-120-13) antennas (sold separately). This versatility gives architects improved flexibility and convenience to create powerful 2x2 MIMO PtP bridging or 2x2 MIMO PtMP BaseStation solutions.
- Integrated airMAX Technology
- Unlike the standard WiFi protocol, Ubiquiti's Time Division Multiple Access (TDMA) airMAX protocol allows each client to send and receive data using pre-designated time slots scheduled by an intelligent AP controller. This "time slot" method eliminates hidden node collisions and maximizes air time efficiency.
- Easy Installation
- The Rocket M900 radio (sold separately) and airMAX YAGI antenna have been designed to seamlessly work together.
UPC: 810354021039 In the Box Ubiquiti Networks AMY-9M16 900 MHz YAGI Antenna (2-Pack) Pole Mounting Kit Limited 1-Year Manufacturer Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks AMY-9M16 900 MHz YAGI Antenna in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUbiquiti Networks AMY-9M16X2 Specs | | | Processor | 400 MHz Atheros MIPS 24KC | | Memory | 64 MB SDRAM, 8MB Flash | | Networking Interface | 1 x 10/100 Ethernet port | | | | Wireless Approvals | FCC Part 15.247, IC RS210 | | RoHS Compliance | Yes | | | | Enclosure Characteristics | Outdoor UV stabilized plastic | | Mounting Kit | Pole mounting kit included | | Max Power Consumption | 6.5 W | | Power Supply | 24 V, 1 A PoE supply included | | Power Method | Passive Power over Ethernet (pairs 4, 5+; 7, 8 return) | | Operating Temperature | -22 to 158°F / -30 to 70°C | | Operating Humidity | 5 to 95% | | Shock and Vibration | ETSI300-019-1.4 | | Dimensions | 6.30 x 3.15 x 1.18" / 16 x 8 x 3 cm | | Weight | 1.1 lb / 0.5 kg | | | | Frequency Range | 902 - 928 MHz | | Gain | 16 dBi, both polarizations | | Hpol Beamwidth | 29 to 34° | | Vpol Beamwidth | 29 to 34° | | F/B Ratio | 20 dB | | Max VSWR | <1.5:1 Over Band | | Wind Survivability | 120 mph | | Wind Loading | 35 ft-lbs @ 100 mph | | Polarization | Dual linear | | Cross-pol Isolation | 20 dB | | ETSI Specification | EN 302 326 DN2 | | Mounting | M8 U-Bolt pole mounting kit included | | Dimensions | 66.54 x 11.61 x 11.61" / 169 x 30 x 30 cm | | Weight | 10.25 lb / 4.65 kg | | | | Package Weight | 20.8 lb | | Box Dimensions (LxWxH) | 67.0 x 13.0 x 12.0" |
