User Manual for Ubiquiti Networks BULLETM2-HP BULLET M AirMax 2.4 GHz Zero-Variable Weatherproof Outdoor Radio Click to enlarge the picture
Contents of the user manual for the Ubiquiti Networks BULLETM2-HP BULLET M AirMax
- Product category: Wireless Bridges Ubiquiti Networks
- Brand: Ubiquiti Networks
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ubiquiti Networks Wireless Bridges
|
User manual for the Ubiquiti Networks BULLETM2-HP BULLET M AirMax contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ubiquiti Networks product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ubiquiti Networks user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ubiquiti Networks product will considerably shorten its lifespan!
|

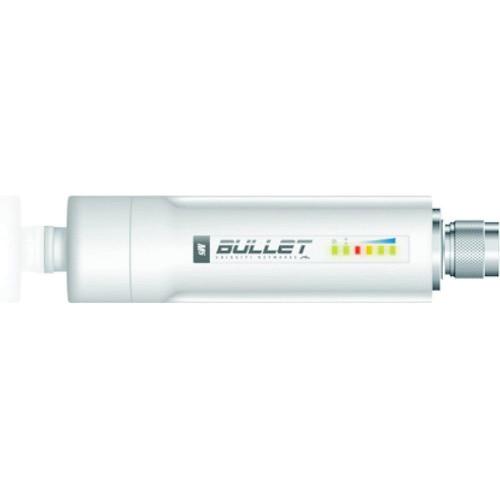

Product description Plug the 28 dBm BULLETM2-HP BULLET M AirMax 2.4 GHz Zero-Variable Weatherproof Outdoor Radio from Ubiquiti Networks into virtually any any antenna with a Type-N female connector. Once connected this radio has the ability to provide a variety of network connectivity options including access point, client, or bridge configurations. Users also benefit from enhanced connectivity over long distances with data transfer rates of up to 100 Mbps or more. Zero Variable Deployment - Eliminates the need to use RF cables and requires no special antenna or tools to install
- No radio card / host board issues
- No RF cable quality concerns
- No mechanical stability concerns
- No enclosure mounting requirements
- Plug-and-Play; to any existing antenna with an N-type female connector to create an AirMAX base station
Integrated AirMax Technology - Utilizing Ubiquiti's AirMax technology, the radio can instantly become a powerful TDMA BaseStation
- With AirMax, PtMP networks can scale smoothly while maintaining high throughput and low latency performance
UPC: 810354020124 In the Box Ubiquiti Networks BULLETM2-HP BULLET M AirMax 2.4 GHz Zero-Variable Weatherproof Outdoor Radio (28 dBm) Limited 1-Year Warranty Brochure PDF 1.3mbruquwwuaarwyeuyszczdxftwfsu Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks BULLETM2-HP BULLET M AirMax 2.4 GHz Zero-Variable Weatherproof Outdoor Radio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUbiquiti Networks Bullet M Specs | Processor | Atheros MIPS 24KC, 400 MHz | Memory | 32 MB SDRAM, 8 MB Flash | Networking Interface | 1 x 10/100 BaseTX (CAT 5, RJ-45) Ethernet | | Wireless Approvals | FCC Part 15.247, IC RS210, CE | | Range | Over 31 miles (50 km) (antenna dependent) | RF Connector | Integrated N-type Male Jack (connects directly to antenna) | Power Rating | Up to 24 V | Power Method | Passive Power over Ethernet (pairs 4, 5+; 7, 8 return) POE Adapter is sold separately. | Shock and Vibration | ETSI300-019-1.4 | Operating Frequency | 2412 to 2462 MHz | Maximum Power Consumption | 7 W | Transmit Power | Output Power: 28 dBm
Modulation: 11b/g Data Rate: Average TX: Tolerance 6 to 24 Mb/s: 28 dBm: ± 2 dB 36 Mb/s: 25 dBm: ± 2 dB 48 Mb/s: 24 dBm: ± 2 dB 54 Mb/s: 23 dBm: ± 2 dB
Modulation: 11n Data Rate: Average: TX Tolerance MCS0: 28 dBm: ± 2 dB MCS1: 28 dBm: ± 2 dB MCS2: 28 dBm: ± 2 dB MCS3: 28 dBm: ± 2 dB MCS4: 27 dBm: ± 2 dB MCS5: 25 dBm: ± 2 dB MCS6: 23 dBm: ± 2 dB MCS7: 22 dBm: ± 2 dB | Receive Power | Output Power: 28 dBm
Modulation: 11b/g Data Rate: Sensitivity: Tolerance 24 Mb/s: -83 dBm minimum: ±2 dB 36 Mb/s: -80 dBm: ± 2 dB 48 Mb/s: -77 dBm: ± 2 dB 54 Mb/s: -75 dBm: ± 2 dB
Modulation: 11n Data Rate: Sensitivity: Tolerance MCS0: -96 dBm: ± 2 dB MCS1: -95 dBm: ± 2 dB MCS2: -92 dBm: ± 2 dB MCS3: -90 dBm: ± 2 dB MCS4: -86 dBm: ± 2 dB MCS5: -83 dBm: ± 2 dB MCS6: -77 dBm: ± 2 dB MCS7: -74 dBm: ± 2 dB | | Operating Temperature | -40 to 176°F (-40 to 80°C) | Operating Humidity | 5 to 95% condensing | | Construction | Outdoor UV stabilized plastic | Dimensions (L x W x H) | 5.9 x 1.4 x 1.2" (15.2 x 3.7 x 3.1 cm) | Weight | 0.39 lb (0.18 kg) | | Package Weight | 0.35 lb | Box Dimensions (LxWxH) | 6.614 x 2.205 x 1.89" |
